Valve Body Assembly: Removal

DRAIN AUTOMATIC TRANSMISSION FLUID (See REMOVAL )
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY (See REMOVAL )
REMOVE VALVE BODY OIL STRAINER ASSEMBLY (See REMOVAL )
DISCONNECT TRANSMISSION WIRE (See REMOVAL )
REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Remove the 20 bolts and valve body.

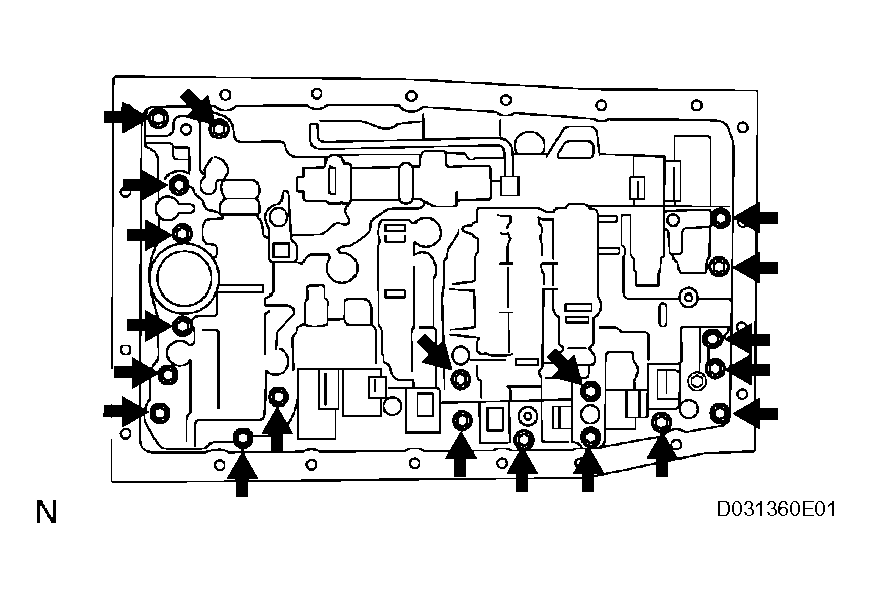

  Fig 1: Identifying Bolts And Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the lever pin from the manual valve.

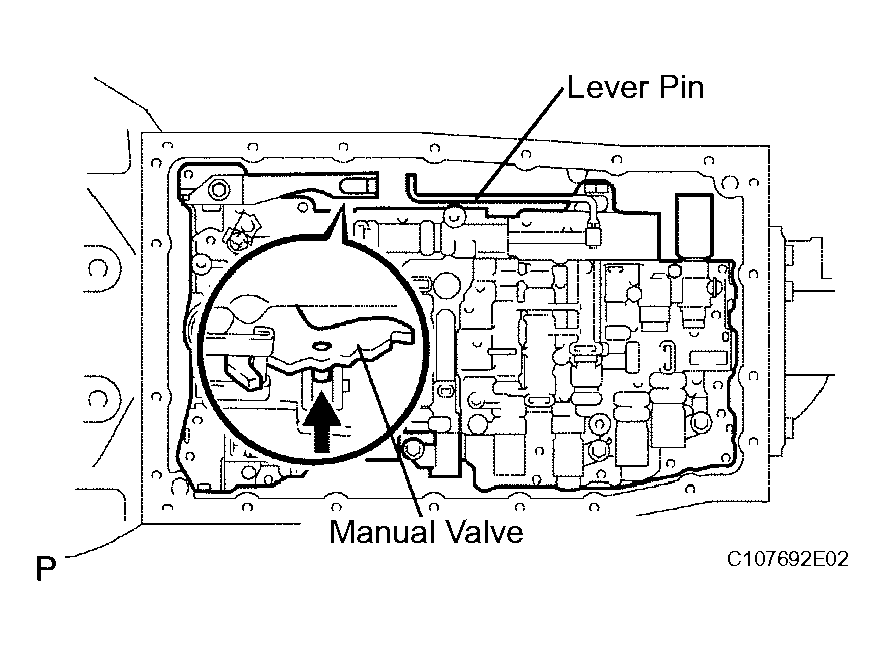

  Fig 2: Separating Lever Pin From Manual Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the check ball body and spring.
  NOTE: Do not drop the check ball body and spring.

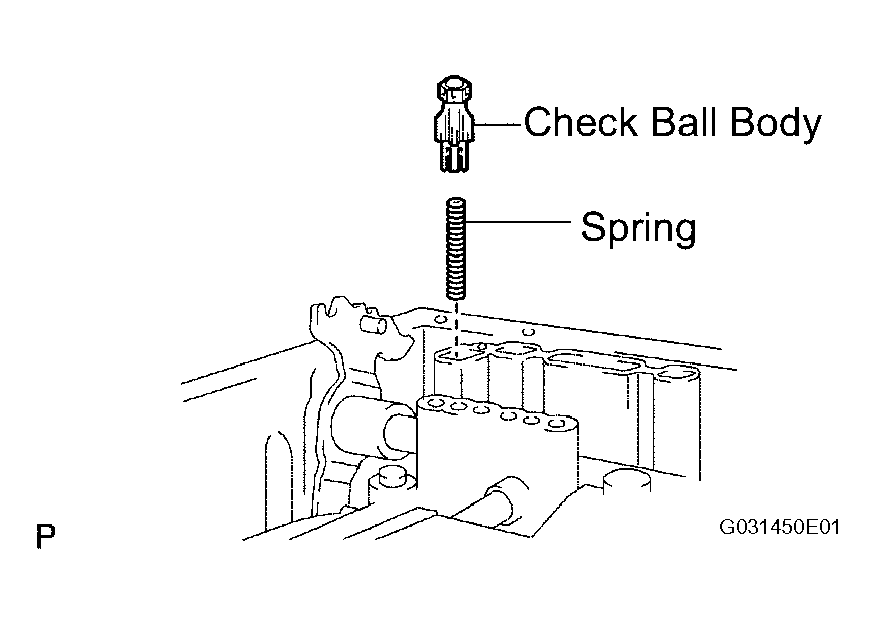

  Fig 3: Identifying Check Ball Body And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
