Dynamic Laser Cruise Control System

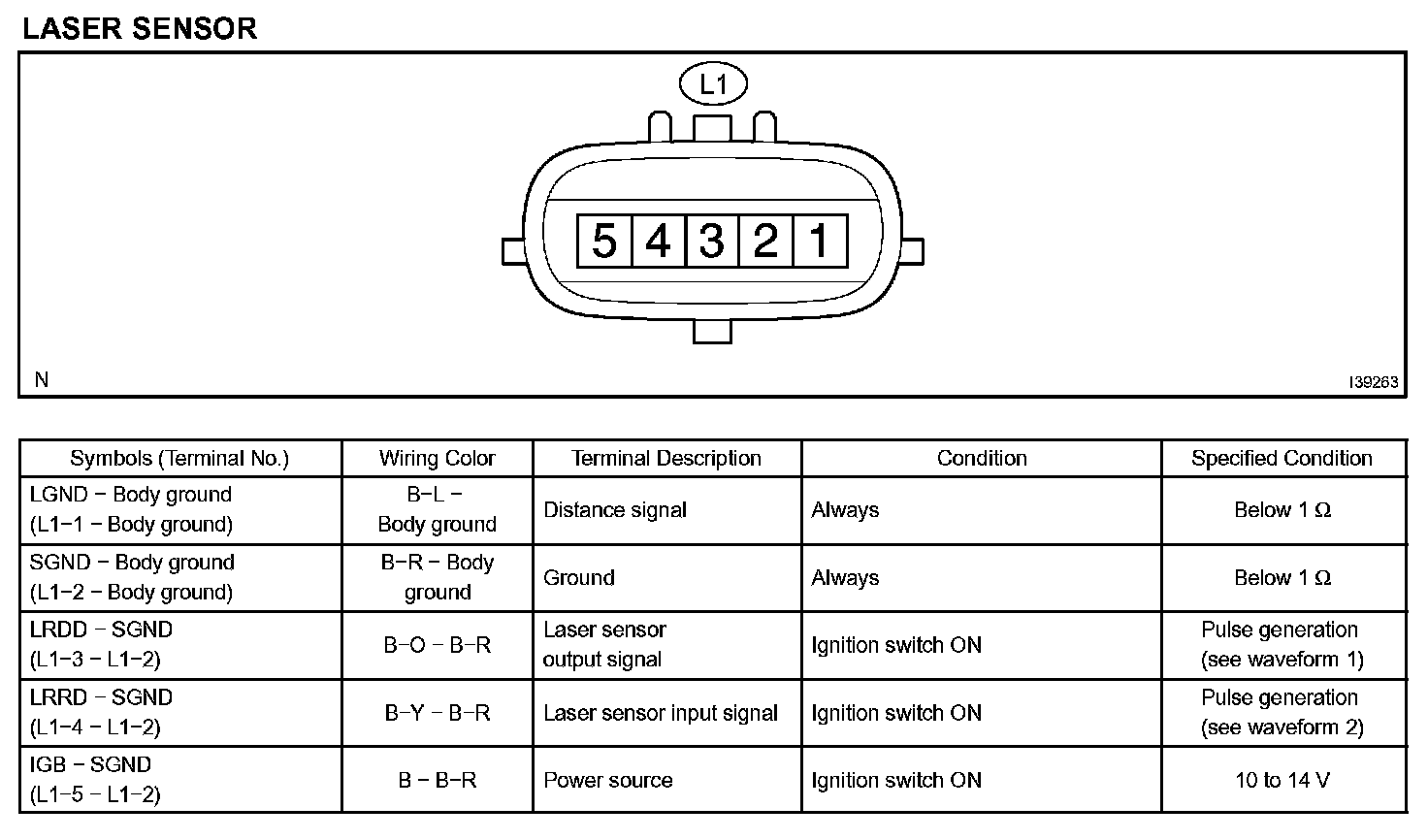

Terminals Of Control Module/Pinouts:

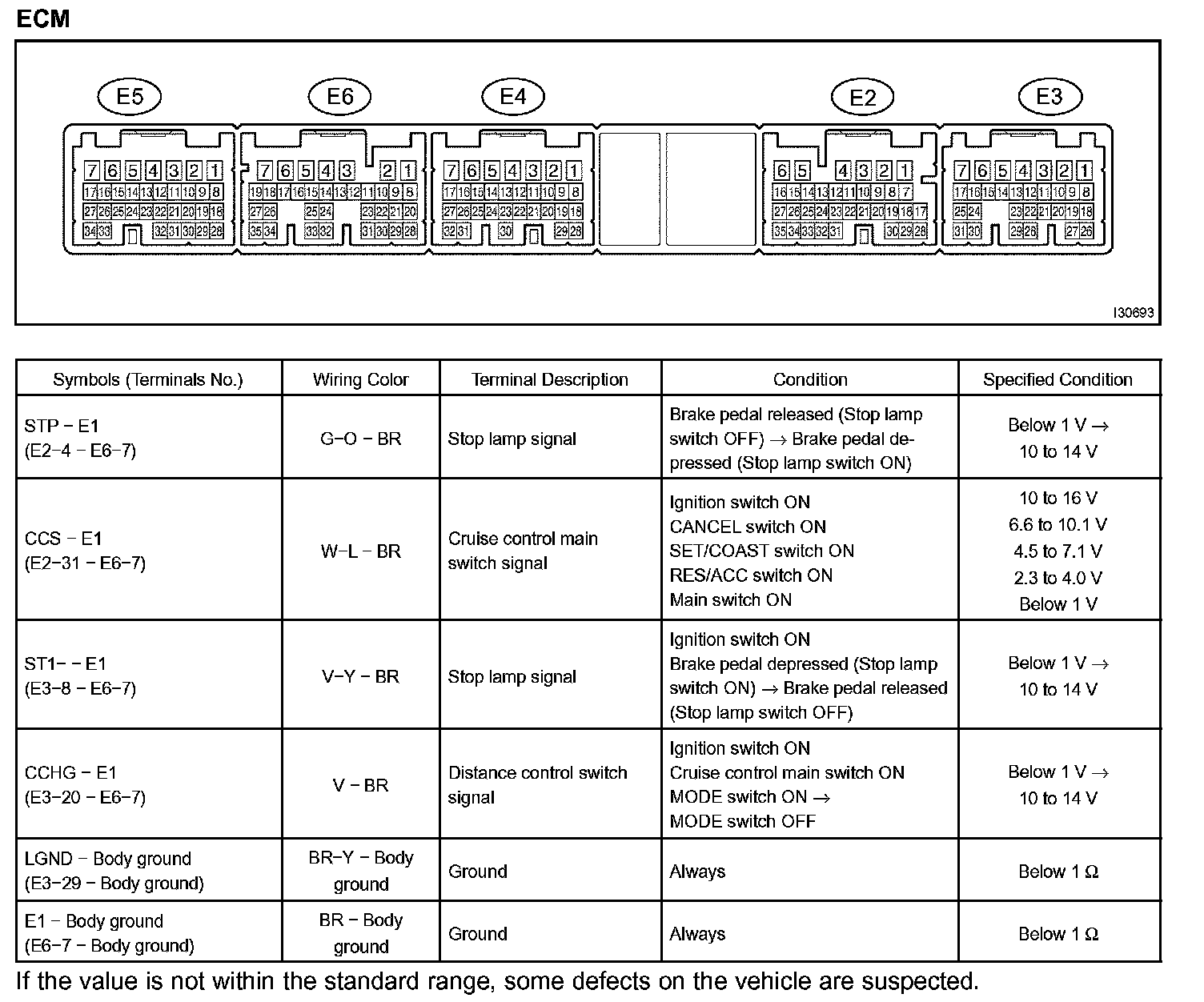

Terminals Of ECM/Pinouts:

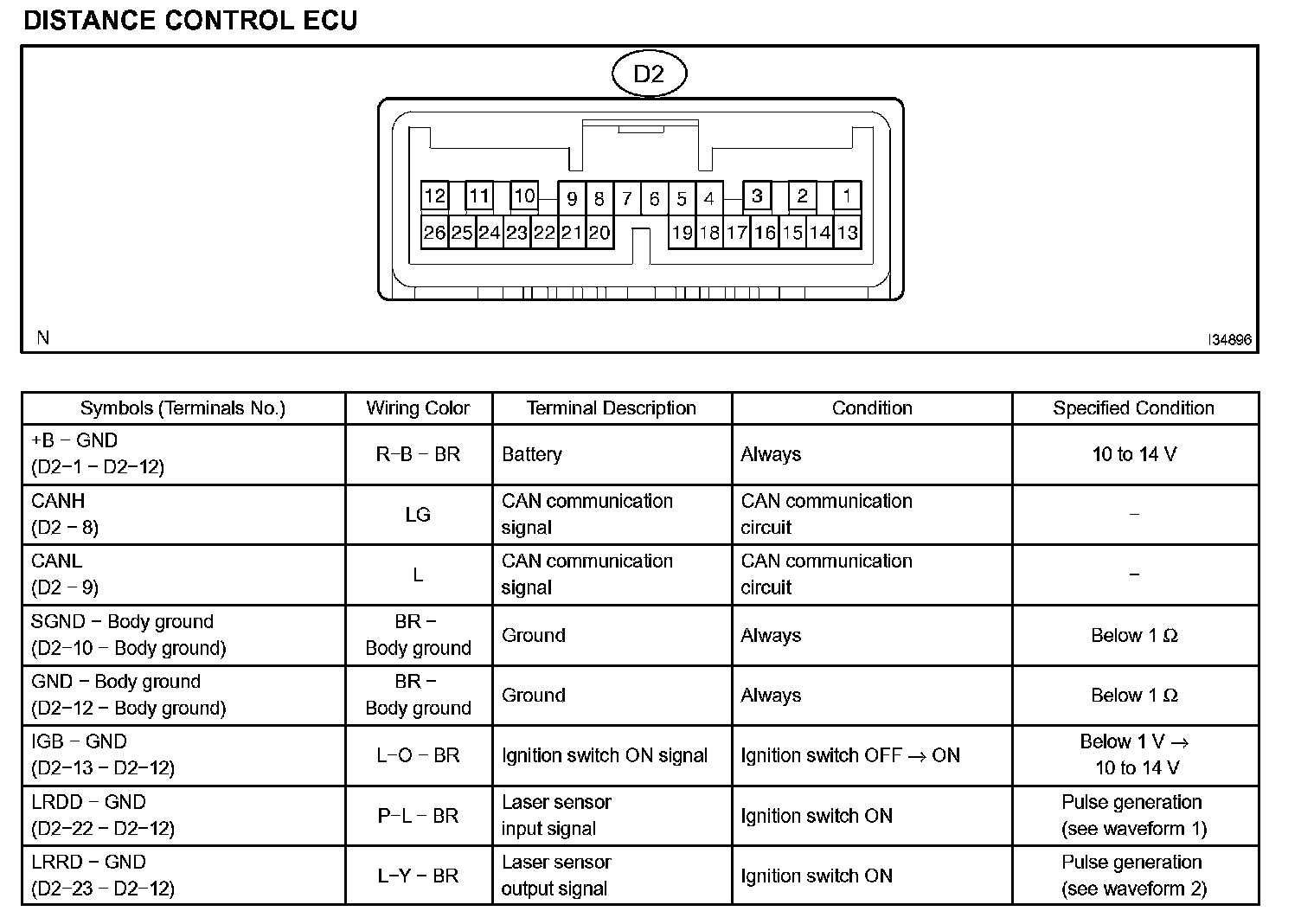

Terminals Of Control Module/Pinouts:
