Control Module, A/T

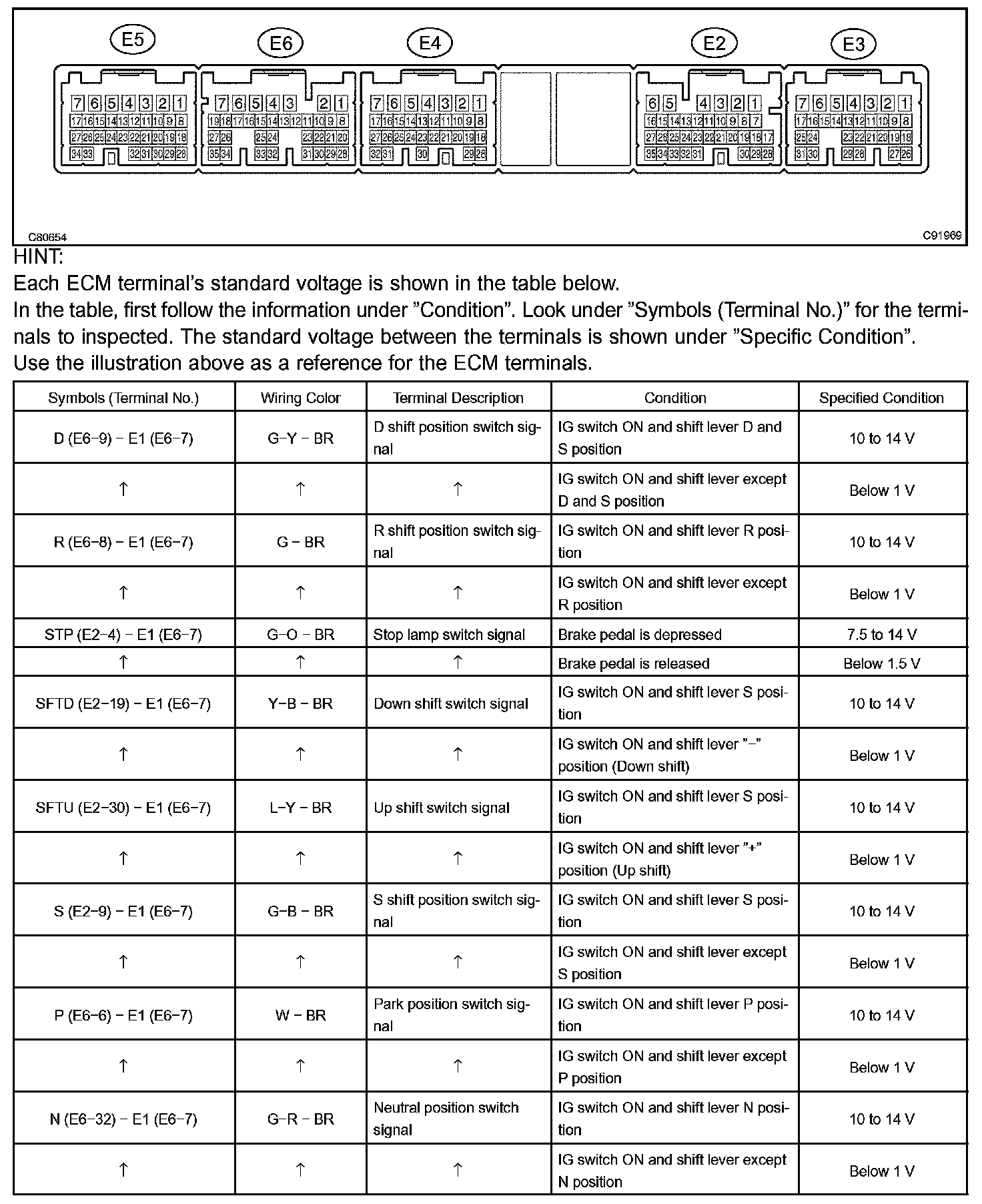

Terminals Of ECM/Pinouts (Part 1):

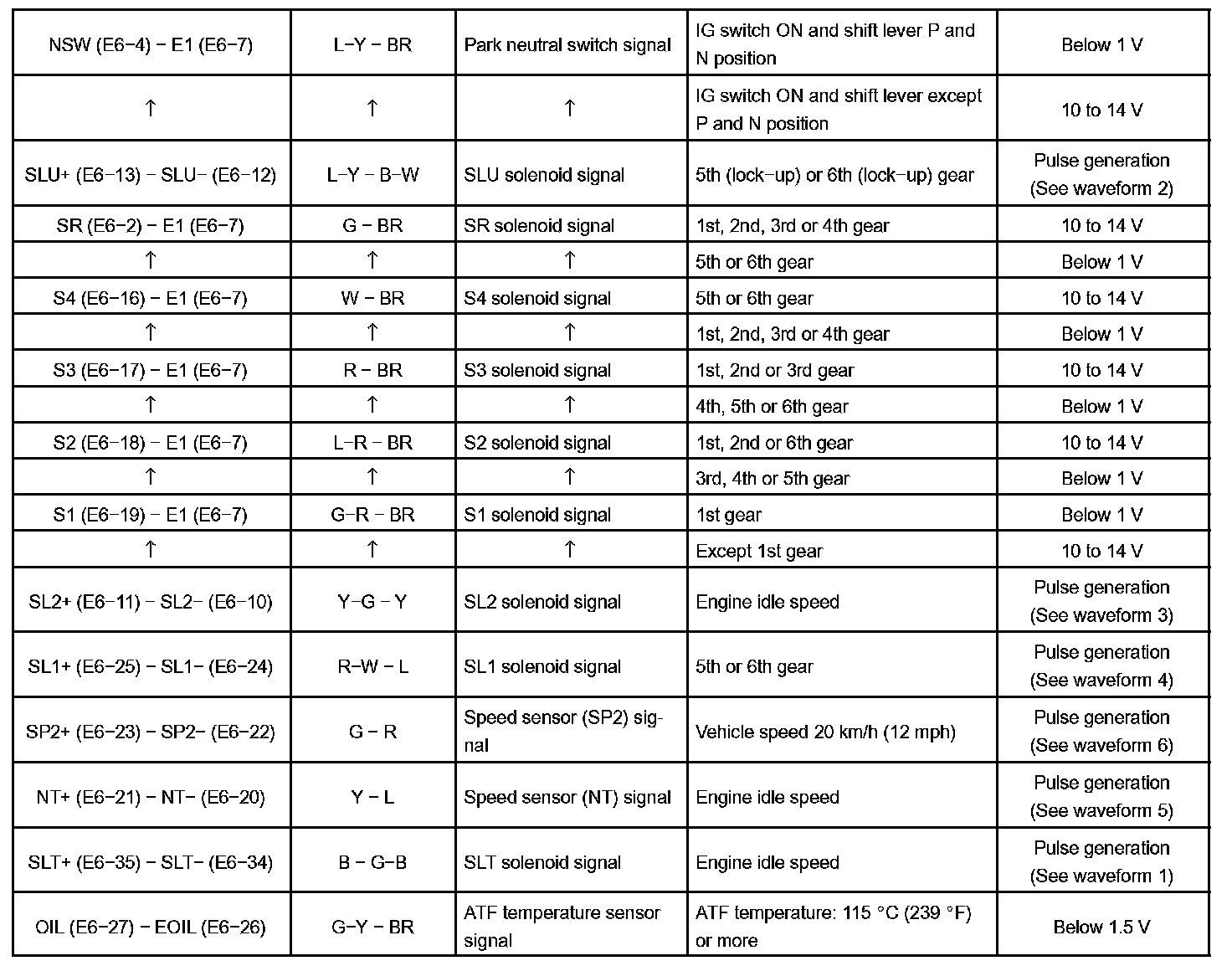

Terminals Of ECM/Pinouts (Part 2):

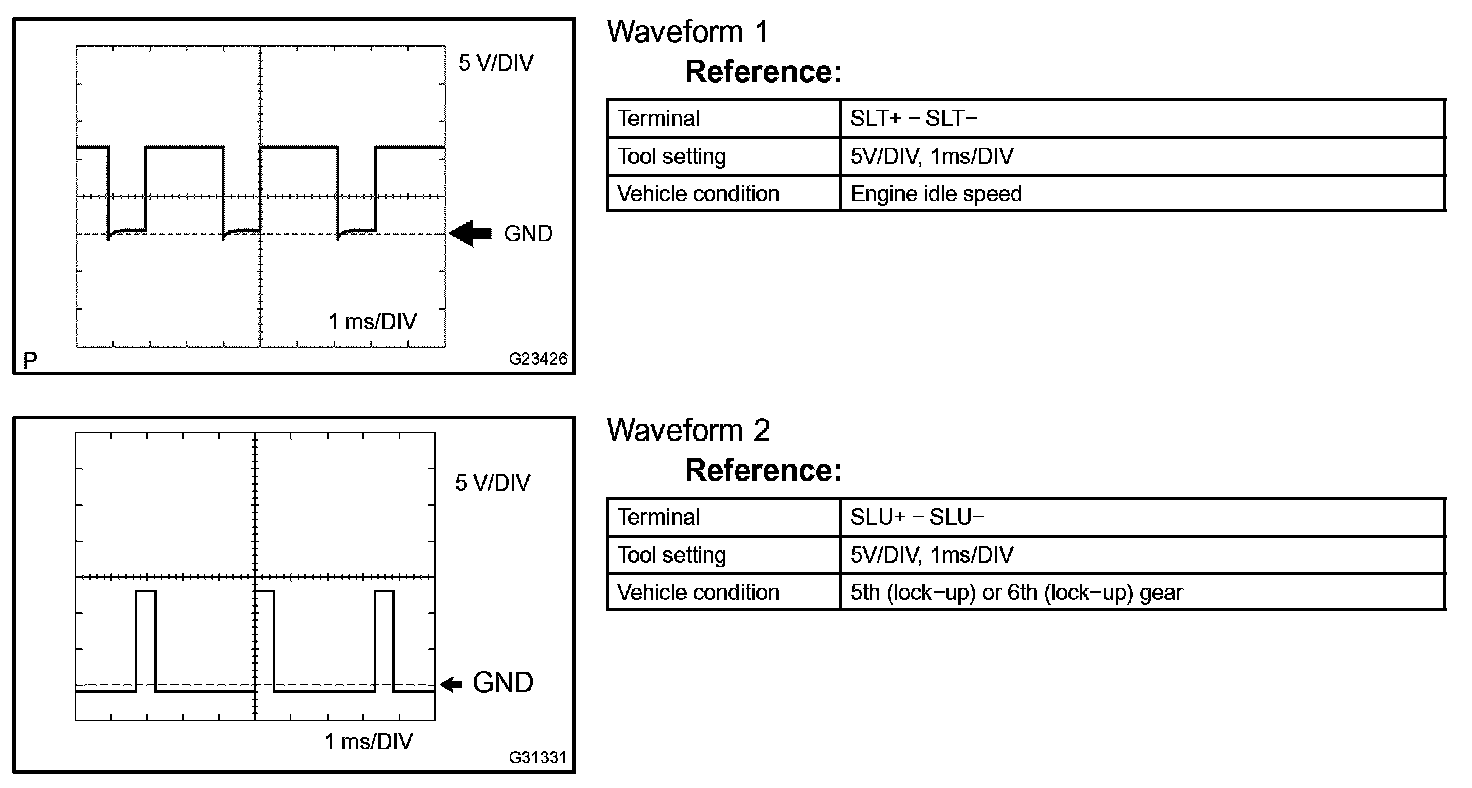

Oscilloscope Waveforms:

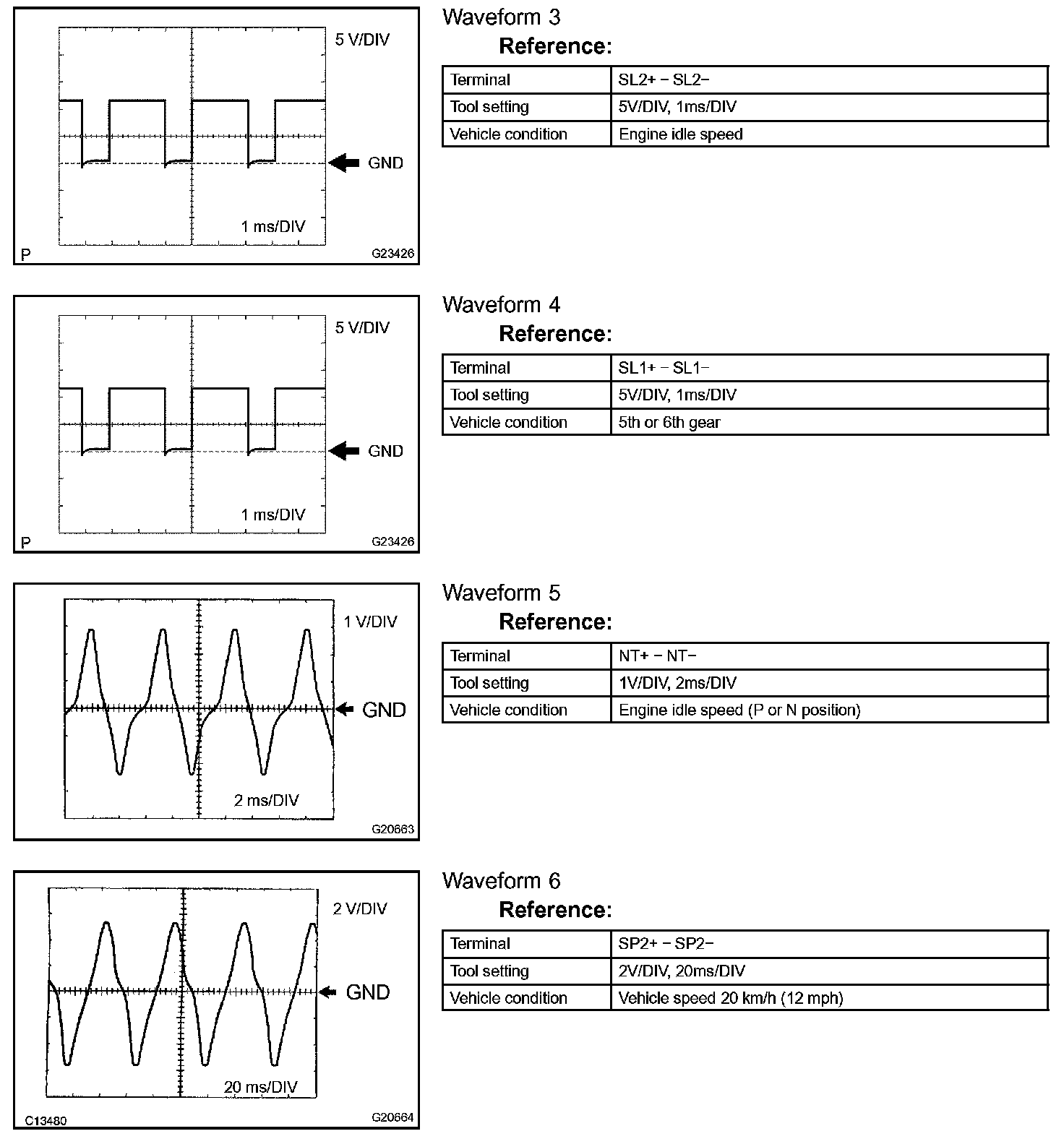

Oscilloscope Waveforms:
