Electronic Brake Control Module

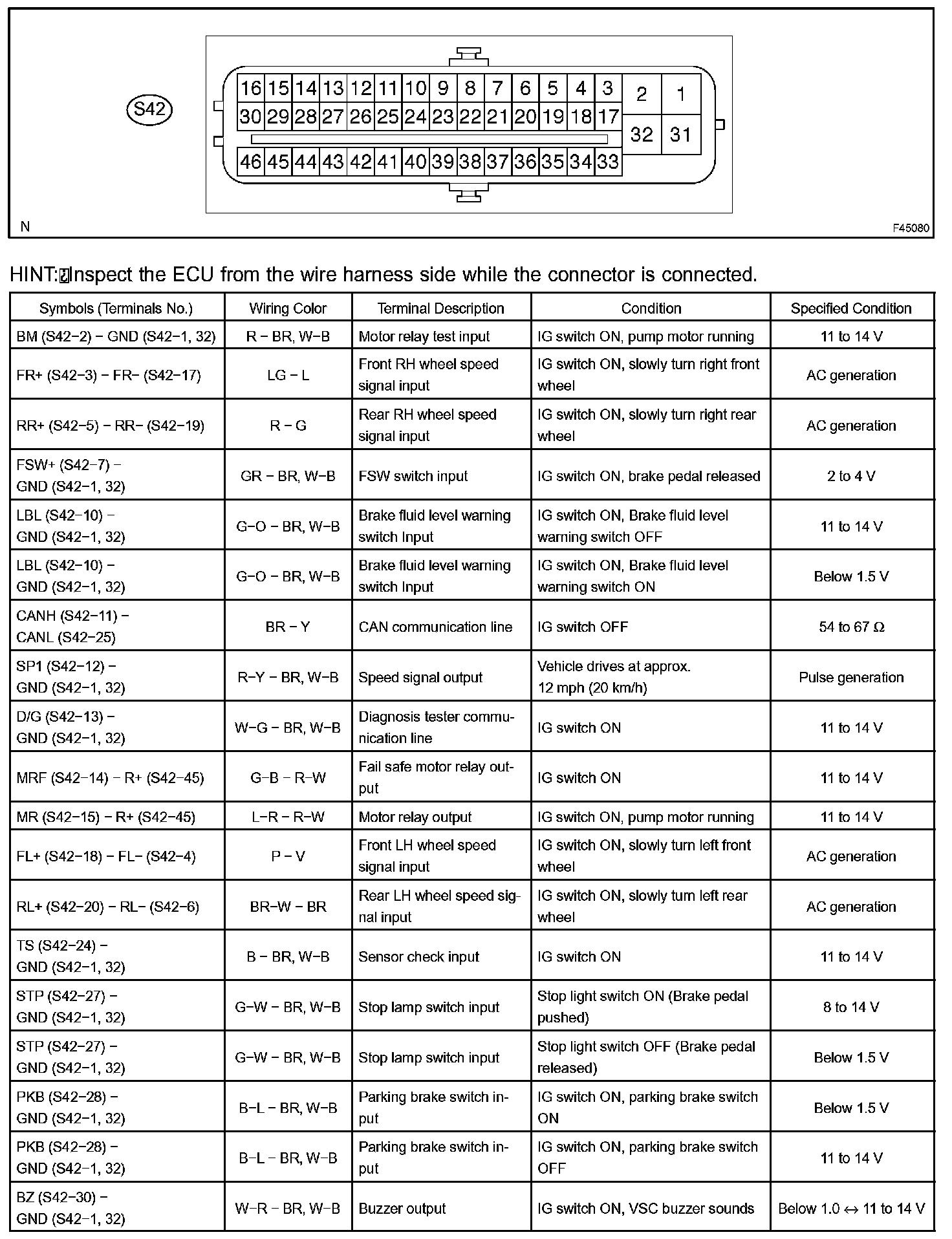

Terminals Of Control Module/Pinouts-Skid Control ECU (Part 1):

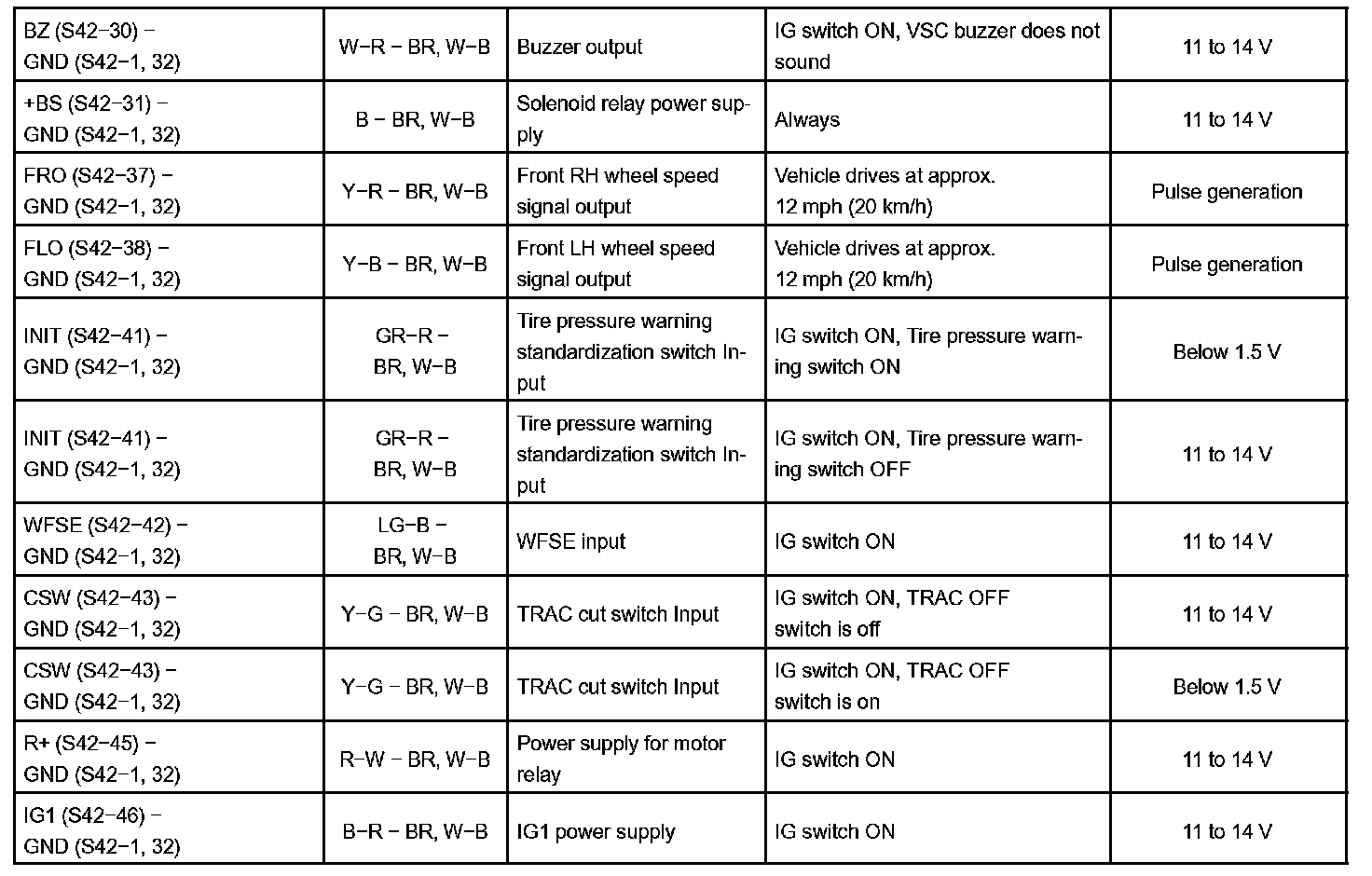

Terminals Of Control Module/Pinouts-Skid Control ECU (Part 2):
