How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

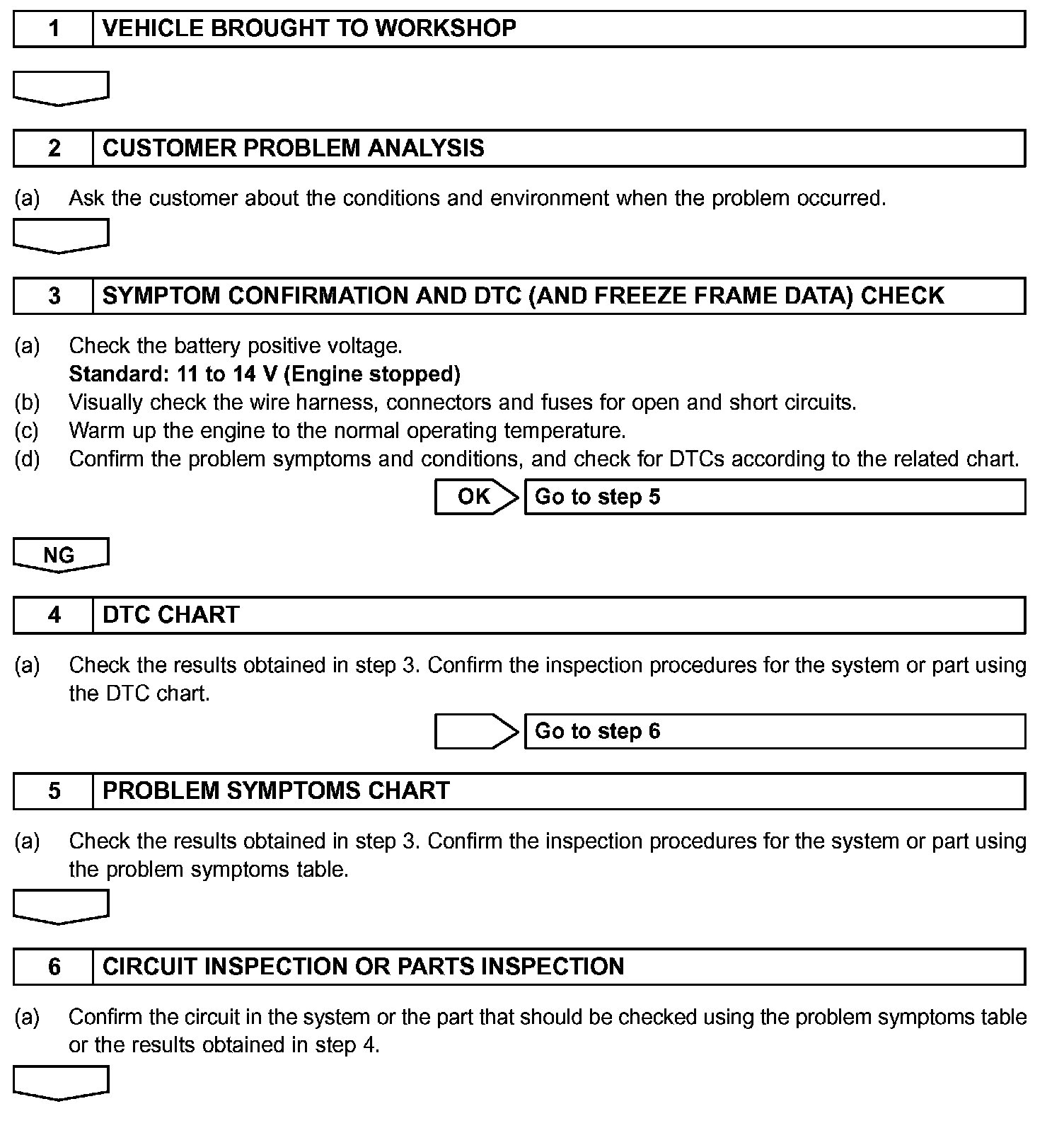

Step 1 - 6:

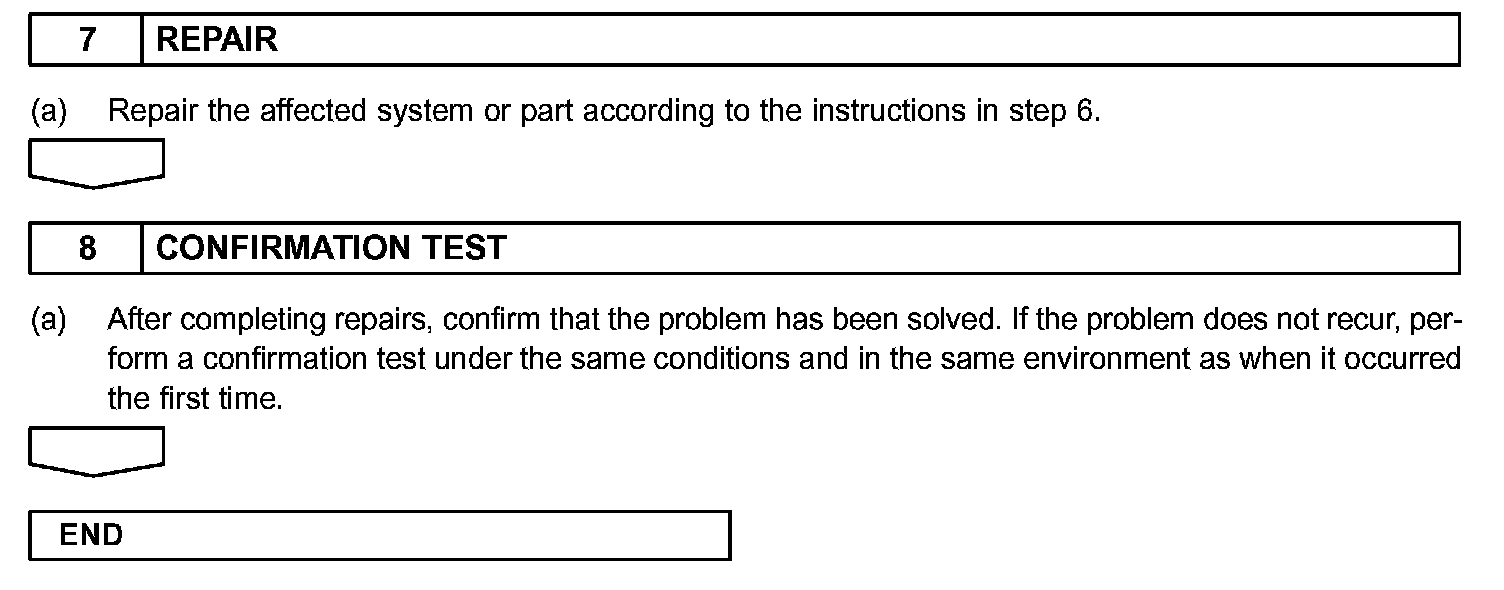

Step 7 - 8:






HINT: Carry out troubleshooting in accordance with the procedures given. Only a basic procedure is shown. Details in the Diagnostic Section show the most effective methods for each circuit. Confirm the troubleshooting procedures for the relevant circuit before beginning troubleshooting.
