Laser Sensor: Replacement

  1. SEPARATE BATTERY NEGATIVE TERMINAL
  2. REMOVE ENGINE UNDER COVER NO. 1 (See  REPLACEMENT  )
  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH (See  REPLACEMENT  )
  4. REMOVE FRONT FENDER LINER LH (See  REPLACEMENT  )
  5. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH (See  REPLACEMENT  )
  6. REMOVE FRONT FENDER LINER RH (See  REPLACEMENT  )
  7. REMOVE FRONT BUMPER COVER (See step 5 in  REPLACEMENT  )
  8. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSY (See step 9 in  REPLACEMENT  )
  9. REMOVE LASER SENSOR
    1. Disconnect the connector and remove the laser sensor.

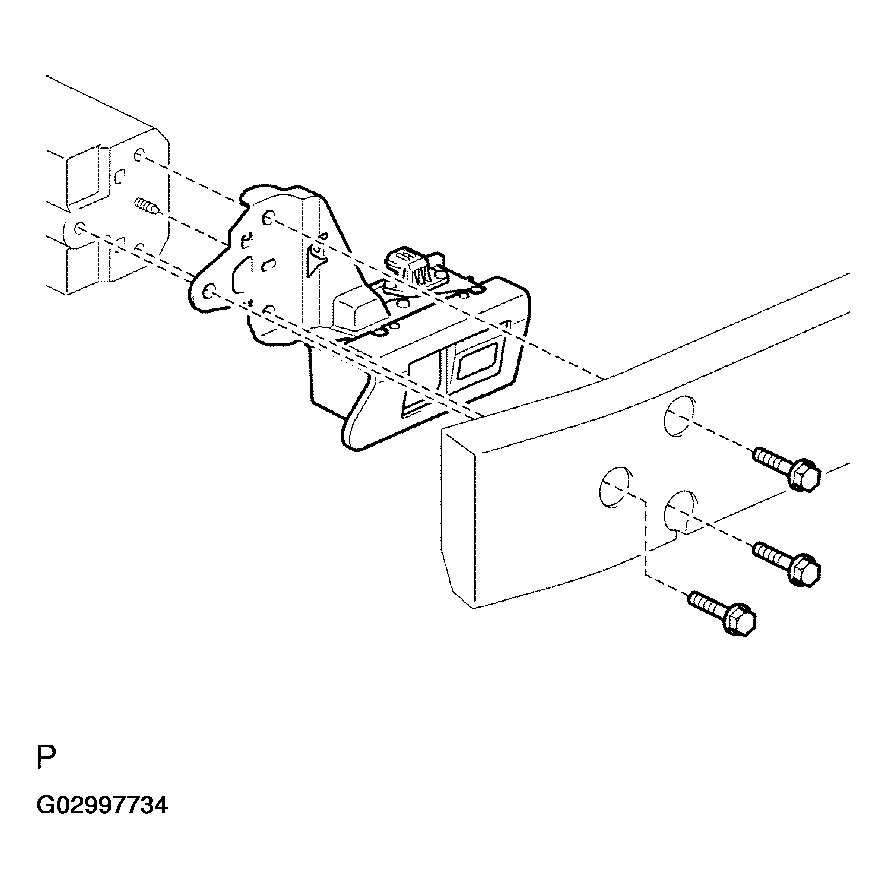

    Fig 1: Removing Laser Sensor
    G02997734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LASER SENSOR
    NOTE: Do not install the laser sensor if it has been damaged or if it has received some sort of shock.
  11. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSY (See step 25 in  REPLACEMENT  )
  12. ADJUST FOG LIGHT AIM (See  ADJUSTMENT  )
  13. CHECK FOG LIGHT AIM
  14. ADJUST LASER SENSOR (See  ADJUSTMENT   )
