Inspection Procedure
- CHECK WIRE HARNESS (OUTSIDE DOOR HANDLE - DOOR ELECTRICAL KEY OSCILLATOR)
- Disconnect the F21, F22, R33 and R34 outside handle connectors.
- Disconnect the D34, D35, D36 and D37 door oscillator connectors.

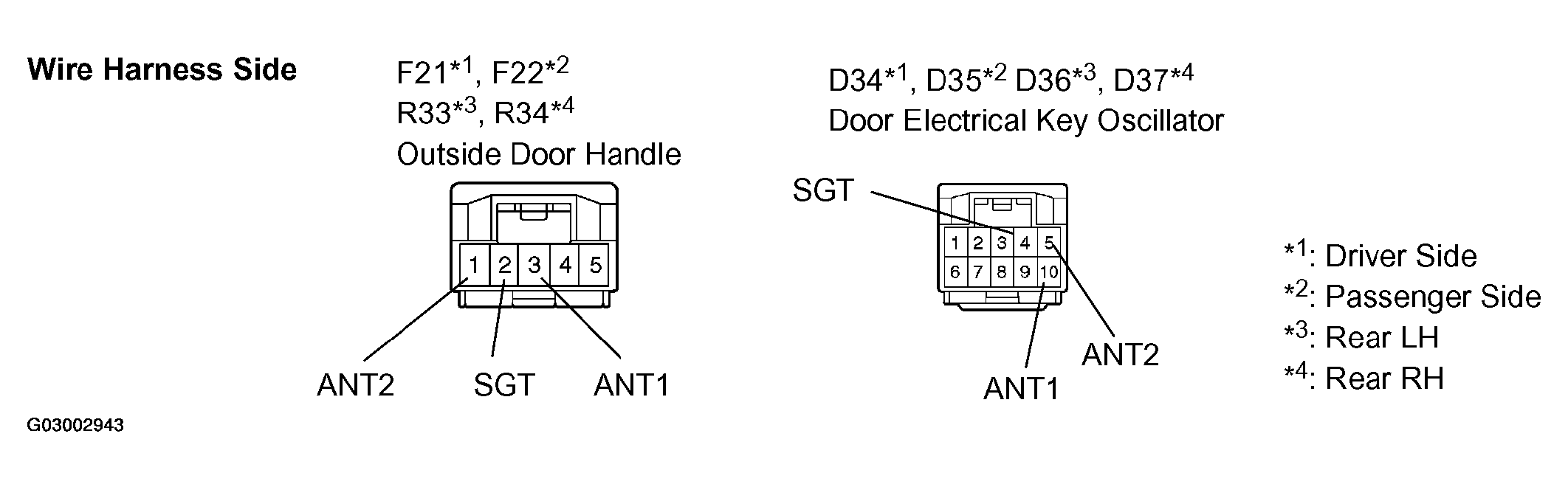

- Measure the resistance of the wire harness side connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION (DRIVER SIDE)Tester Connection Specified Condition F21-1 (ANT2) - D34-5 (ANT2) Below 1 Ω F21-2 (SGT) - D34-4 (SGT) Below 1 Ω F21-3 (ANT1) - D34-10 (ANT1) Below 1 Ω F21-1 (ANT2) or D34-5 (ANT2) - Body ground 10 kΩ or higher F21-2 (SGT) or D34-4 (SGT) - Body ground 10 kΩ or higher F21-3 (ANT1) or D34-10 (ANT1) - Body ground 10 kΩ or higher TESTER CONNECTION AND SPECIFIED CONDITION (PASSENGER SIDE)Tester Connection Specified Condition F22-1 (ANT2) - D35-5 (ANT2) Below 1 Ω F22-2 (SGT) - D35-4 (SGT) Below 1 Ω F22-3 (ANT1) - D35-10 (ANT1) Below 1 Ω F22-1 (ANT2) or D35-5 (ANT2) - Body ground 10 kΩ or higher F22-2 (SGT) or D35-4 (SGT) - Body ground 10 kΩ or higher F22-3 (ANT1) or D35-10 (ANT1) - Body ground 10 kΩ or higher TESTER CONNECTION AND SPECIFIED CONDITION (REAR LH)Tester Connection Specified Condition R21-1 (ANT2) - D36-5 (ANT2) Below 1 Ω R21-2 (SGT) - D36-4 (SGT) Below 1 Ω R21-3 (ANT1) - D36-10 (ANT1) Below 1 Ω R21-1 (ANT2) or D36-5 (ANT2) - Body ground 10 kΩ or higher R21-2 (SGT) or D36-4 (SGT) - Body ground 10 kΩ or higher R21-3 (ANT1) or D36-10 (ANT1) - Body ground 10 kΩ or higher TESTER CONNECTION AND SPECIFIED CONDITION (REAR RH)Tester Connection Specified Condition R34-1 (ANT2) - D37-5 (ANT2) Below 1 Ω R34-2 (SGT) - D37-4 (SGT) Below 1 Ω R34-3 (ANT1) - D37-10 (ANT1) Below 1 Ω R34-1 (ANT2) or D37-5 (ANT2) - Body ground 10 kΩ or higher R34-2 (SGT) or D37-4 (SGT) - Body ground 10 kΩ or higher R34-3 (ANT1) or D37-10 (ANT1) - Body ground 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
