Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST.

Theft warning ECU:

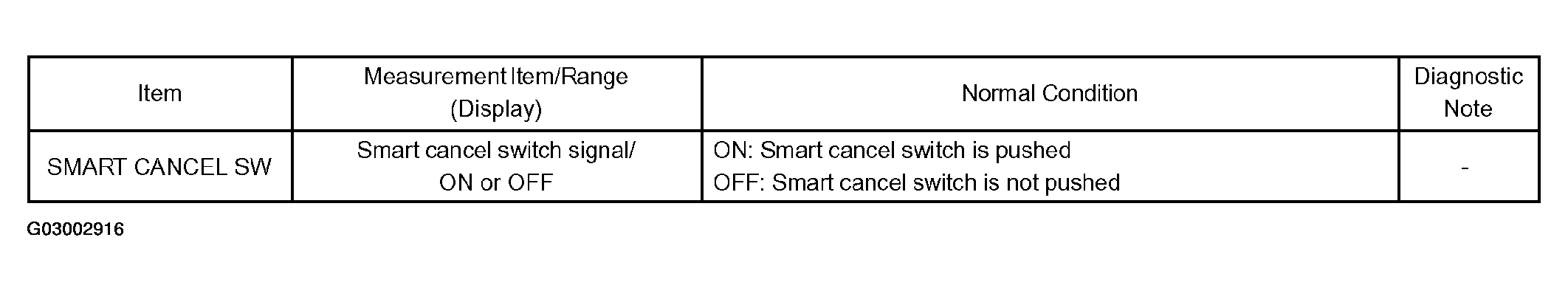

Fig 1: Data List - Theft Warning ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Steering lock ECU:

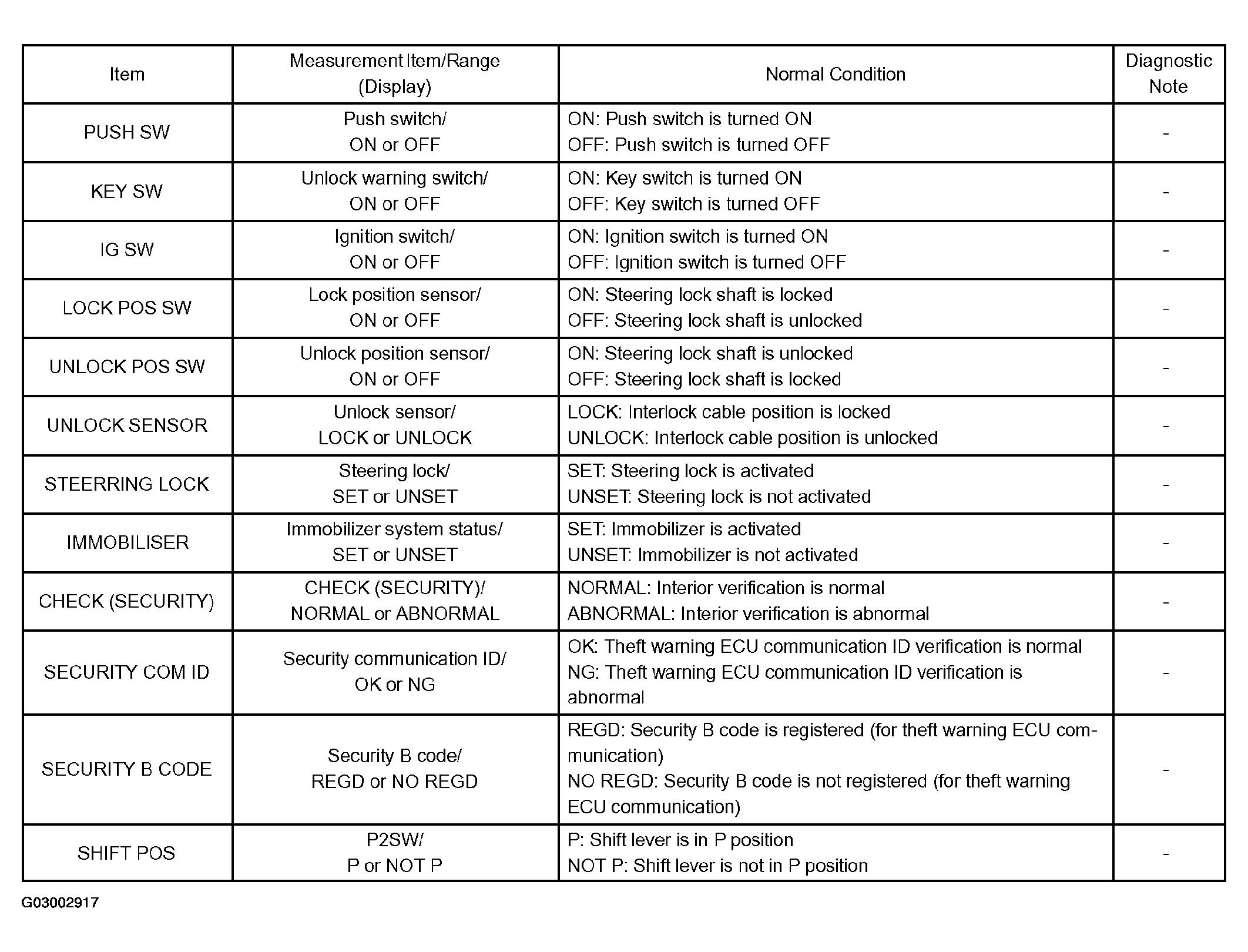

Fig 2: Data List - Steering Lock ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Door ECU (Driver side, Passenger side, Rear LH, Rear RH):

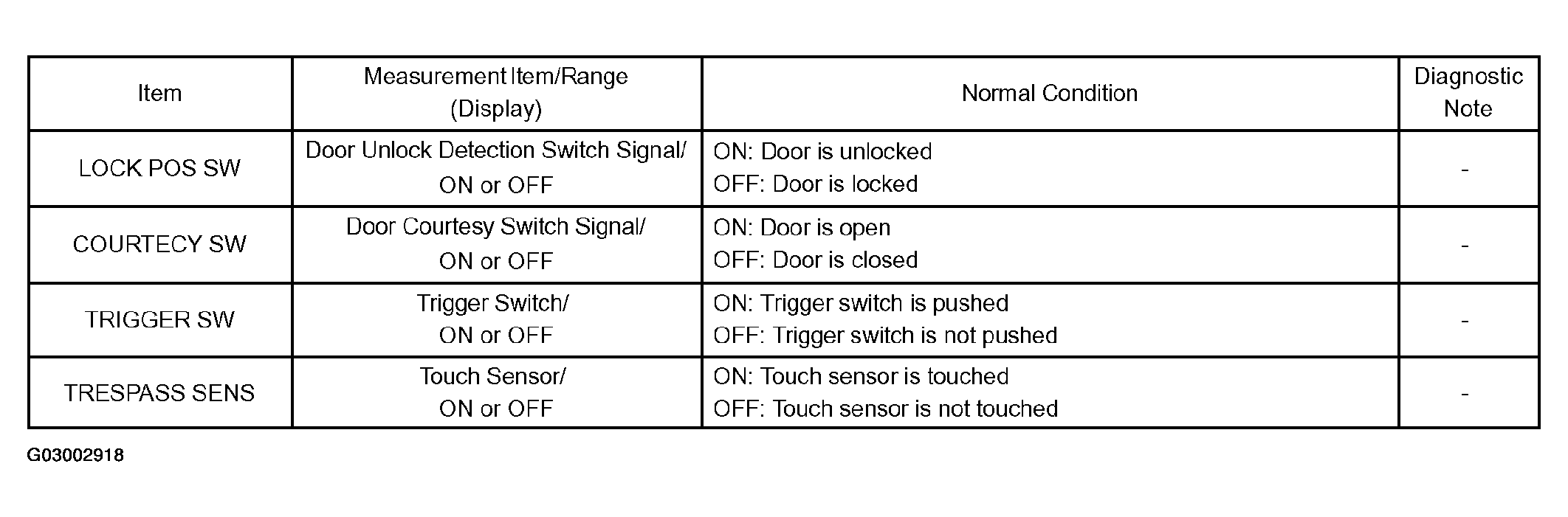

Fig 3: Data List - Door ECU (Driver Side, Passenger Side, Rear LH, Rear RH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Luggage room J/B ECU:

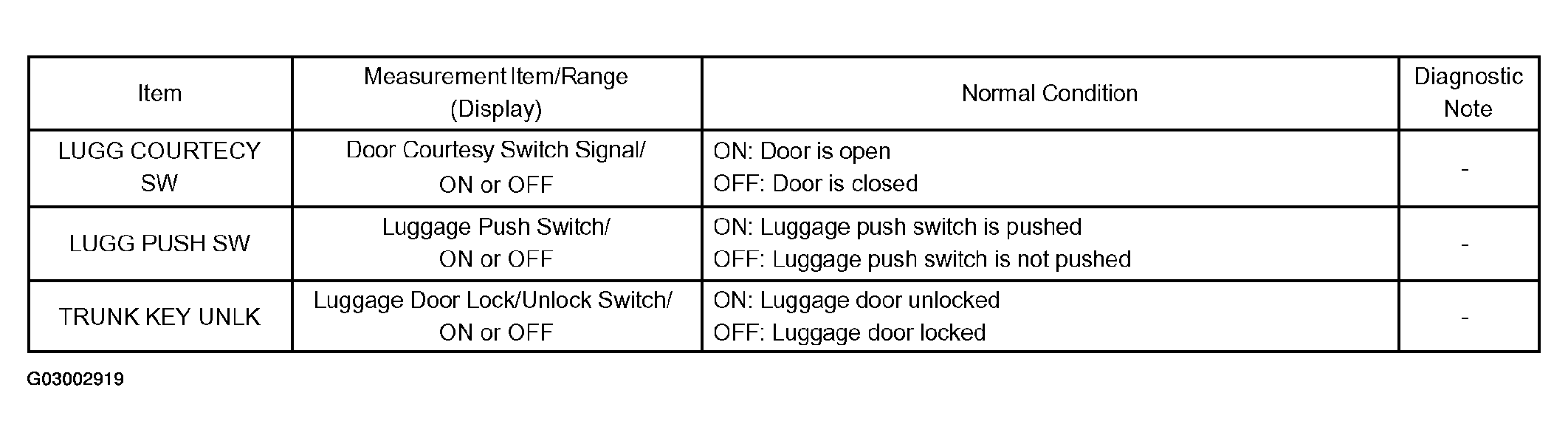

Fig 4: Data List - Luggage Room J/B ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Performing the ACTIVE LIST by following the directions on the tester screen.
