Inspection Procedure
- READ DATA LIST USING HAND-HELD TESTER
- Connect the hand-held tester (with CAN VIM) to the DLC3.
- Turn the ignition switch ON and press the hand-held tester main switch ON.
- Select the items below in the DATA LIST and read the displays on the hand-held tester.
DOOR ECU (DRIVER SIDE, PASSENGER SIDE, REAR LH, REAR RH)Item Test Details Normal Condition (Diagnostic Note) TRESPASS SENS Touch Sensor/ ON or OFF ON: Touch sensor is touched OFF: Touch sensor is not touched - OK: "ON" (sensor is touched) appears on the screen.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

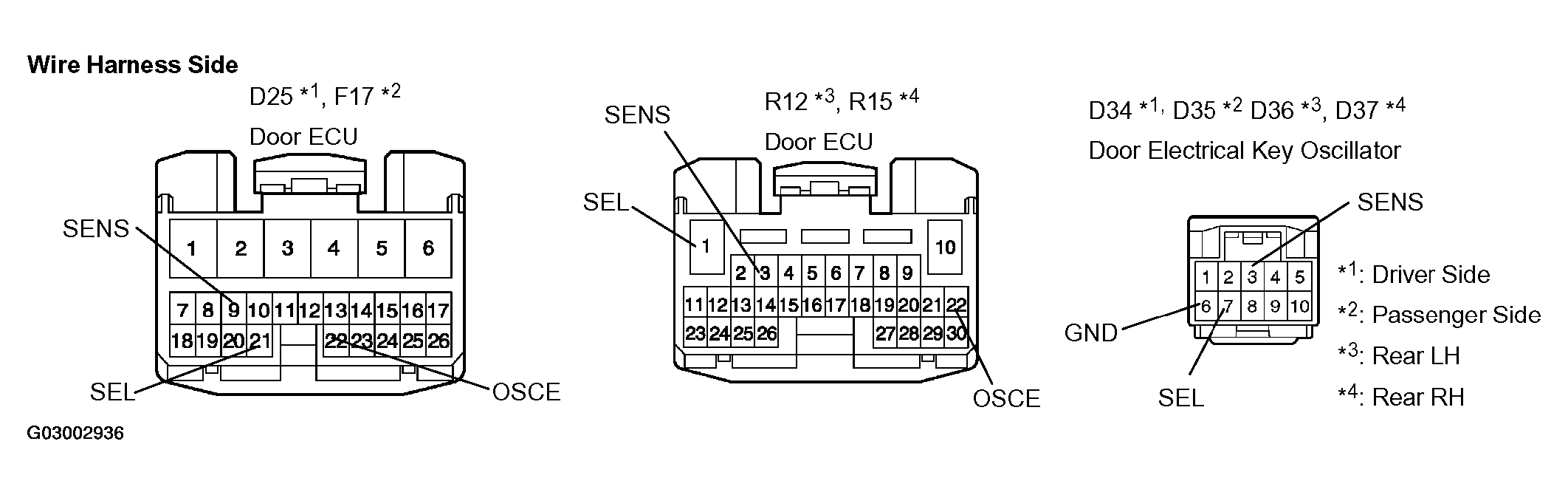

- CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR - DOOR ECU)
- Disconnect the D25, F17, R12 and R15 door ECU connectors.
- Disconnect the D34, D35, D36 and D37 door oscillator connectors.
- Measure the resistance of the wire harness side connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION (DRIVER SIDE)Tester Connection Specified Condition D25-9 (SENS) - D34-3 (SENS) Below 1 Ω D25-21 (SEL) - D34-7 (SEL) Below 1 Ω D25-22 (OSCE) - D34-6 (GND) Below 1 Ω D25-9 (SENS) or D34-3 (SENS) - Body ground 10 kΩ or higher D25-21 (SEL) or D34-7 (SEL) - Body ground 10 kΩ or higher TESTER CONNECTION AND SPECIFIED CONDITION (PASSENGER SIDE)Tester Connection Specified Condition F17-9 (SENS) - D35-3 (SENS) Below 1 Ω F17-21 (SEL) - D35-7 (SEL) Below 1 Ω F17-22 (OSCE) - D35-6 (GND) Below 1 Ω F17-9 (SENS) or D35-3 (SENS) - Body ground 10 kΩ or higher F17-21 (SEL) or D35-7 (SEL) - Body ground 10 kΩ or higher TESTER CONNECTION AND SPECIFIED CONDITION (REAR LH)Tester Connection Specified Condition R12-3 (SENS) - D36-3 (SENS) Below 1 Ω R12-1 (SEL) - D36-7(SEL) Below 1 Ω R12-27 (OSCE) - D36-6 (GND) Below 1 Ω R12-3 (SENS) or D36-3 (SENS) - Body ground 10 kΩ or higher R12-1 (SEL) or D36-7 (SEL) - Body ground 10 kΩ or higher TESTER CONNECTION AND SPECIFIED CONDITION (REAR RH)Tester Connection Specified Condition R15-3 (SENS) -D37-3 (SENS) Below 1 Ω R15-1 (SEL) - D37-7 (SEL) Below 1 Ω R15-27 (OSCE) - D37-6 (GND) Below 1 Ω R15-3 (SENS) or D37-3 (SENS) - Body ground 10 kΩ or higher R15-1 (SEL) or D37-7 (SEL) - Body ground 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: GO TO NEXT STEP

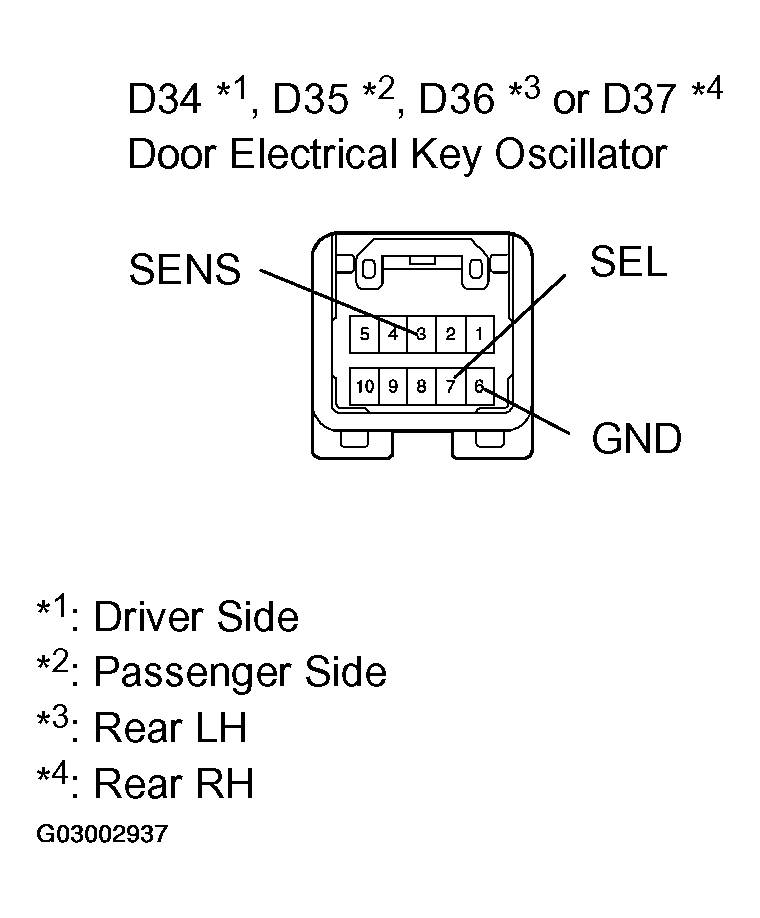

- CHECK DOOR ELECTRICAL KEY OSCILLATOR
- Measure the voltage between wire harness side connectors.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION (DRIVER SIDE)Tester Connection Condition Specified Condition D34-7 (SEL) -D34-6 (GND) Smart key placed at least 5 m (16.4 ft) away from door --> placed near door 10 to 14V --> 0V D34-3 (SENS) -D34-6 (GND) Outside door handle touched --> not touched 10 to 14V --> 0V TESTER CONNECTION AND SPECIFIED CONDITION (PASSENGER SIDE)Tester Connection Condition Specified Condition D35-7 (SEL) -D35-6 (GND) Smart key placed at least 5 m (16.4 ft) away from door --> placed near door 10 to 14V --> 0V D35-3 (SENS) -D35-6 (GND) Outside door handle touched --> not touched 10 to 14V --> 0V TESTER CONNECTION AND SPECIFIED CONDITION (REAR LH)Tester Connection Condition Specified Condition D36-7 (SEL) -D36-6 (GND) Smart key placed at least 5 m (16.4 ft) away from door --> placed near door 10 to 14V --> 0V D36-3 (SENS) -D36-6 (GND) Outside door handle touched --> not touched 10 to 14V 0V TESTER CONNECTION AND SPECIFIED CONDITION (REAR RH)Tester Connection Condition Specified Condition D37-7 (SEL) -D37-6 (GND) Smart key placed at least 5 m (16.4 ft) away from door --> placed near door 10 to 14V 0V D37-3 (SENS) -D37-6 (GND) Outside door handle touched --> not touched 10 to 14V 0V
NG: REPLACE DOOR ELECTRICAL KEY OSCILLATOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
- Measure the voltage between wire harness side connectors.
