Smart Key System - Diagnostics
>>
Trigger Switch Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Trigger Switch Circuit: Wiring Diagram

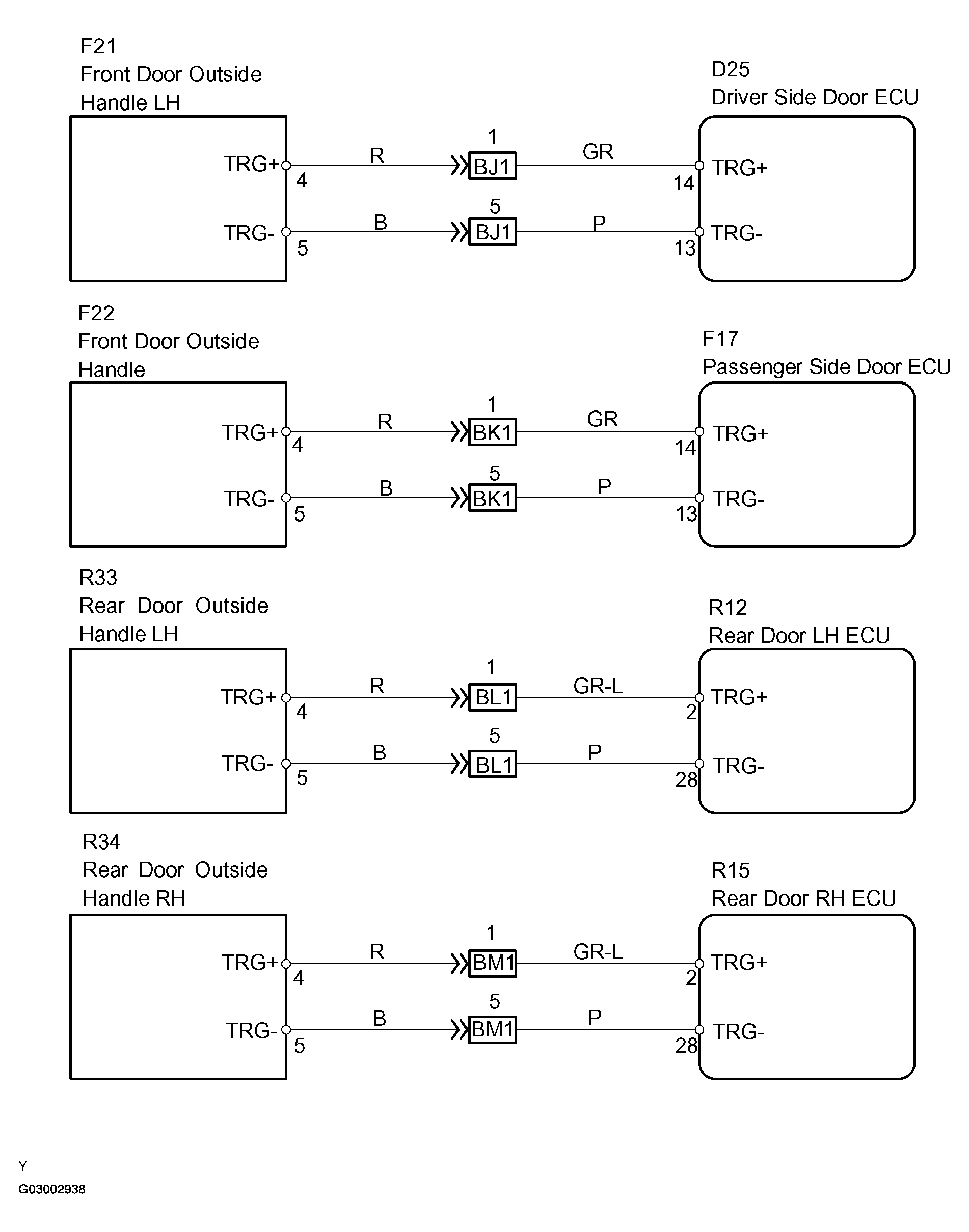

Fig 1: Trigger Switch Circuit Wiring Diagram
