System Description
- POWER MIRROR CONTROL SYSTEM DESCRIPTION
This system has these functions: automatic glare-resistant electrochromatic (EC) mirror, reverse shift-linked mirror, electrical remote control type mirror, memory function, rear window defogger-linked mirror defogger, ignition switch-linked automatic electrical retractable mirror, and wiper-linked mirror defogger.
- FUNCTION OF MAIN COMPONENT MAIN COMPONENT FUNCTION
Components Function Vertical mirror motor Receives signal from door ECU and adjusts remote control mirror in the vertical direction. Horizontal mirror motor Receives signal from door ECU and adjusts remote control mirror in the horizontal direction. Mirror retract motor Receives signal from door ECU and retracts and returns remote control mirror. Mirror defogger Receives signal from door ECU and starts mirror defogger. EC mirror cell Varies reflection rate of mirror through function of EC elements. Mirror retract switch Switch that retracts and returns remote control mirror. Mirror retract and return signals are sent to door ECU through driver side J/B ECU. Mirror control switch After selecting "R" or "L" switch, control switches change angle of mirror. Mirror signals are sent to door ECU through driver side J/B ECU. Mirror master switch Consists of "R" and "L" switch. One must be chosen before mirror control switches can be operated. Mirror position sensor Detects remote control mirror position. This data is detected by door ECU. Set switch Memory switch When set switch and memory switches are pressed simultaneously, SET, 1, 2 or 3 switch is input to driver door ECU and remote control mirror position is recorded. Then, when memory switch is pressed, 1, 2 or 3 switch is input to driver door ECU and remote control mirror position changes according to memory. - SYSTEM OPERATION

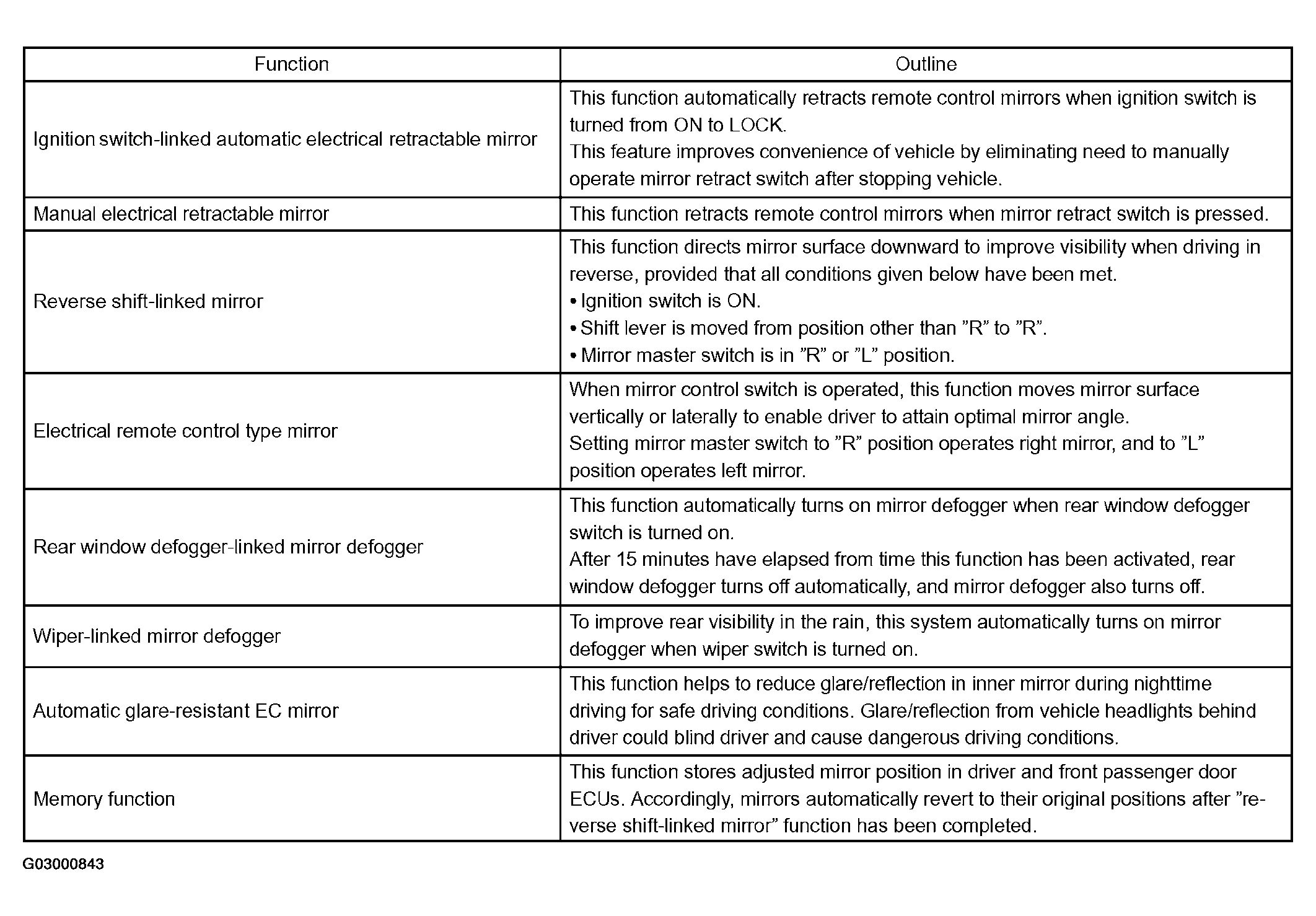

The remote control mirror has following features:
