Terminals Of Ecu

  1. CHECK DRIVER DOOR ECU

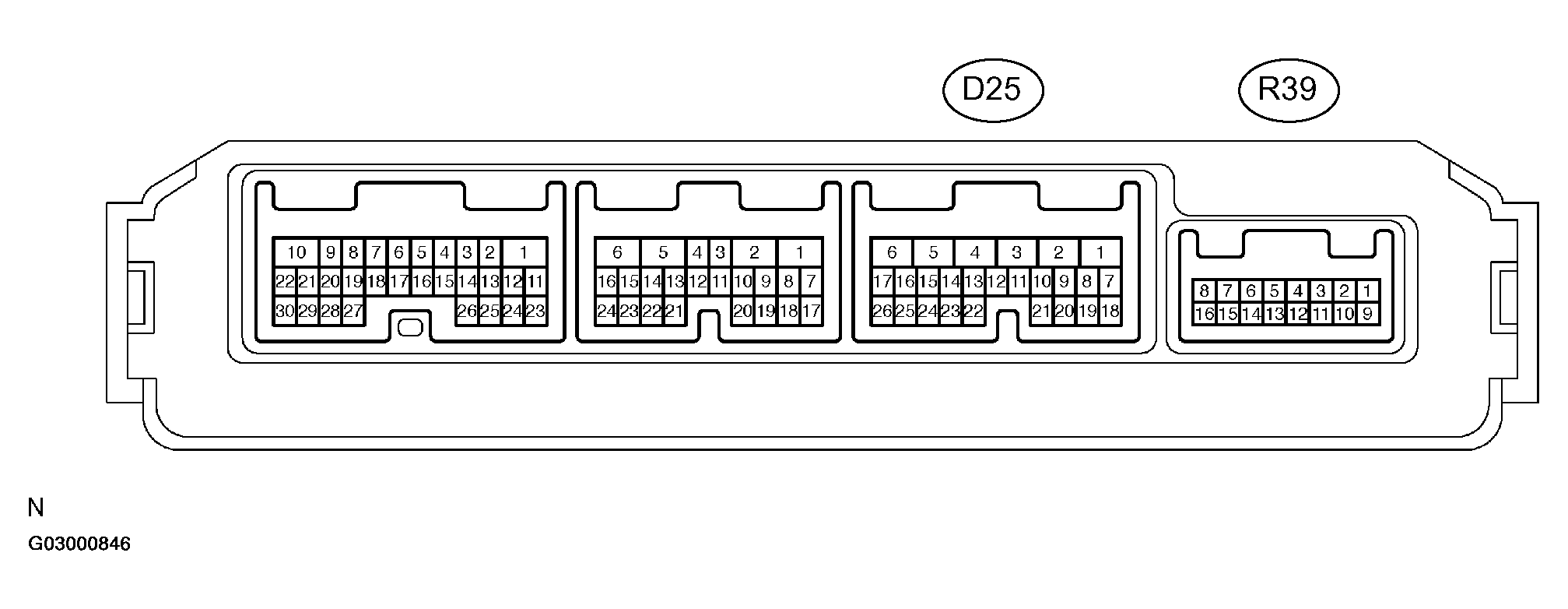

    Fig 1: Identifying Terminals Of ECU (Driver Door)
    G03000846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the D25 ECU connector.
    2. Measure the voltage of the wire harness side connector.

      Standard

      D25 ECU CONNECTOR VOLTAGE SPECIFICATIONS

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      GND (D25-1) - Body ground W-B - Body ground Ground Always Below 1 V
      CPUB (D25-4) - GND (D25-1) V-Y - W-B Battery (ECU power source) Always 10 to 14 V
      SIG (D25-5) - GND (D25-1) R-L - W-B Ignition power supply Ignition switch OFF --> ON O V --> 10 to 14 V
      BDR (D25-6) - GND (D25-1) R - W-B Battery (ECU power source) Always 10 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the D25 ECU connector.
    4. Measure the voltage of the connectors.

    Standard

    D25 ECU CONNECTOR VOLTAGE SPECIFICATIONS

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    #M+R (R39-10) - GND (D25-1) B - W-B Mirror master switch signal (Right or Down) Driver remote control mirror is operating. Driver remote control mirror is operating to UP or LEFT. Driver remote control mirror is operating to DOWN or RIGHT. Below 1 V Below 1 V 10 to 14 V
    #MHR (R39-9) - GND (D25-1) R - W-B Mirror control switch signal (Left or Down) Driver remote control mirror is not operating. Driver remote control mirror is operating to UP or RIGHT. Driver remote control mirror is operating to LEFT or DOWN. Below 1 V Below 1 V 10 to 14 V
    D25 ECU CONNECTOR VOLTAGE SPECIFICATIONS

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    #MVR (R39-1) - GND (D25-1) W - W-B Mirror control switch signal (Up or Right) Driver remote control mirror is not operating. Driver remote control mirror is operating to DOWN or LEFT. Driver remote control mirror is operating to UP or RIGHT. Below 1 V Below 1 V 10 to 14 V
    VSSR (R39-6) - #E2 (R39-14) V - GR Vertical direction position signal Vertical direction of mirror position sensor circuit. -
    HSSR (R39-13) - #E2 (R39-14) LG - GR Horizontal direction position signal Horizontal direction of mirror position sensor circuit. -
    #VC (R39-5) - #E2 (R39-14) SB - GR Power source for mirror position sensor Ignition switch ACC or OFF during sleep mode. Ignition switch ON. Below 1 V 4.8 to 5.2 V
    MR+ (R39-3) - MR- (R39-11) G - L Mirror retract switch signal Driver remote control mirror retract system is not operating. Driver remote control mirror retract system is RETRACT operating. Below 1 V 10 to 14 V
    EC+ (R39-7) - EC- (R39-15) BR - B-L Mirror EC signal Electrochromatic mirror system is operating. Electrochromatic mirror system is not operating. 10 to 14 V Below 1 V
    HTR+ (R39-4) - HTR- (R39-12) BR-W - B-R Mirror defogger signal Mirror defogger switch ON. Mirror defogger switch OFF. 10 to 14 V Below 1 V
    ECI+ (D25-7) - ECI- (D25-18) G-R - BR-B Mirror EC signal Electrochromatic mirror system is operating. Electrochromatic mirror system is not operating. 10 to 14 V Below 1 V

    If the result is not as specified, replace the remote control mirror or the driver door ECU may have a malfunction.

  2. CHECK FRONT PASSENGER DOOR ECU

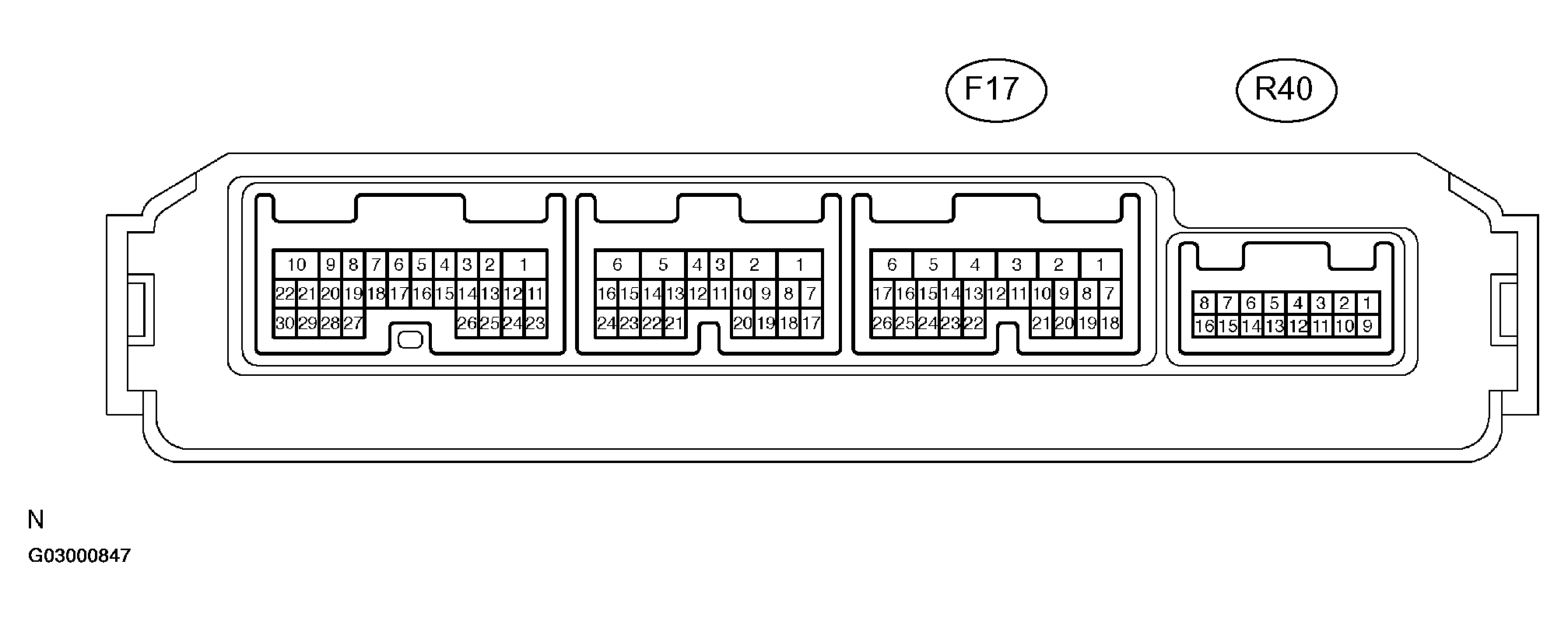

    Fig 2: Identifying Front Passenger Door ECU Connector Terminals
    G03000847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F17 ECU connector.
    2. Measure the voltage of the wire harness side connector.

      Standard

      F17 ECU CONNECTOR VOLTAGE SPECIFICATIONS

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      GND (F17-1) - Body ground W-B - Body ground Ground Always Below 1 V
      CPUB (F17-4) - GND (F17-1) V-Y - W-B Battery (ECU power source) Always 10 to 14 V
      SIG (F17-5) - GND (F17-1) R-L - W-B Ignition power supply Ignition switch OFF --> ON 0 V --> 10 to 14 V
      BDR (F17-6) - GND (F17-1) R - W-B Battery (ECU power source) Always 10 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the F17 ECU connector.
    4. Measure the voltage of the connectors.

    Standard

    F17 ECU CONNECTOR VOLTAGE SPECIFICATIONS

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    #M+R (R40-10) - GND (F17-1) B - W-B Mirror master switch signal (Right or Down) Passenger remote control mirror is not operating. Passenger remote control mirror is operating to UP or LEFT. Passenger remote control mirror is operating to DOWN or RIGHT. Below 1 V Below 1 V 10 to 14 V
    #MHR (R40-9) - GND (F17-1) R - W-B Mirror control switch signal (Left or Down) Passenger remote control mirror is not operating. Passenger remote control mirror is operating to UP or RIGHT. Passenger remote control mirror is operating to LEFT or DOWN. Below 1 V Below 1 V 10 to 14 V
    #MVR (R40-1) - GND (F17-1) W - W-B Mirror control mirror switch signal (Up or Right) Passenger remote control mirror is not operating. Passenger remote control mirror is operating to DOWN or LEFT. Passenger remote control mirror is operating to UP or RIGHT. Below 1 V Below 1 V 10 to 14 V
    VSSR (R40-6) - #E2 (R40-14) V - GR Vertical direction position signal Vertical direction of mirror position sensor circuit. -
    HSSR (R40-13) - #E2 (R40-14) LG - GR Horizontal direction position signal Horizontal direction of mirror position sensor circuit. -
    #VC (R40-5) - #E2 (R40-14) SB - GR Power source of mirror position sensor Ignition switch ACC or OFF during sleep mode. Ignition switch ON. Below 1 V 4.8 to 5.2 V
    MR+ (R40-3) - MR- (R40-11) G - L Mirror retract switch signal/(Retracted) Passenger remote control mirror retract system is not operating. Passenger remote control mirror retract system is RETRACT operating. Below 1 V 10 to 14 V
    EC+ (R40-7) - EC- (R40-15) BR - B-L Mirror EC signal Electrochromatic mirror system is operating. Electrochmic mirror system is not operating. 10 to 14 V
    F17 ECU CONNECTOR VOLTAGE SPECIFICATIONS

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    HTR+ (R40-4) - HTR- (R40-12) BR-W - B-R Mirror defogger signal Mirror defogger switch ON. Mirror defogger switch OFF. 10 to 14 V Below 1 V
    ECI+ (F17-7) - ECI- (F17-18) G-R - BR-B Mirror EC signal Electrochromatic mirror system is operating. Electrochromatic mirror system is not operating. 10 to 14 V Below 1 V

    If the result is not as specified, replace the remote control mirror or the passenger door ECU may have a malfunction.

  3. CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

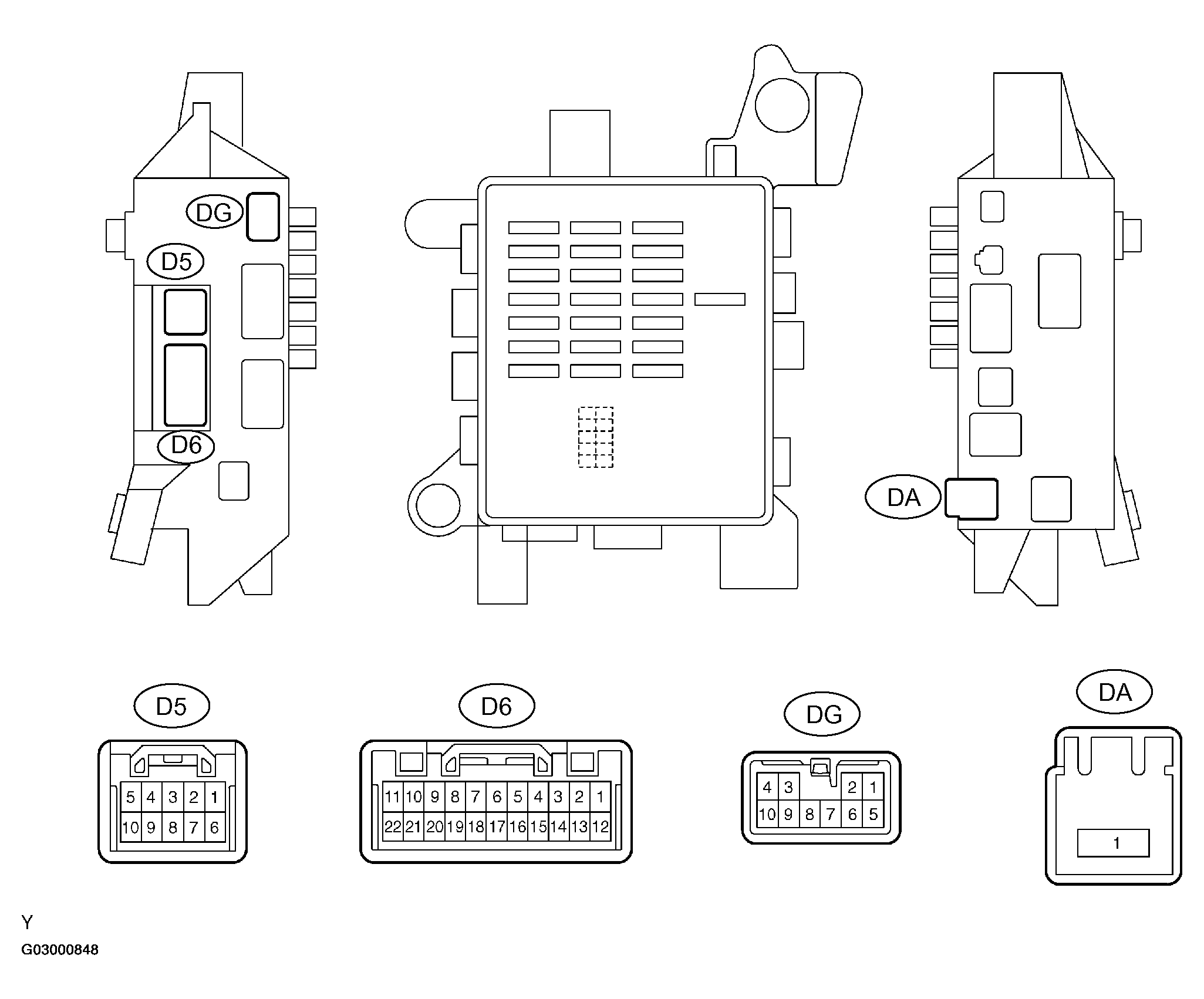

    Fig 3: Identifying Driver Side J/B (Driver Side J/B ECU) Connector Terminals
    G03000848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect DA and DG JB connectors.
    2. Disconnect the D5 ECU connector.
    3. Measure the voltage of the wire harness side connectors.

      Standard

      DA AND DG JB CONNECTORS VOLTAGE SPECIFICATIONS

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      GND (DG-8) - Body ground W-B - Body ground Ground Always Below 1 V
      MPX-IG (DA-1) - GND (DG-8) B-W - W-B Power Supply Always 10 to 14 V
      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      GND2 (D5-1) - Body ground W-B - Body ground Ground Always Below 1 V
      MPX-B (D5-5) - GND (DG-8) R-B - W-B Power Supply Always 10 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    4. Reconnect the DA and DG JB connectors.
    5. Reconnect the D5 ECU connector.
    6. Measure the voltage of the connectors.

    Standard

    DA AND DG JB CONNECTORS VOLTAGE SPECIFICATIONS

    Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
    R/E (D6-7) - Body ground LG - Body ground Ground Always Below 1 V
    MSW (D6-10) - R/E (D6-7) R-G - LG Mirror master switch signal (Left or Right) Mirror master switch OFF Mirror master switch LEFT or RIGHT Below 1 V 0 to 5 V
    M+ (D6-11) - R/E (D6-7) B - LG Mirror control switch signal (Up, Down, Left or Right) Mirror control switch neutral position Mirror control switch each position Below 1 V 0 to 5 V
    RET (D6-8) - GND2 (D5-1) L-B - W-B Mirror retract switch signal (Retracted) Mirror retract switch OFF Mirror retract switch RETRACT Below 1 V 10 to 14 V
    RTR (D6-9) - GND2 (D5-1) GR - W-B Mirror retract switch signal (Returned) Mirror retract switch OFF Mirror retract switch RETRACT Below 1 V 10 to 14 V
    MIND (D6-19) - GND2 (D5-1) P - W-B Retract and return indication signal Mirror is not in retract position Mirror is in retract position Below 1 V 10 to 14 V

    If the result is not as specified, replace the outer mirror switch or the ECU may have a malfunction.
