Cigarette Lighter and Power Outlet: Notes

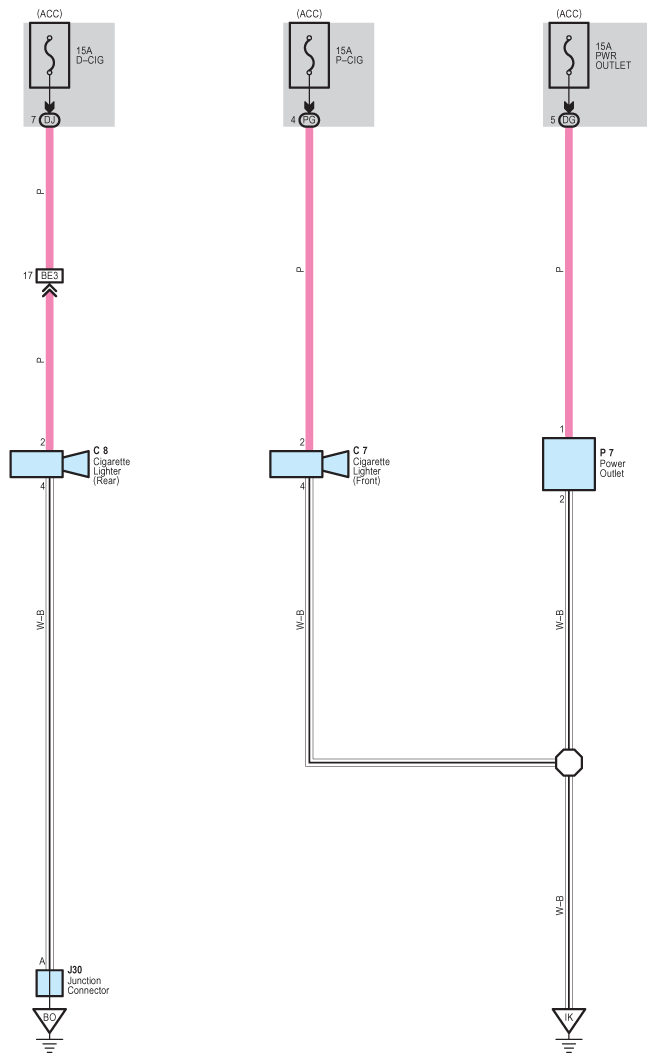

Fig 1: Cigarette Lighter And Power Outlet System Wiring Diagram
G08913912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
