: Ground Points

Code See Ground Points Location
IH : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Right Side of Shift Lever
IR : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Under the Front Passenger's Seat
BL : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Rear Floor Partition Panel LH
BM : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Quarter Panel LH
BN : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Rear Floor Partition Panel RH
BO : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Quarter Panel RH

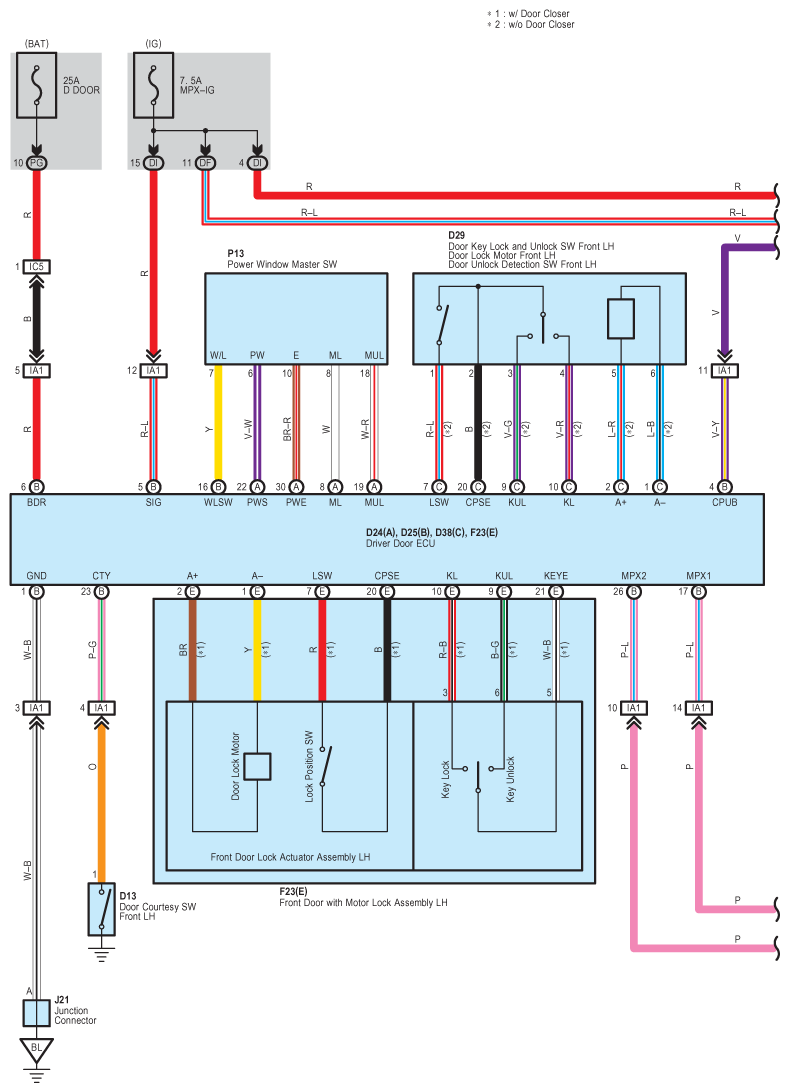

Fig 1: Wireless Door Lock Control Without Smart Key System Wiring Diagram (1 Of 6)
G08913792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

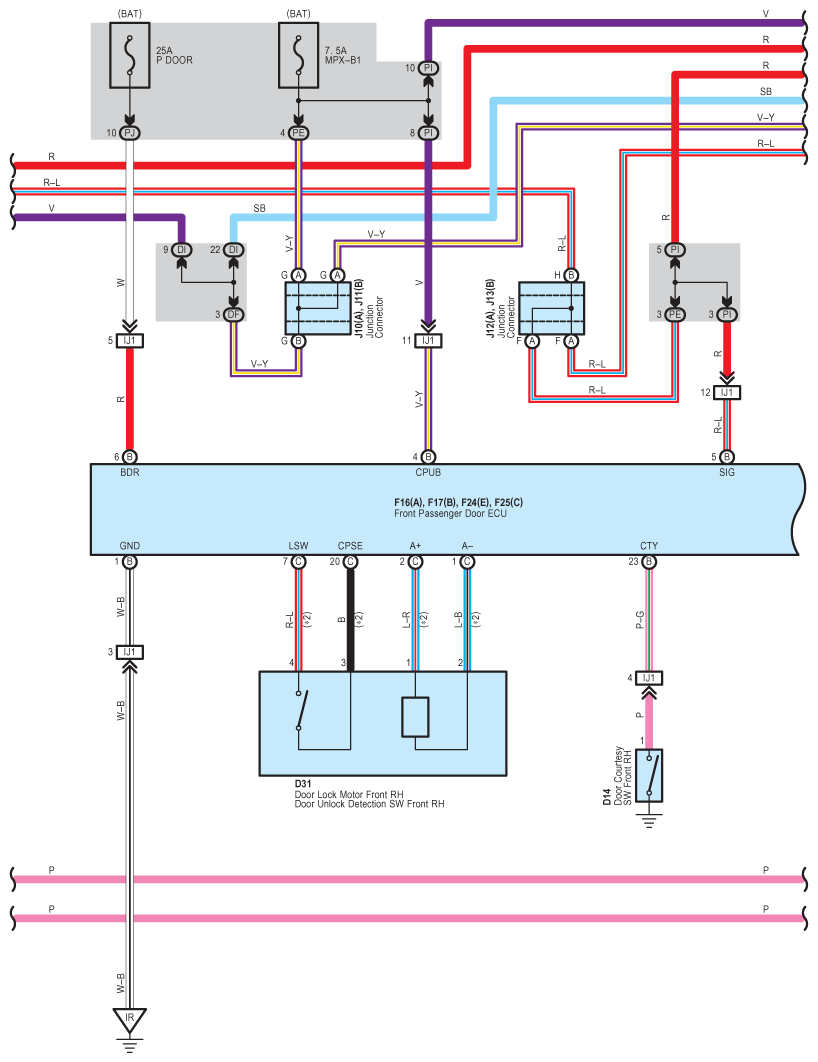

Fig 2: Wireless Door Lock Control Without Smart Key System Wiring Diagram (2 Of 6)
G08913793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wireless Door Lock Control Without Smart Key System Wiring Diagram (3 Of 6)
G08913794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

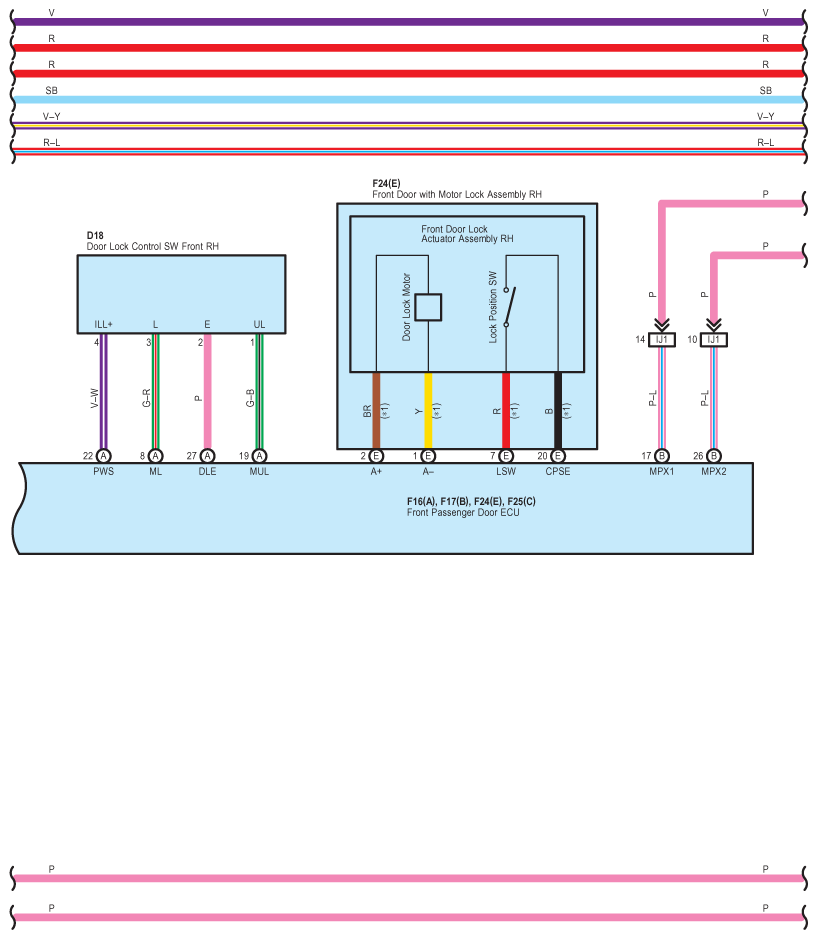

Fig 4: Wireless Door Lock Control Without Smart Key System Wiring Diagram (4 Of 6)
G08913795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

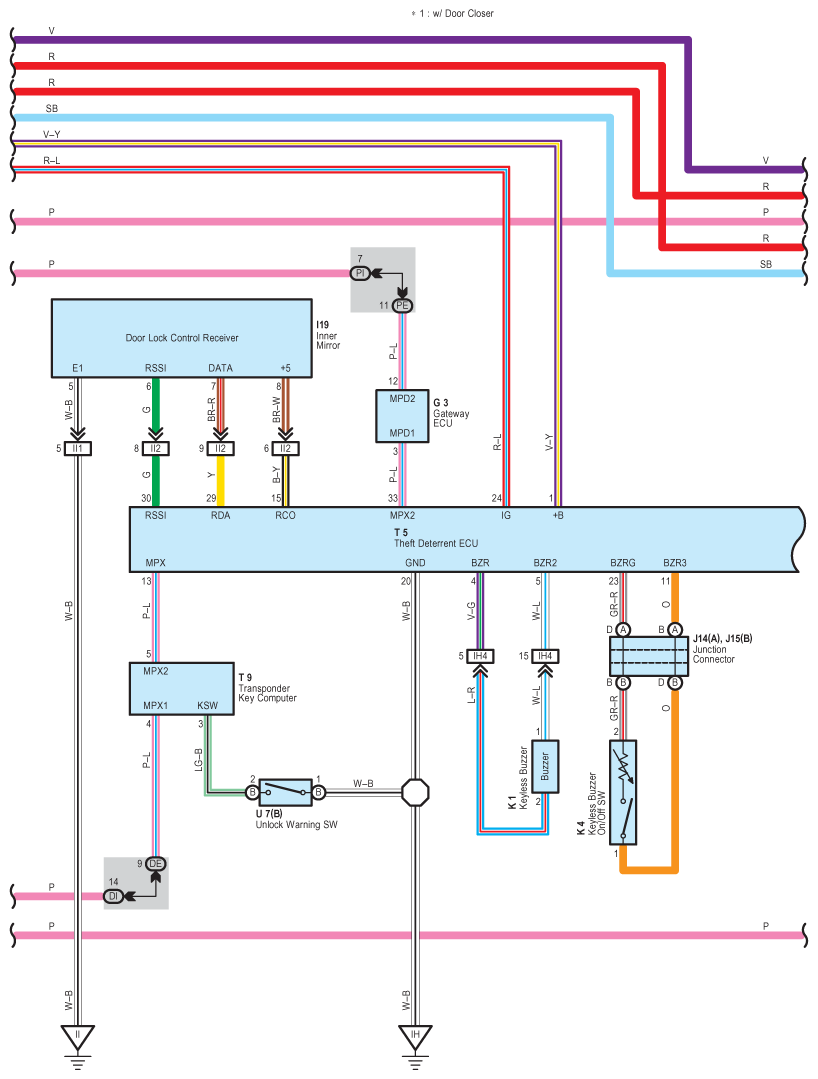

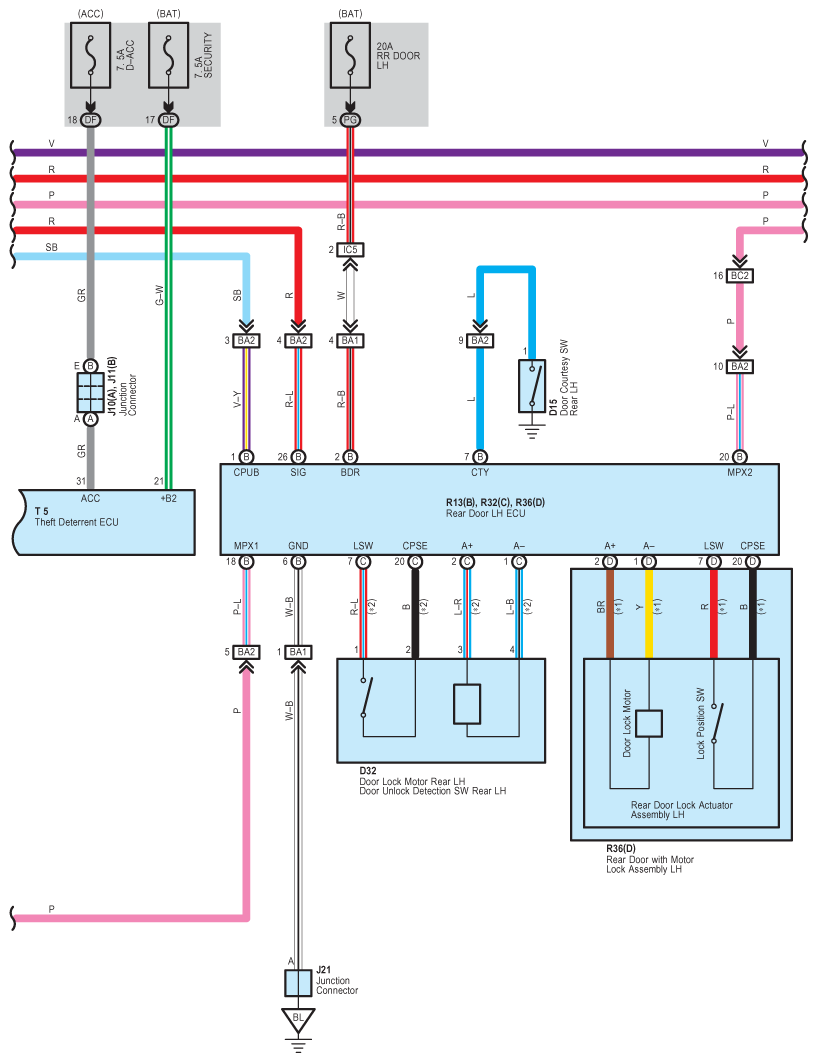

Fig 5: Wireless Door Lock Control Without Smart Key System Wiring Diagram (5 Of 6)
G08913796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

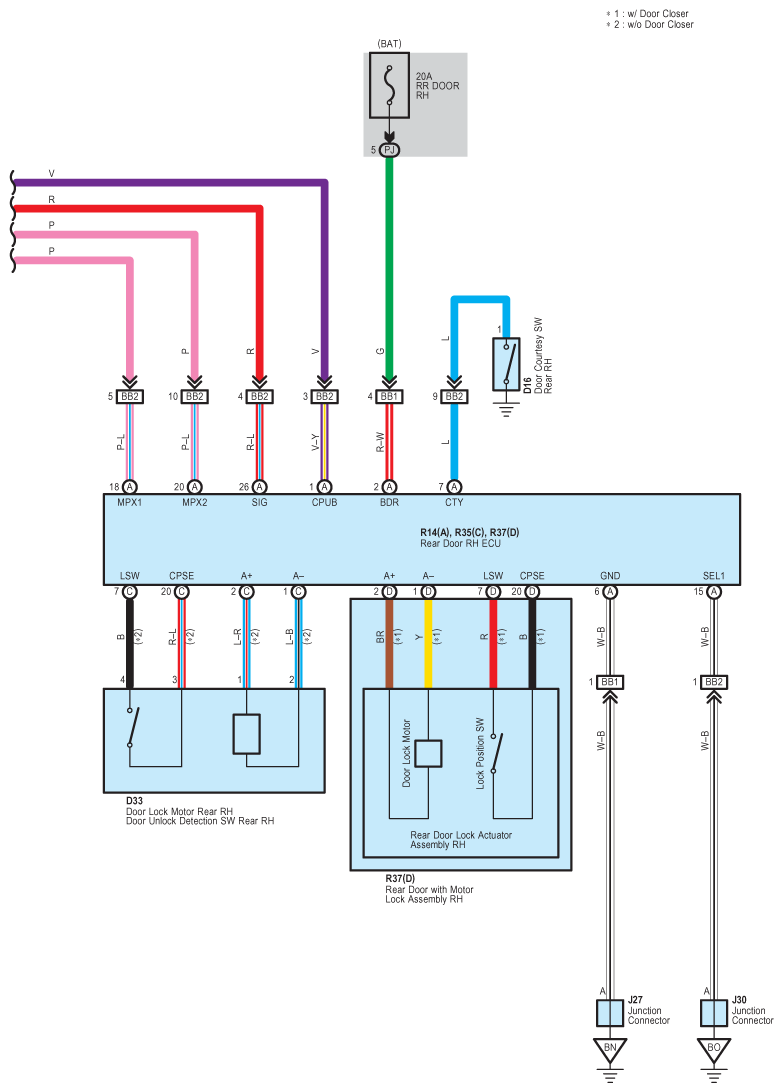

Fig 6: Wireless Door Lock Control Without Smart Key System Wiring Diagram (6 Of 6)
G08913797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Code See Ground Points Location
IH : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Right Side of Shift Lever
II
IR : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Under the Front Passenger's Seat
BL : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Rear Floor Partition Panel LH
BN : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Rear Floor Partition Panel RH
BO : LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Quarter Panel RH
