Multiplex Communication System - BEAN (Door Bus): Notes

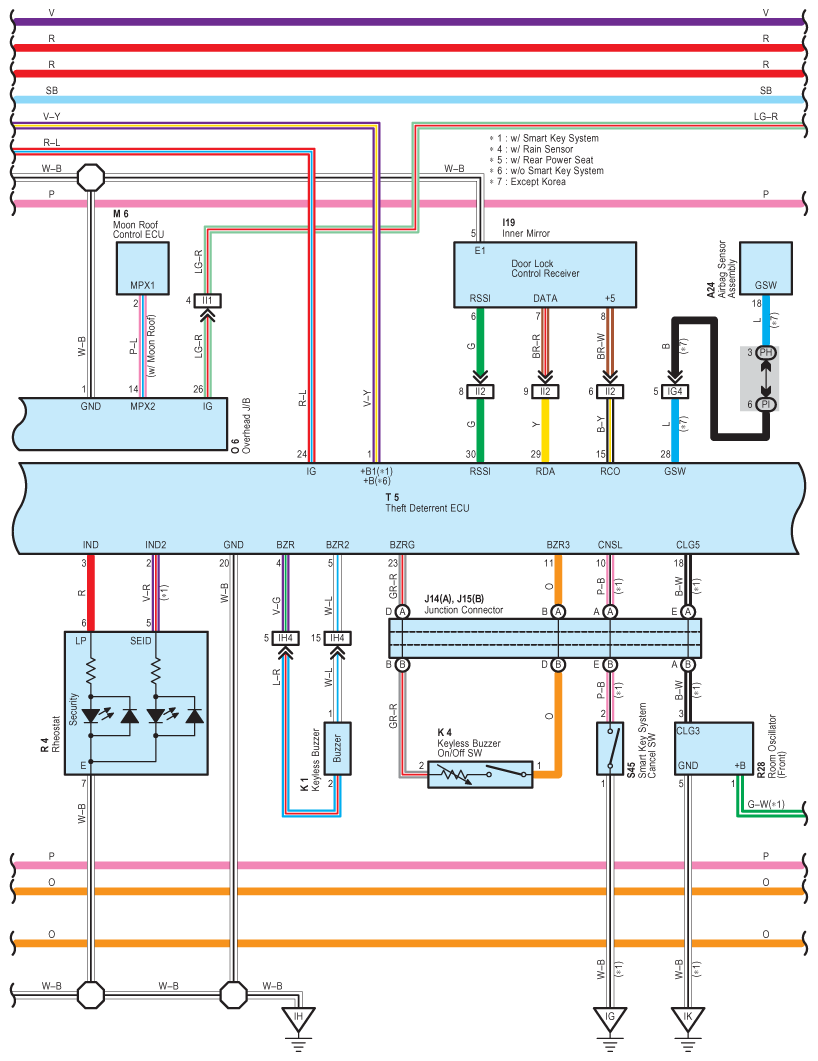

Fig 1: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

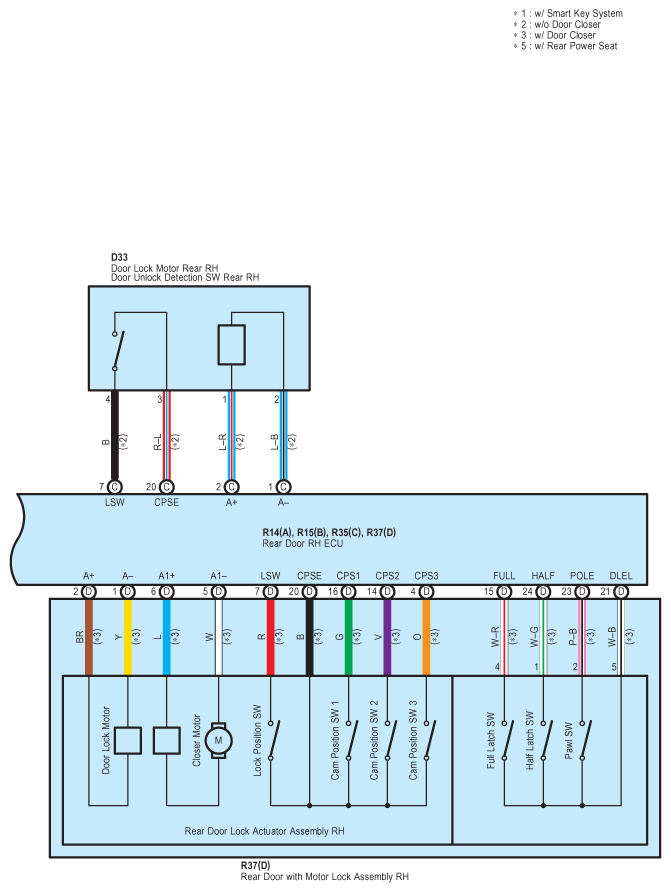

Fig 2: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

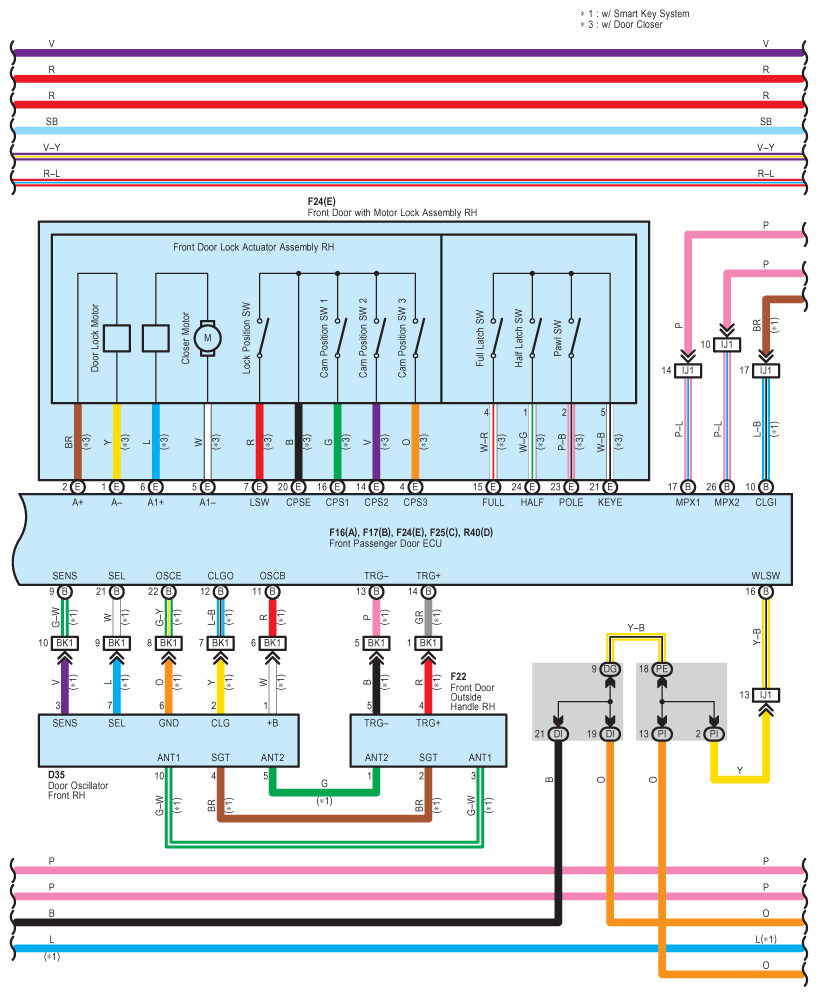

Fig 3: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

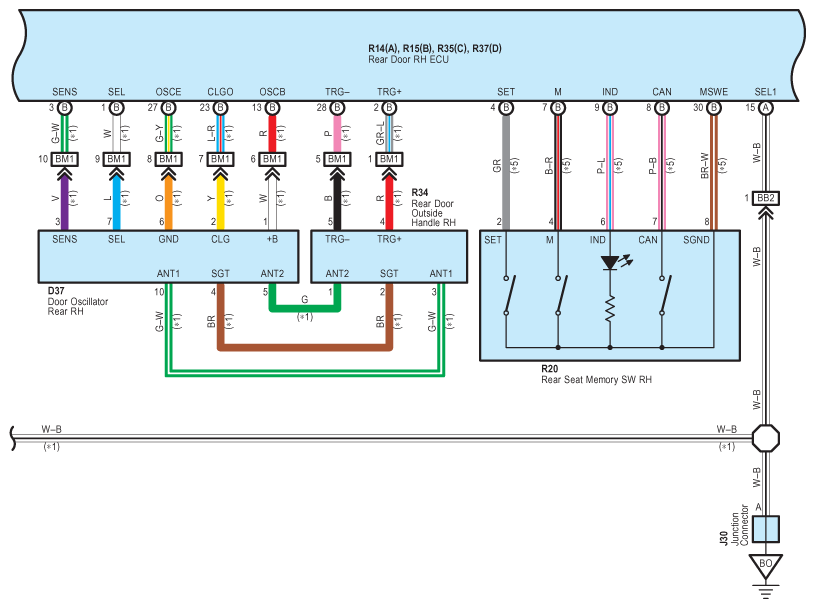

Fig 4: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

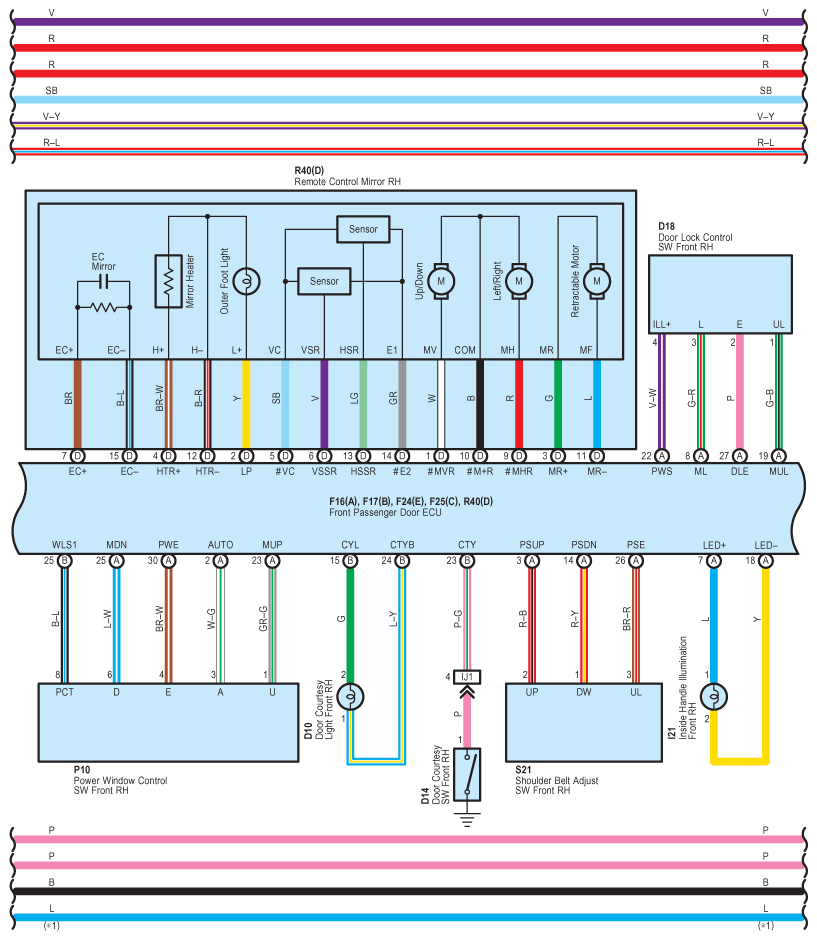

Fig 5: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

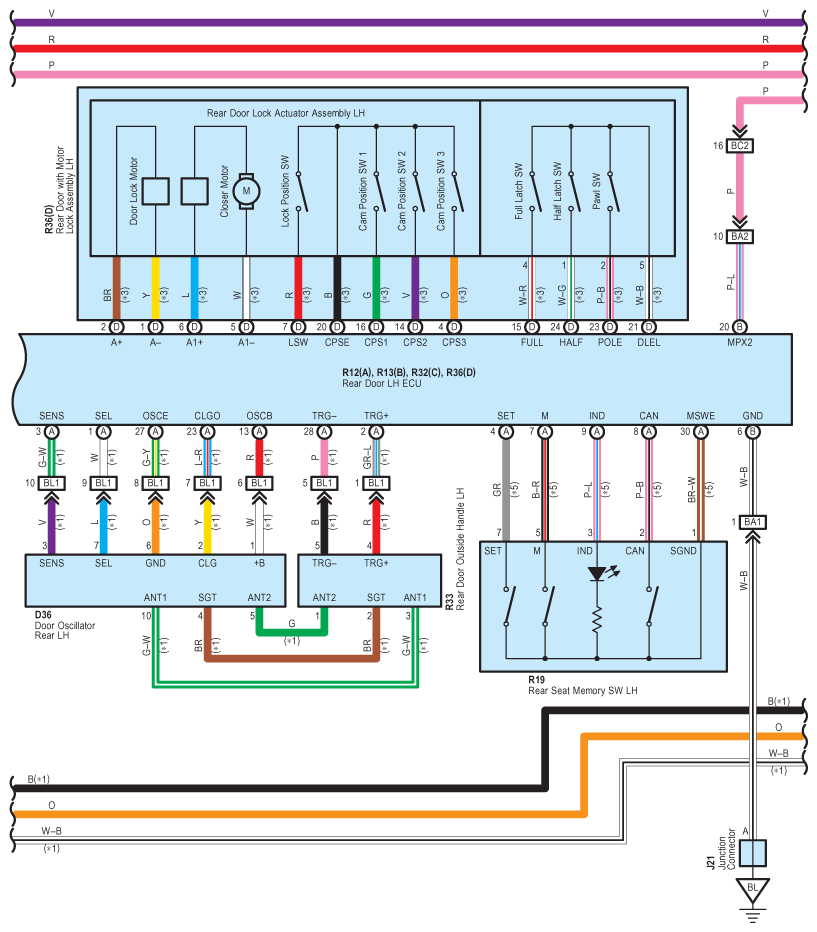

Fig 6: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

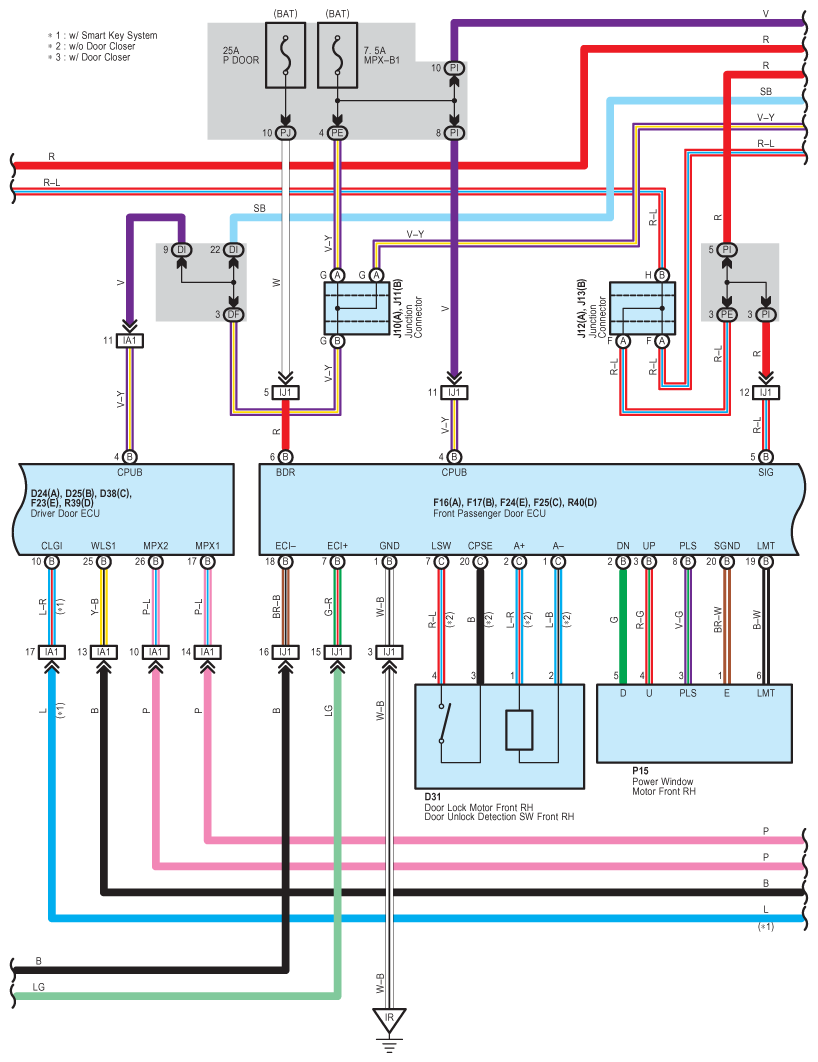

Fig 7: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

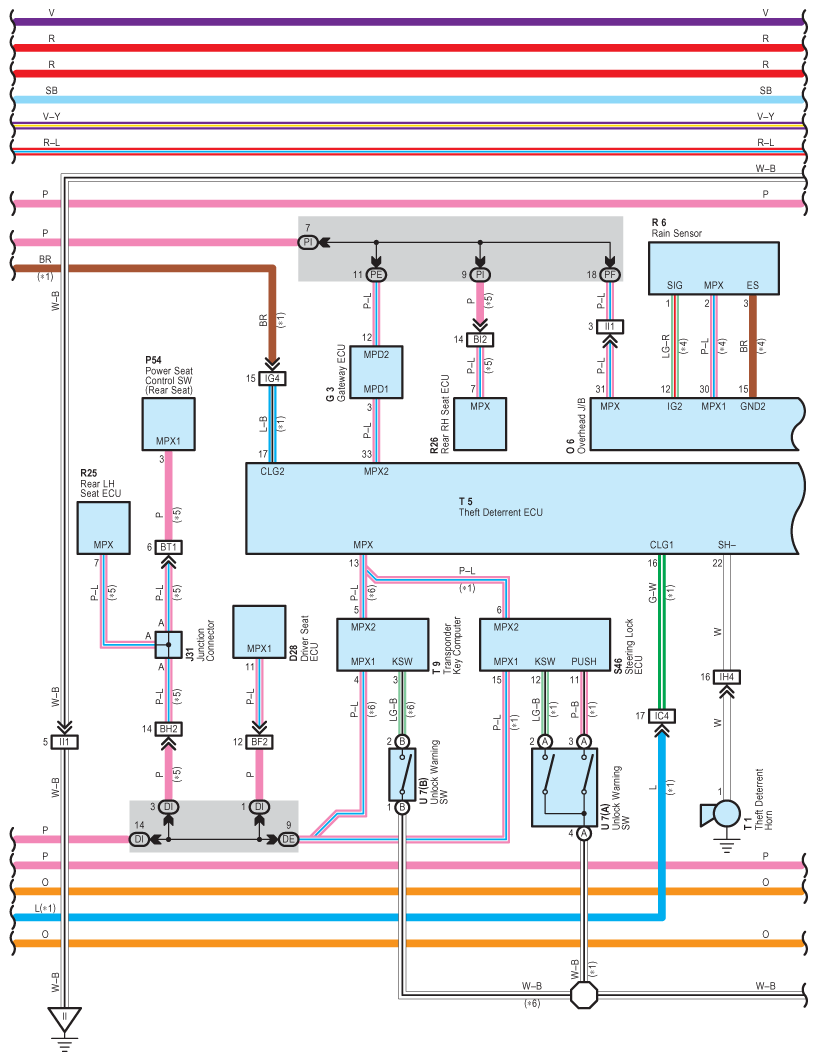

Fig 8: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

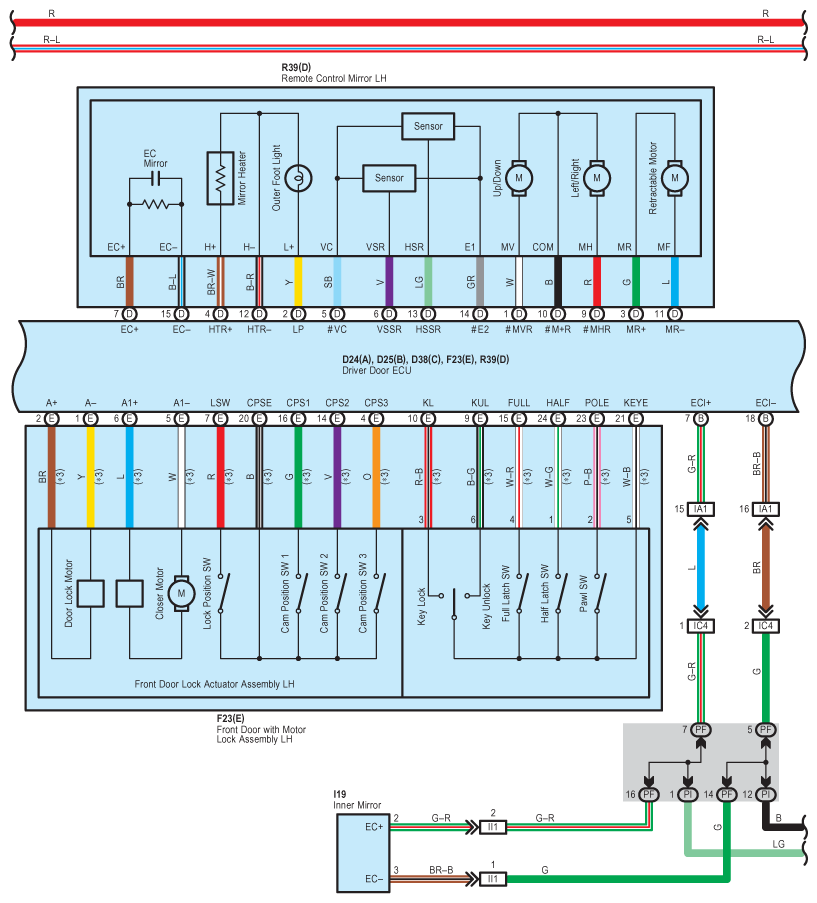

Fig 9: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

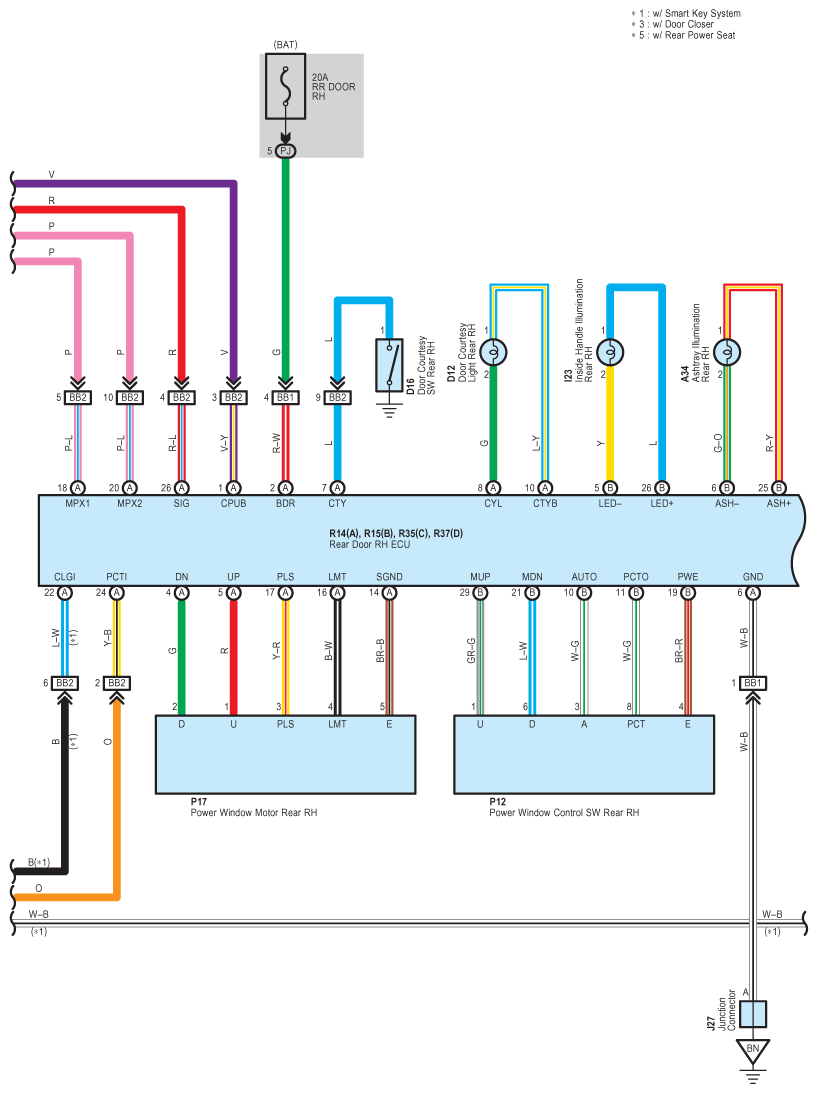

Fig 10: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (10 Of 14)

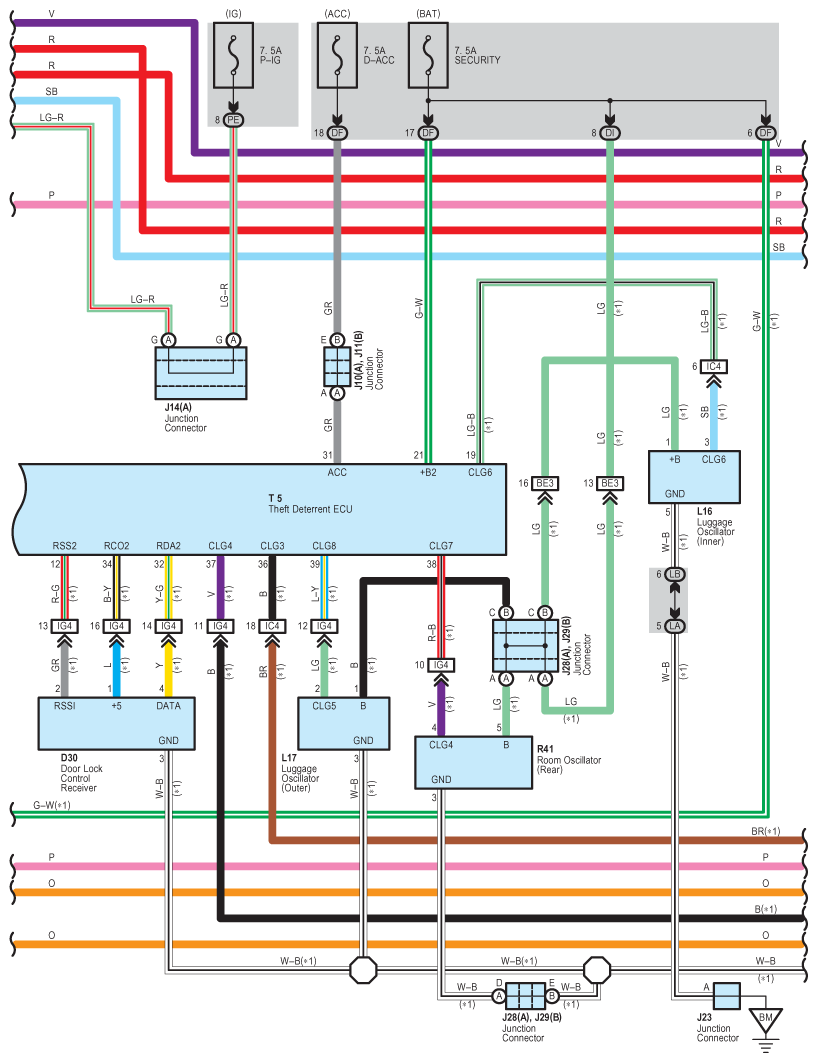

Fig 11: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (11 Of 14)

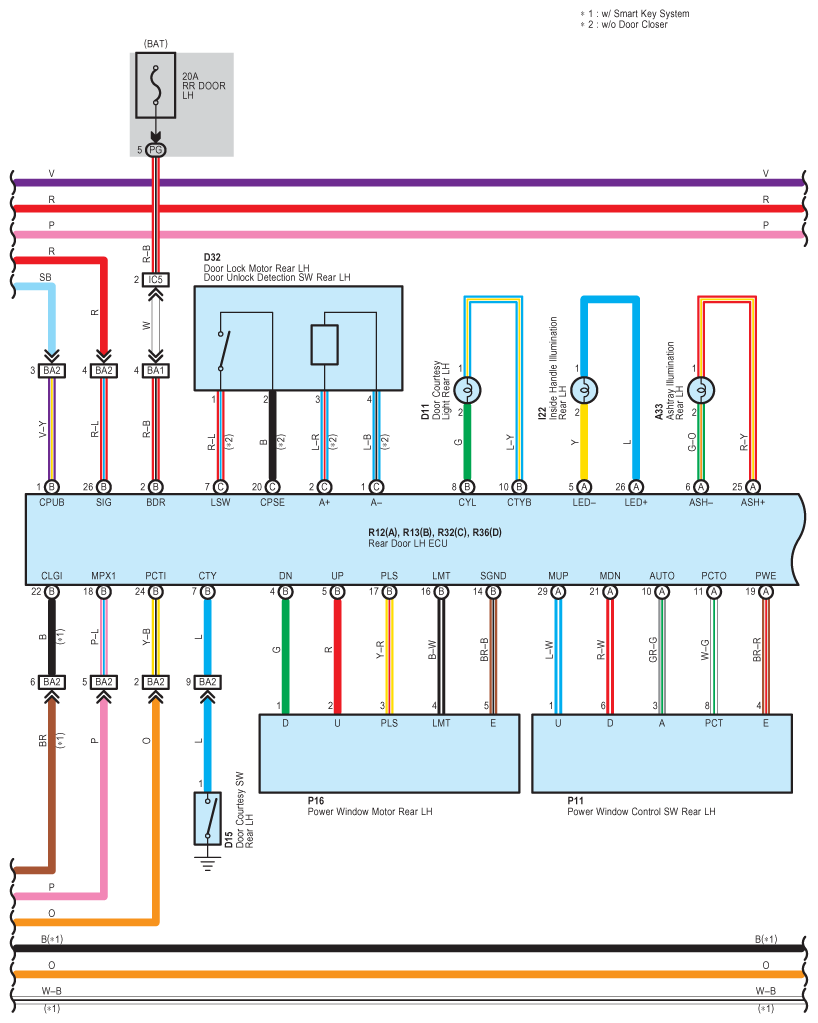

Fig 12: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (12 Of 14)

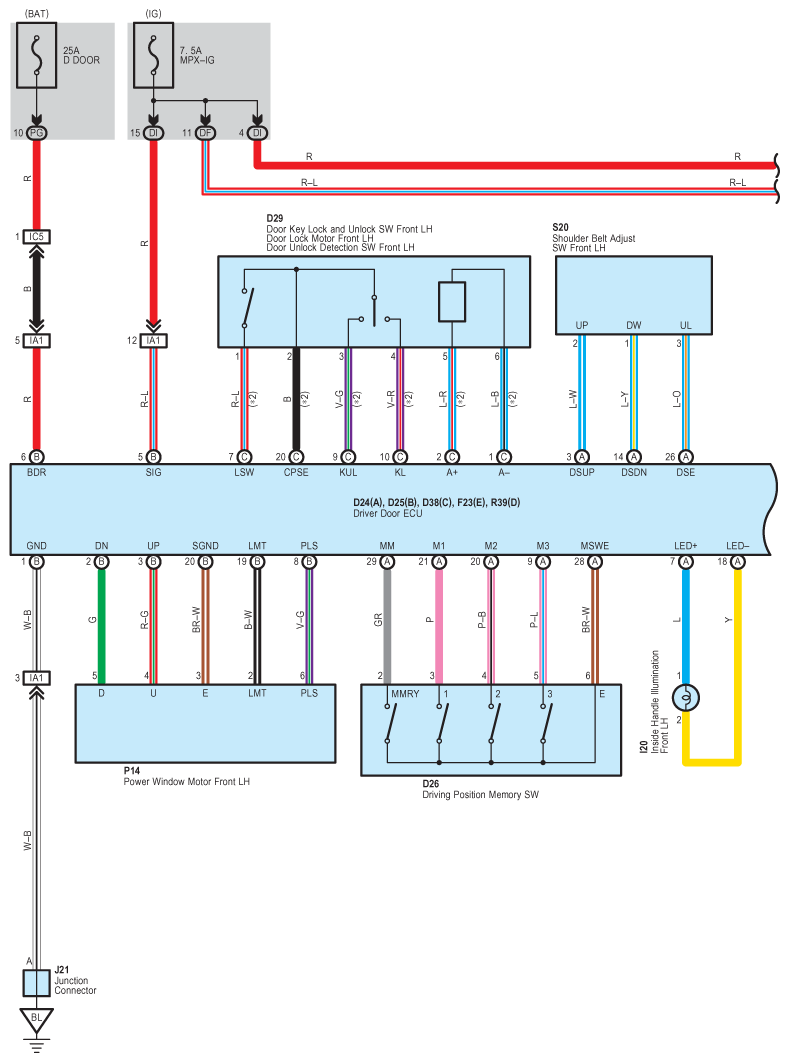

Fig 13: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (13 Of 14)

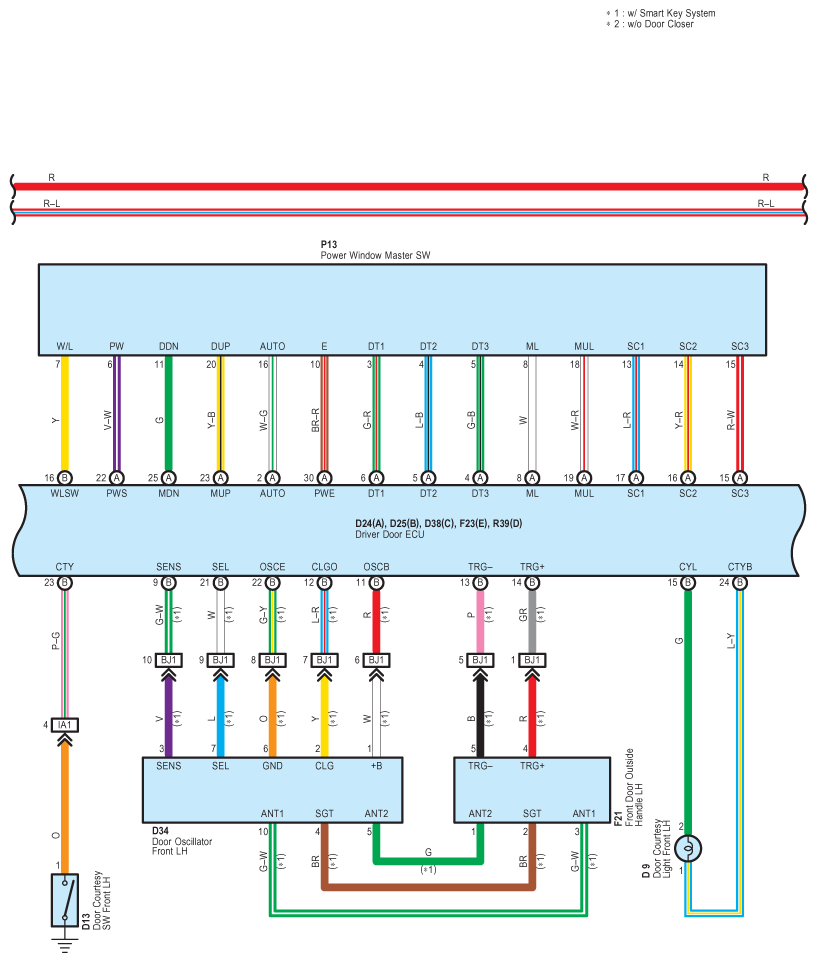

Fig 14: Multiplex Communication System - BEAN (Door Bus) System Wiring Diagram (14 Of 14)
