Multiplex Communication System - BEAN (Steering Column Bus): Notes

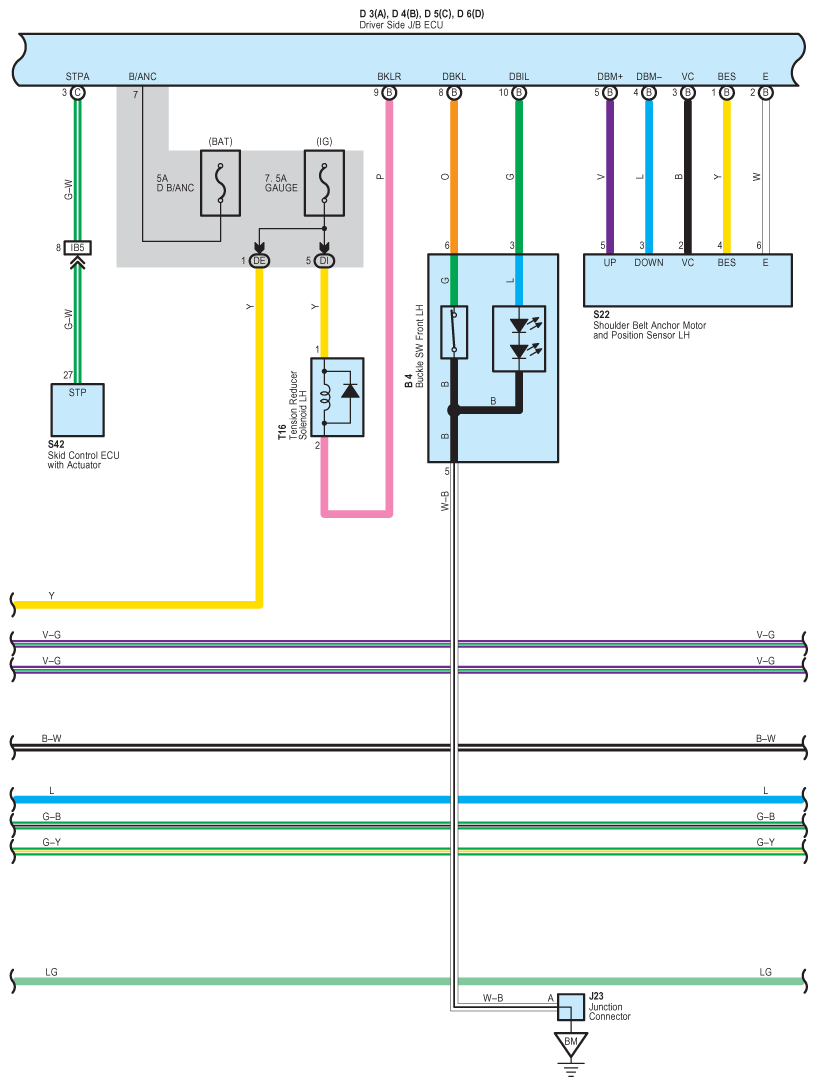

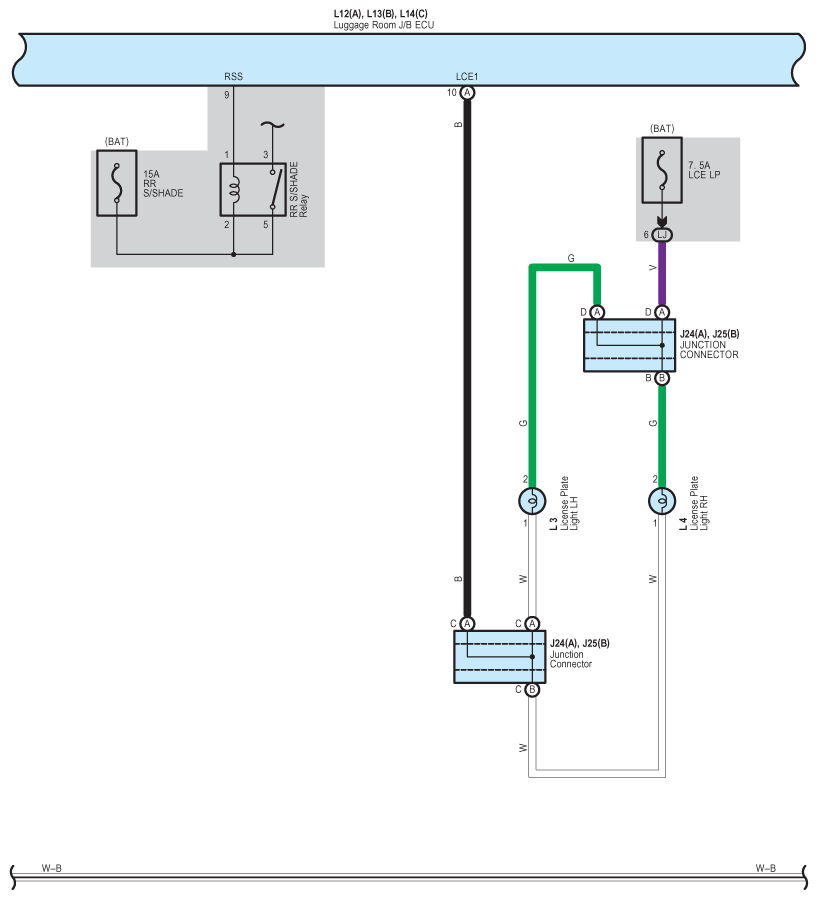

Fig 1: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (1 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

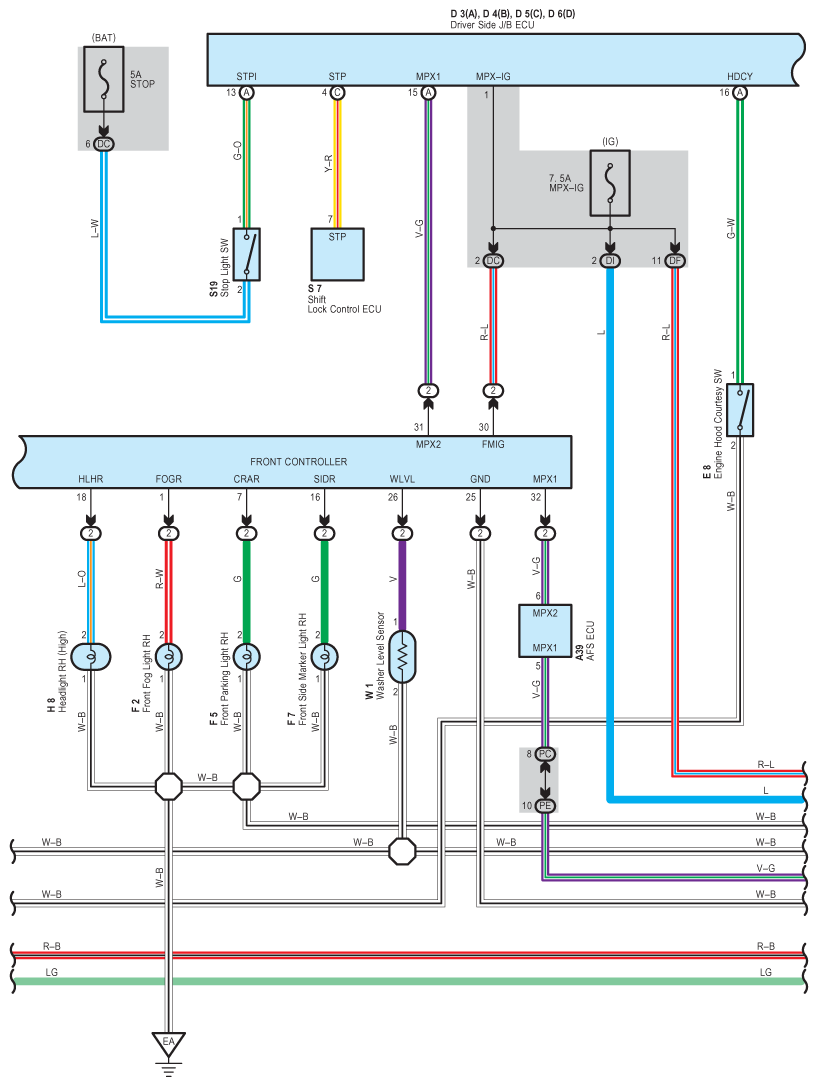

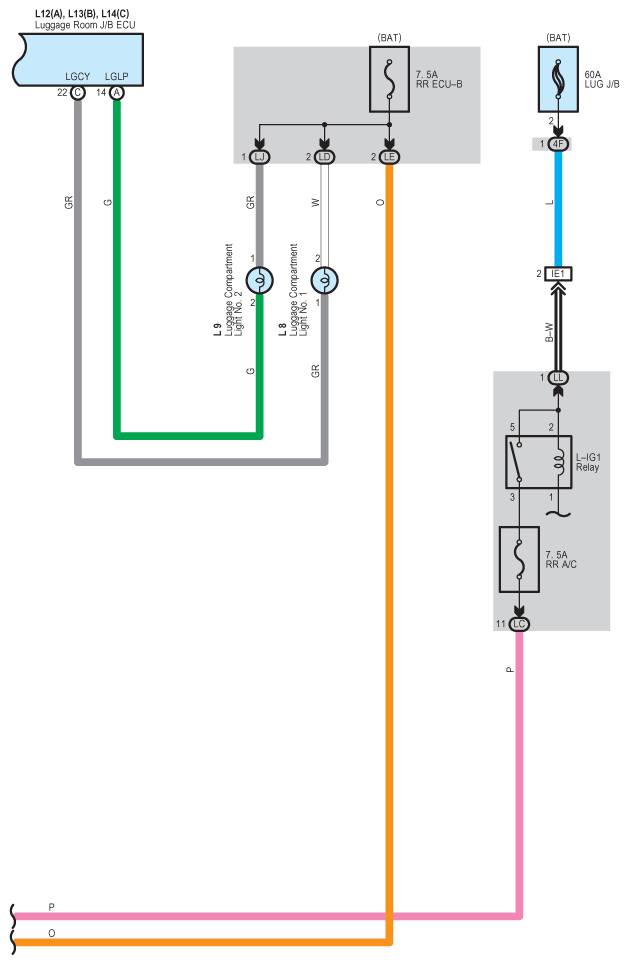

Fig 2: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (2 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

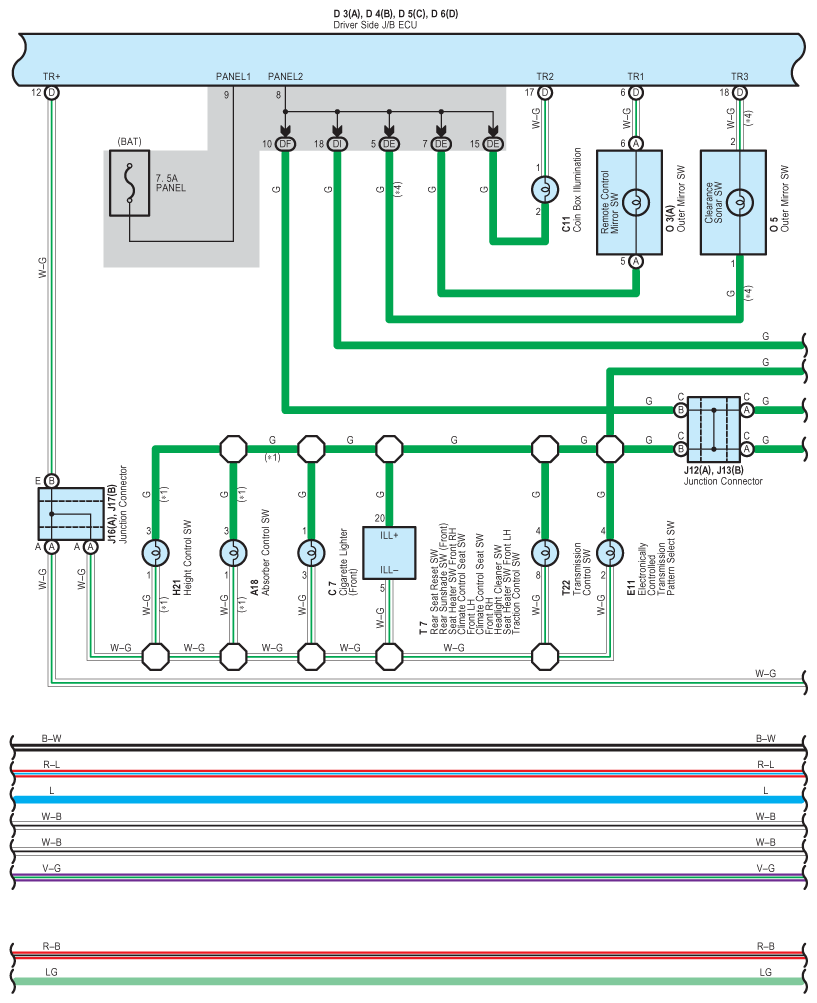

Fig 3: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (3 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

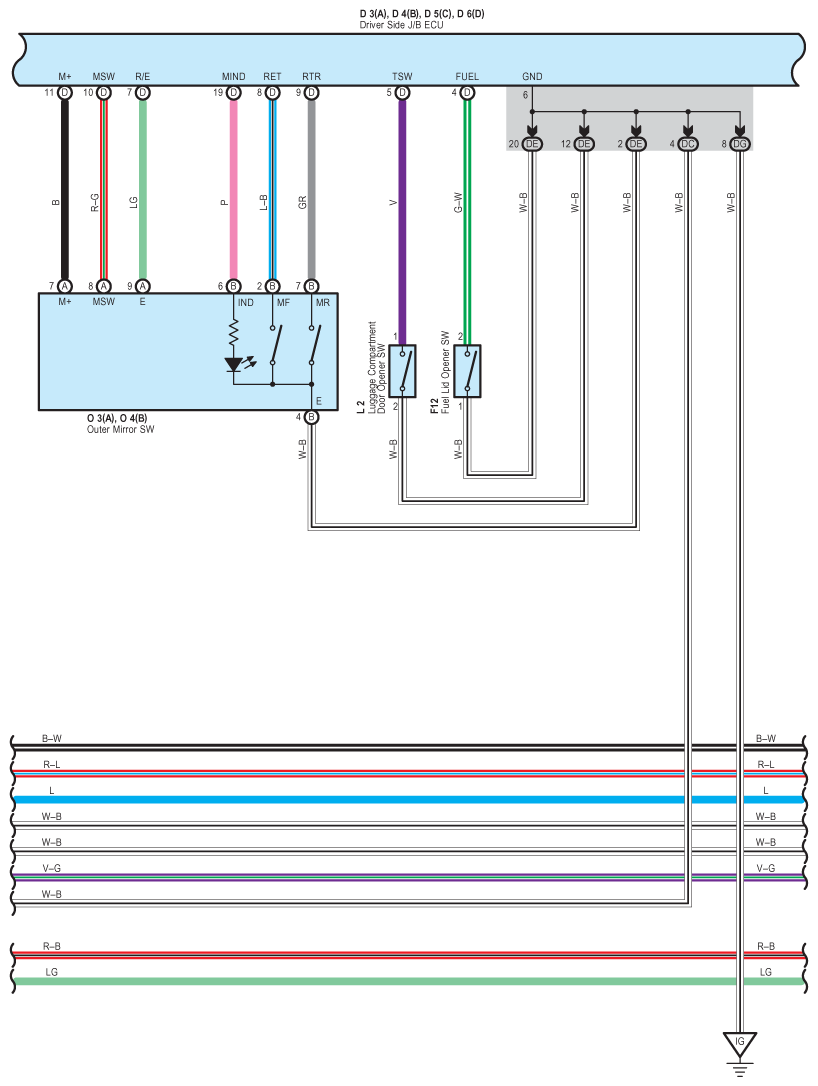

Fig 4: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (4 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

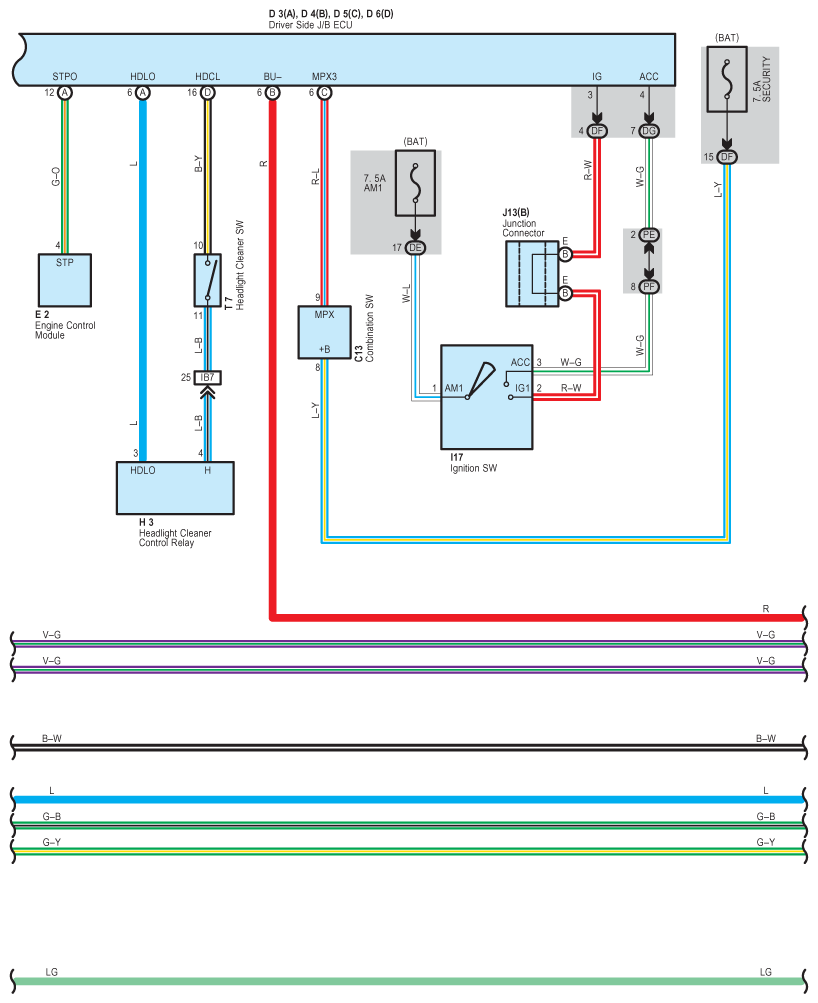

Fig 5: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (5 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

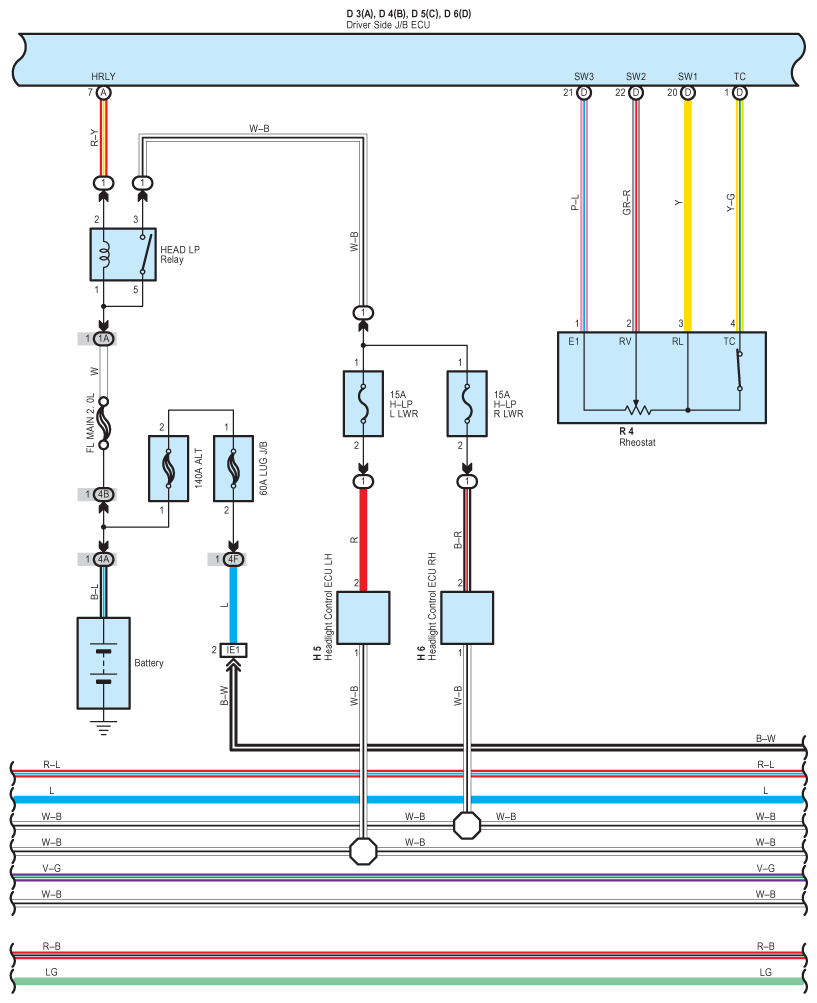

Fig 6: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (6 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

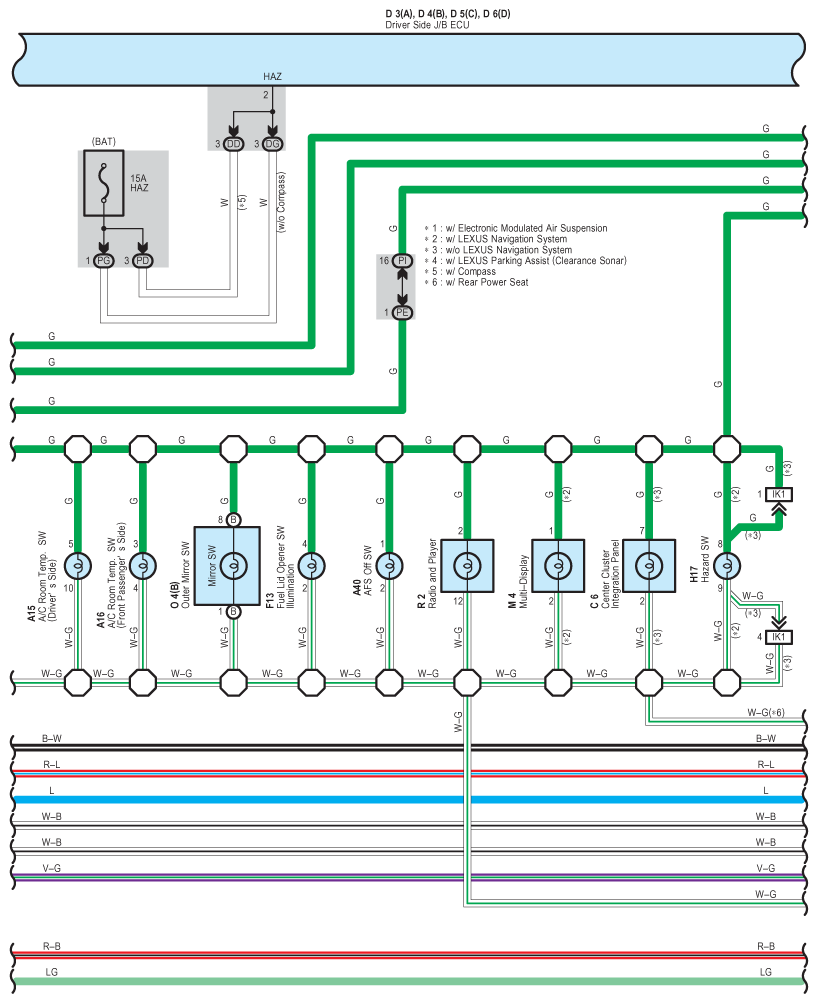

Fig 7: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (7 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

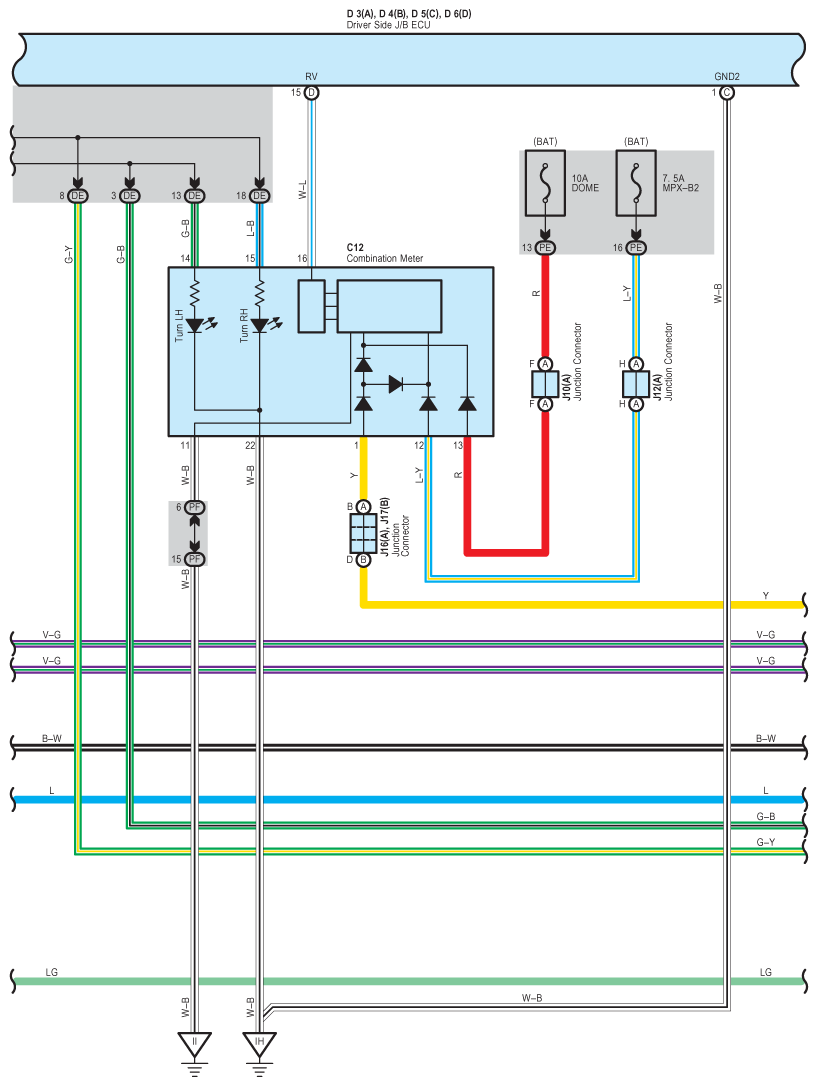

Fig 8: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (8 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

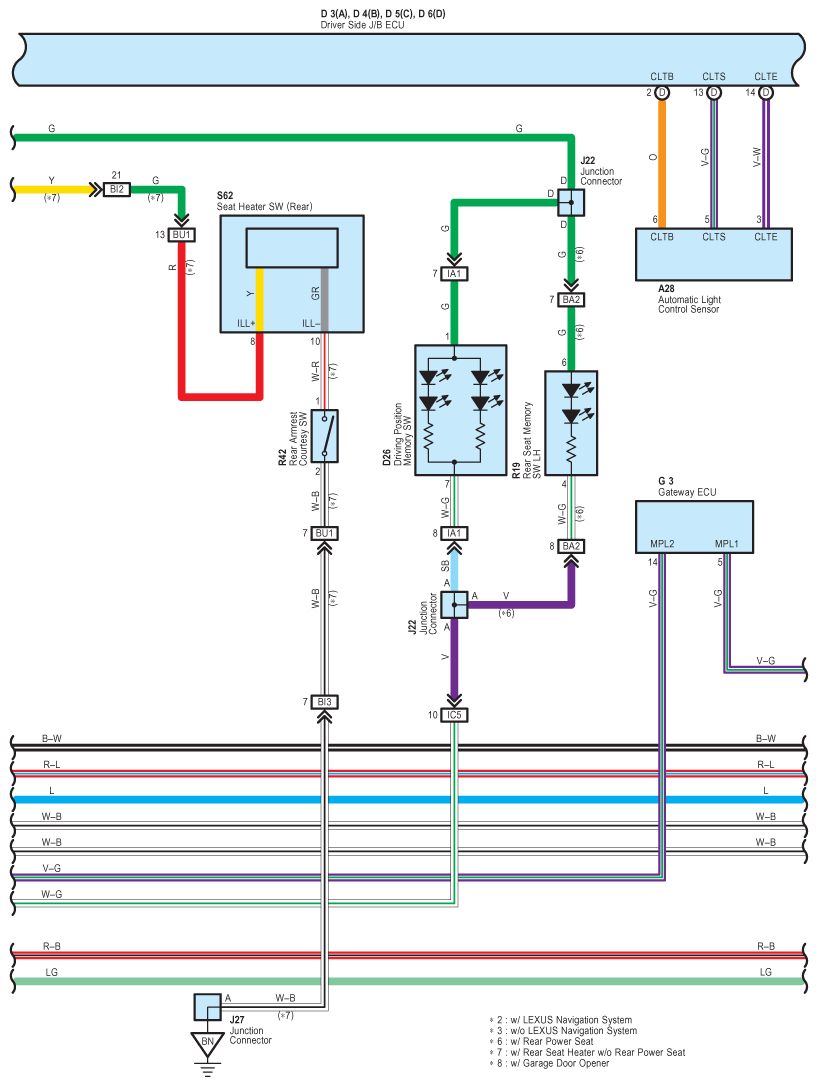

Fig 9: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (9 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

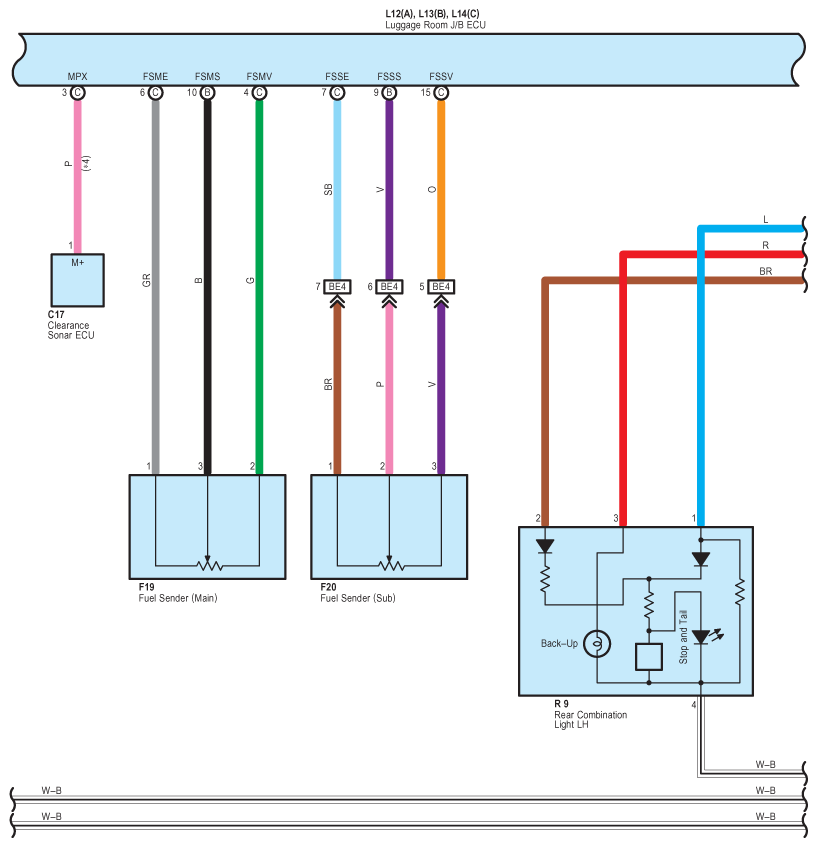

Fig 10: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (10 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

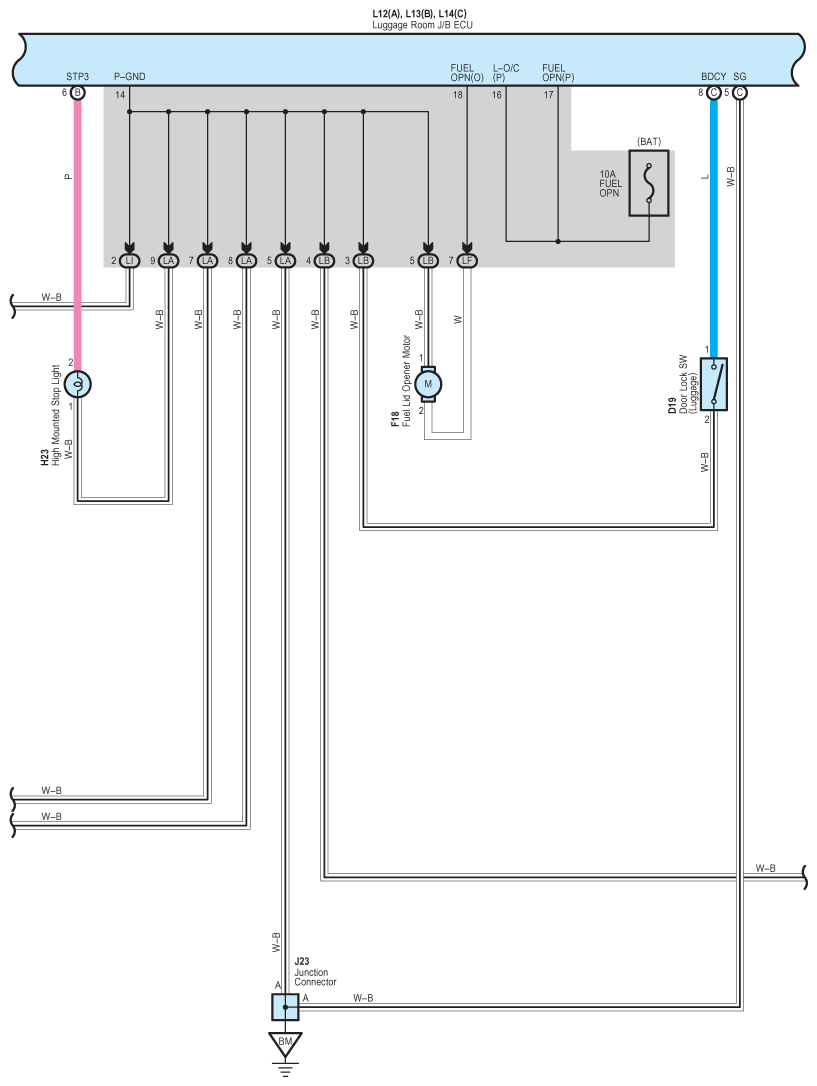

Fig 11: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (11 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

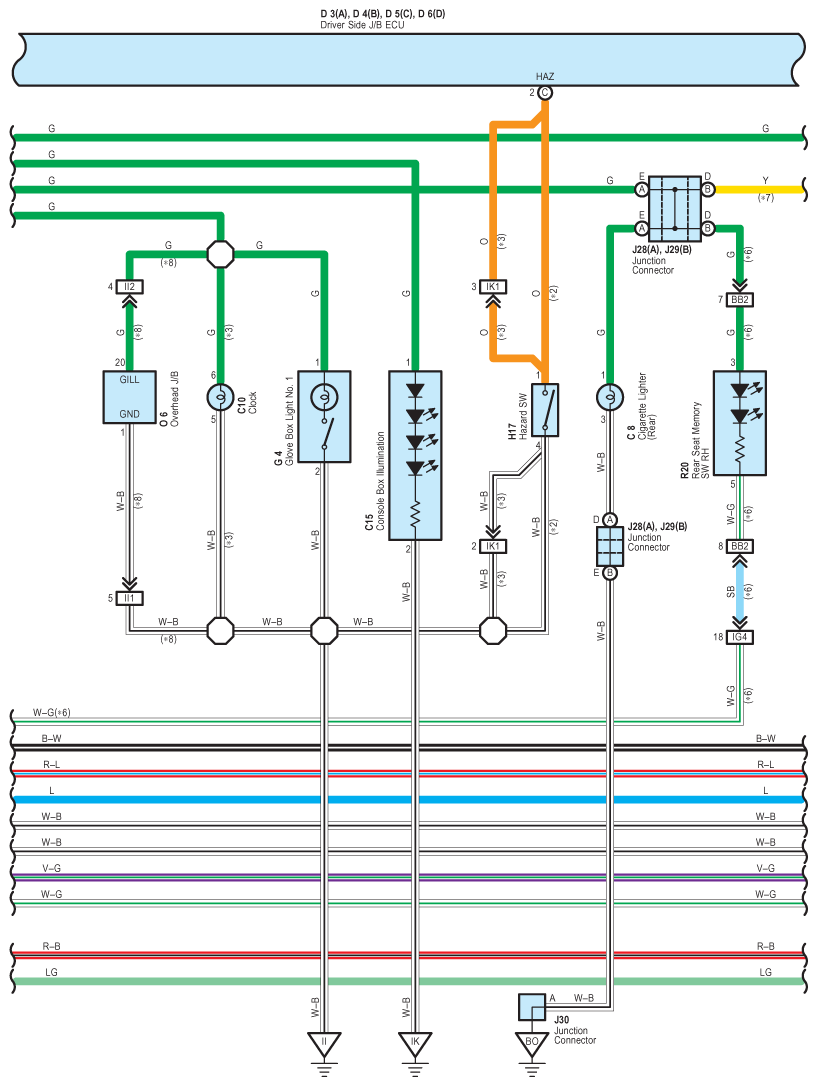

Fig 12: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (12 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

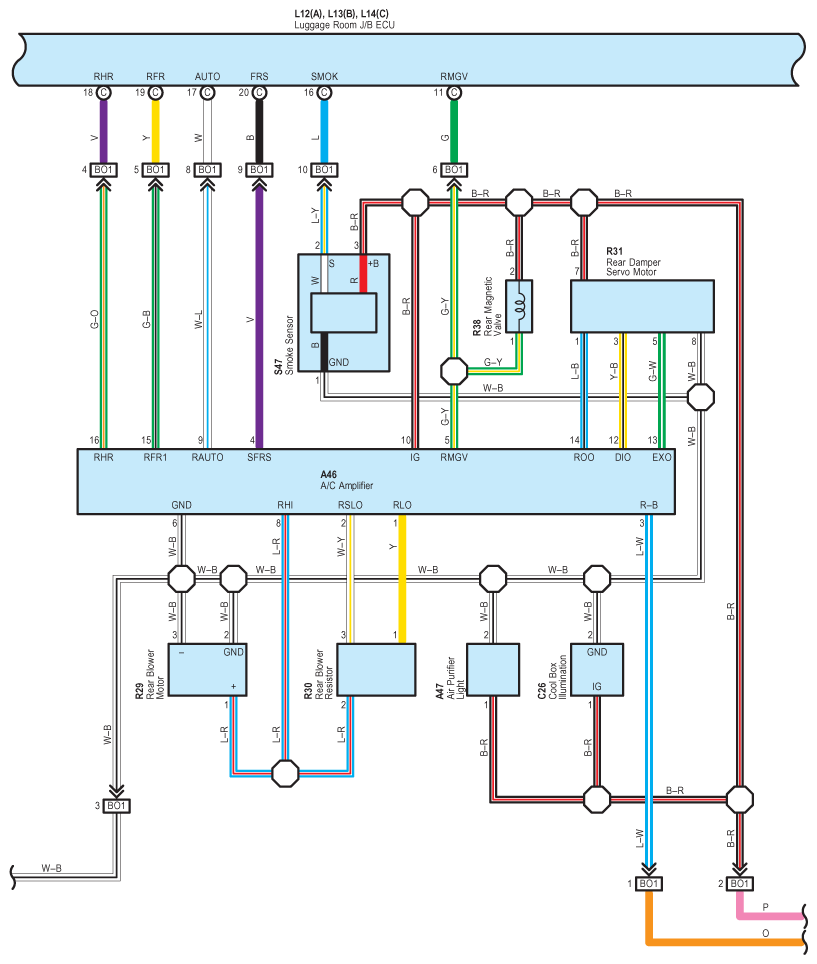

Fig 13: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (13 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

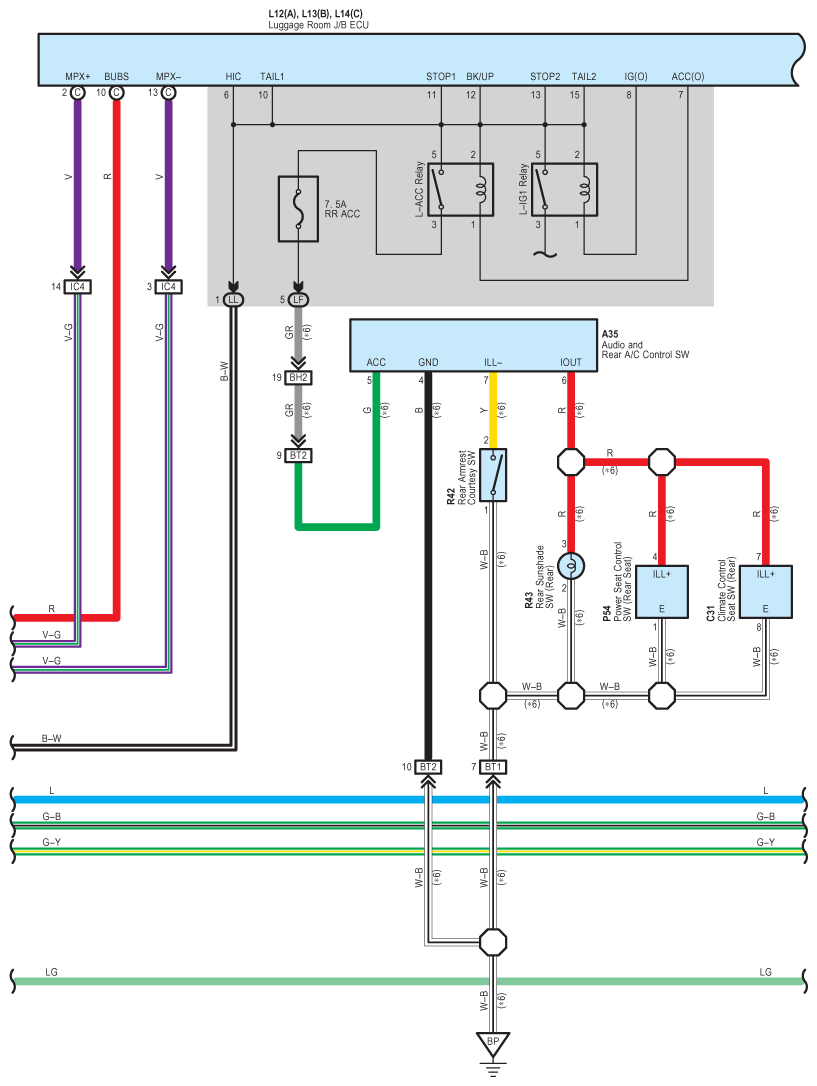

Fig 14: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (14 Of 20)

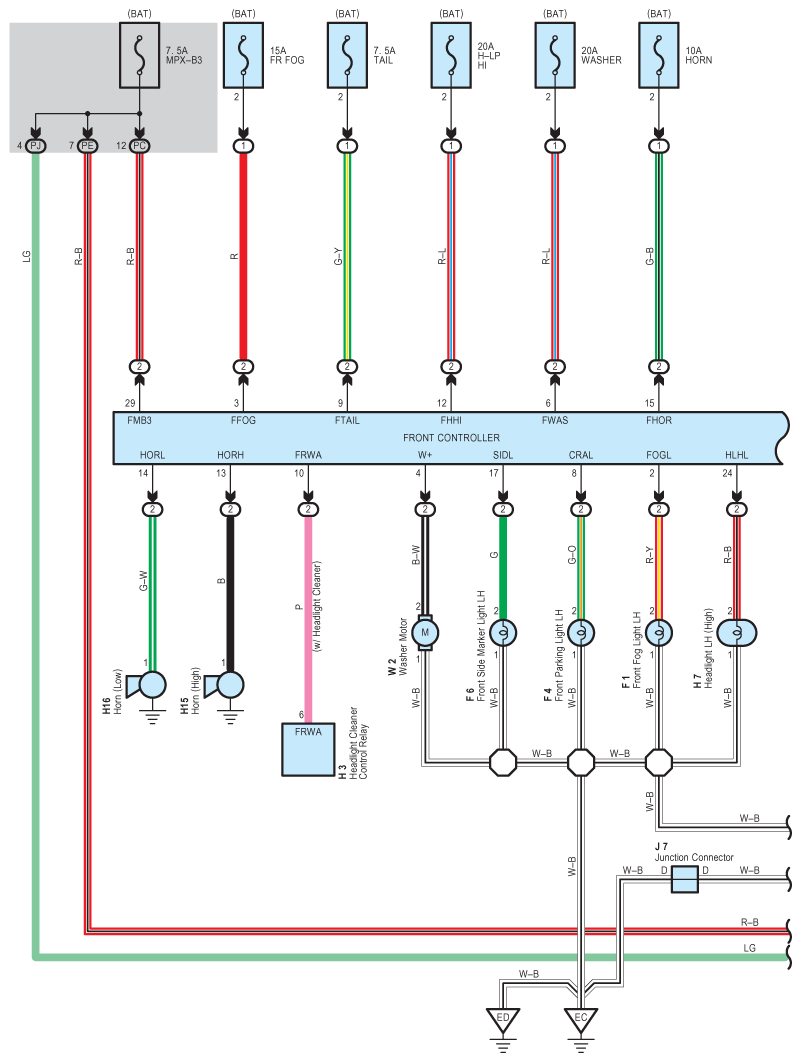

Fig 15: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (15 Of 20)

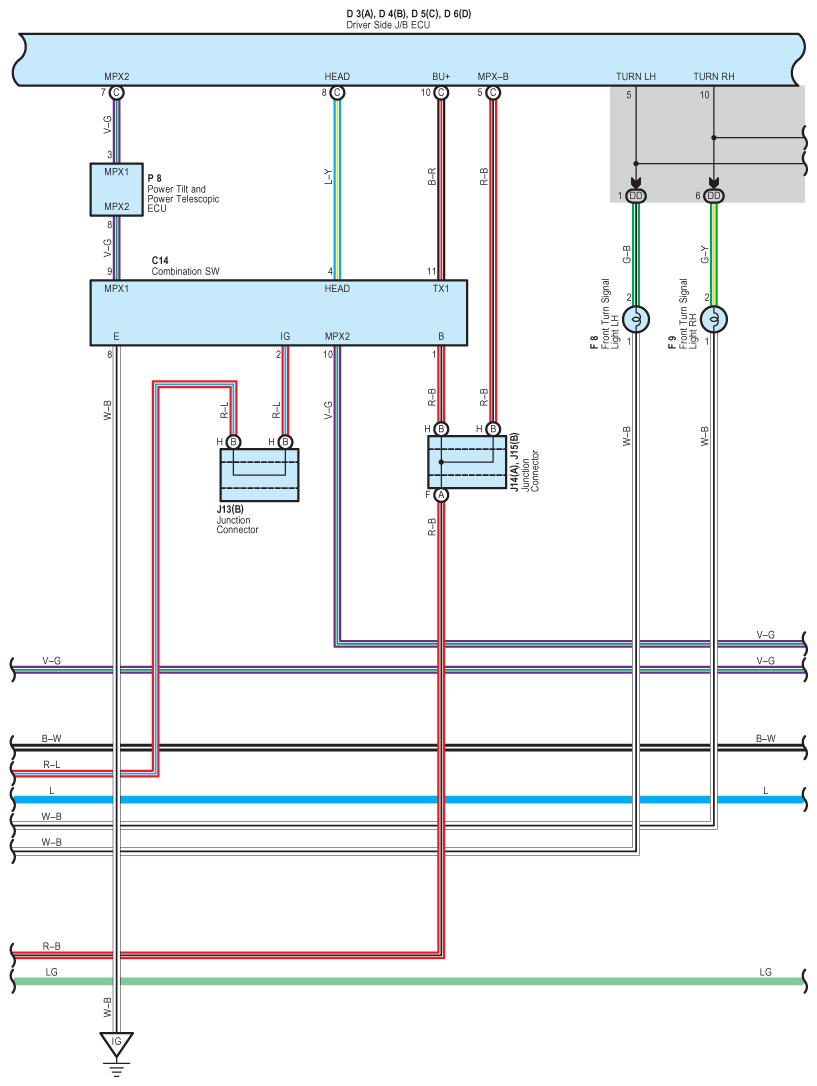

Fig 16: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (16 Of 20)

Fig 17: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (17 Of 20)

Fig 18: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (18 Of 20)

Fig 19: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (19 Of 20)

Fig 20: Multiplex Communication System - BEAN (Steering Column Bus) System Wiring Diagram (20 Of 20)
