Seat Heater (Front): Notes

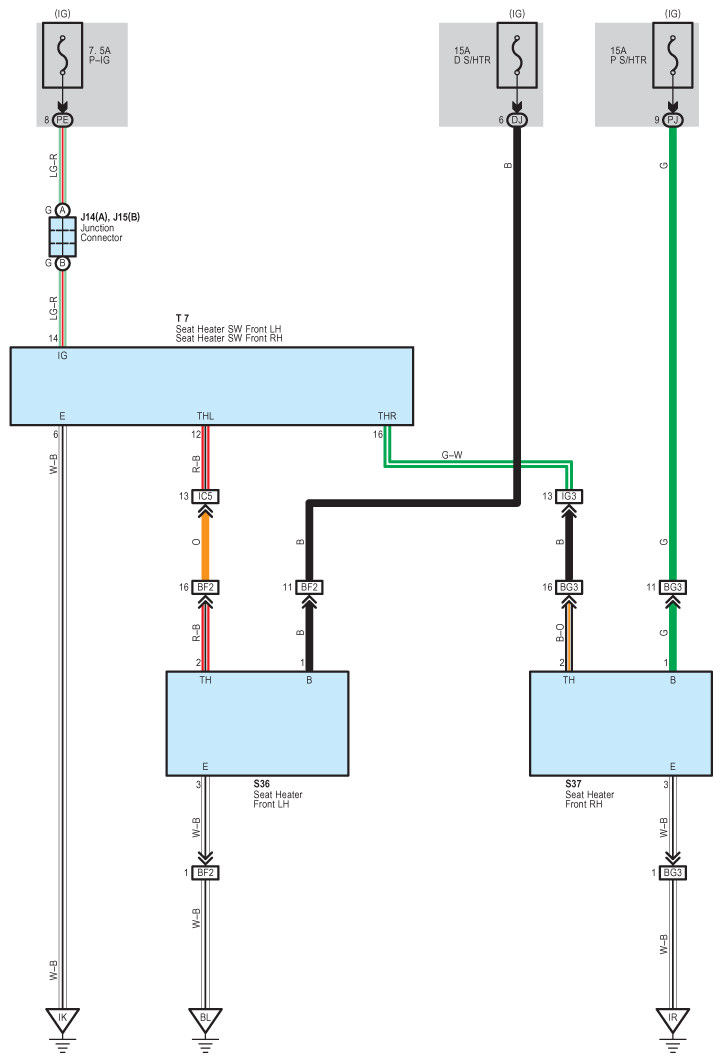

Fig 1: Seat Heater (Front) System Wiring Diagram
G08913908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
