Wiper and Washer: Notes

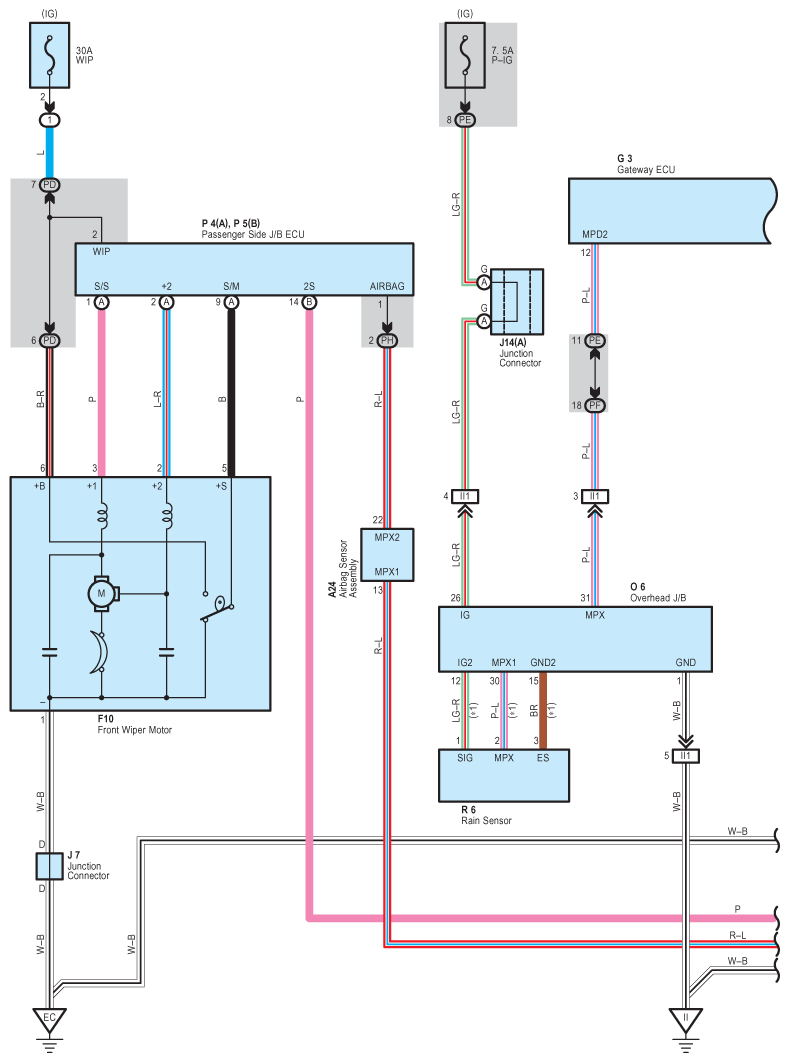

Fig 1: Wiper And Washer System Wiring Diagram (1 Of 4)
G08913829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

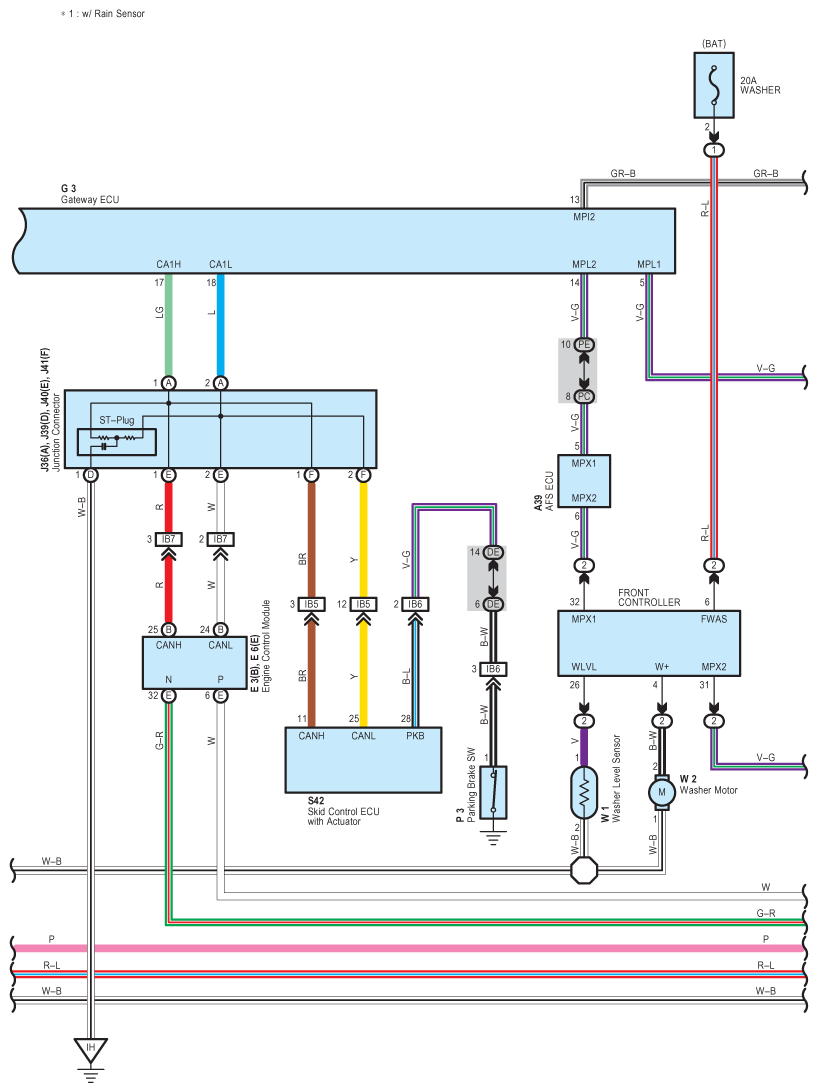

Fig 2: Wiper And Washer System Wiring Diagram (2 Of 4)
G08913830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

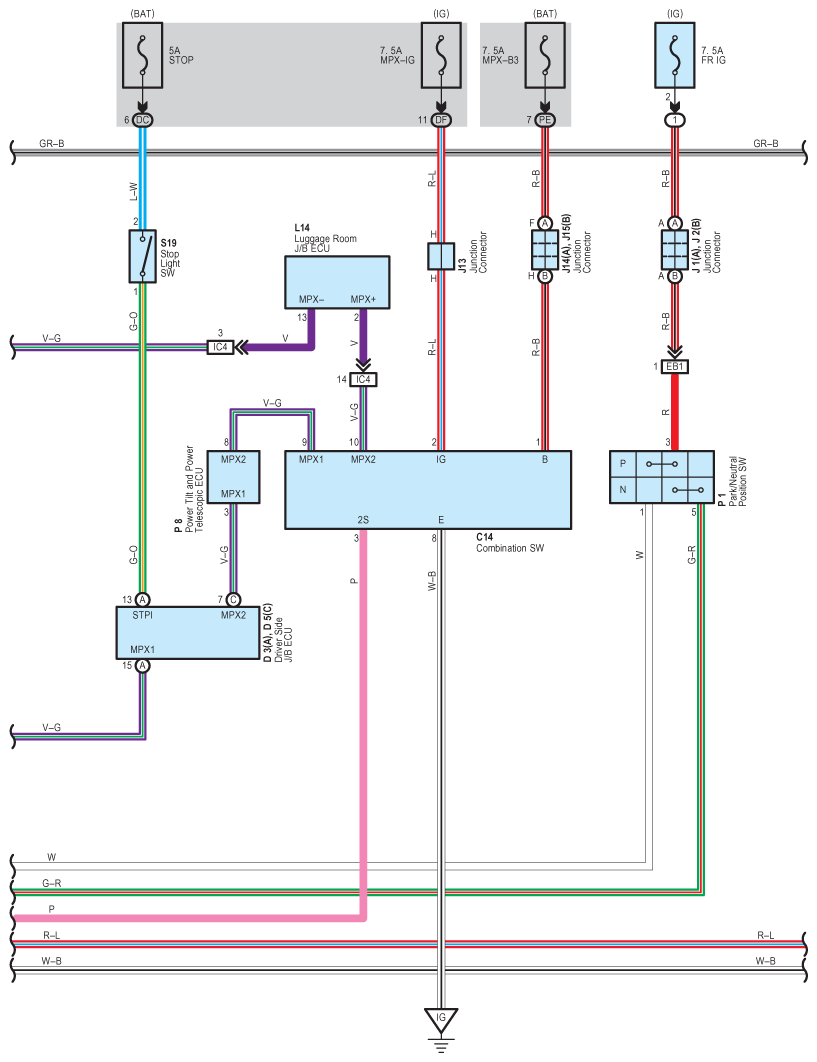

Fig 3: Wiper And Washer System Wiring Diagram (3 Of 4)
G08913831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

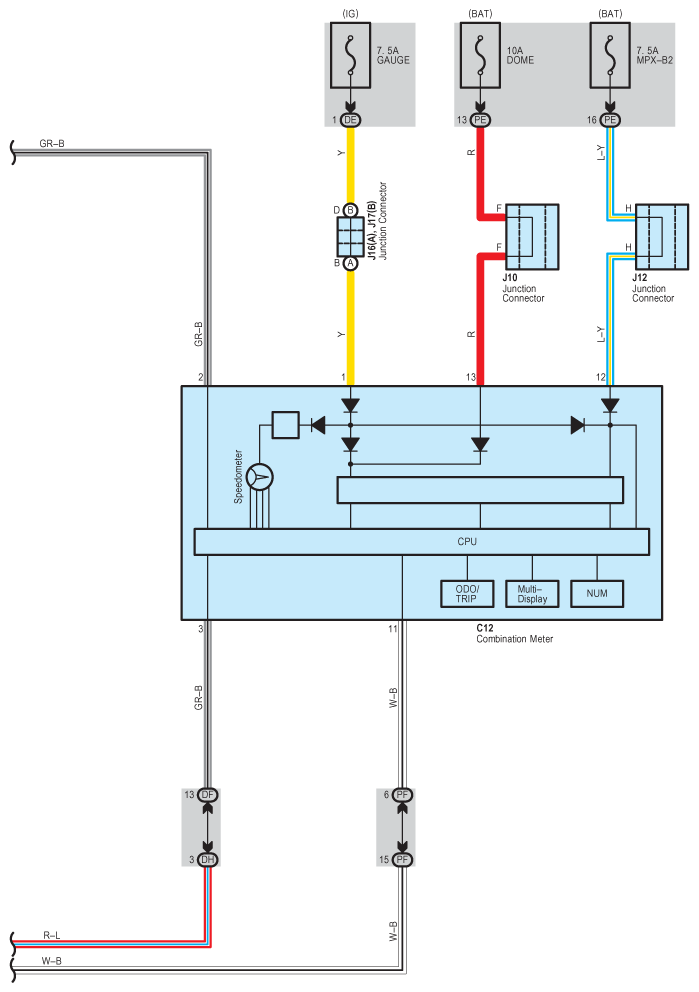

Fig 4: Wiper And Washer System Wiring Diagram (4 Of 4)
G08913832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
