Starting System: Inspection

1. Perform pull-in/holding test.
   1. Disconnect the field coil lead wire from terminal C.
   2. Connect the battery to the magnetic switch as shown in Fig 1 .

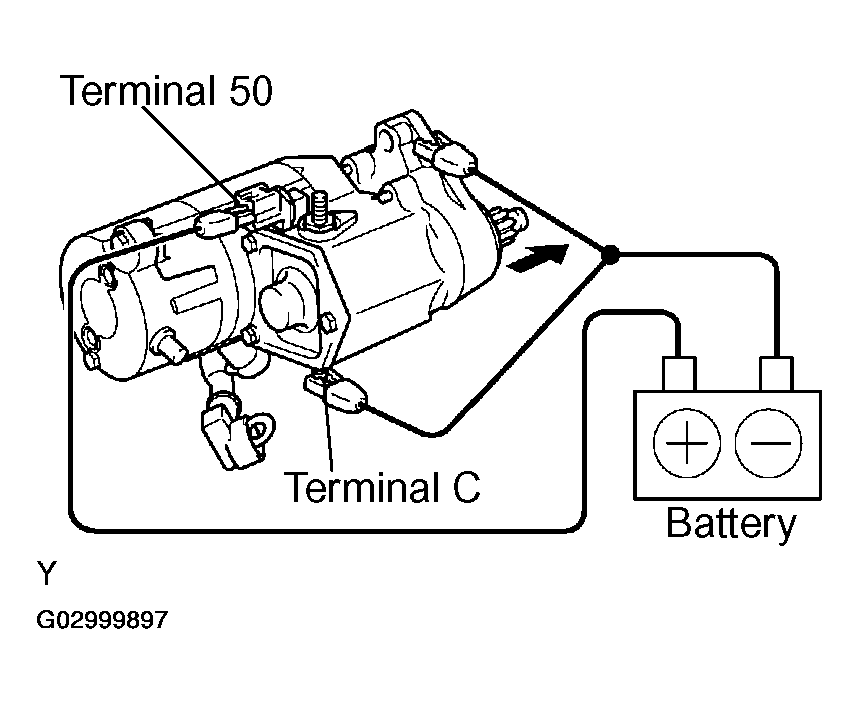

      Fig 1: Connecting Battery To Magnetic Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Check that the clutch pinion gear moves outward.
   4. Disconnect the battery negative (-) lead from terminal C.

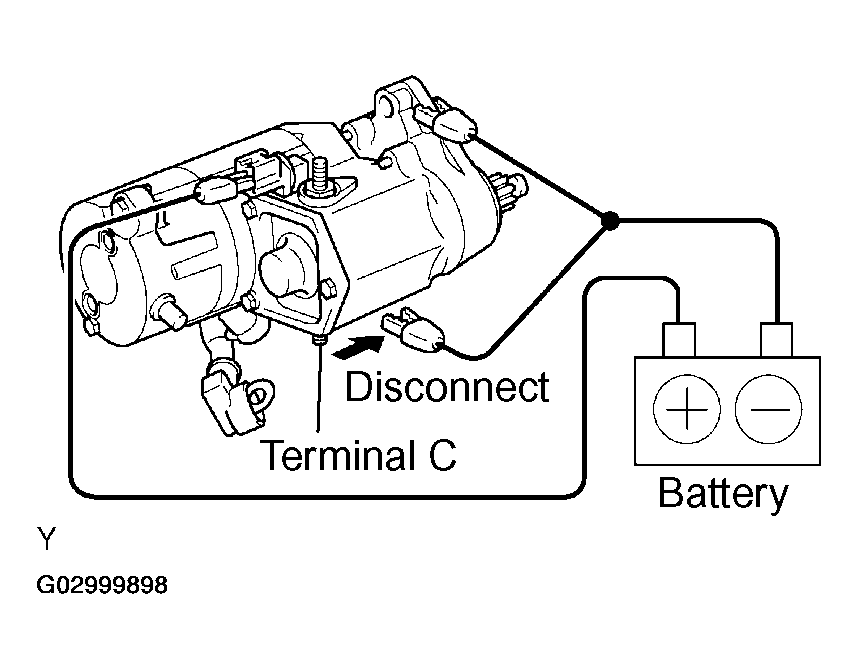

      Fig 2: Disconnecting Battery Negative Lead From Terminal C

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Check that the pinion gear remains out.
   6. Disconnect the battery negative (-) lead from the switch body.

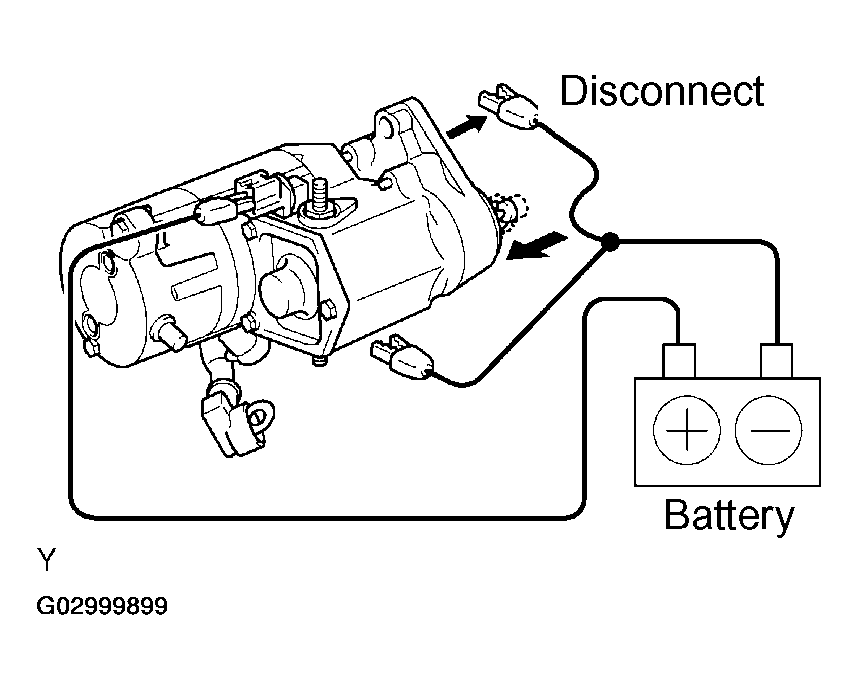

      Fig 3: Disconnecting Battery Negative Lead From Switch Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Check that the clutch pinion gear returns inward.
2. Perform operation test without load.
   1. Connect the battery and ammeter to the starter as shown in Fig 4 .
   2. Check that the starter rotates smoothly and steadily while the pinion gear is moving out. Then measure the current.
      1. Specified current: 100 A or less at 11.5 V

      If the result is not as specified, replace the starter assy.

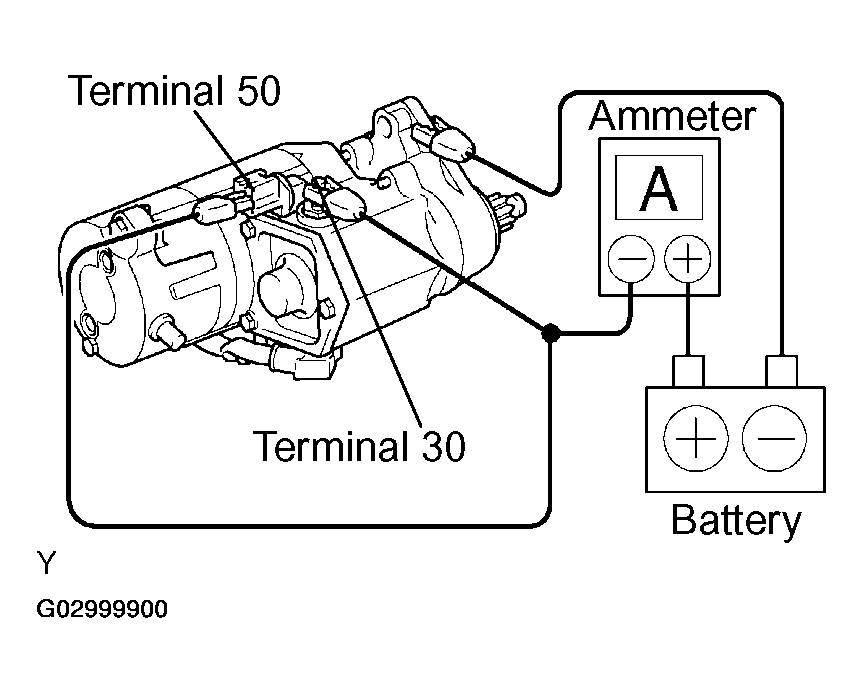

      Fig 4: Connecting Battery & Ammeter To Starter

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance of the switch.

Standard:

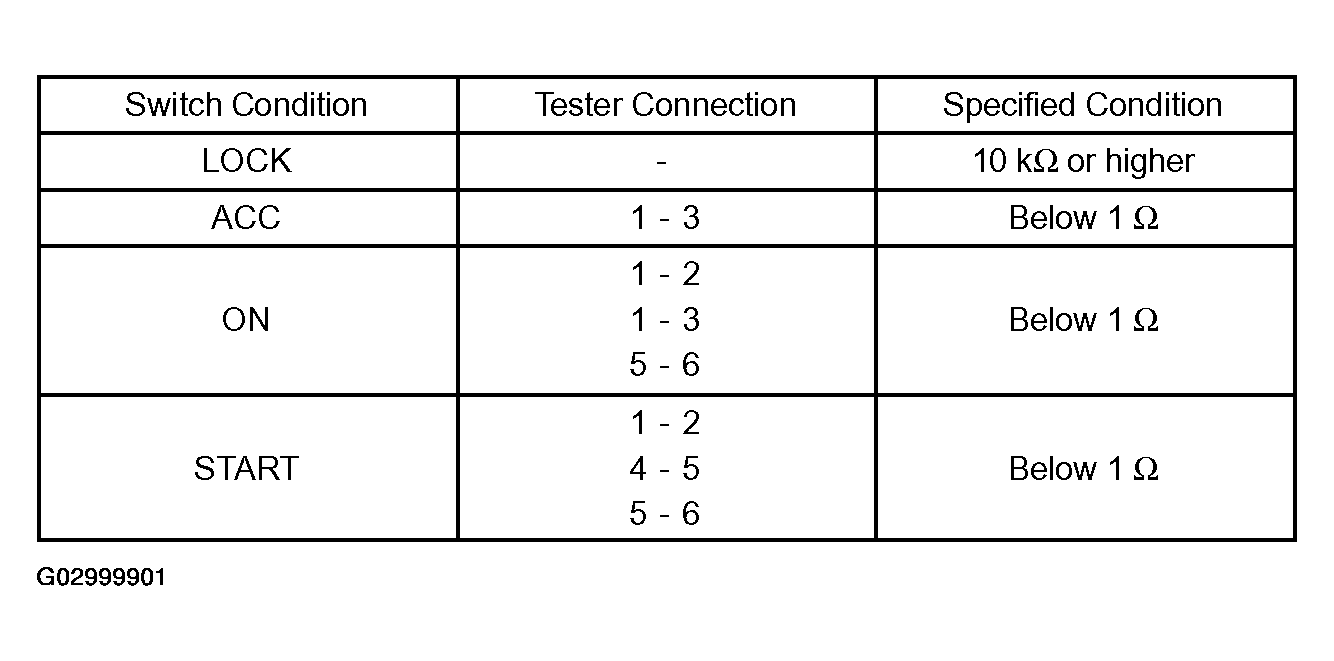

Fig 5: Ignition Or Starter Switch Assy Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

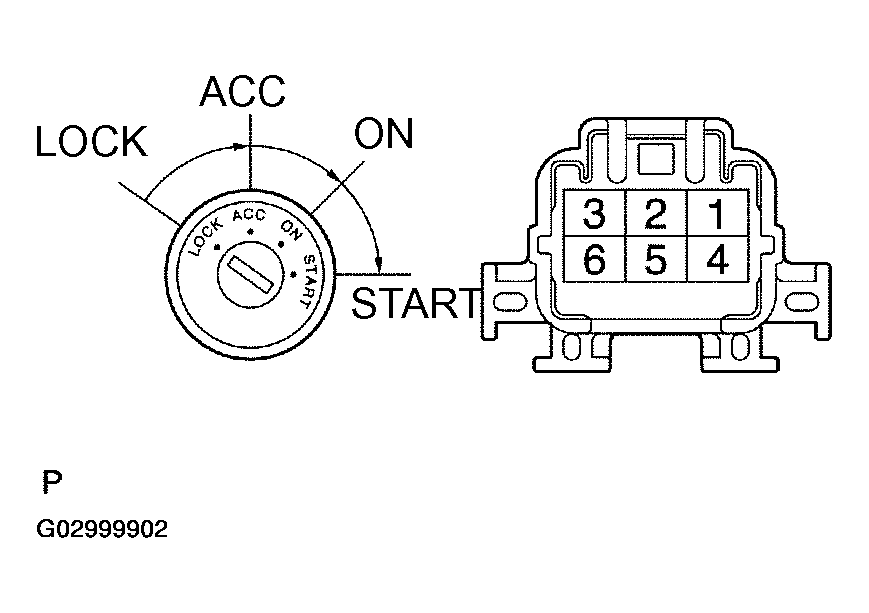

Fig 6: Inspecting Ignition Or Starter Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch assy.

1. Remove the STARTER relay from the FL block.
2. Measure the resistance of the STARTER relay.

Standard:

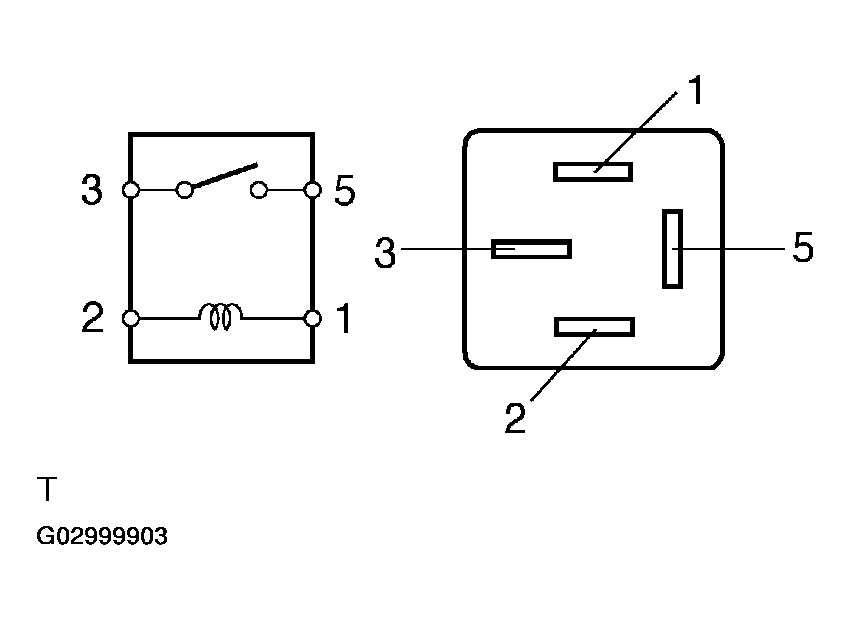

Fig 7: Inspecting Relay (Marking: Starter)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the relay.
