Emission Control System: Location

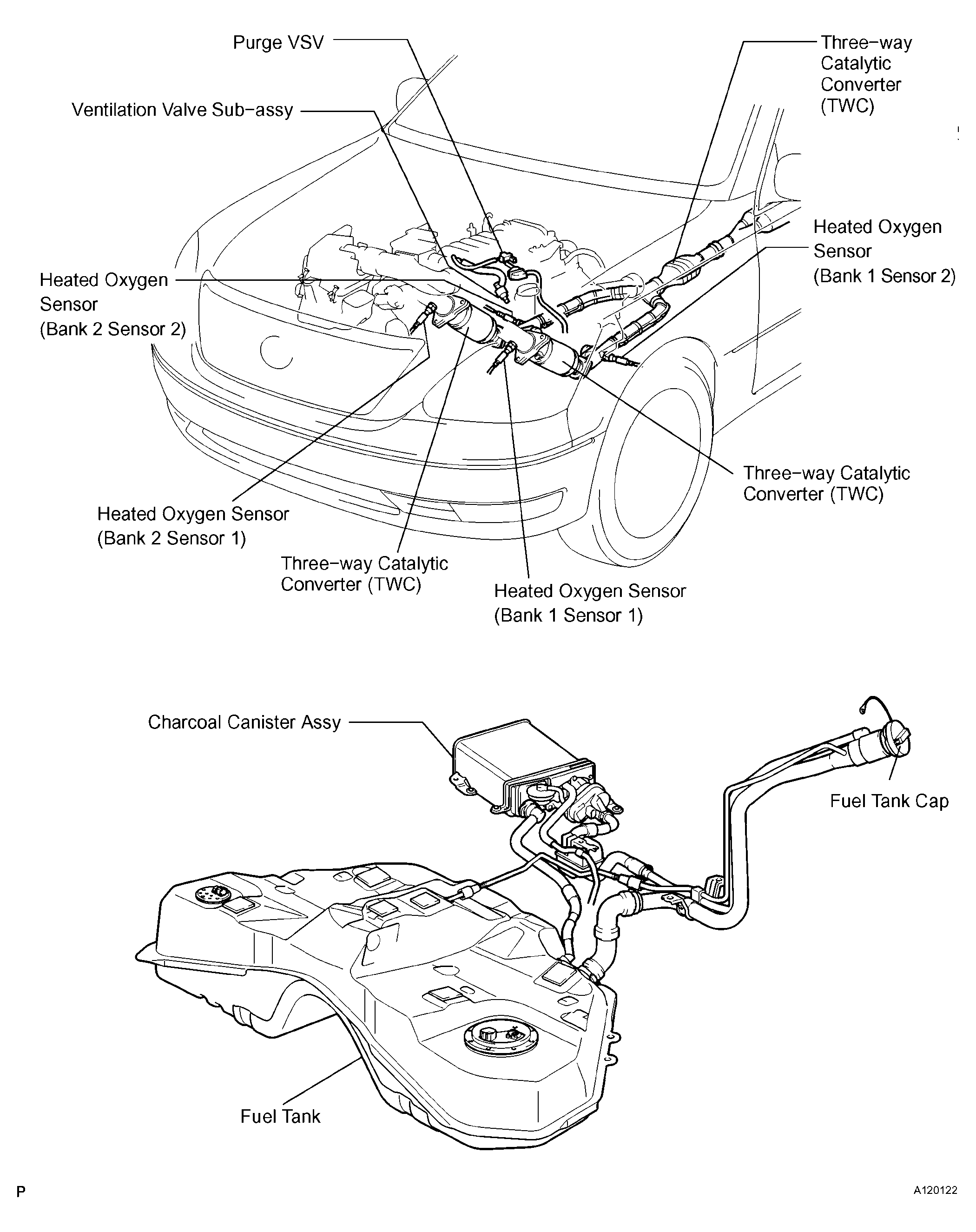

Fig 1: Identifying Components Location Emission Control System
G04059772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
