System Diagram

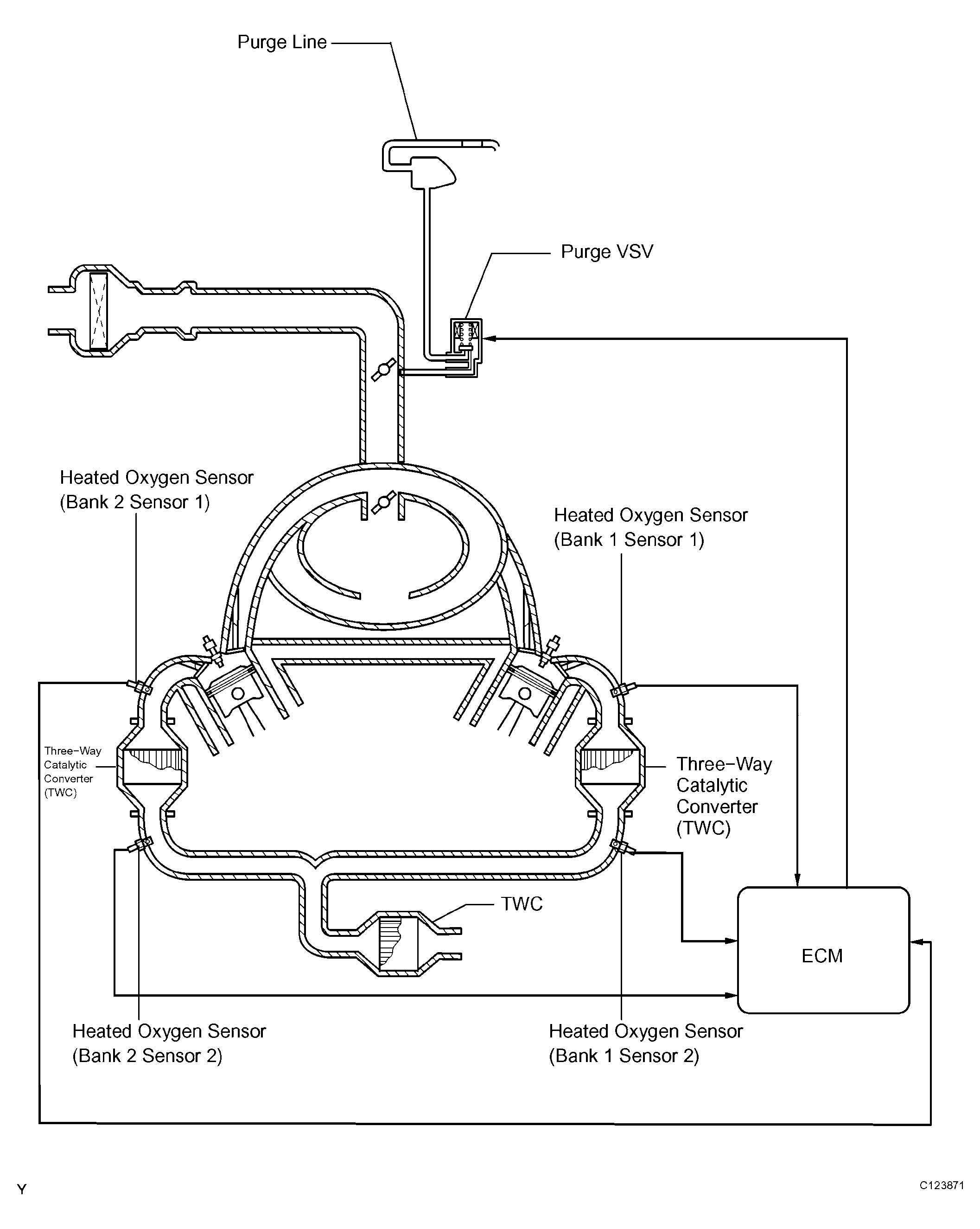

Fig 1: System Diagram Emission Control System (1 Of 4)
G04059773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

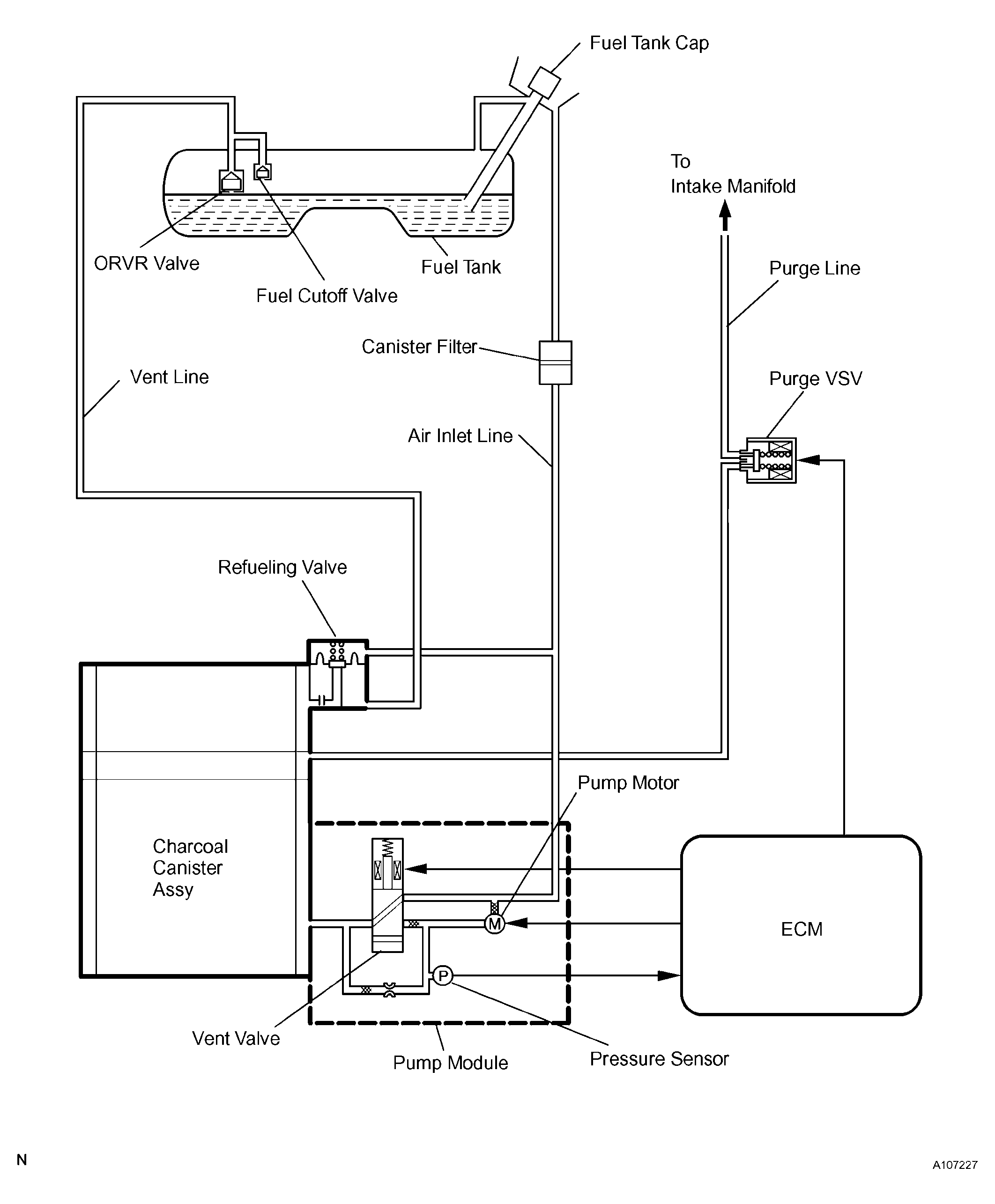

Fig 2: System Diagram Emission Control System (2 Of 4)
G04059774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

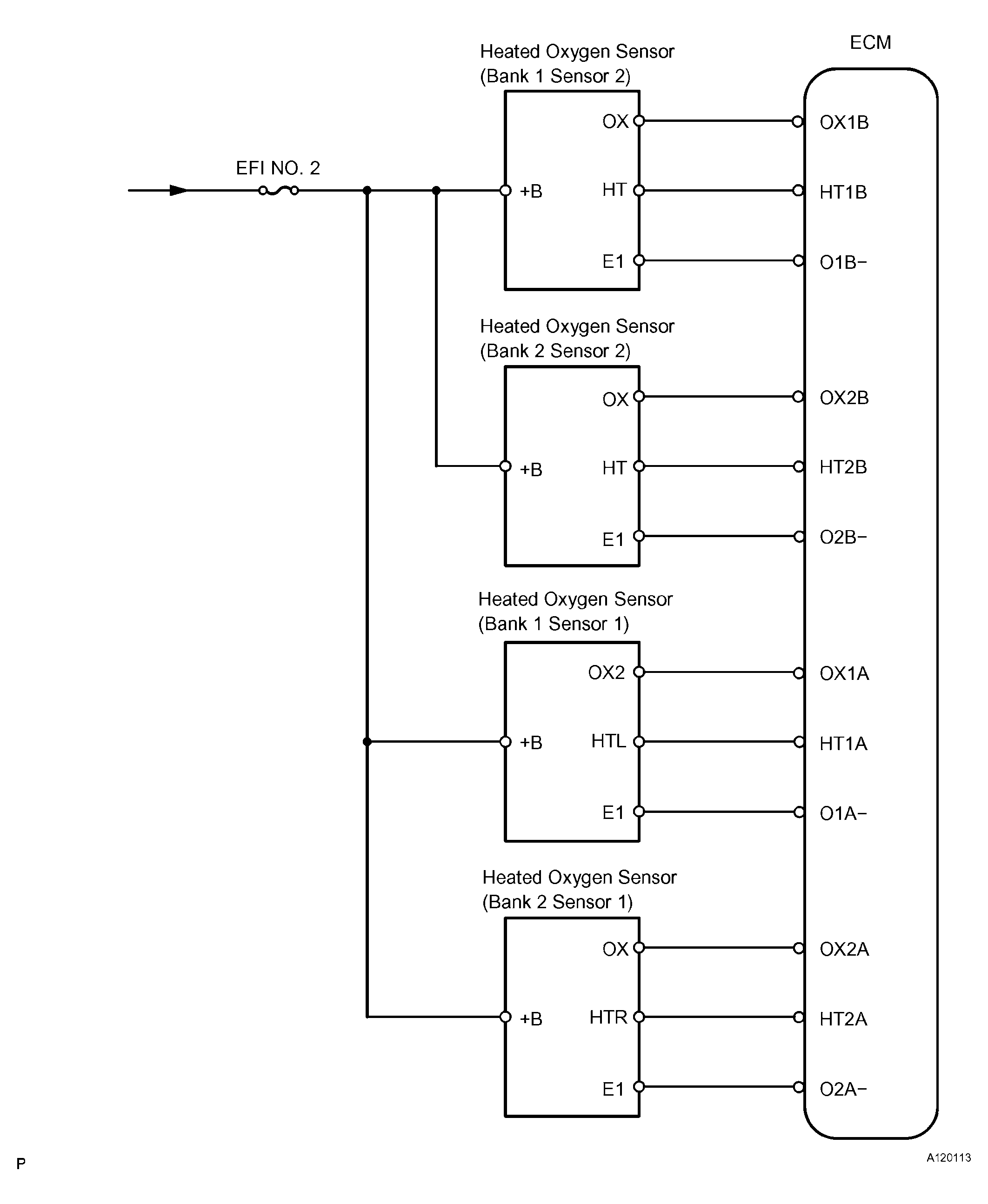

Fig 3: System Diagram Emission Control System (3 Of 4)
G04059775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

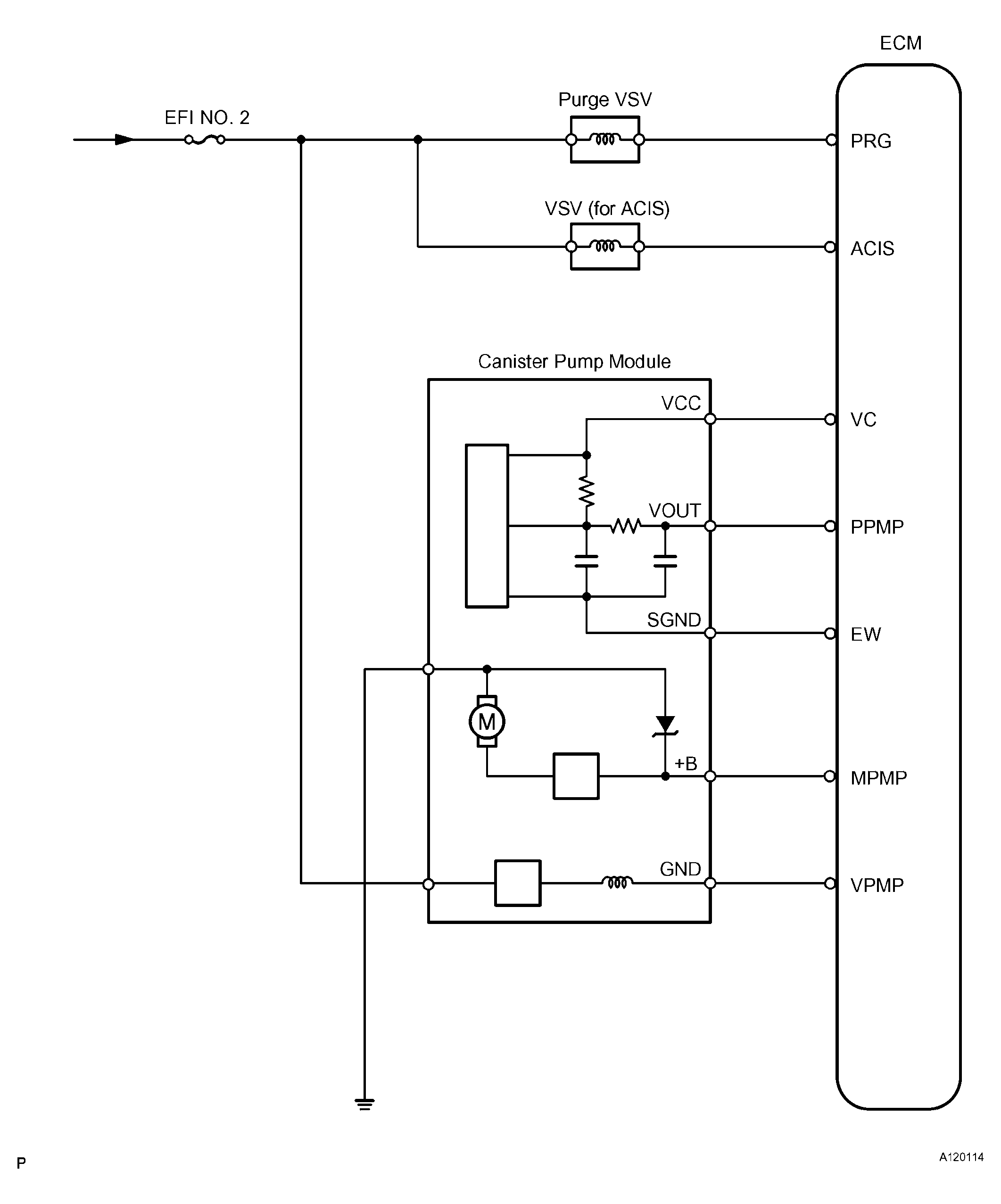

Fig 4: System Diagram Emission Control System (4 Of 4)
G04059776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
