Ventilation Valve Sub-ASSY: Replacement

REMOVE V-BANK COVER
REMOVE VENTILATION VALVE SUB-ASSY
1. Disconnect the ventilation hose from the ventilation valve.
2. Remove the ventilation valve cover.
3. Remove the ventilation valve.
INSTALL VENTILATION VALVE SUB-ASSY
1. Install the ventilation valve.
  1. Apply adhesive to 2 or 3 threads of the valve.
    Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent

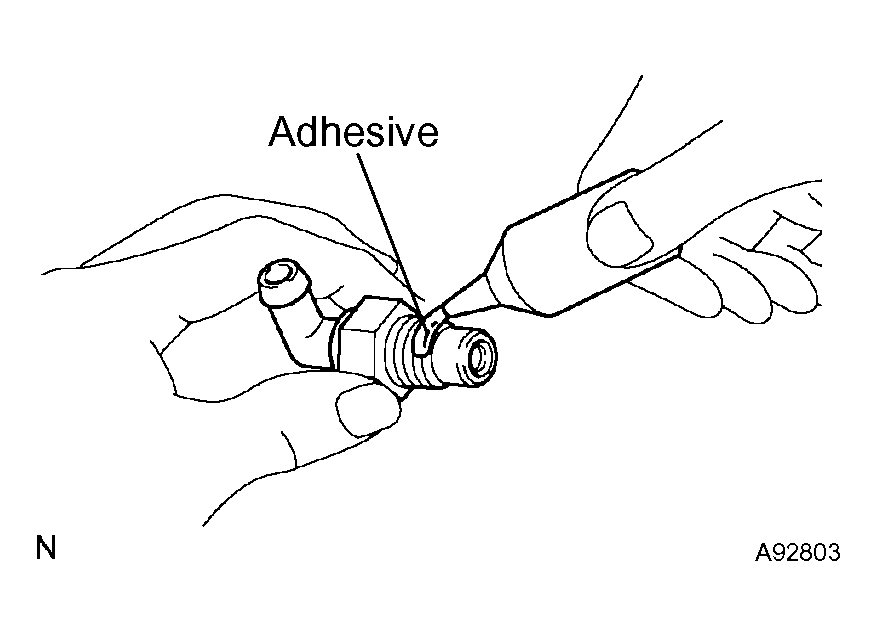

    Fig 1: Applying Adhesive
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install the valve.
    Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)
  HINT:

  After applying the specified torque, turn the valve clockwise with the port facing the direction shown in the illustration.
2. Install the ventilation valve cover.
3. Connect the ventilation hose to the valve.

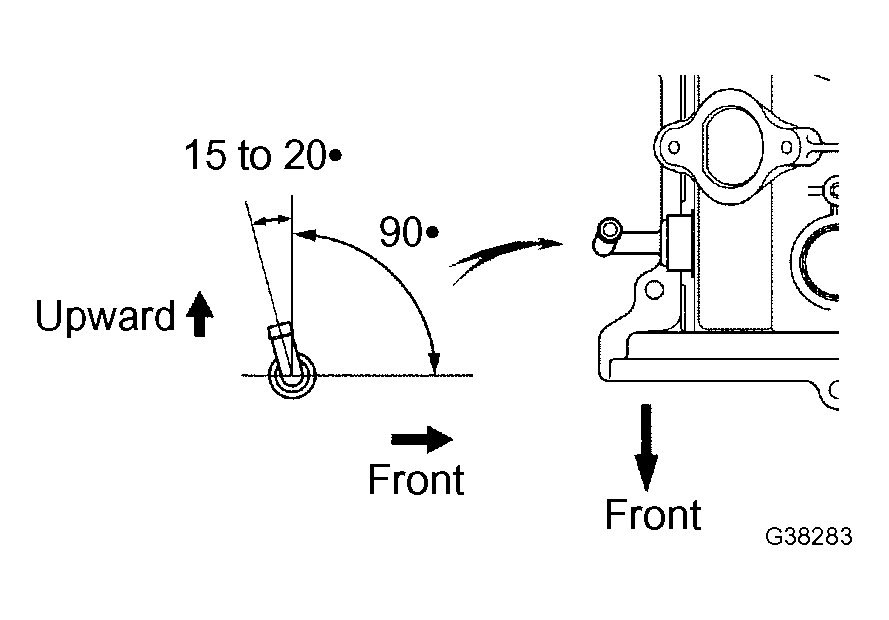

Fig 2: Turning Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER
