Fan ASSY: Components

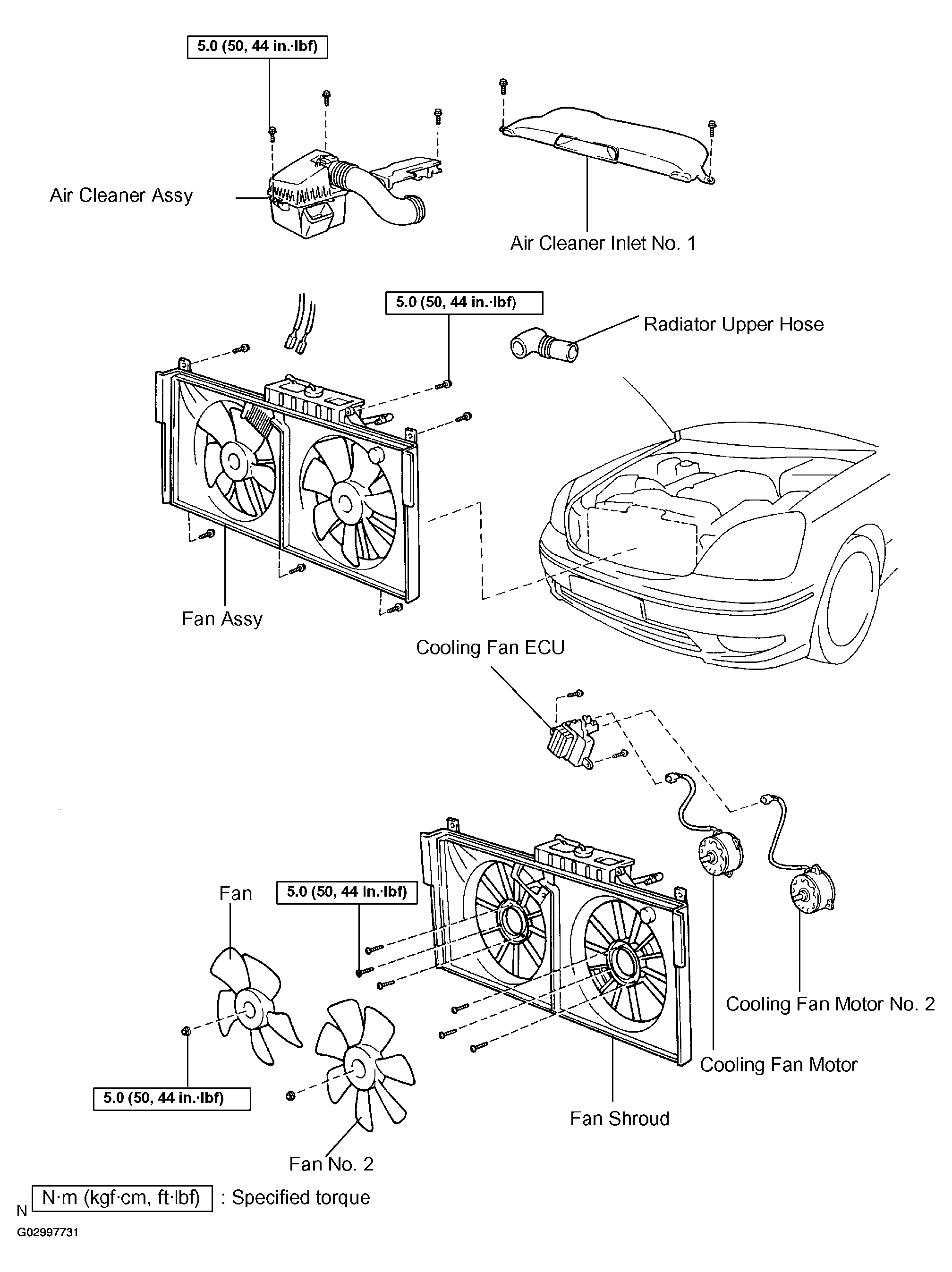

Fig 1: Identifying Fan Assy And Component
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
