Radiator ASSY: Components

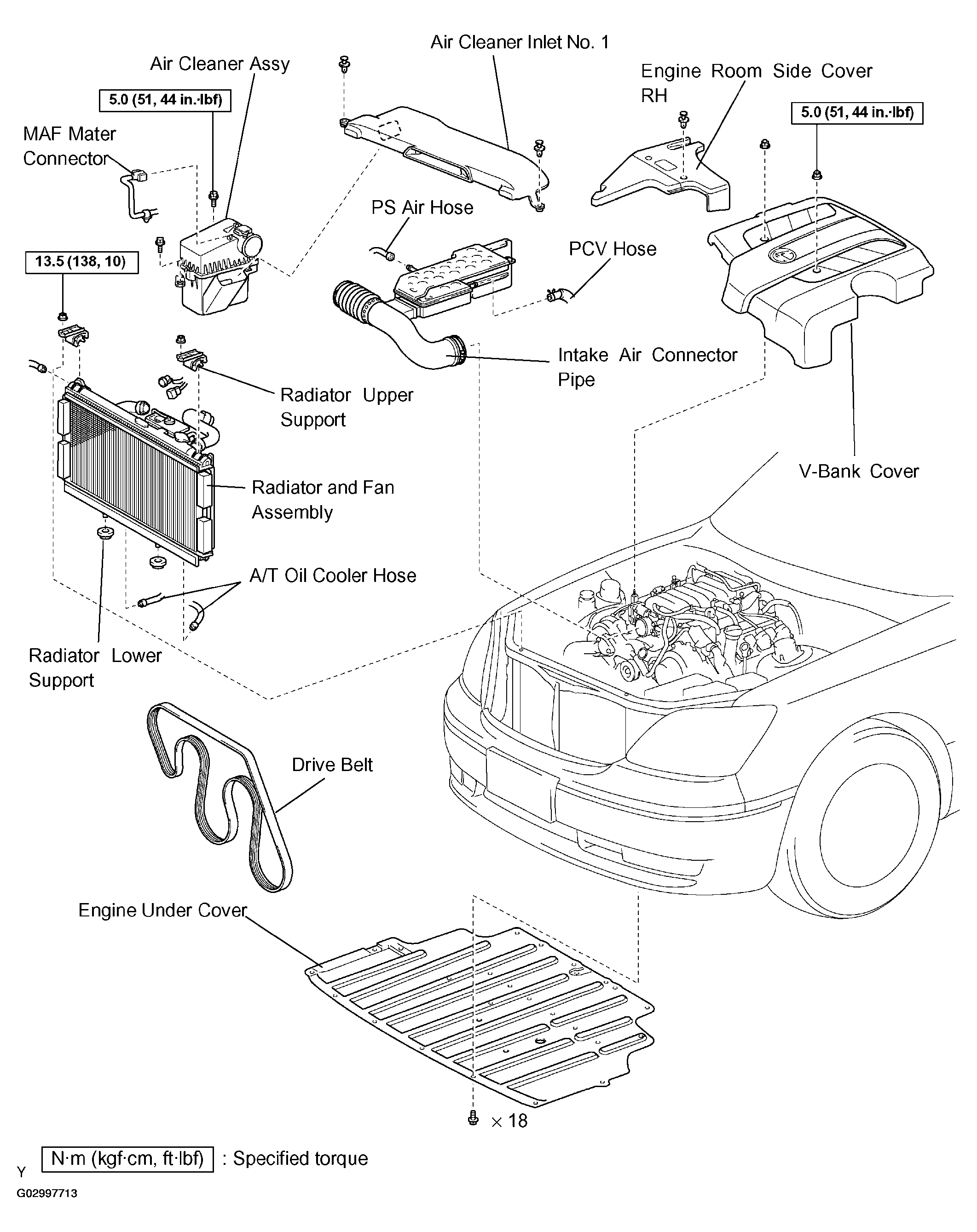

Fig 1: Identifying Radiator Assy Component (1 Of 2)
G02997713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

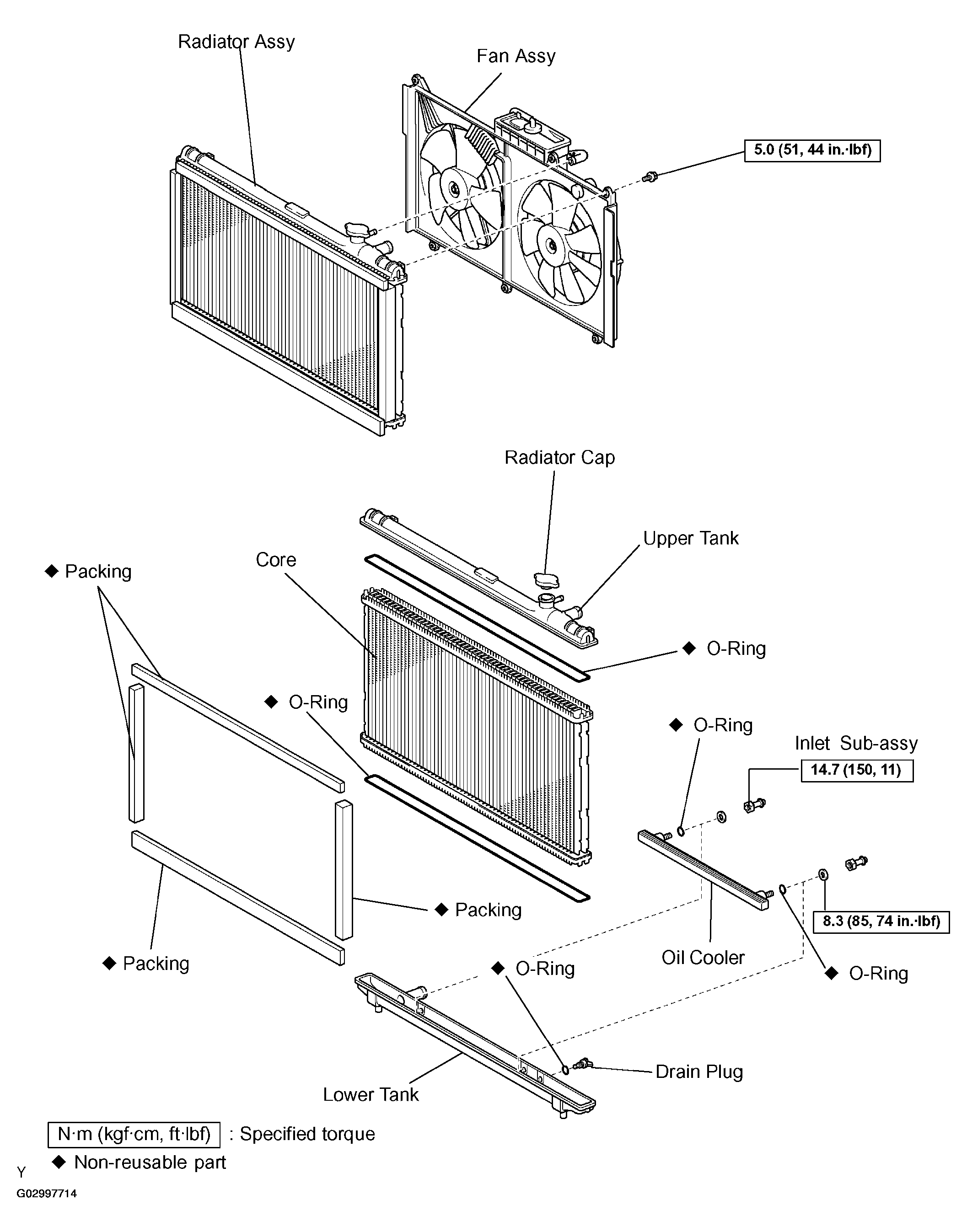

Fig 2: Identifying Radiator Assy Component (2 Of 2)
G02997714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
