Circuit Description

A thermistor is built in the Engine Coolant Temperature (ECT) sensor and changes the resistance value according to the engine coolant temperature.

The structure of the sensor and connection to the ECM is the same the Intake Air Temperature (IAT) sensor.

HINT:

If the ECM detects the DTC P0115, P0117 or P0118, it operates the fail-safe function in which the ECT is assumed to be 80°C (176°F).

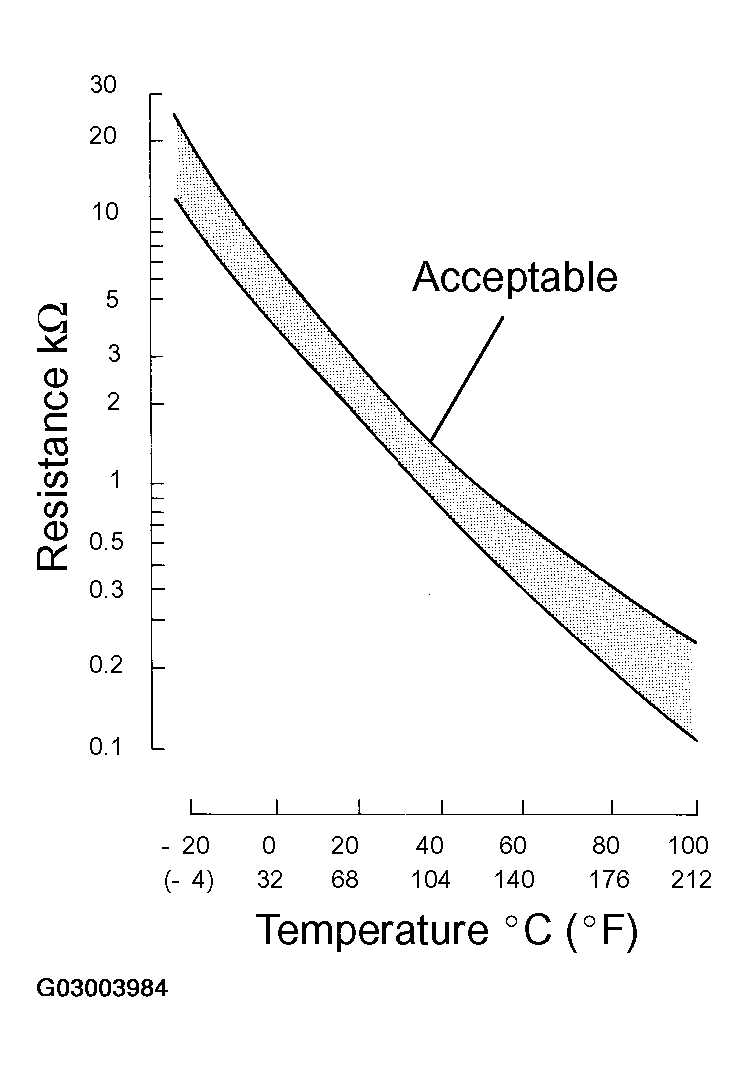

Fig 1: Temperature And Resistance Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

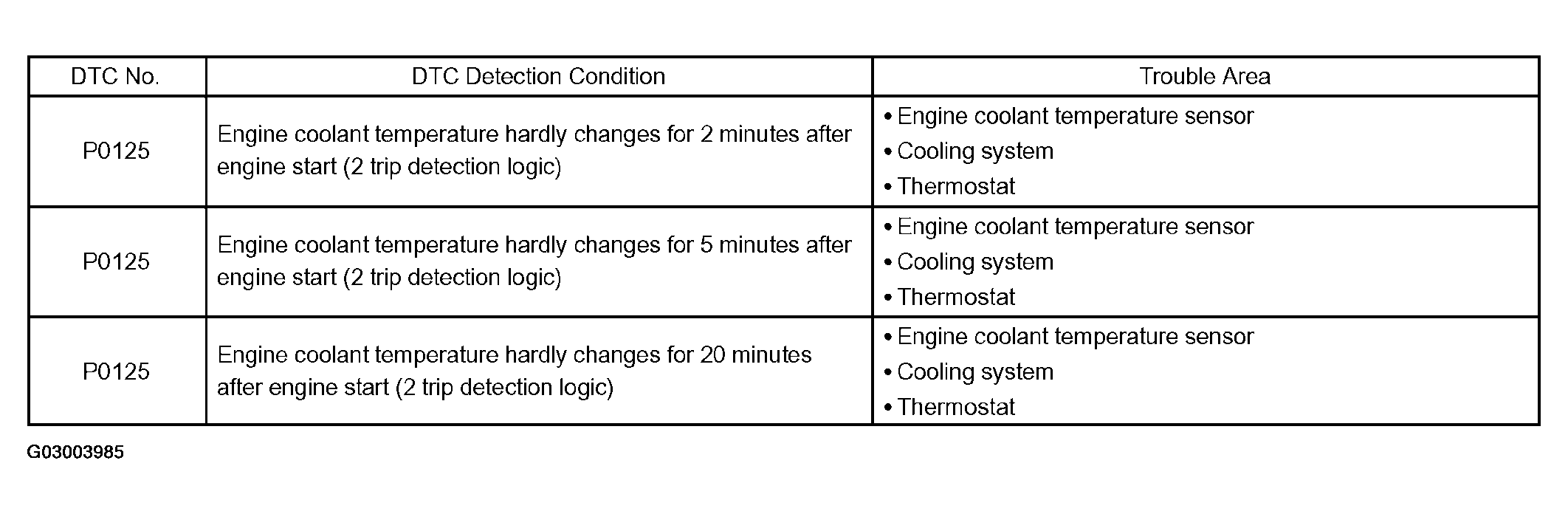

Fig 2: DTC Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Confirm the ECT using the hand-held tester. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / COOLANT TEMP.
