IG Power Source Circuit: Wiring Diagram

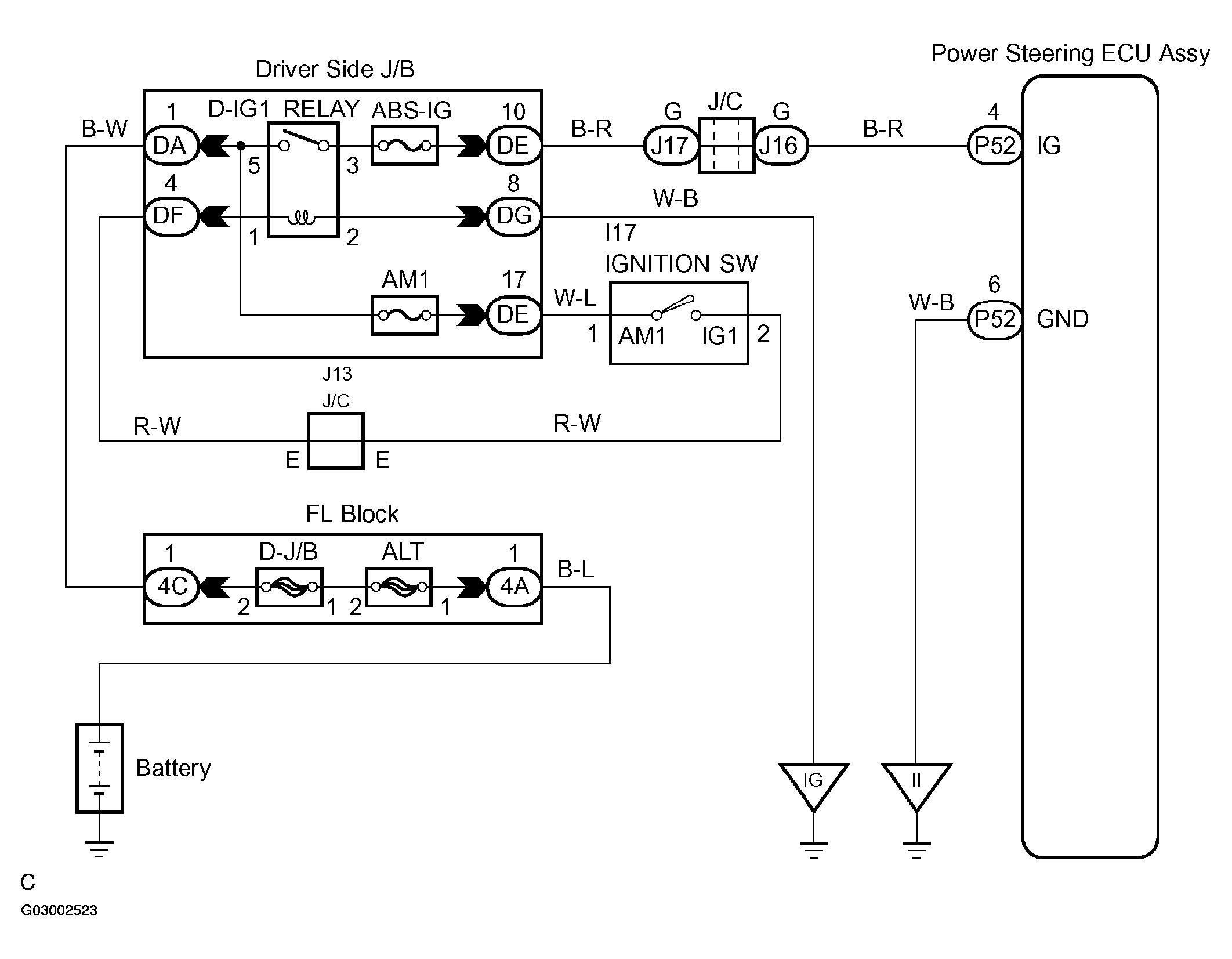

Fig 1: IG Power Source Circuit - Wiring Diagram
G03002523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
