Diagnostic Trouble Code Chart
If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table below.

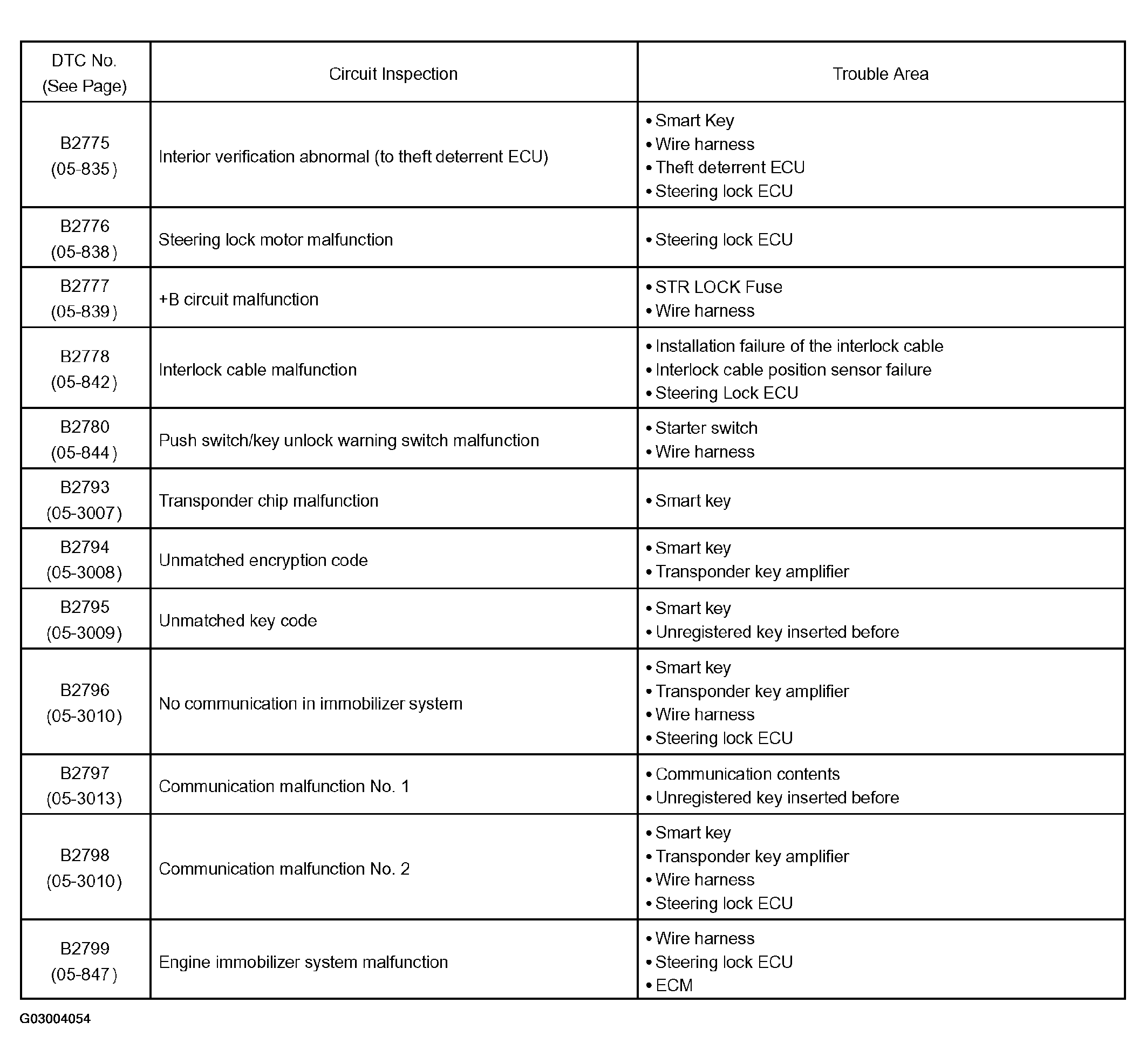

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC B2775 | INTERIOR VERIFICATION ABNORMAL (TO THEFT DETERRENT ECU) |
| DTC B2776 | STEERING LOCK MOTOR MALFUNCTION |
| DTC B2777 | +B CIRCUIT MALFUNCTION |
| DTC B2778 | INTERLOCK CABLE MALFUNCTION |
| DTC B2780 | PUSH SWITCH/KEY UNLOCK WARNING SWITCH MALFUNCTION |
| DTC B2799 | ENGINE IMMOBILIZER SYSTEM MALFUNCTION |
HINT:
- DTCs B2793, B2794, B2795, B2796, B2797 and/or B2798 are detected for troubles found when the smart key is inserted into the starter switch.
- DTCs B2793, B2794, B2795, B2796, B2797 and/or B2798 indicate troubles in the steering lock ECU and the transponder key ECU, and the same troubleshooting method is applied to both ECUs. Therefore, if these DTCs are detected, refer to the immobilizer section to conduct troubleshooting (see DIAGNOSTIC TROUBLE CODE CHART ).
