Inspection Procedure
- READ VALUE ON HAND-HELD TESTER
- Connect the hand-held tester to the DLC 3.
- Turn the hand-held tester on.
- Select the item below in the DATA LIST, and read its value displayed on the hand-held tester to check the P2 switch.
DATA LISTCondition Item Standard Shift lever is not in the P position SHIFT POS "NOT P" is displayed Shift lever is in the P position SHIFT POS "P" is displayed OK: CHECK COMBINATION METER SYSTEM (SEE HOW TO PROCEED WITH TROUBLESHOOTING )
NG: Go to next step

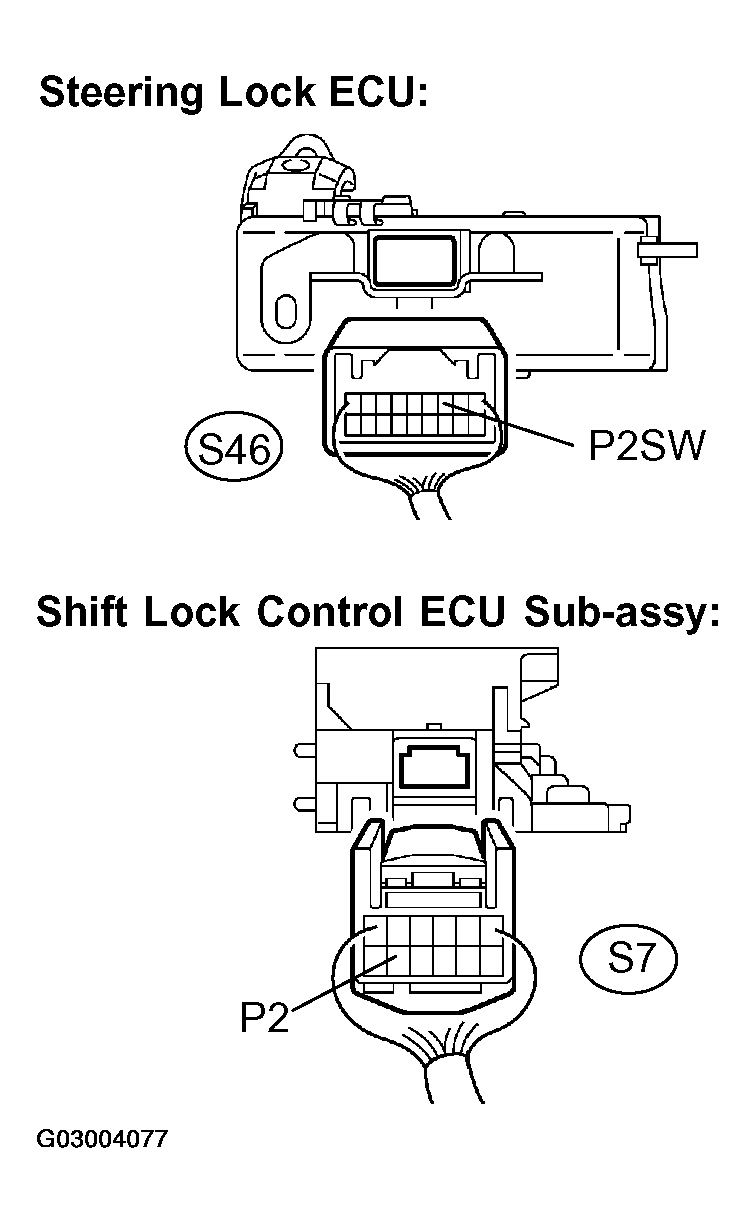

- CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - SHIFT LOCK CONTROL ECU SUB-ASSY)
- Disconnect the S46 connector from the steering lock ECU.
- Disconnect the S7 connector from the shift lock control ECU sub-assy.
- Measure the resistance according to the value (s) in the table below.
STEERING LOCK ECU - SHIFT LOCK CONTROL ECU SUB-ASSY RESISTANCETester connection (Symbols) Condition Specified condition S46-3 (P2SW) - S7-11 (P2) Always Below 1 Ω S46-3 (P2SW) - Body ground Always 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: REPLACE SHIFT LOCK CONTROL ECU SUB-ASSY (SEE OVERHAUL )
