System Diagram

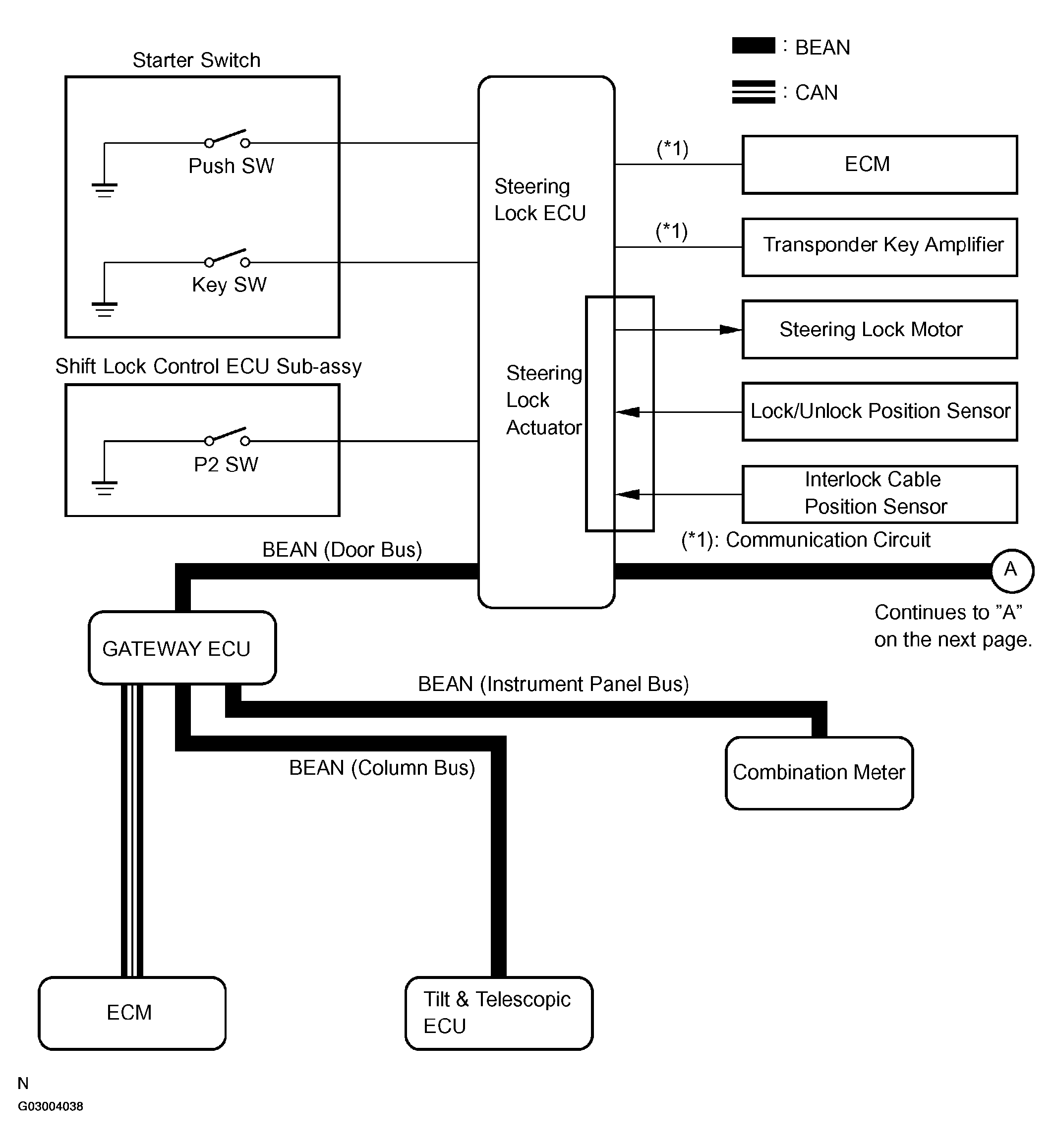

Fig 1: Steering Lock System Diagram (1 Of 2)
G03004038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

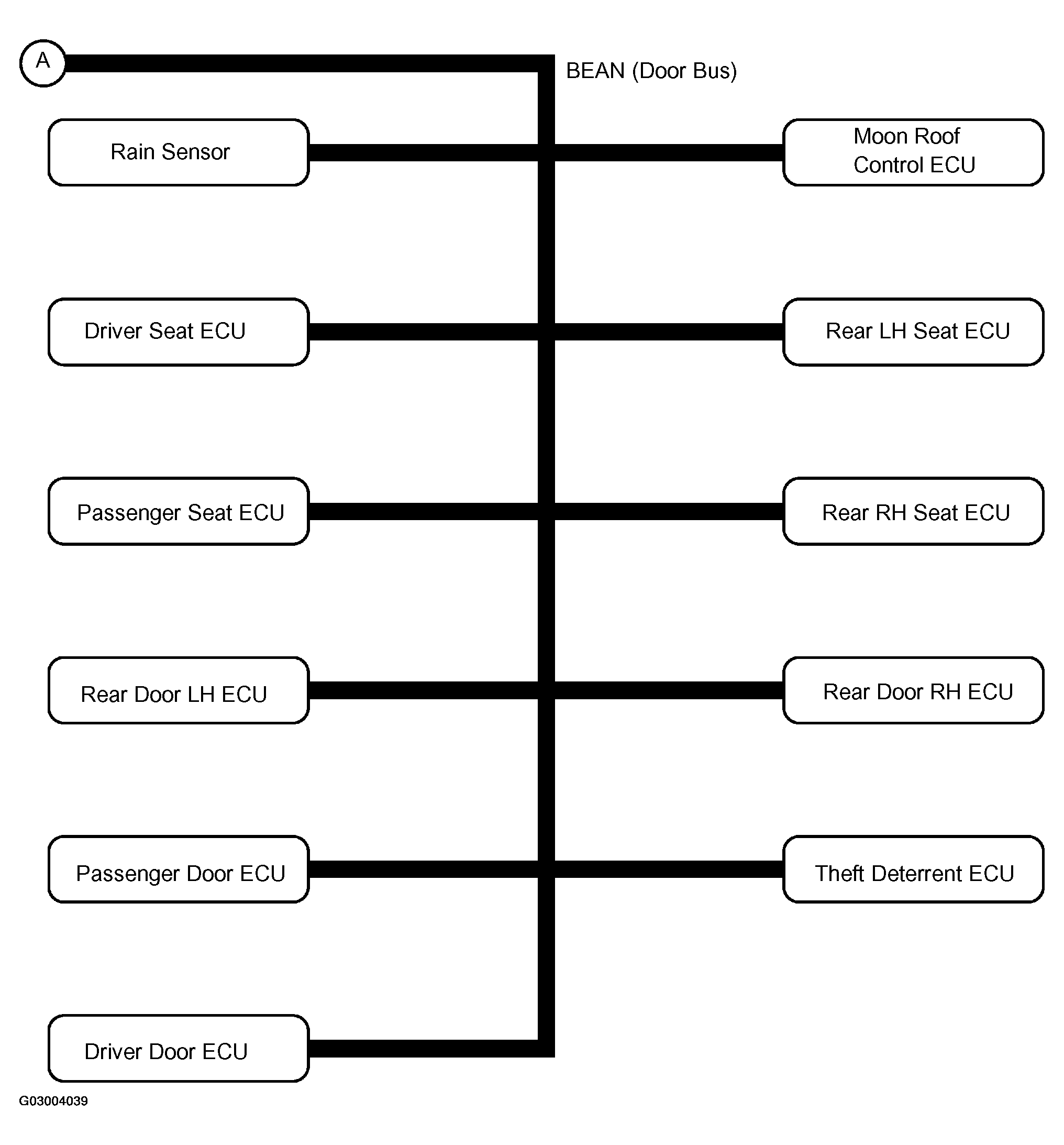

Fig 2: Steering Lock System Diagram (2 Of 2)
G03004039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

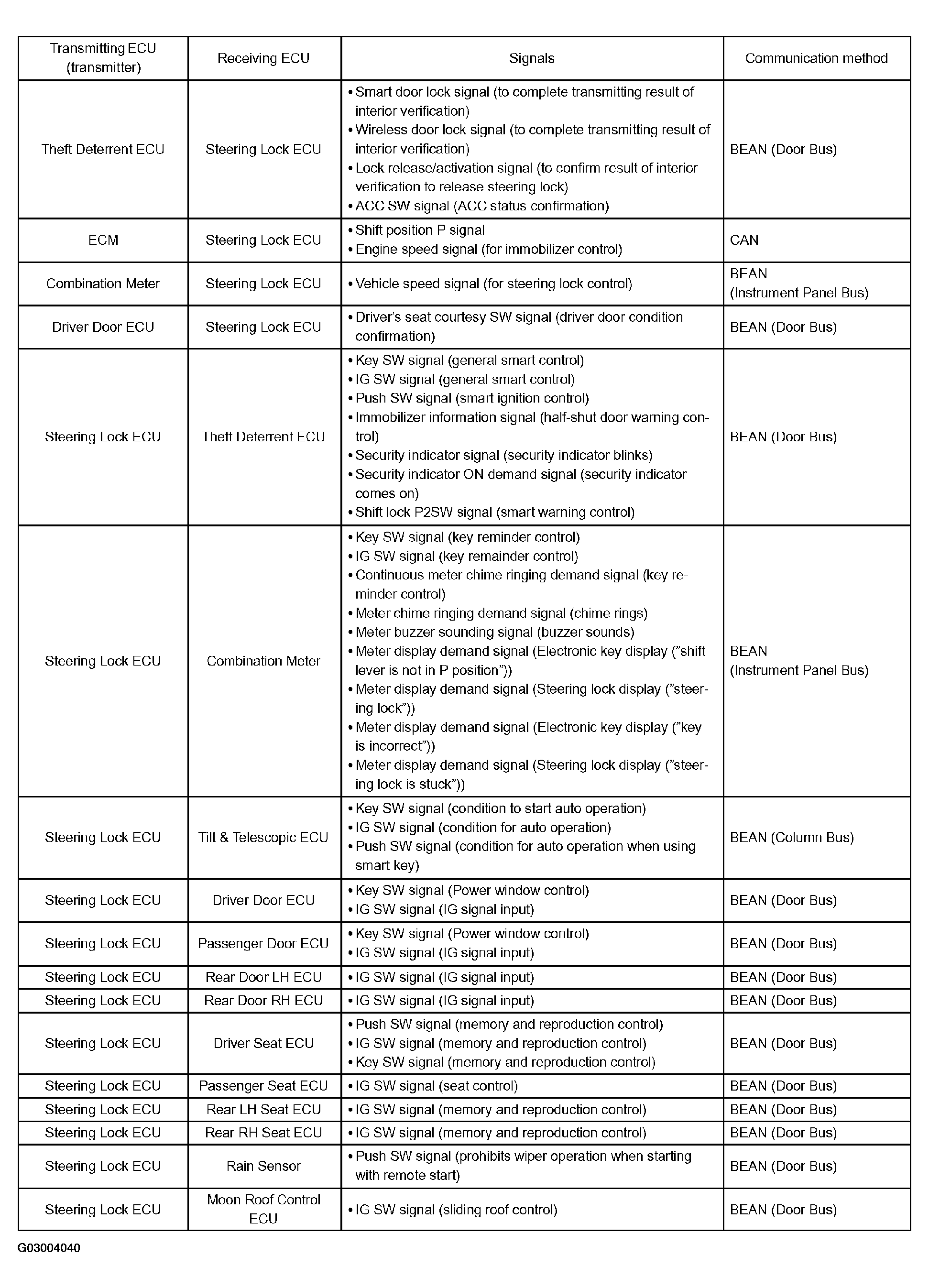

Input and output signals of each ECU.

Fig 3: Each ECU Input And Output Signals Chart
G03004040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
