Park/Neutral Position Switch ASSY: Adjustment

1. Apply the parking brake and turn the ignition switch to the ON position.
2. Depress the brake pedal and check that the engine starts when the shift lever is set in the N or P position, but does not start in other positions.
3. Check that the back-up light comes on and the reverse warning buzzer sounds when the shift lever is set in the R position, but do not function in other positions.

If a failure is found, check the park/neutral position switch for continuity.

1. Loosen the bolt of the park/neutral position switch and move the shift lever to the N position.
2. Align the groove and the neutral basic line.
3. Hold the switch in position and tighten the bolt.
   1. Torque: 13.0 N.m (130 kgf.cm, 9 ft.lbf)
4. After adjustment, perform the inspection described in step  1.

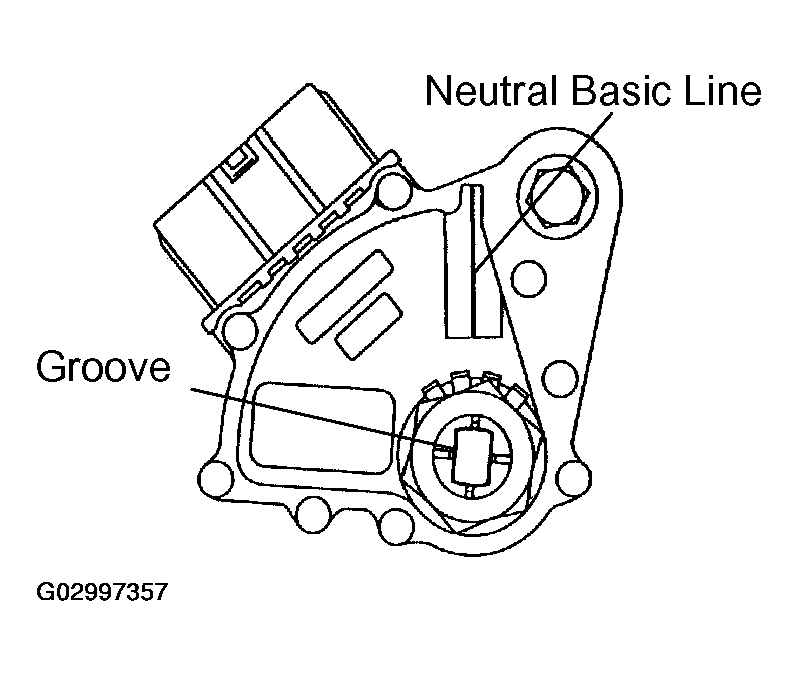

   Fig 1: Aligning Groove And Neutral Basic Line

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
