Electronic Brake Control Module
TERMINALS OF ECU

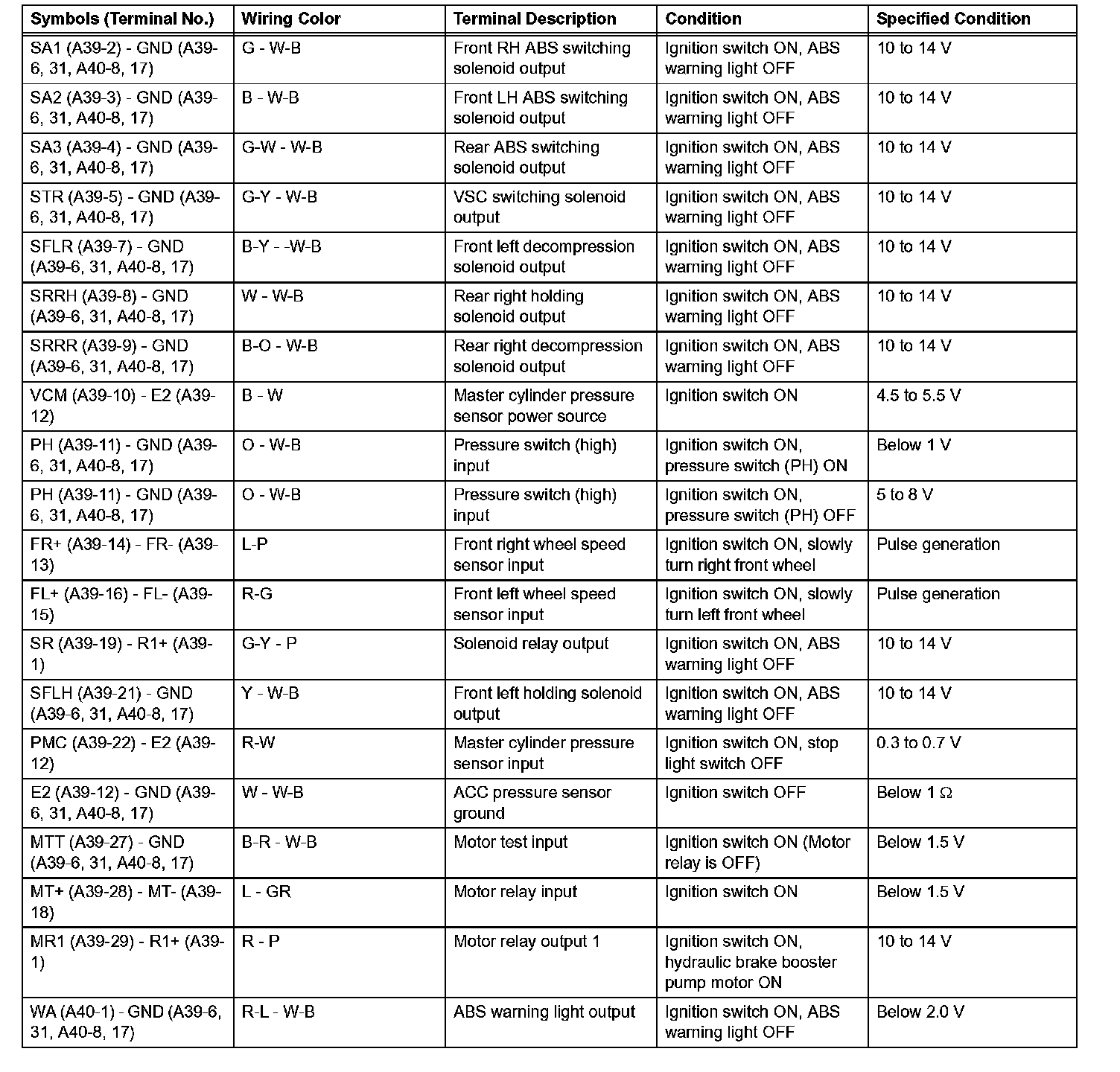

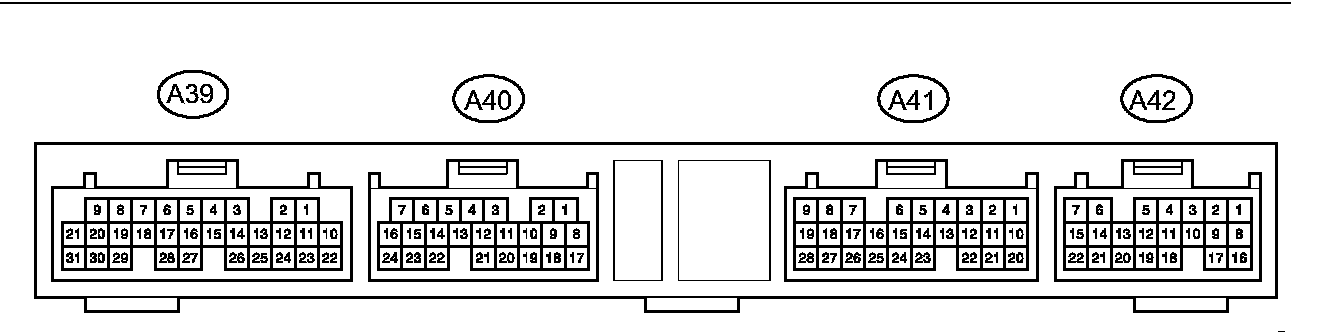

SKID CONTROL ECU (PART 1):

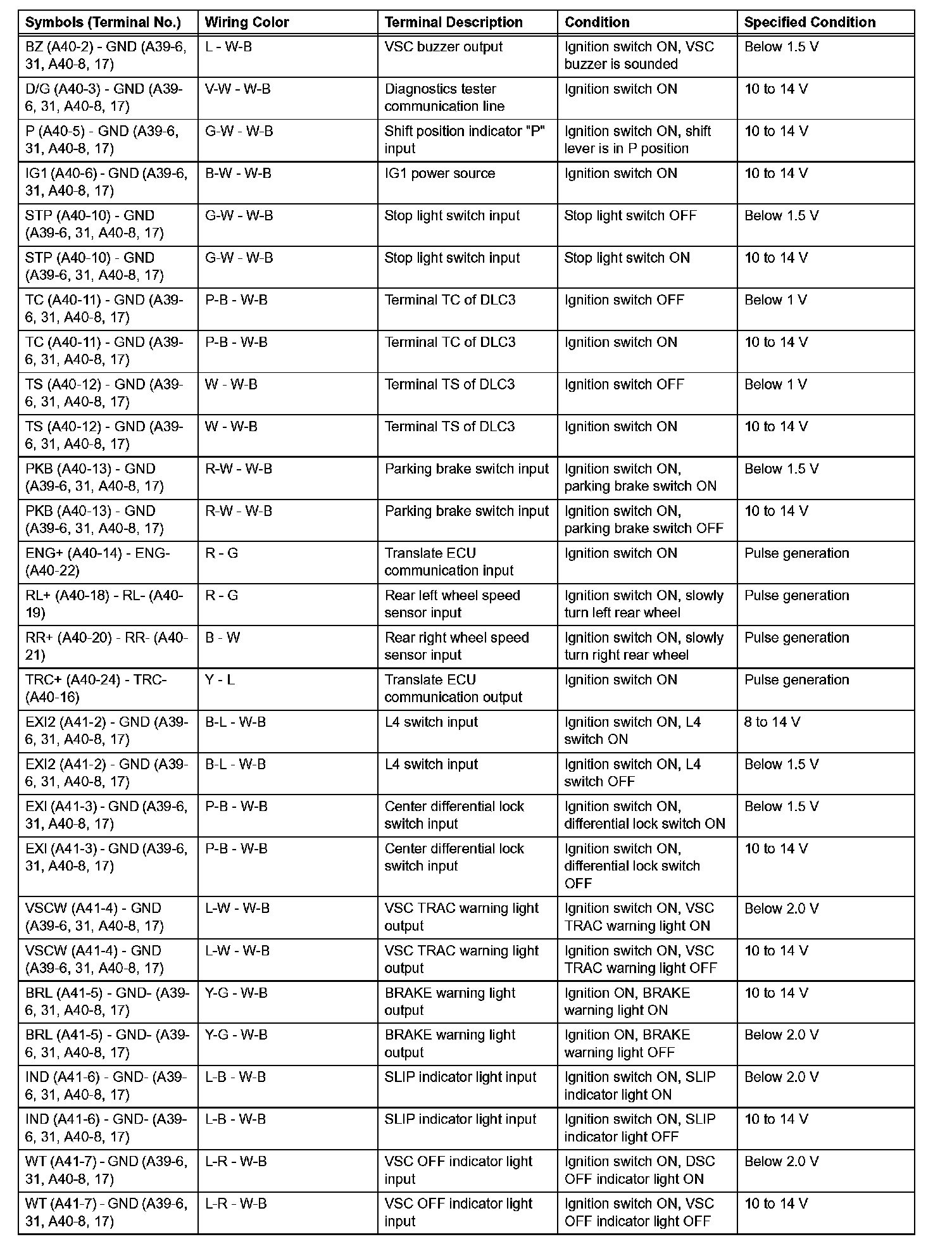

SKID CONTROL ECU (PART 2):

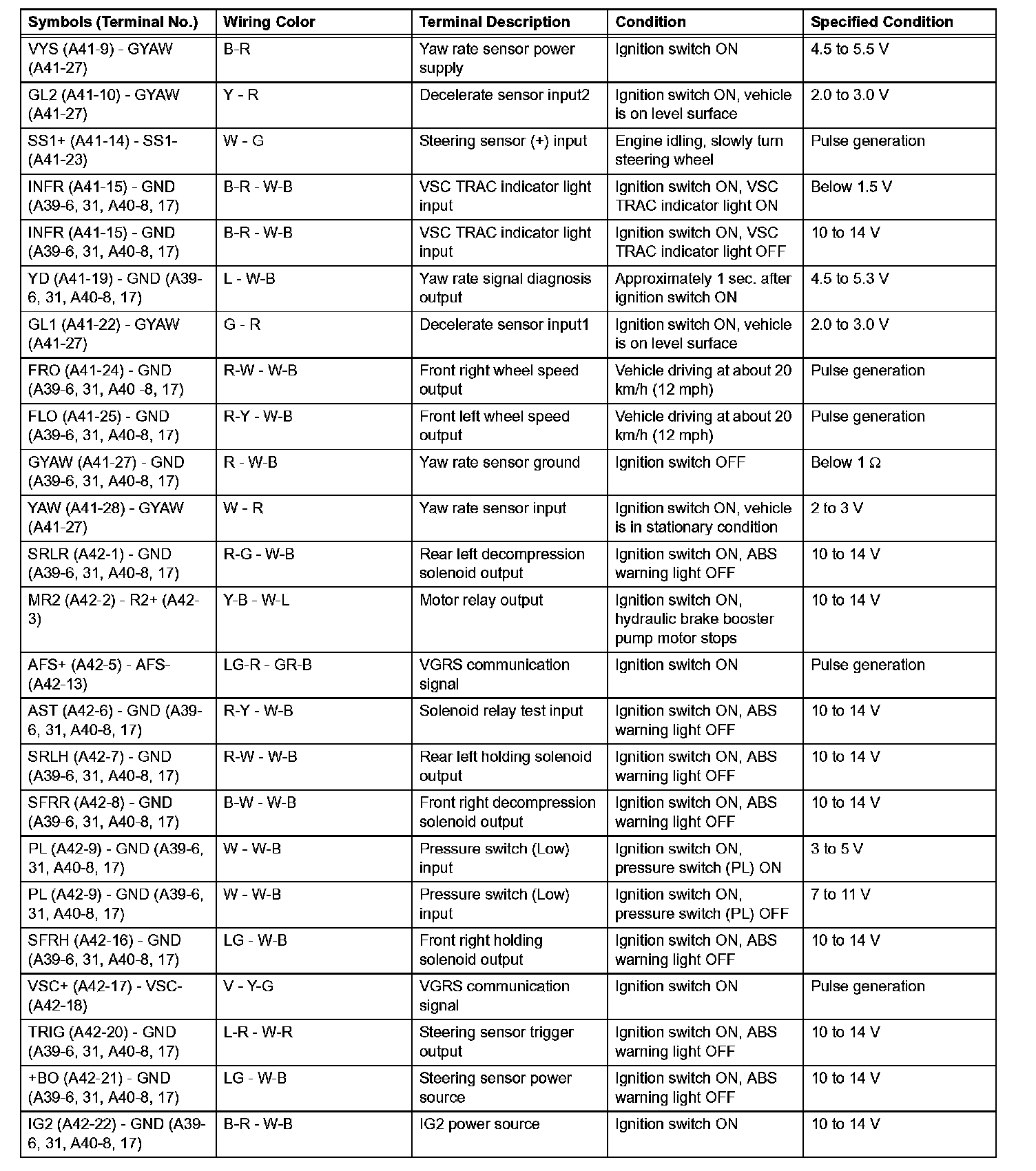

SKID CONTROL ECU (PART 3):
SKID CONTROL ECU (PART 4):

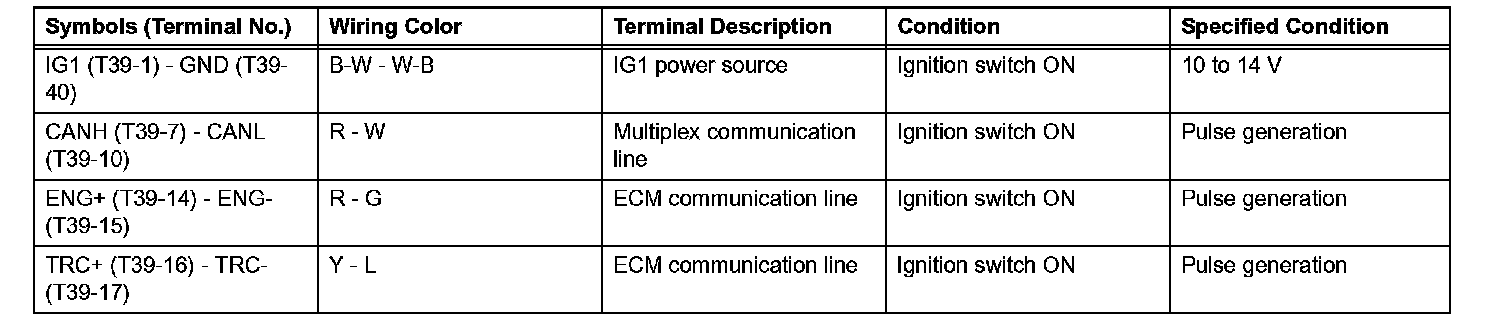

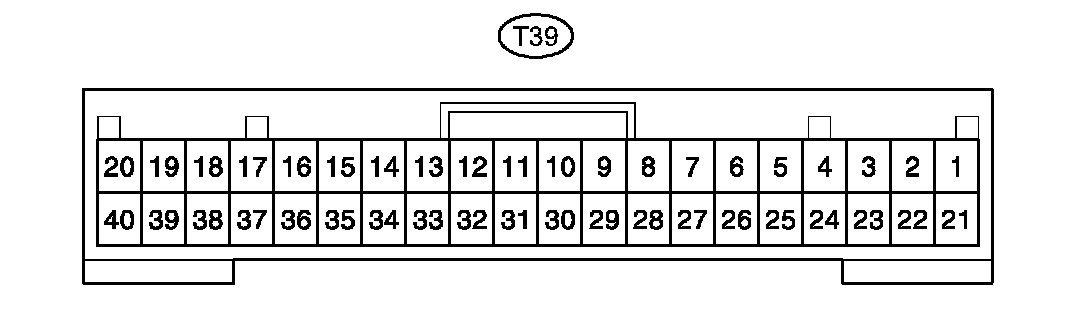

TRANSLATE ECU (PART 1):
TRANSLATE ECU (PART 2):
