Main Relay (Computer/Fuel System): Locations

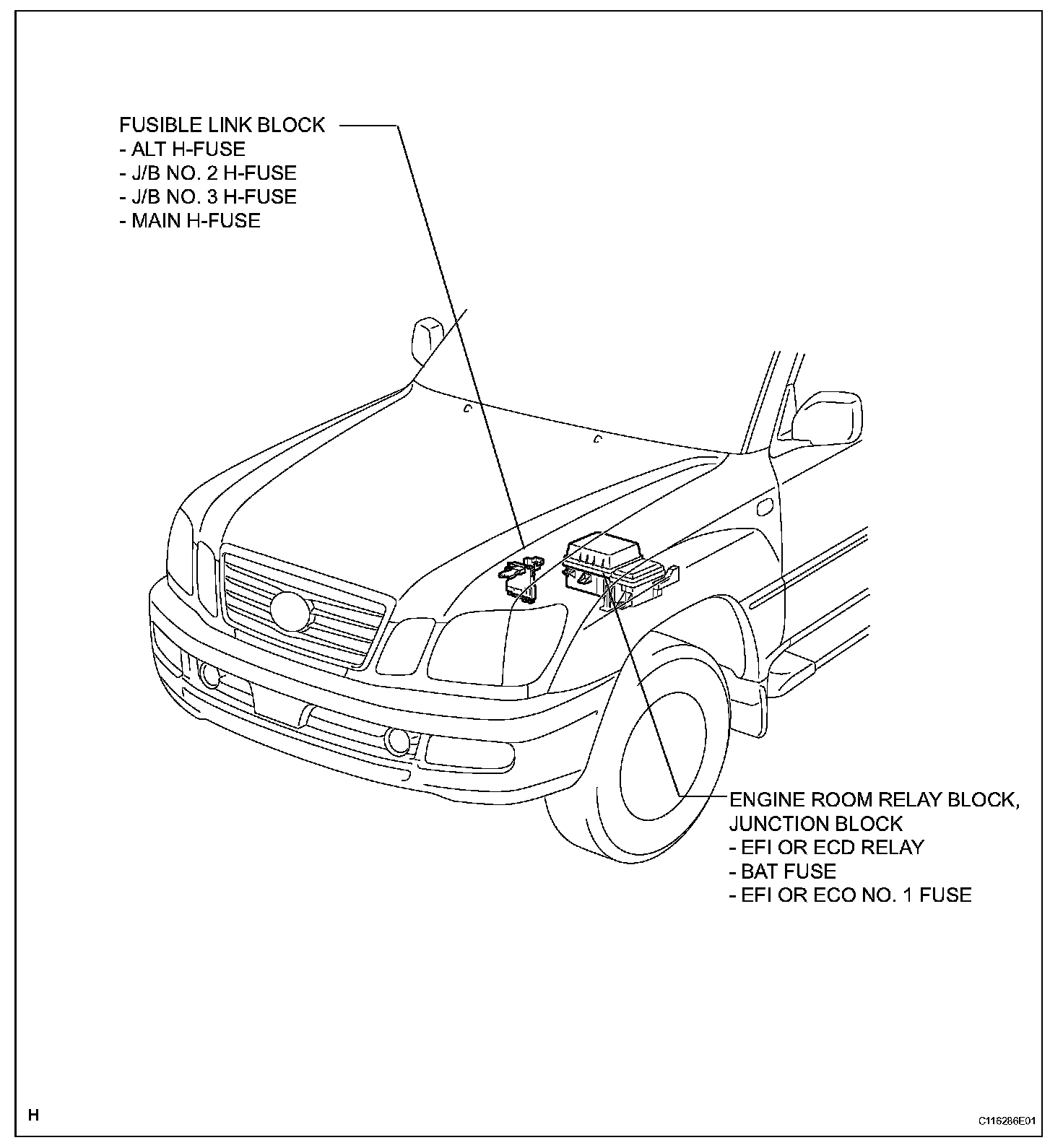

CAN Communication System:

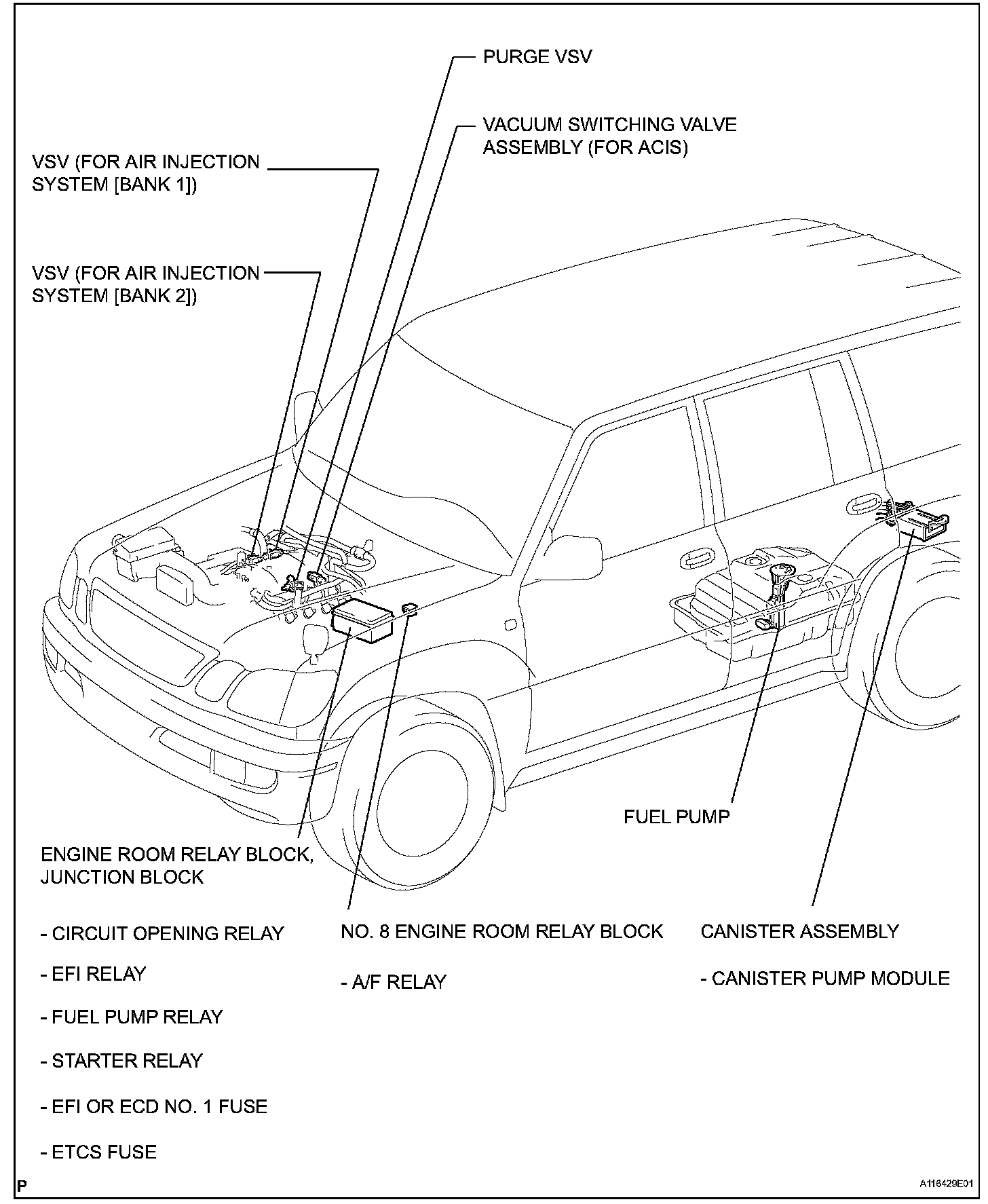

SFI System:

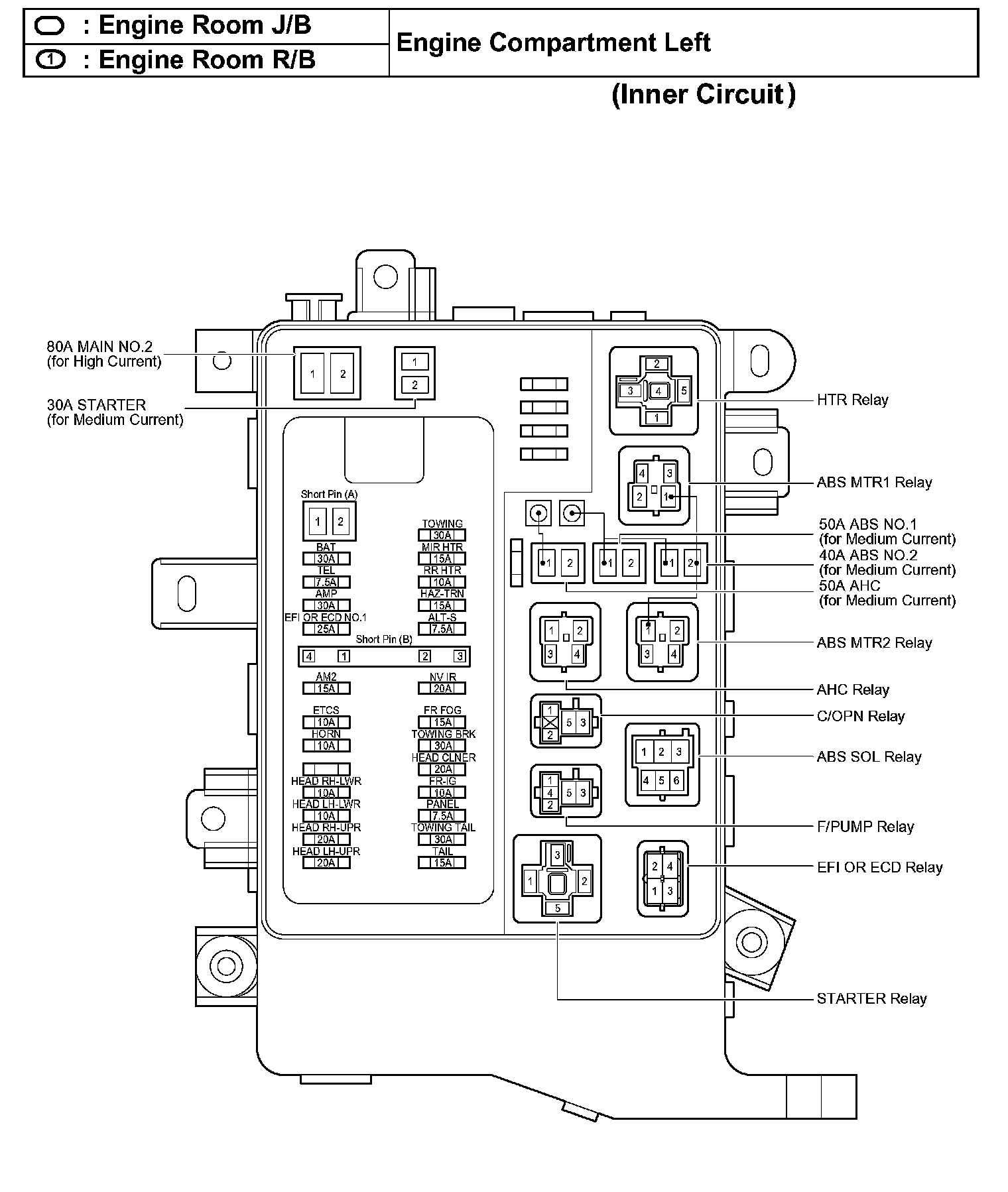

Engine Room J/B, R/B - Engine Compartment Left:

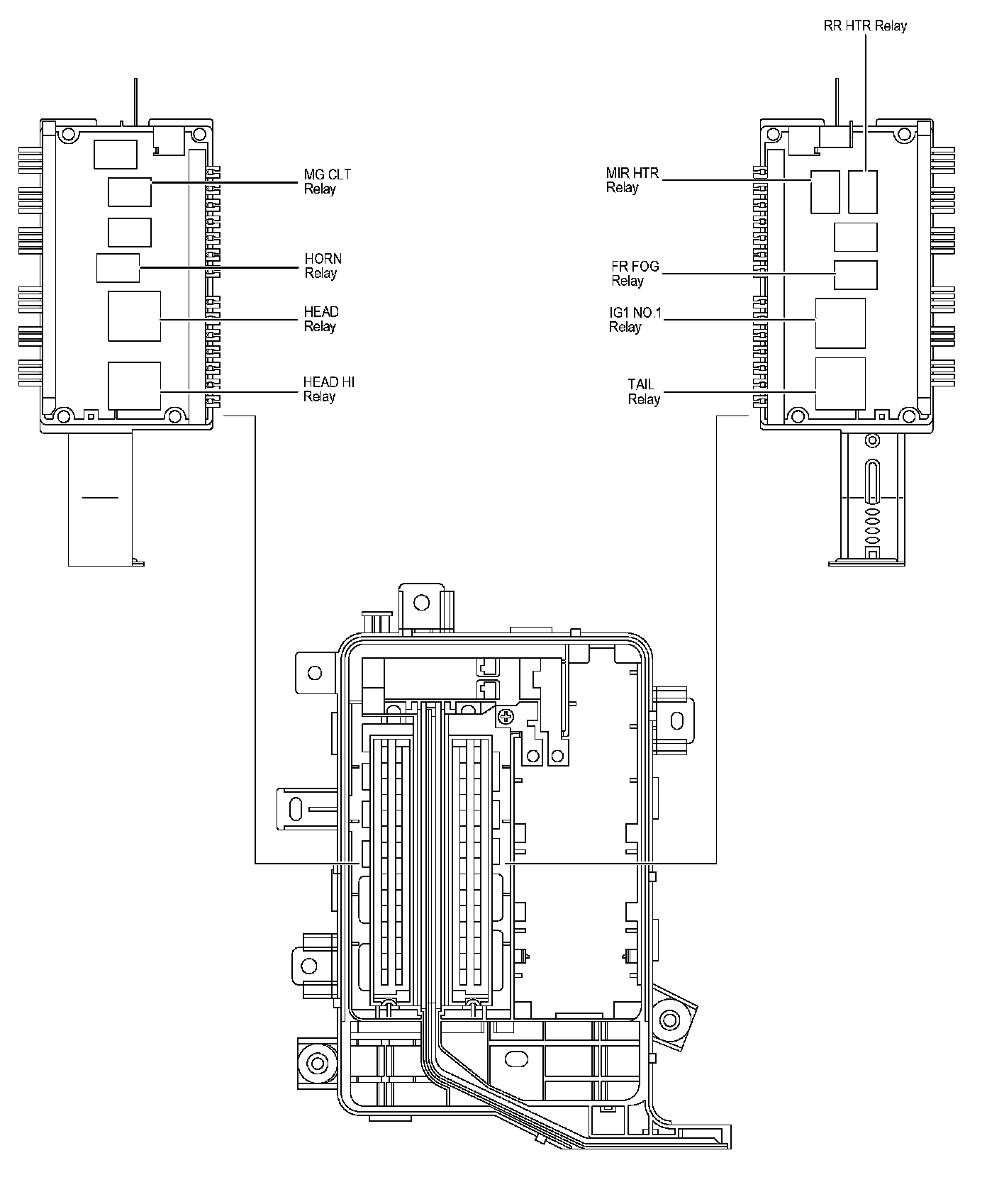

Engine Room J/B, R/B - Engine Compartment Left:

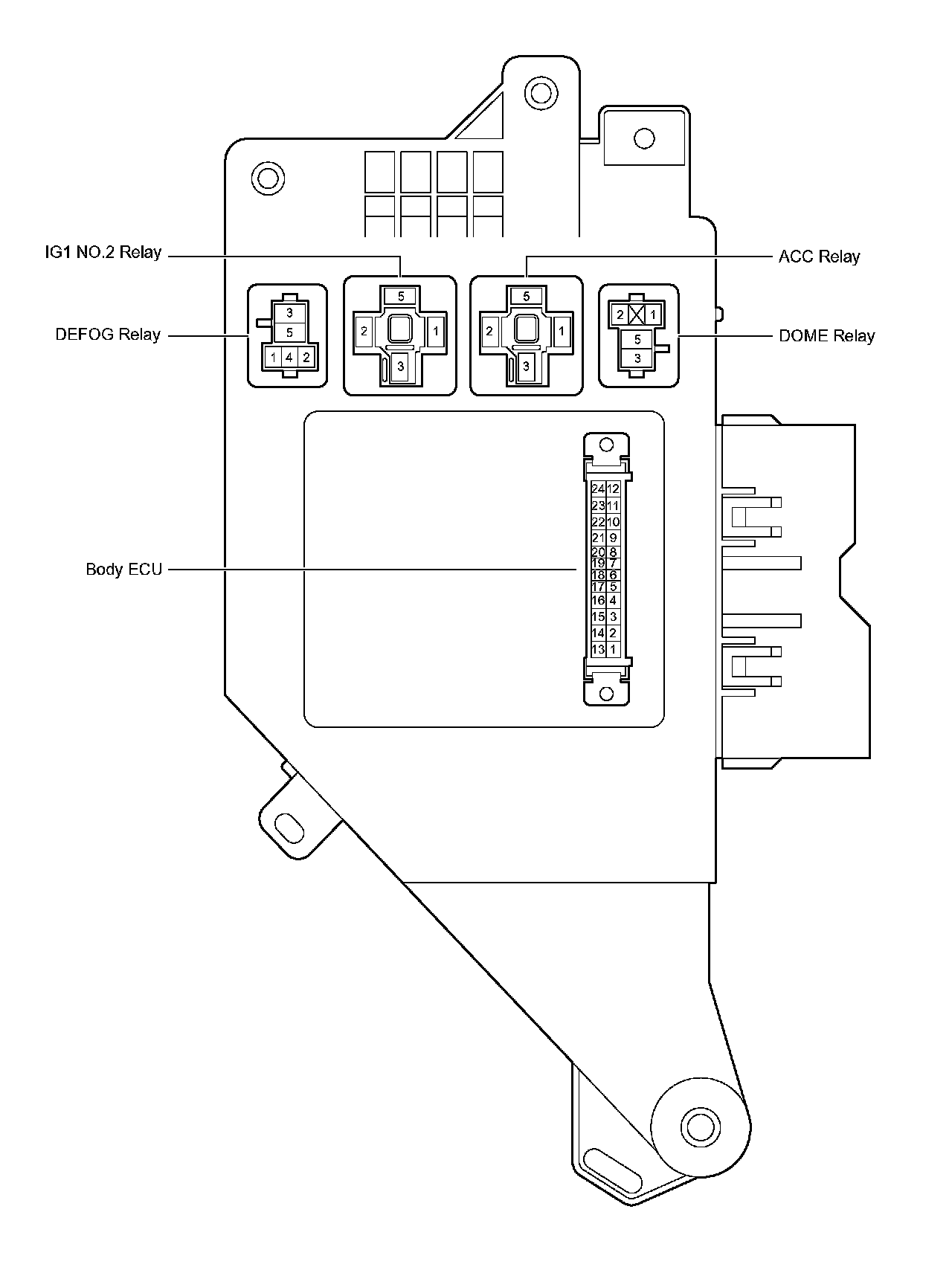

Cow Side J/B LH - Left Kick Panel:

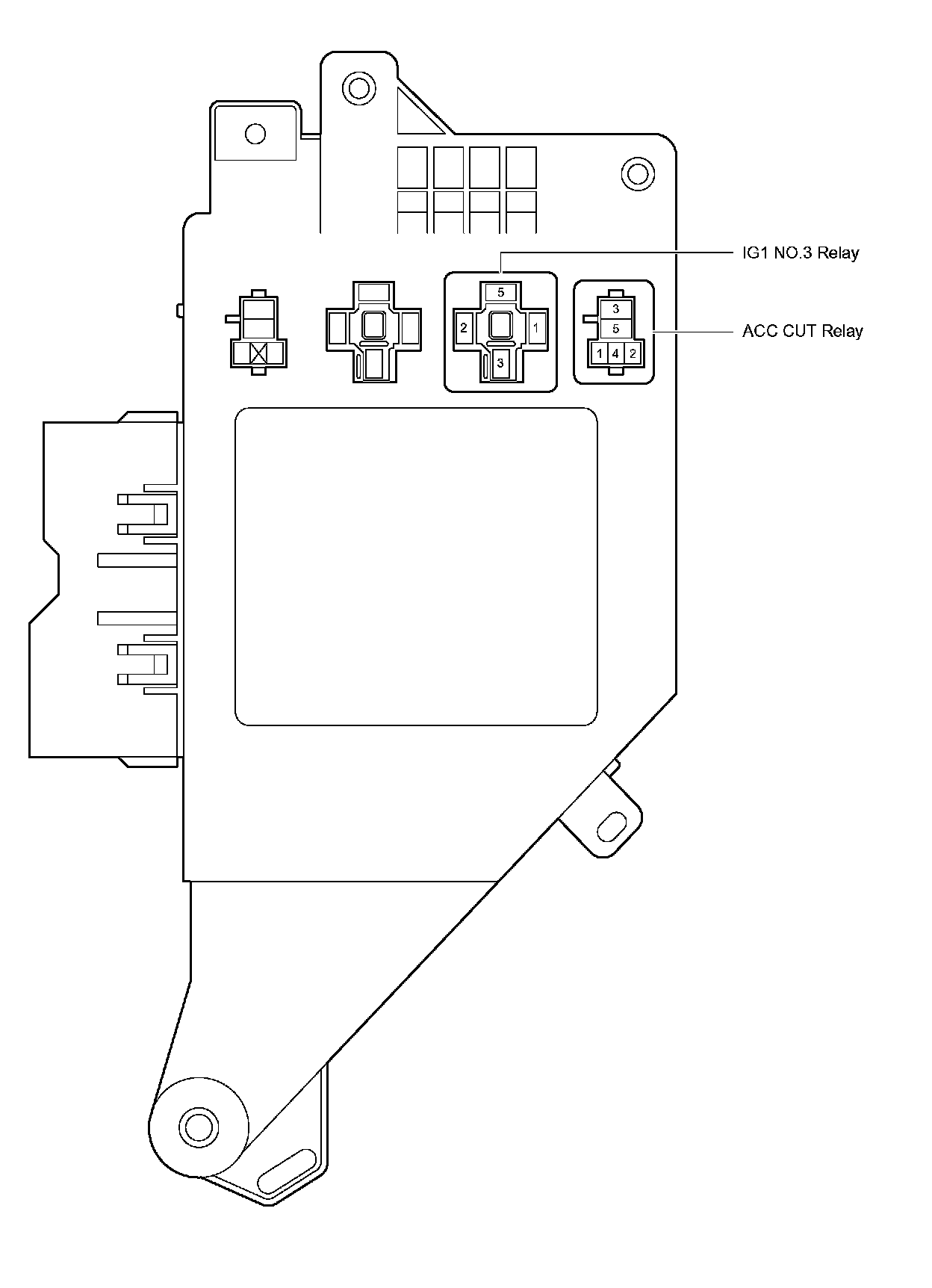

Cowl Side J/B RH Right Kick Panel:
