Audio System with Navigation System: Notes

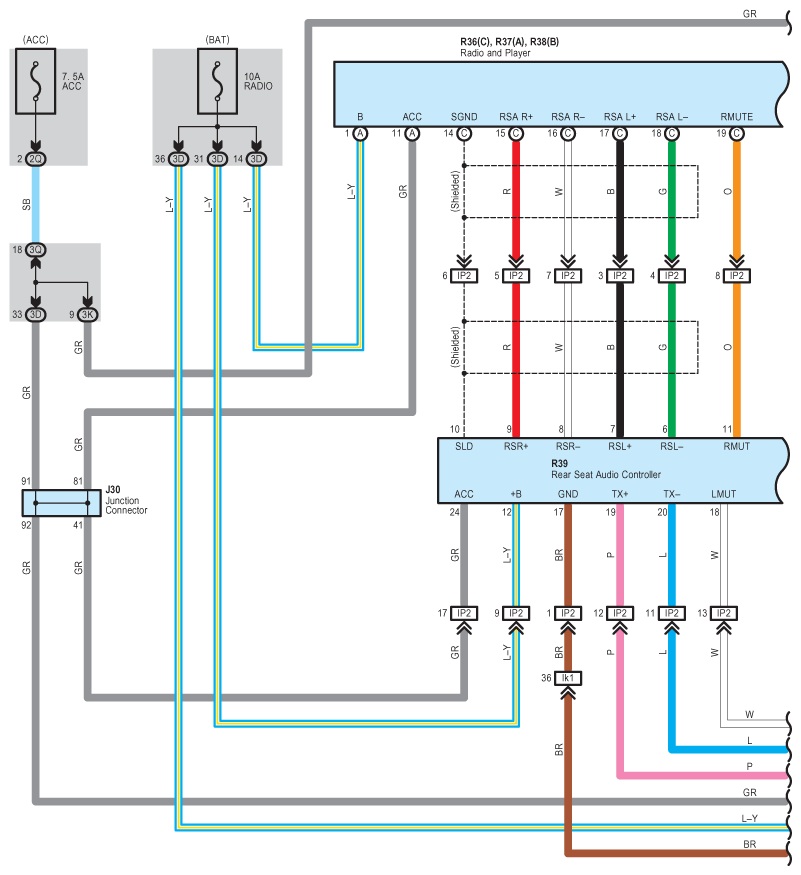

Fig 1: Audio System With Navigation System - Wiring Diagram (1 Of 5)
G08928257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

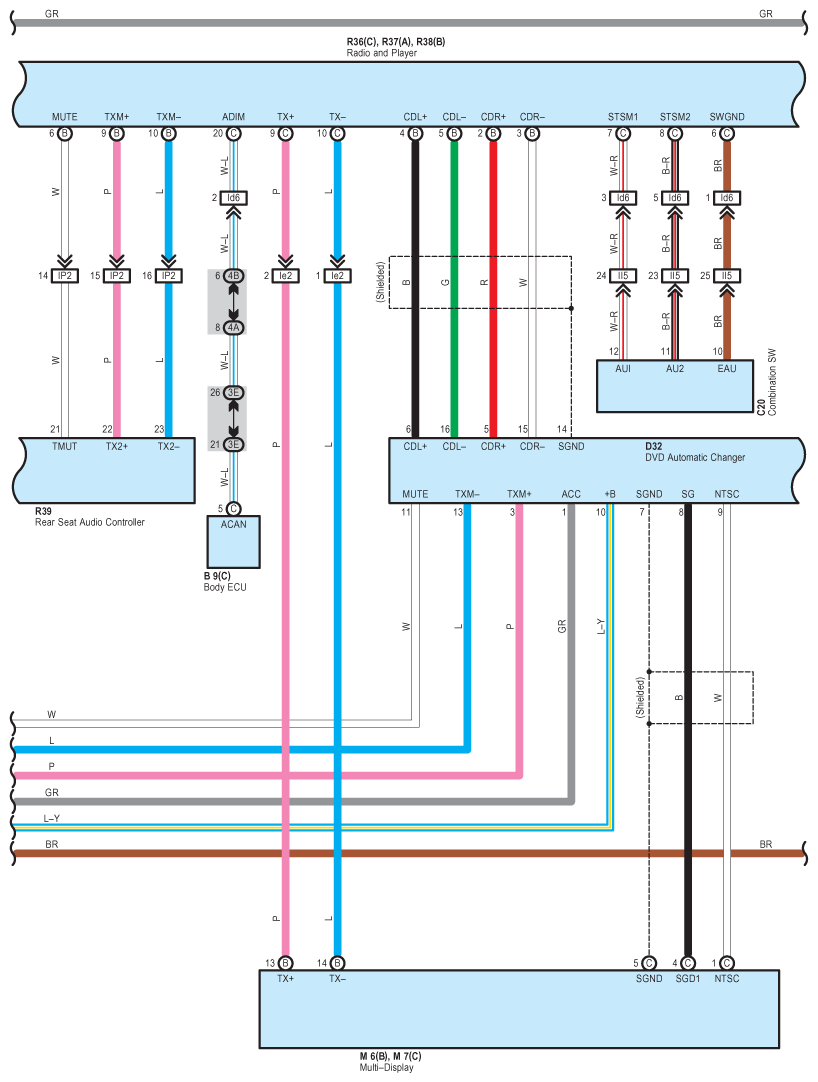

Fig 2: Audio System With Navigation System - Wiring Diagram (2 Of 5)
G08928258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

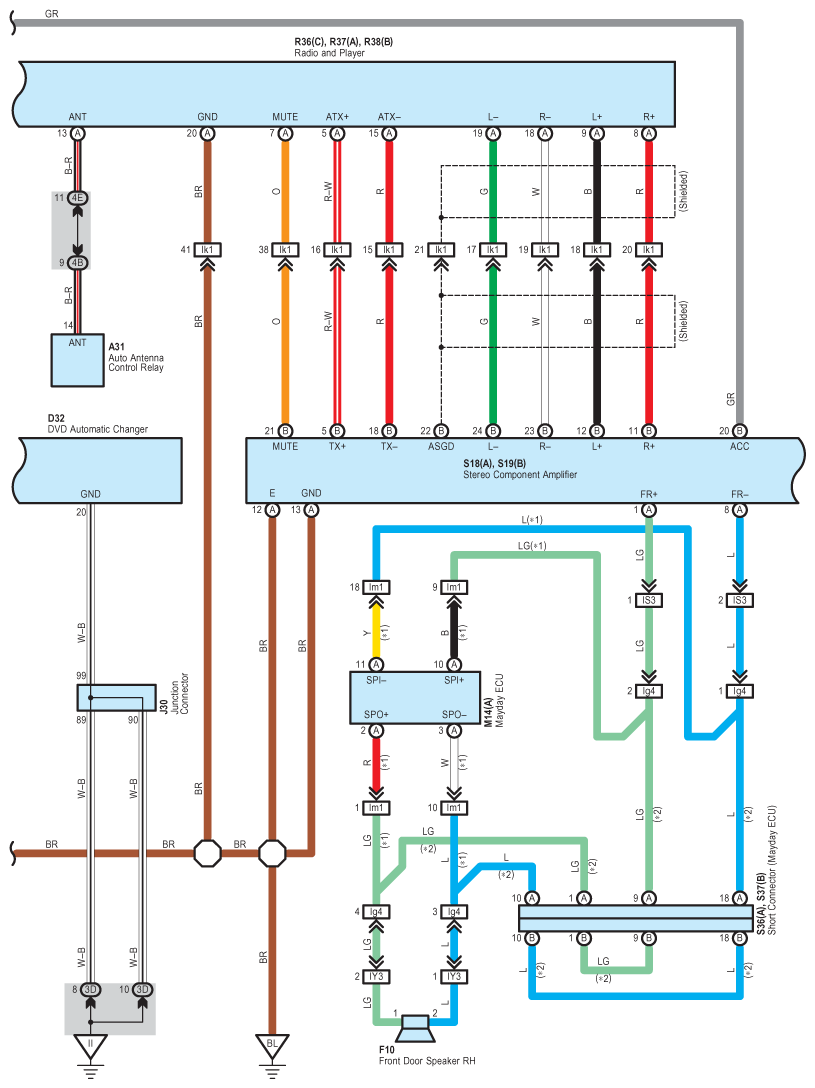

Fig 3: Audio System With Navigation System - Wiring Diagram (3 Of 5)
G08928259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

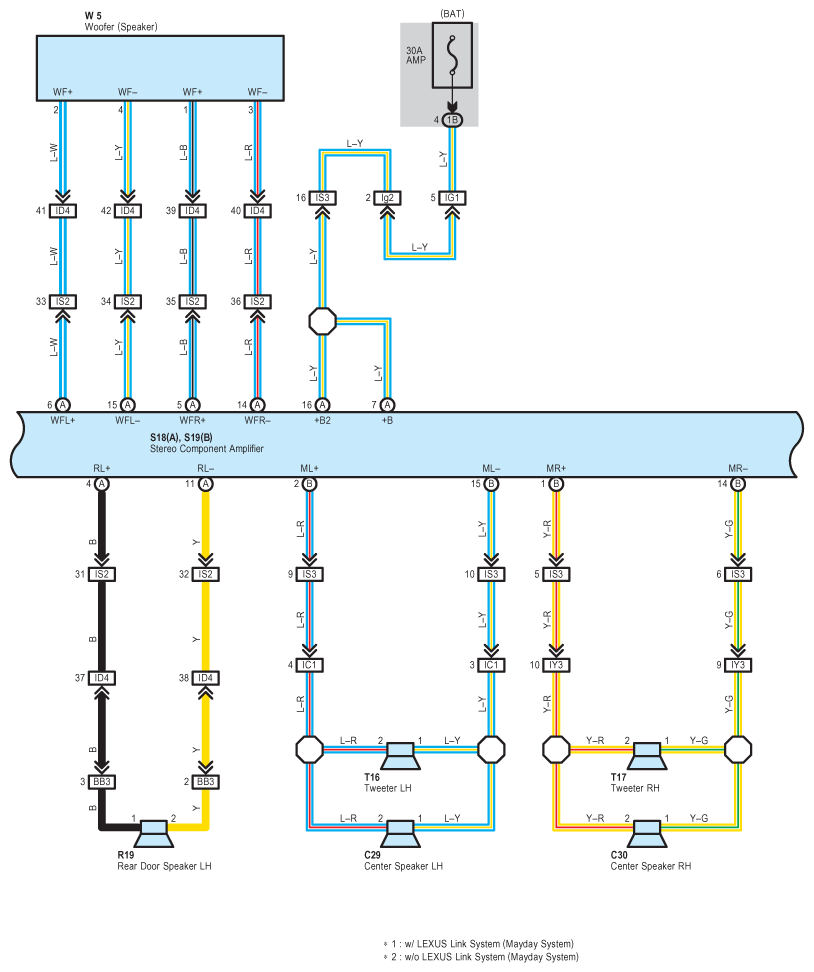

Fig 4: Audio System With Navigation System - Wiring Diagram (4 Of 5)
G08928260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

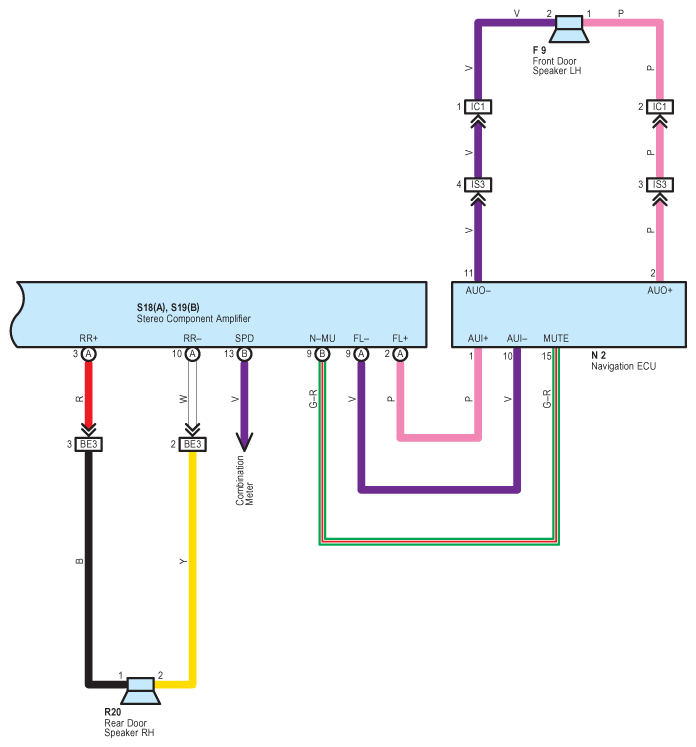

Fig 5: Audio System With Navigation System - Wiring Diagram (5 Of 5)
G08928261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
