Automatic Light Control: Notes

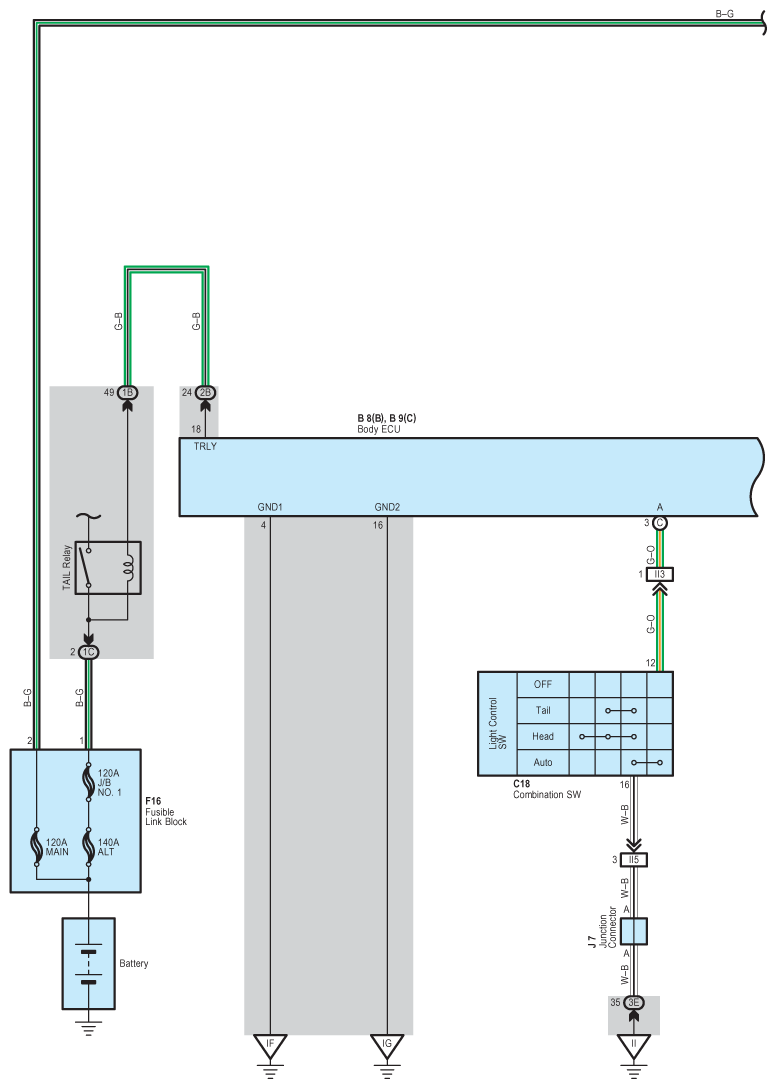

Fig 1: Automatic Light Control - Wiring Diagram (1 Of 2)
G08928110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

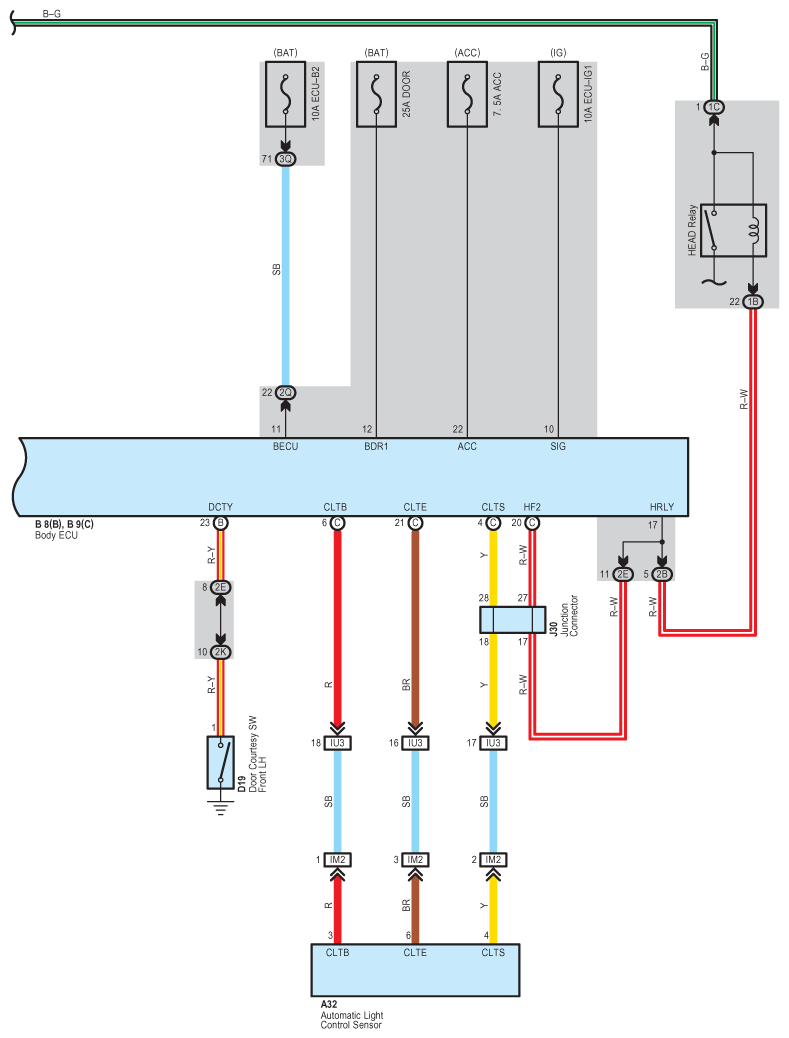

Fig 2: Automatic Light Control - Wiring Diagram (2 Of 2)
G08928111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
