Rear Quarter Window Control Switch: Inspection

INSPECT REAR QUARTER WINDOW CONTROL SWITCH LH

Check the continuity of the switch.

OK

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Switch Position	Specified Condition
3 (CLS) - 4 (B) 5 (OPEN) - 6 (E)	CLOSE	Continuity
3 (CLS) - 4 (B) 5 (OPEN) - 6 (E)	OFF	No continuity
3 (CLS) - 6 (E) 4 (B) - 5 (OPEN)	OPEN	Continuity
3 (CLS) - 6 (E) 4 (B) - 5 (OPEN)	OFF	No continuity
1 - 2	Illumination circuit	Continuity

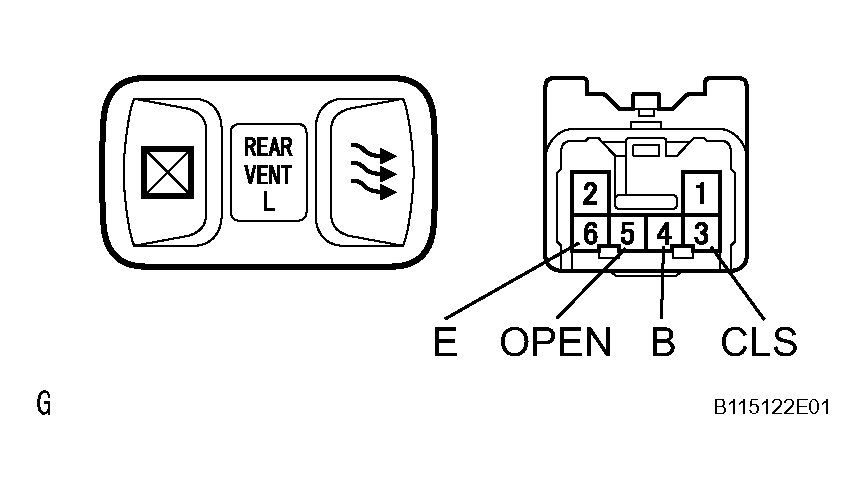

Fig 1: Inspecting Rear Quarter Window Control Switch LH

G04065736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.

INSPECT REAR QUARTER WINDOW CONTROL SWITCH RH

Check the continuity of the switch.

OK

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Switch Position	Specified Condition
3 (CLS) - 4 (B) 5 (OPEN) - 6 (E)	CLOSE	Continuity
3 (CLS) - 4 (B) 5 (OPEN) - 6 (E)	OFF	No continuity
3 (CLS) - 6 (E) 4 (B) - 5 (OPEN)	OPEN	Continuity
3 (CLS) - 6 (E) 4 (B) - 5 (OPEN)	OFF	No continuity
1 - 2	Illumination circuit	Continuity

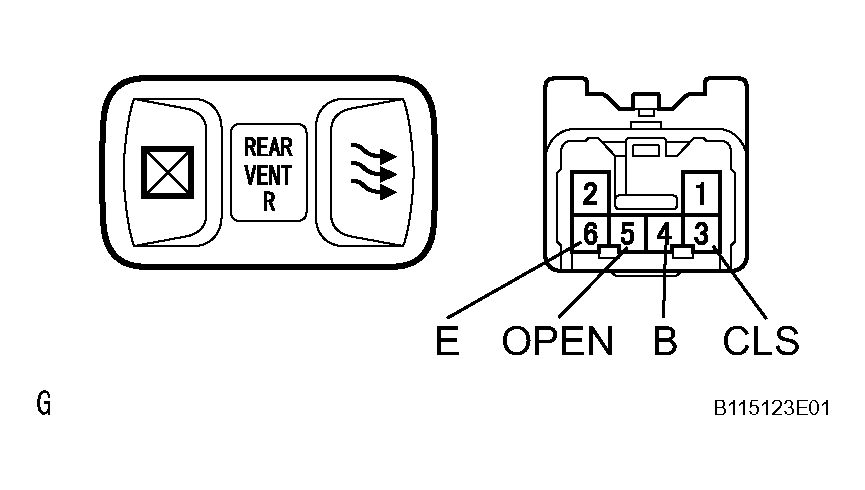

Fig 2: Inspecting Rear Quarter Window Control Switch RH

G04065737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
