LEXUS Night View System: Notes

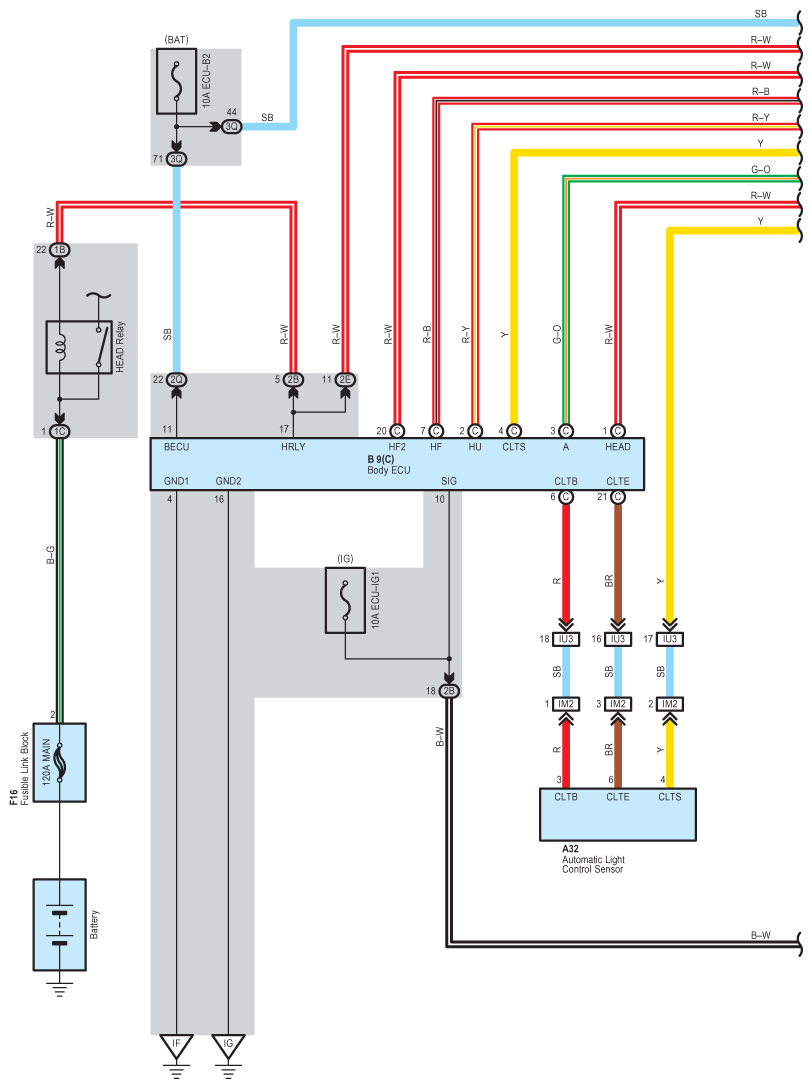

Fig 1: Lexus Night View System - Wiring Diagram (1 Of 6)
G08928114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

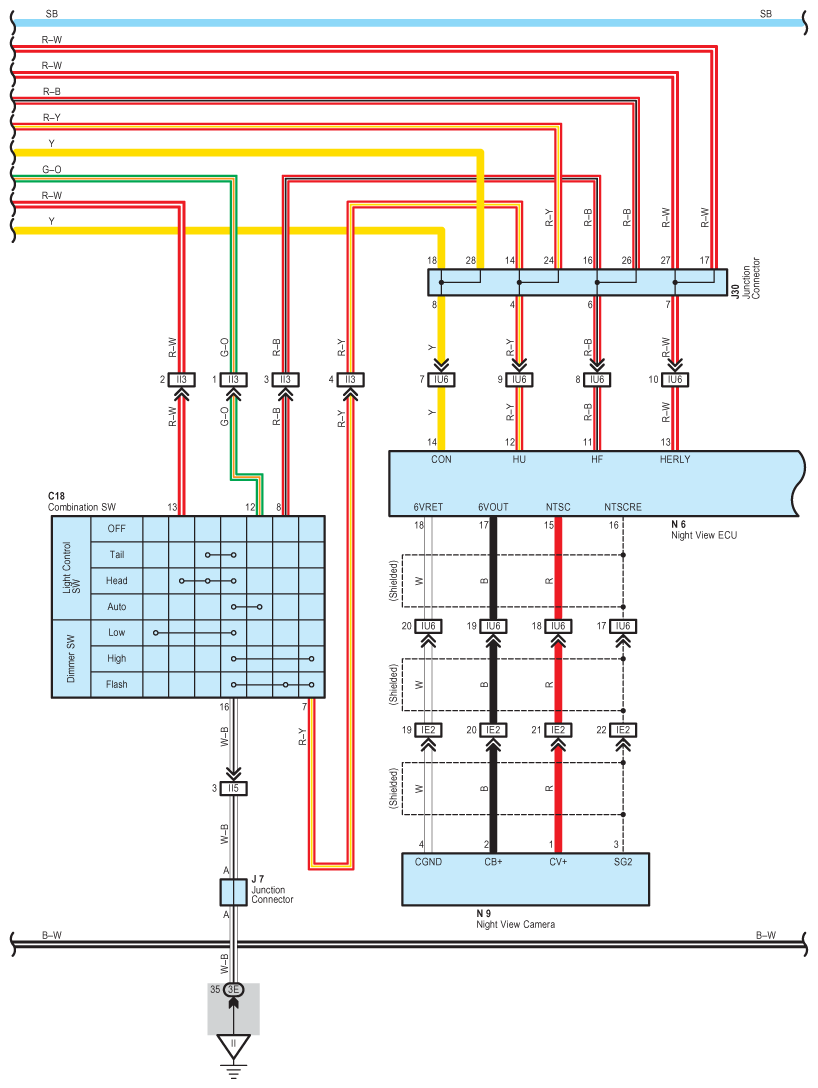

Fig 2: Lexus Night View System - Wiring Diagram (2 Of 6)
G08928115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

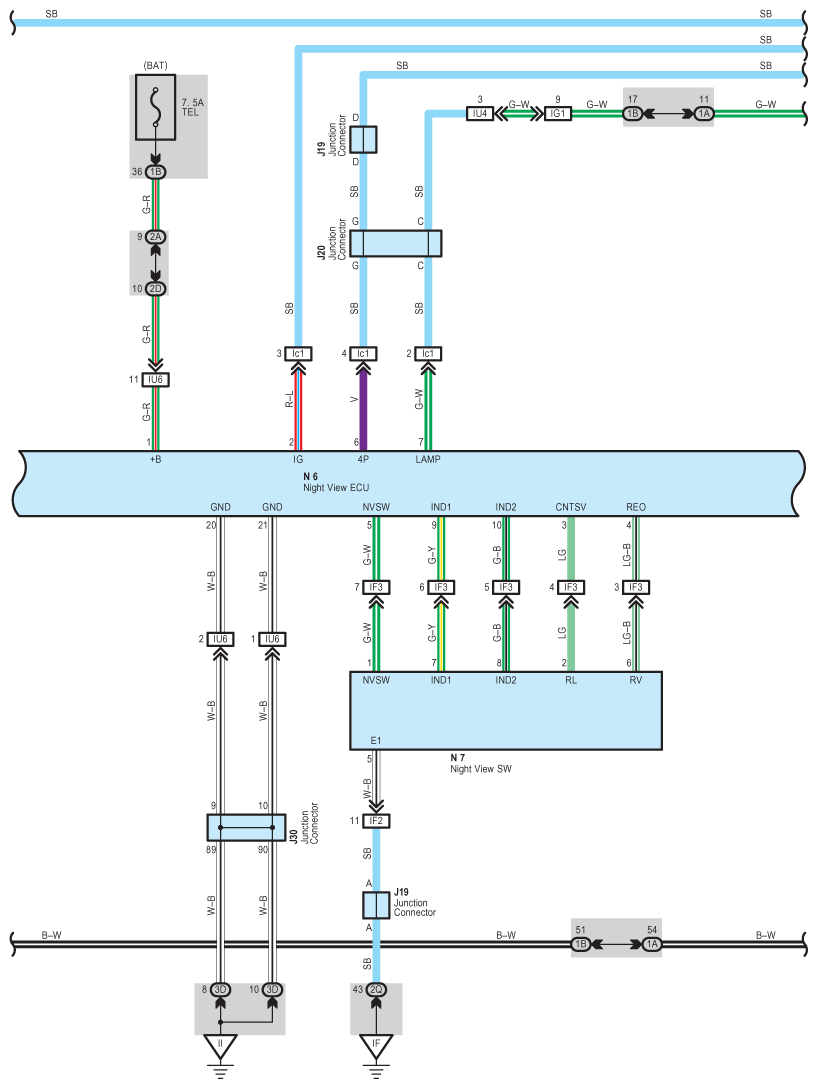

Fig 3: Lexus Night View System - Wiring Diagram (3 Of 6)
G08928116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

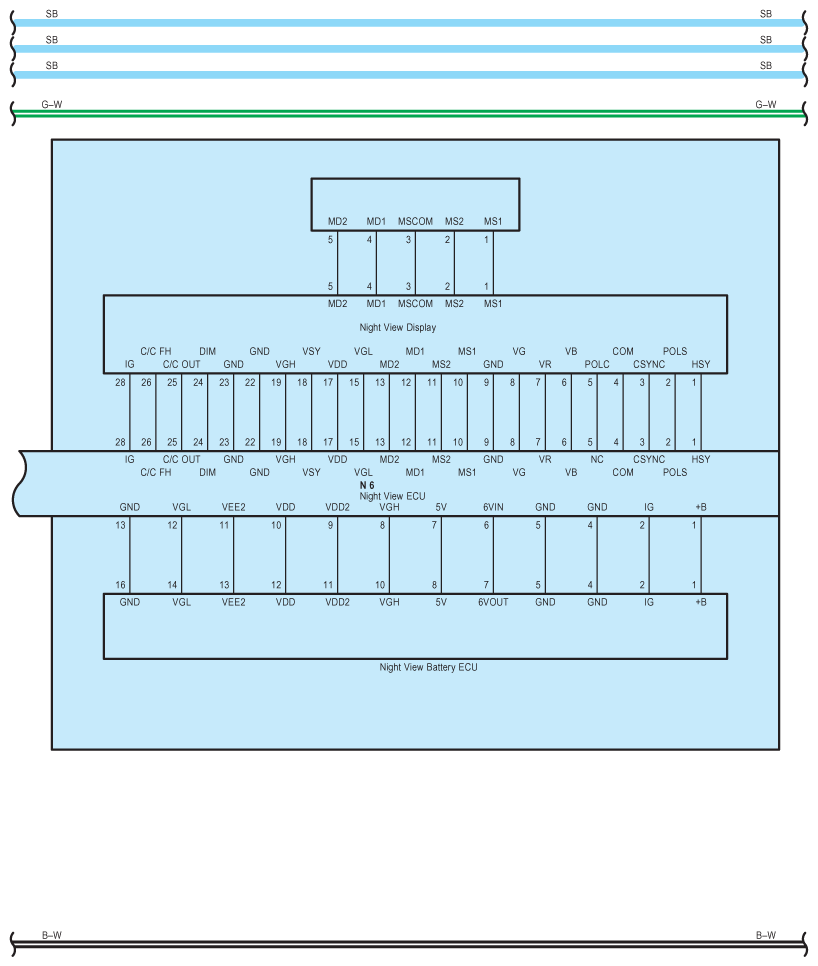

Fig 4: Lexus Night View System - Wiring Diagram (4 Of 6)
G08928117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

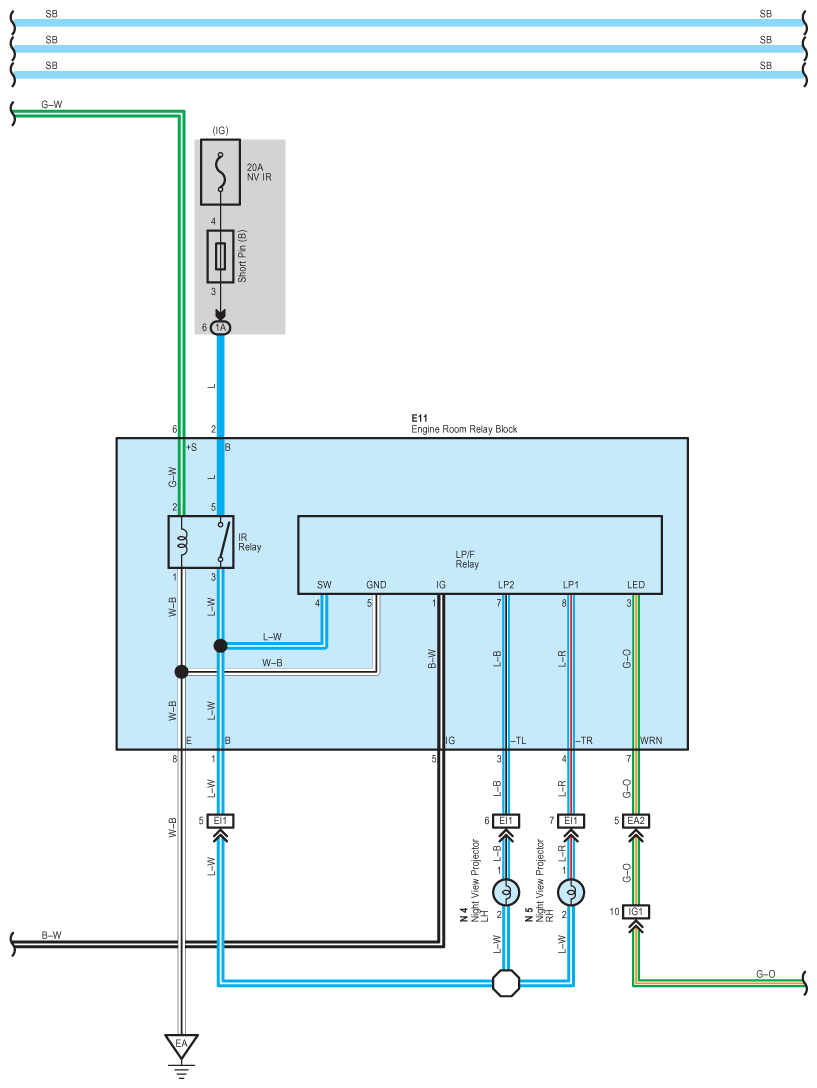

Fig 5: Lexus Night View System - Wiring Diagram (5 Of 6)
G08928118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

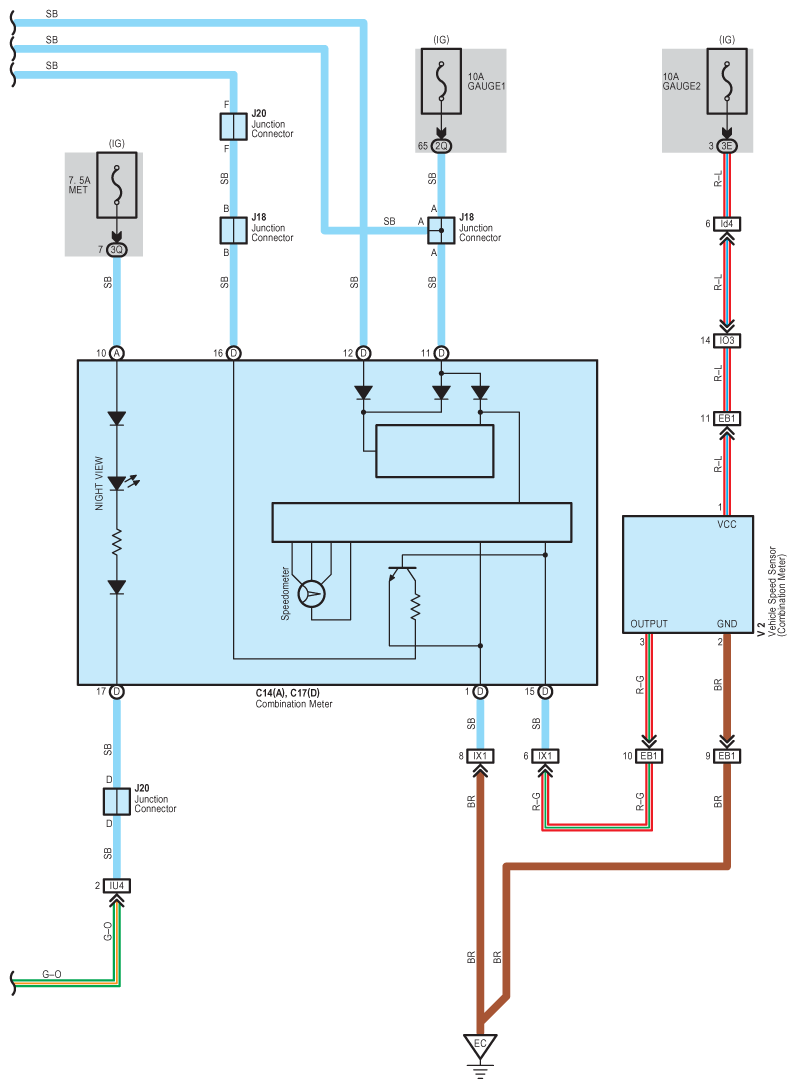

Fig 6: Lexus Night View System - Wiring Diagram (6 Of 6)
G08928119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
