Moon Roof: Notes

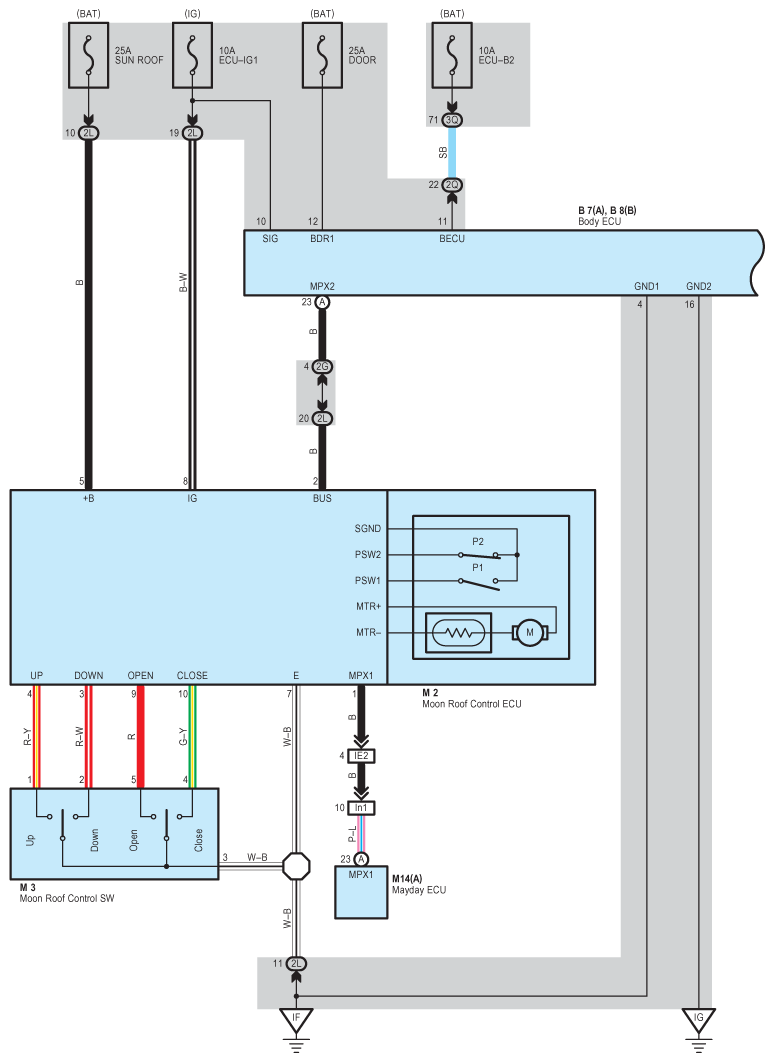

Fig 1: Moon Roof - Wiring Diagram (1 Of 2)
G08928198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

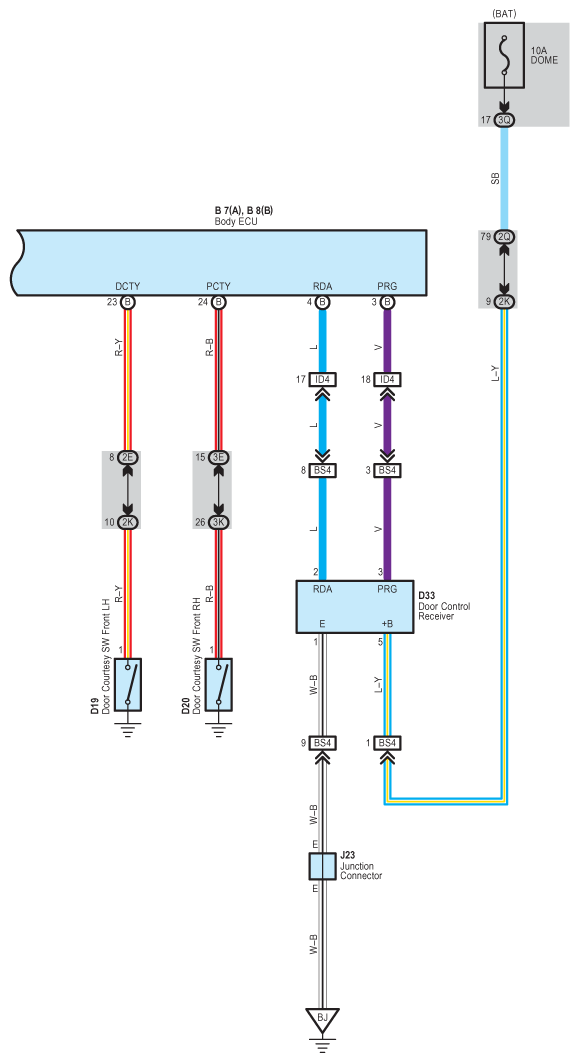

Fig 2: Moon Roof - Wiring Diagram (2 Of 2)
G08928199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
