Multi-Display without Navigation System: Notes

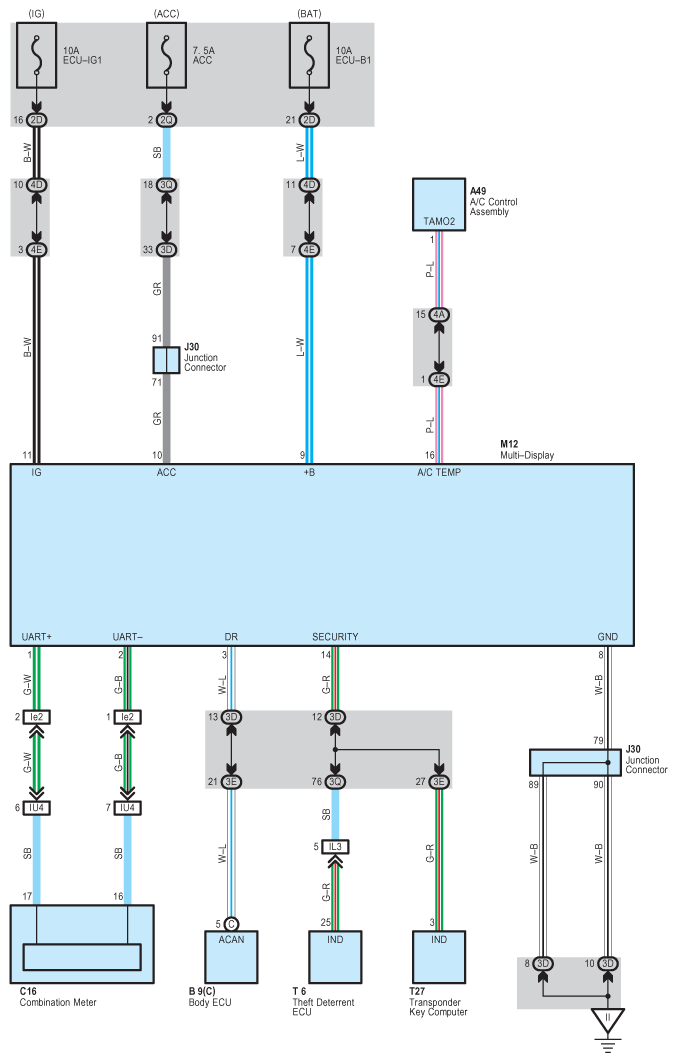

Fig 1: Multi-Display Without Navigation System - Circuit Diagram
G08928255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
