Multiplex Communication System - BEAN Bus

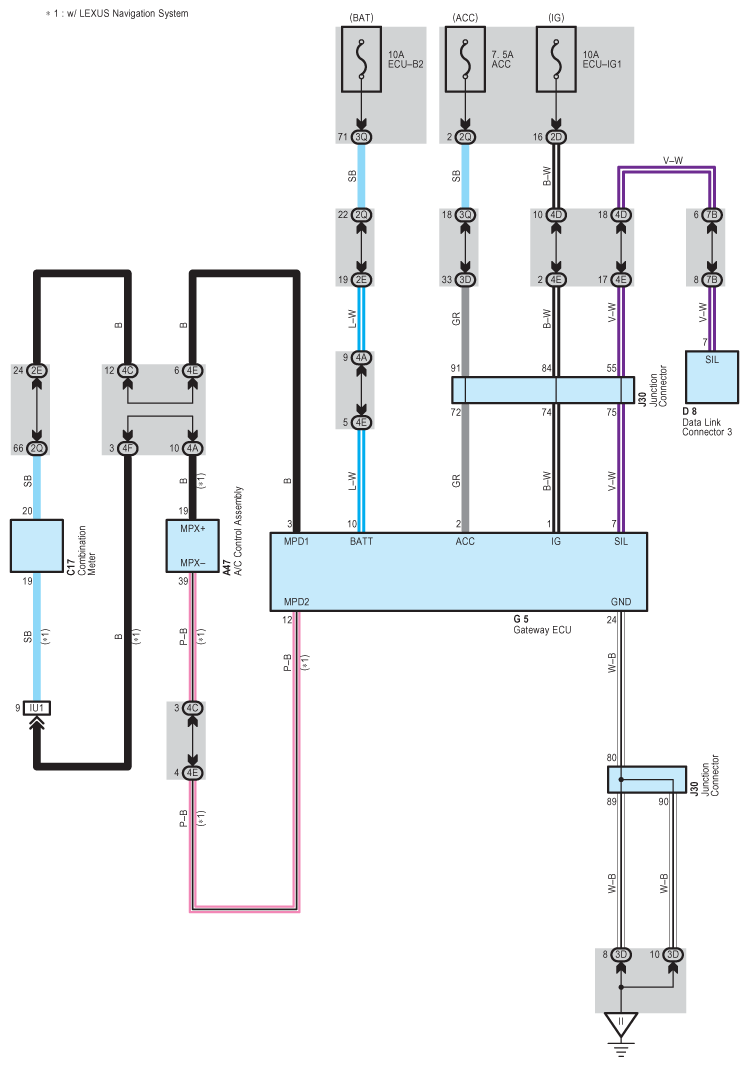

Fig 1: Multiplex Communication System - BEAN Bus - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

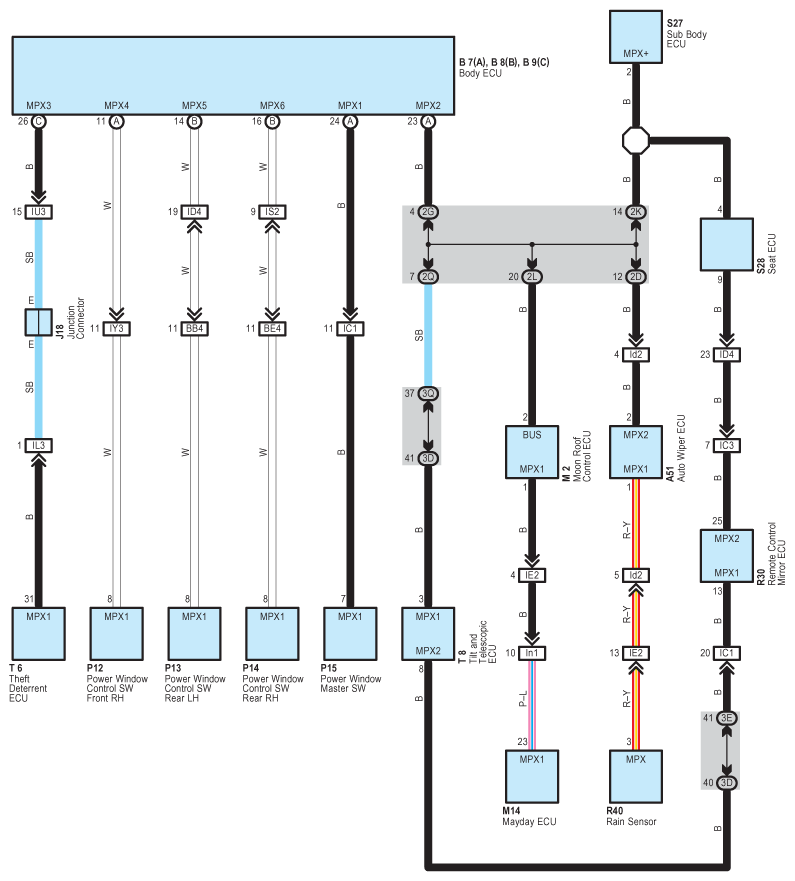

Fig 2: Multiplex Communication System - BEAN Bus - Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multiplex Communication System Includes Following Systems

* Automatic Light Control

* Door Lock Control

* Front Fog Light

* Headlight

* Interior Light

* Key Reminder

* LEXUS Link System (Mayday System)

* Light Auto Turn Off System

* Power Window

* Rear Wiper and Washer

* Theft Deterrent

* Wireless Door Lock Control
