Navigation and Parking Assist (Rear View Monitor): Notes

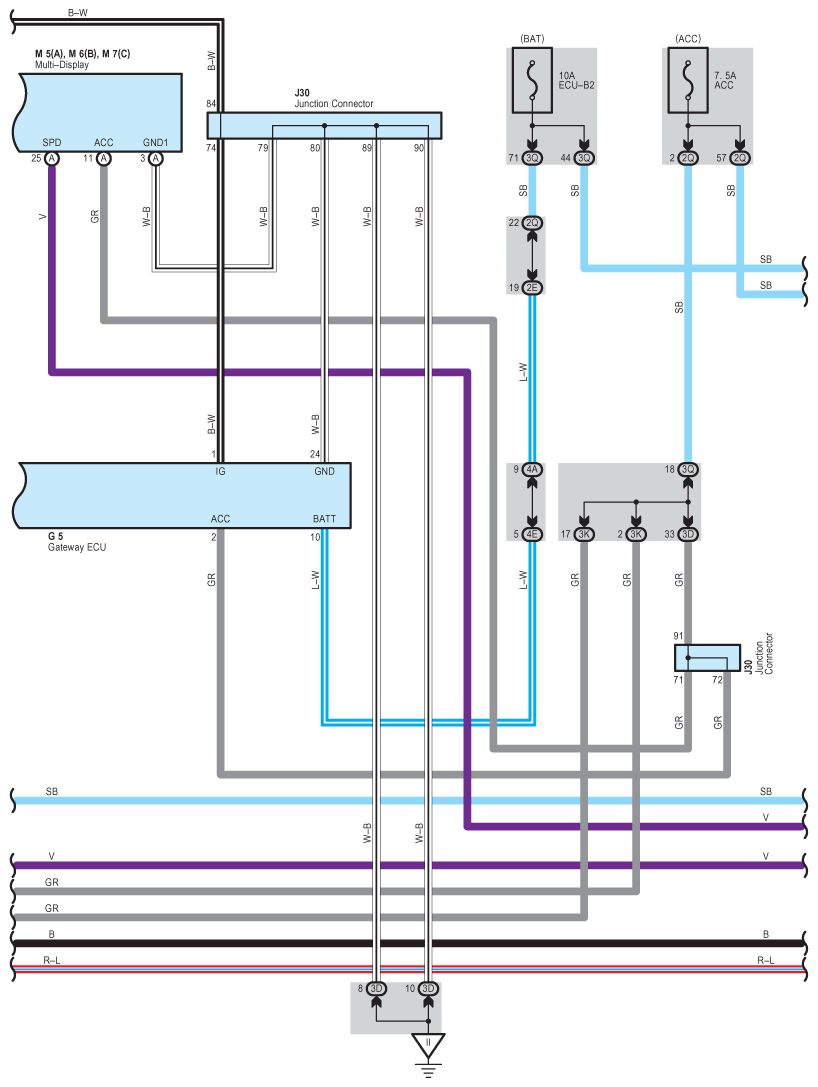

Fig 1: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

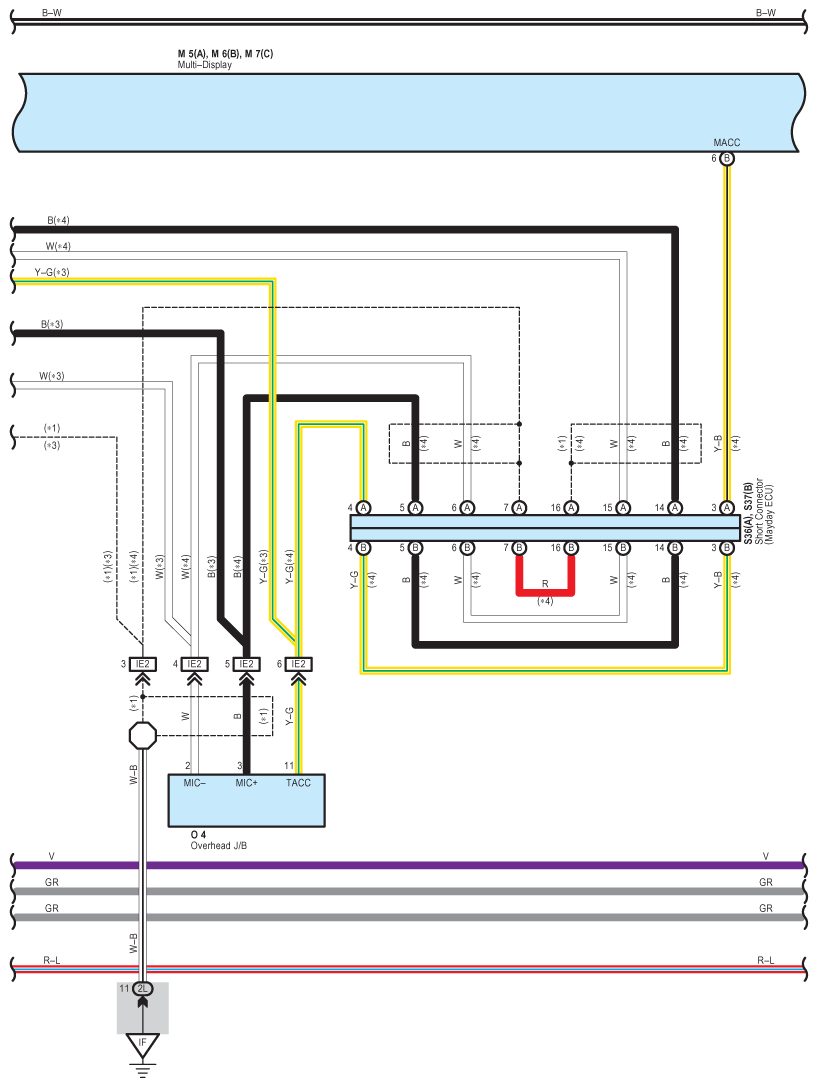

Fig 2: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

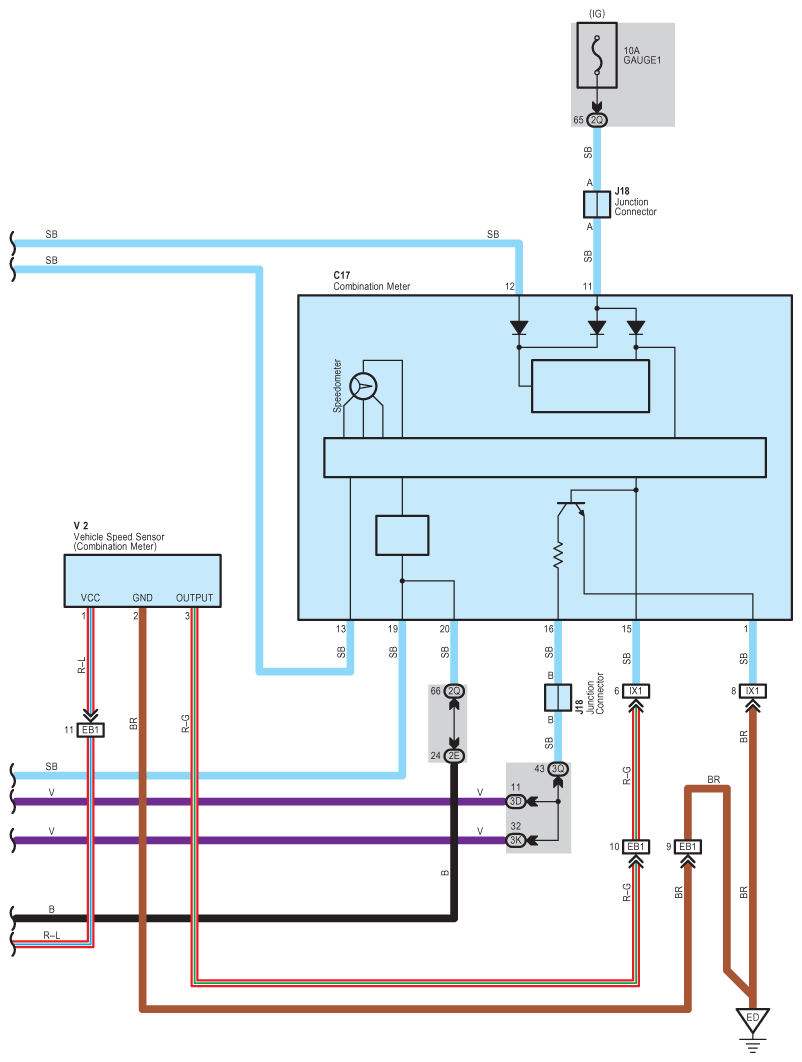

Fig 3: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

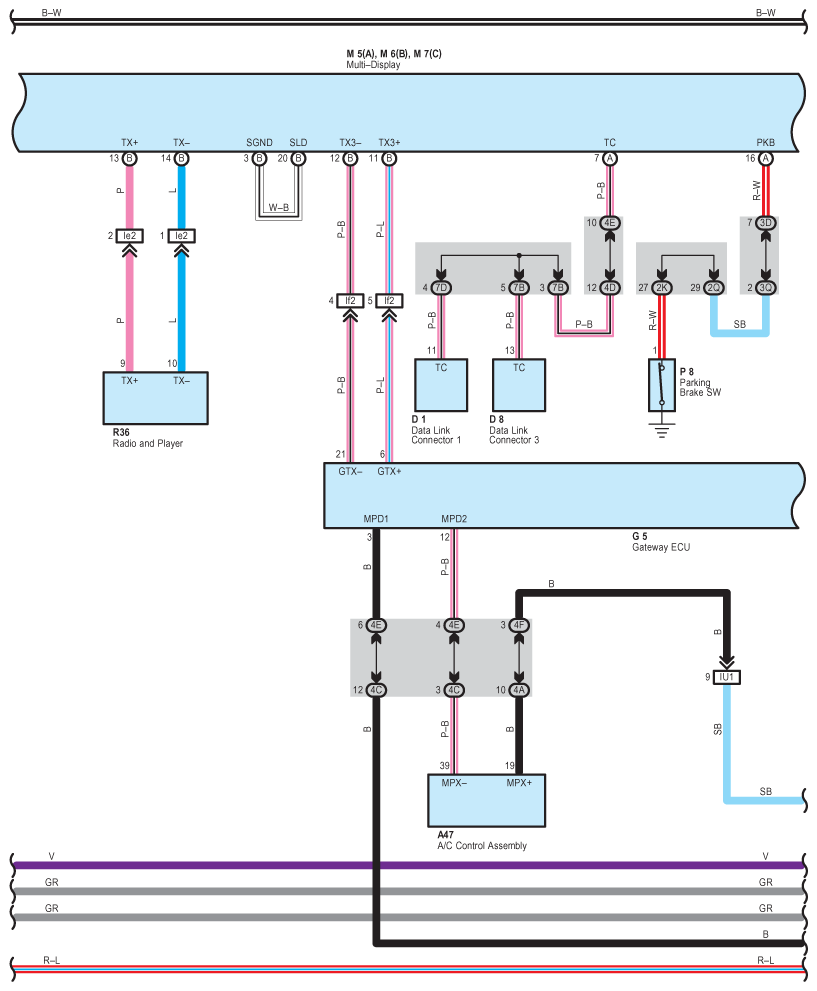

Fig 4: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

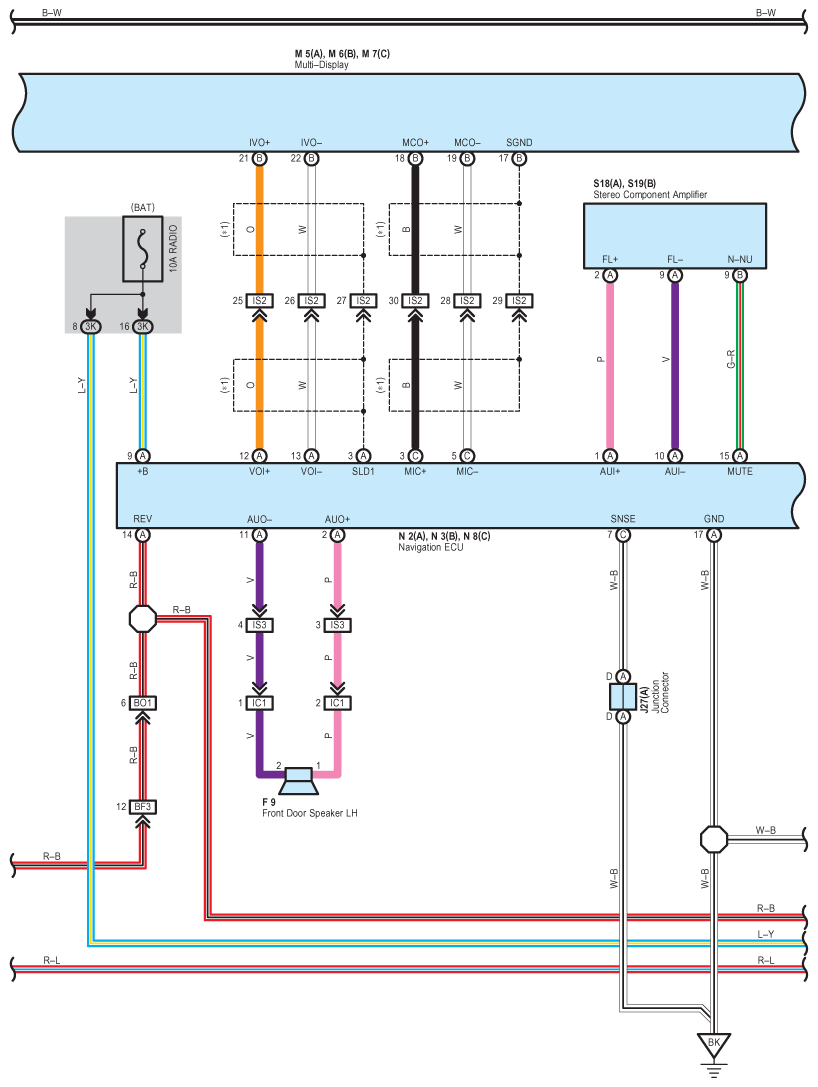

Fig 5: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

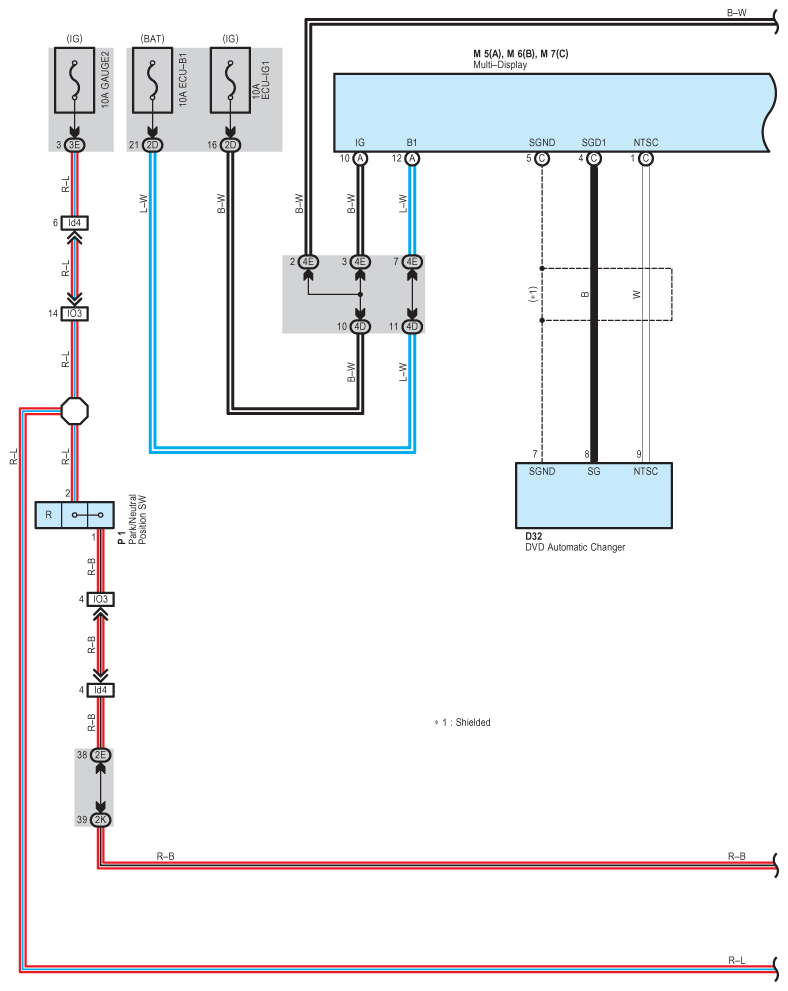

Fig 6: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (6 Of 9)

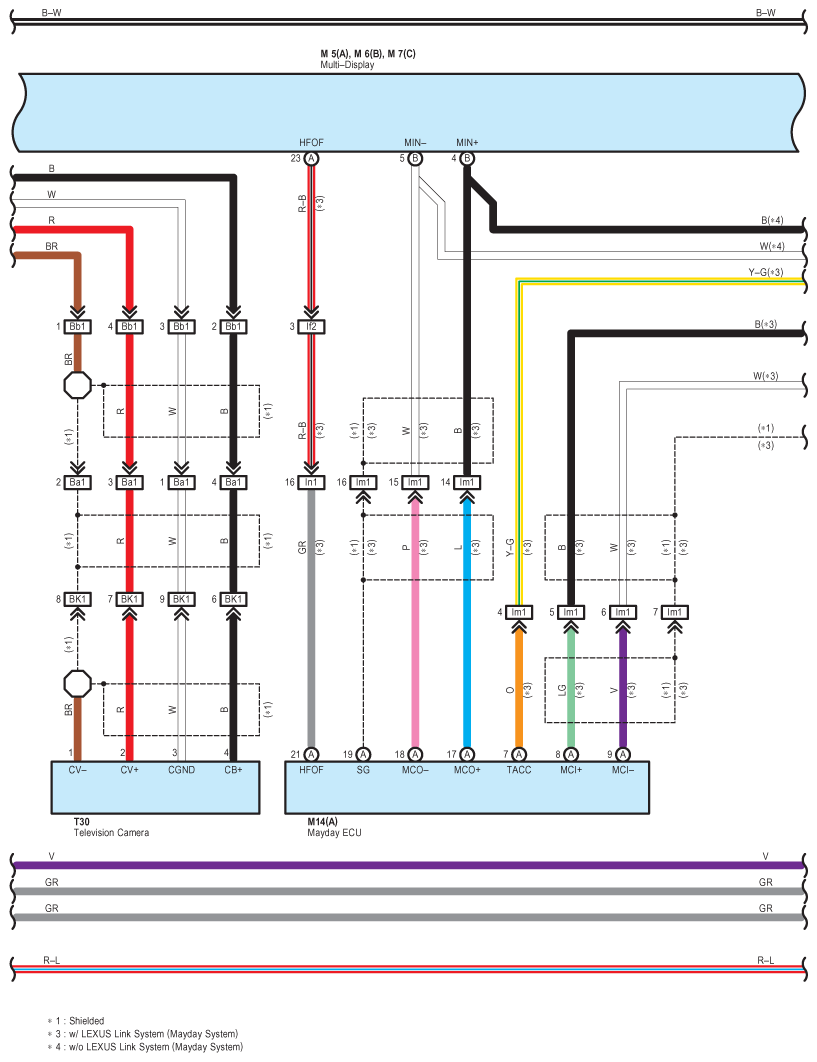

Fig 7: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (7 Of 9)

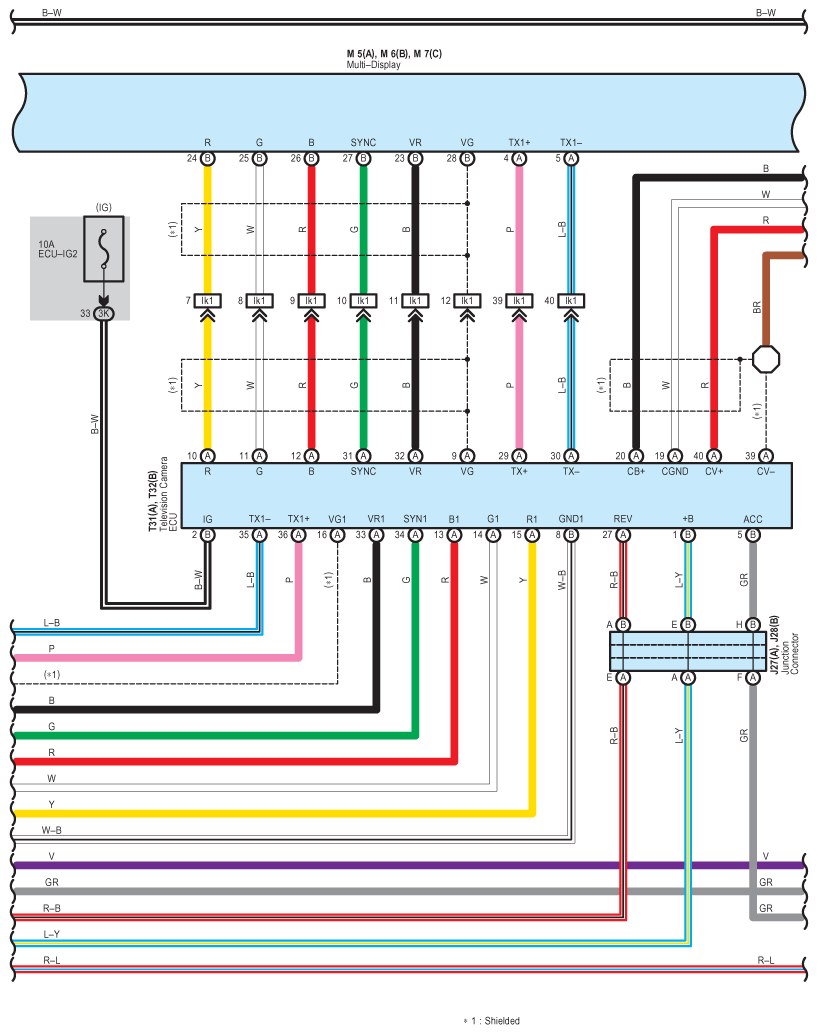

Fig 8: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (8 Of 9)

Fig 9: Navigation And Parking Assist (Rear View Monitor) - Wiring Diagram (9 Of 9)
