OEM System Circuits: Taillight: Notes

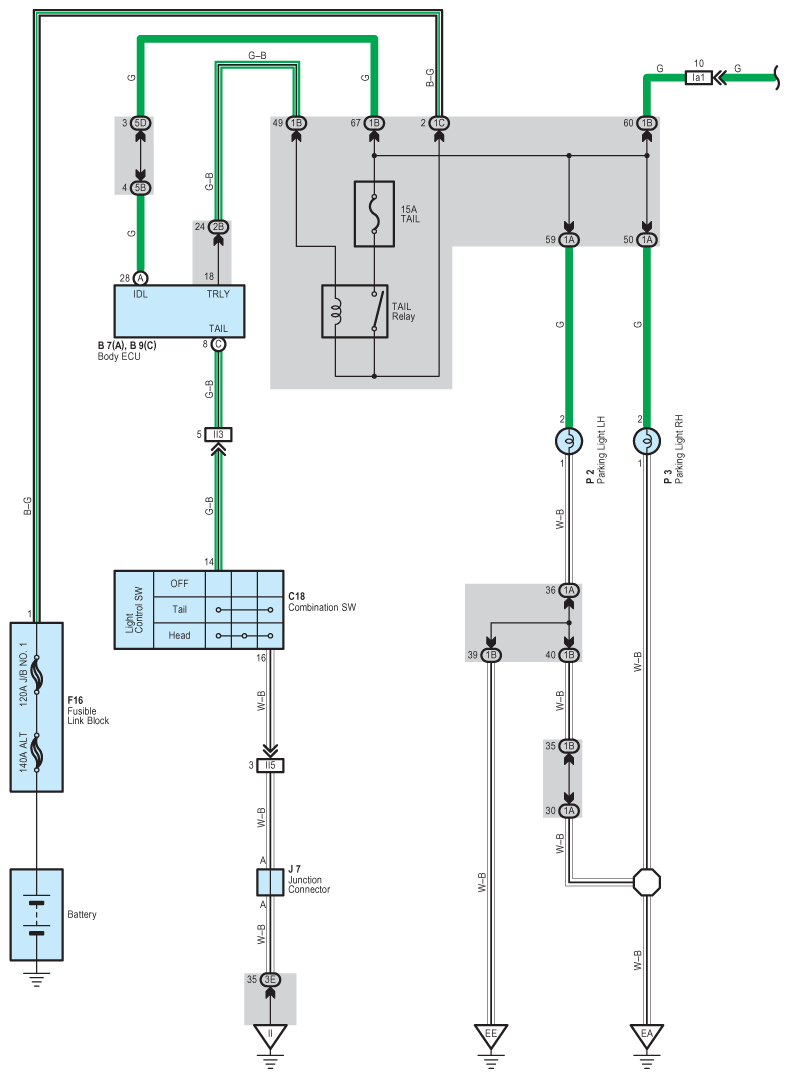

Fig 1: Taillight - Wiring Diagram (1 Of 2)
G08928092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

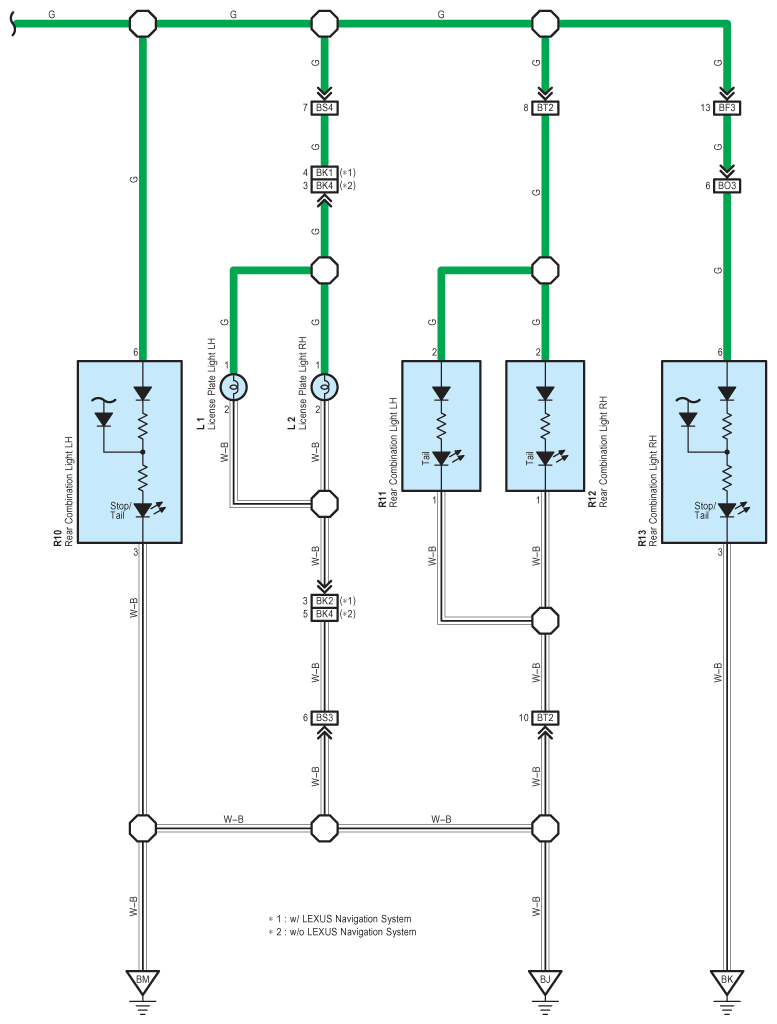

Fig 2: Taillight - Wiring Diagram (2 Of 2)
G08928093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
