Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

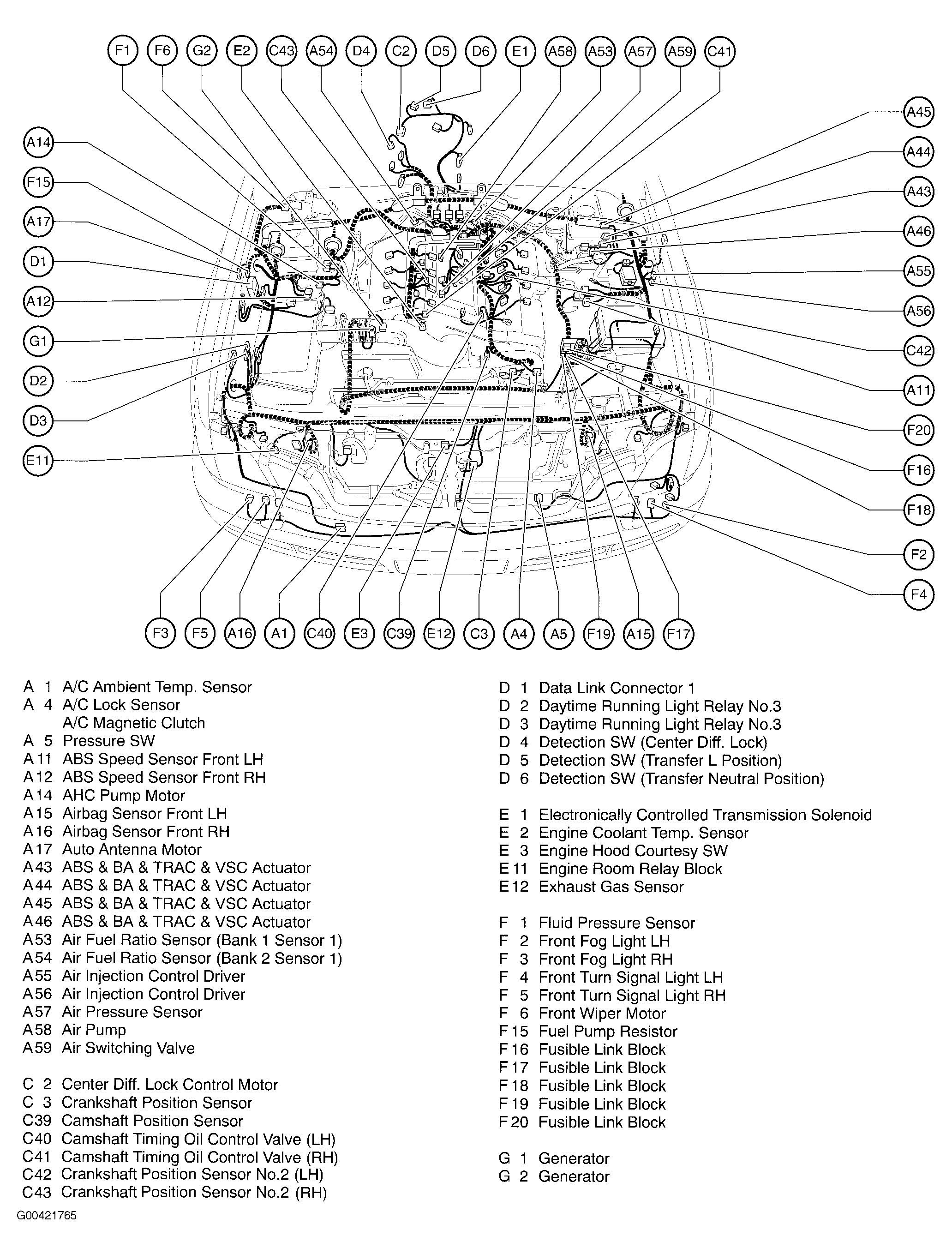

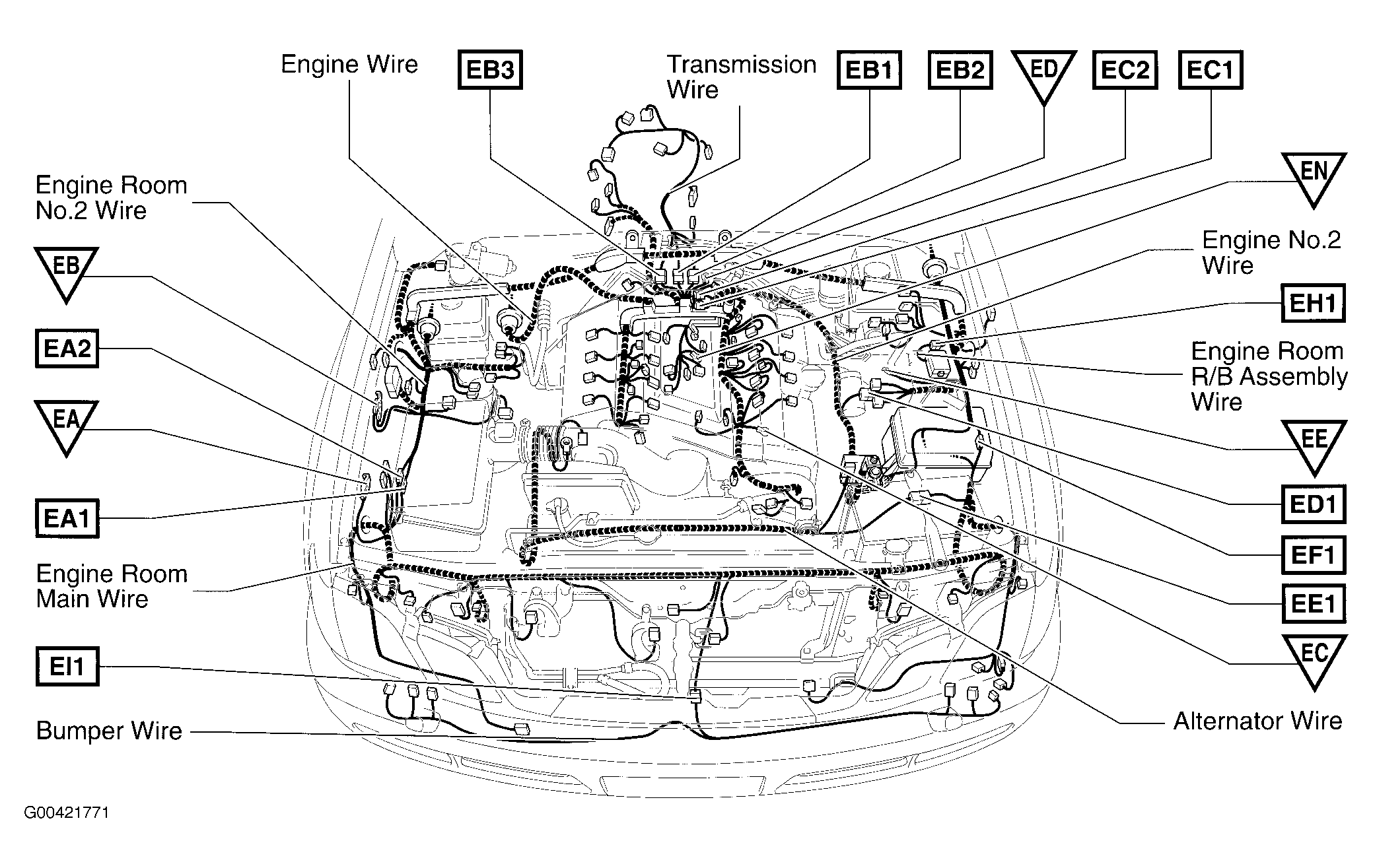

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Left Side Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

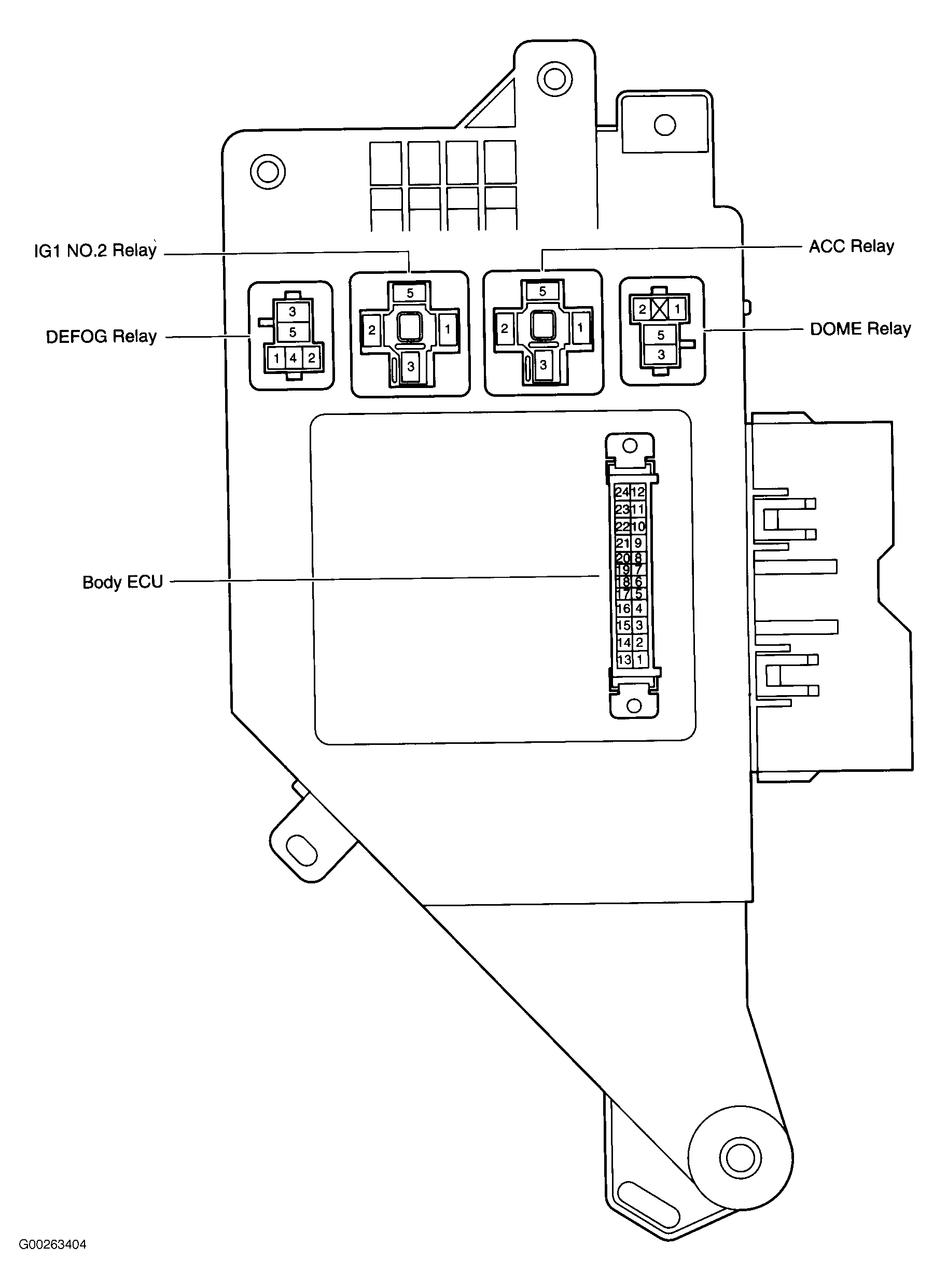

PASSENGER AREA RELAY IDENTIFICATION

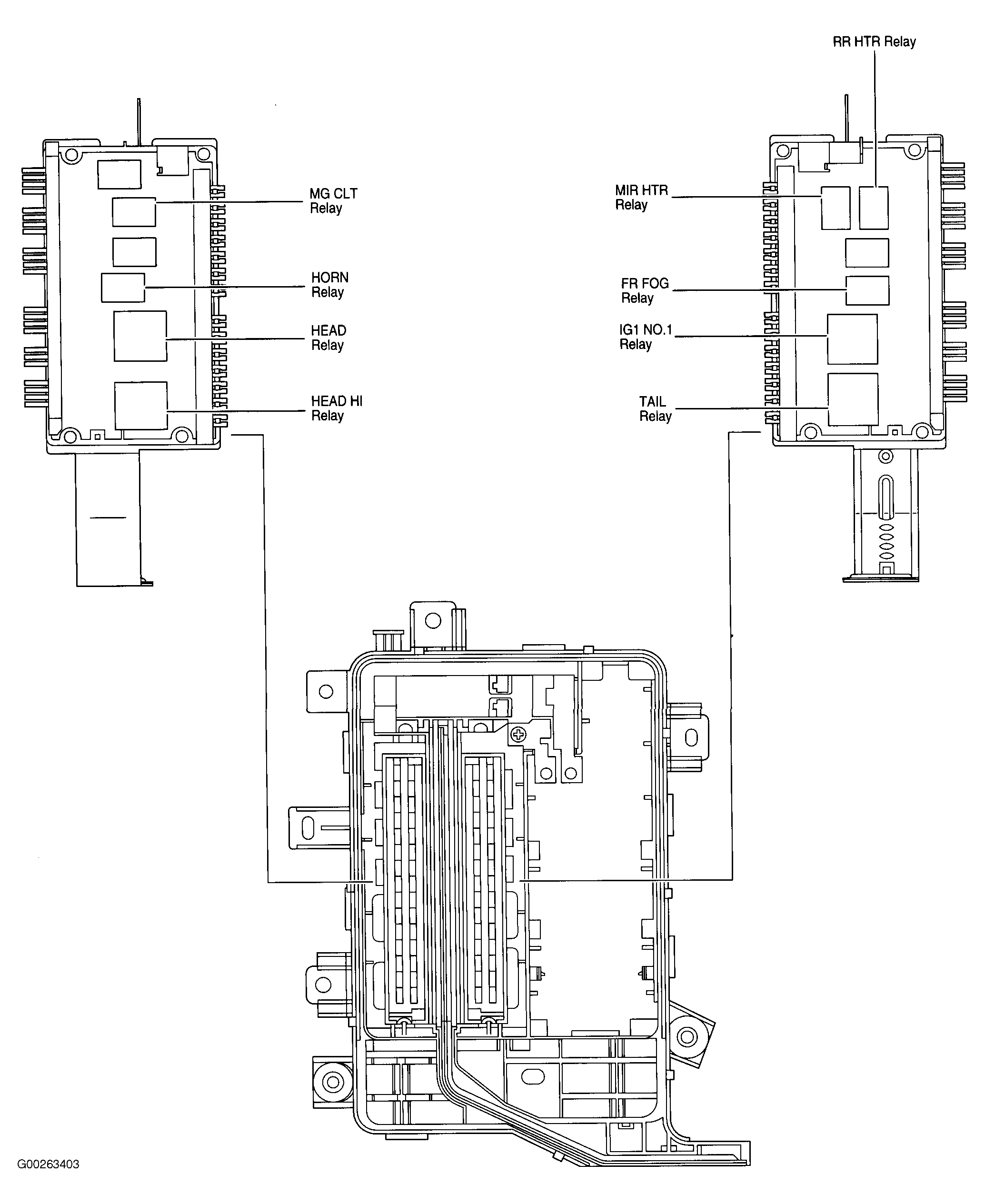

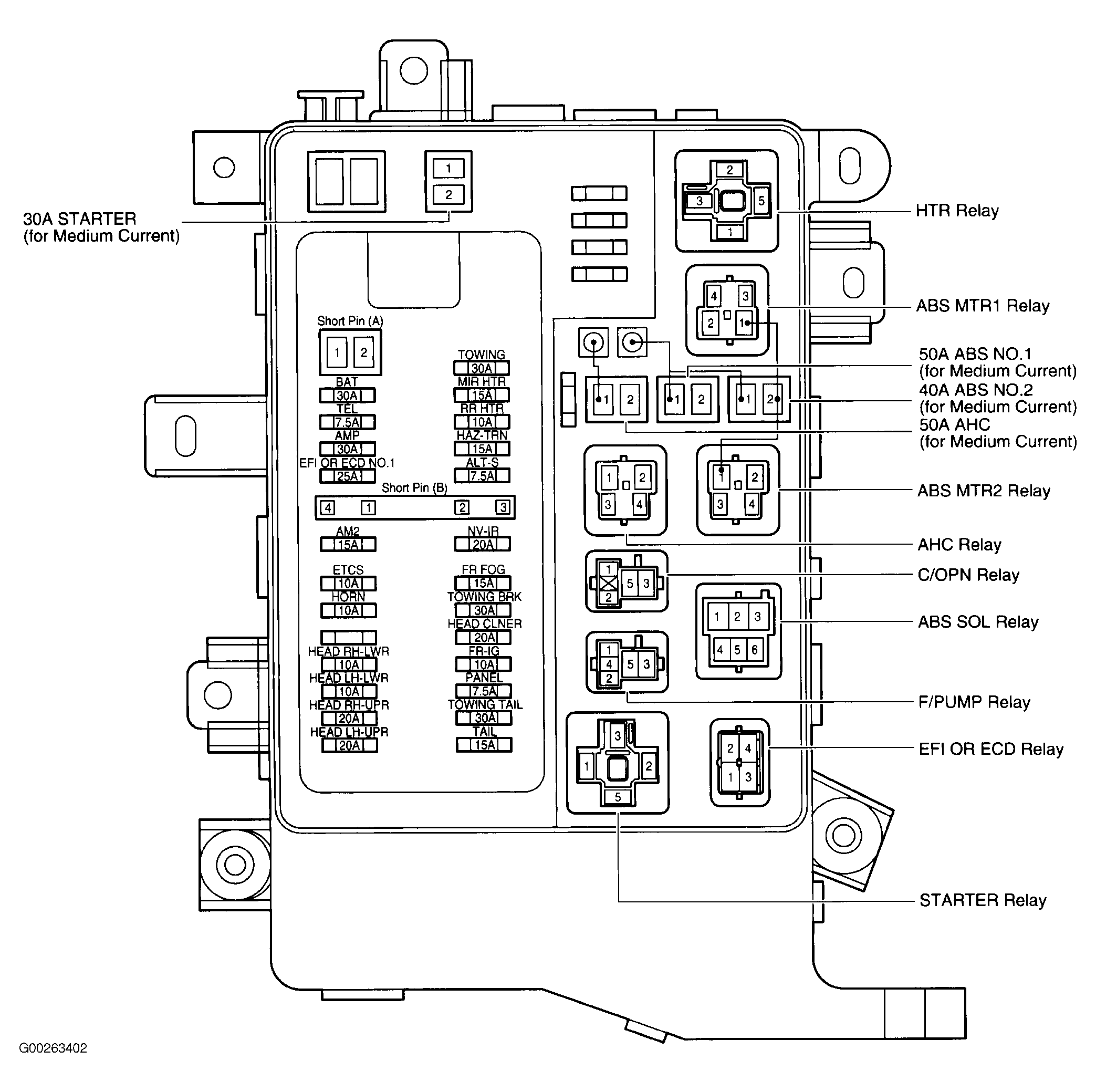

Fig 4: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION/RELAY BLOCK RELAY IDENTIFICATION

Fig 5: Engine Room R/B

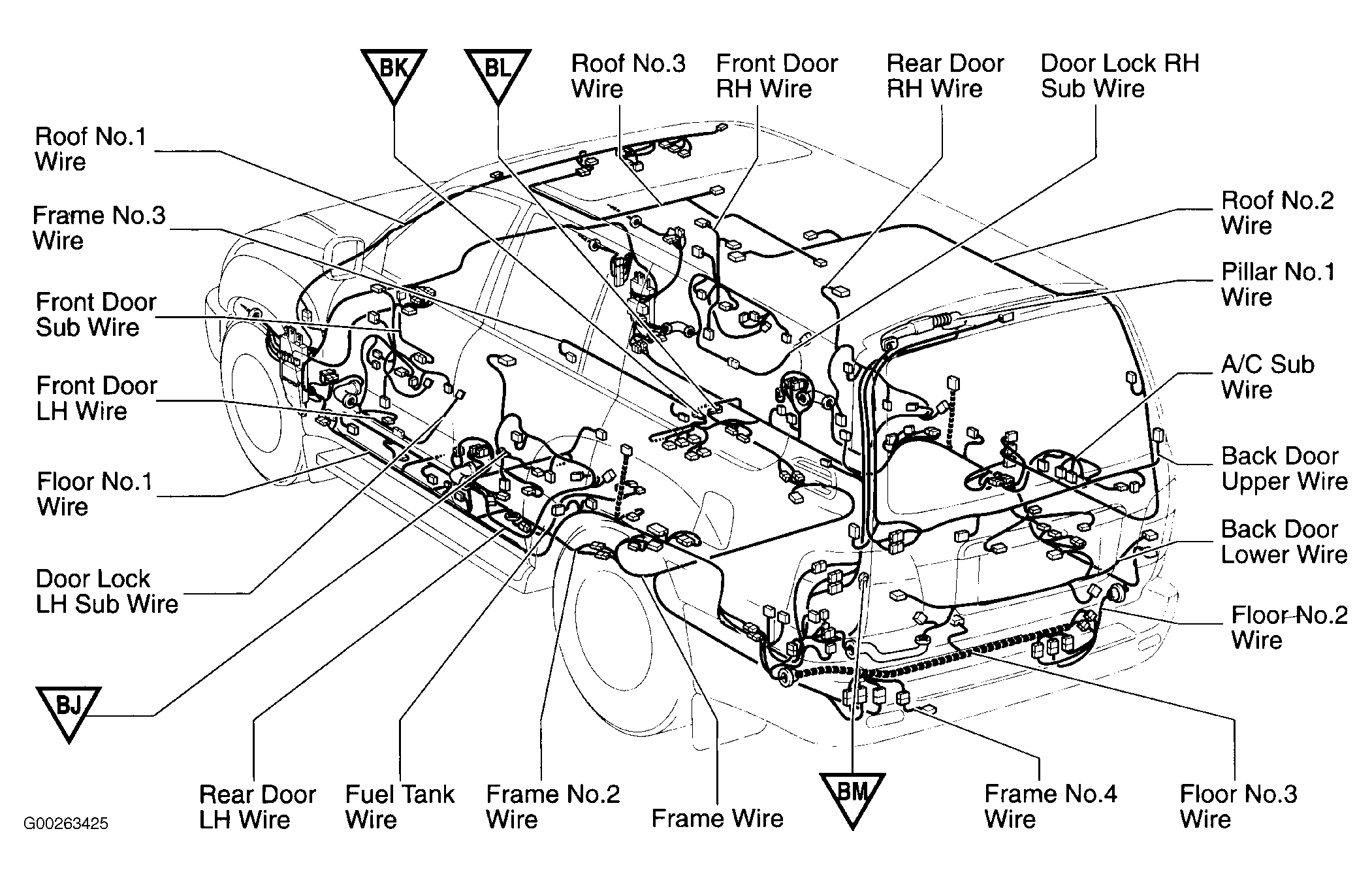

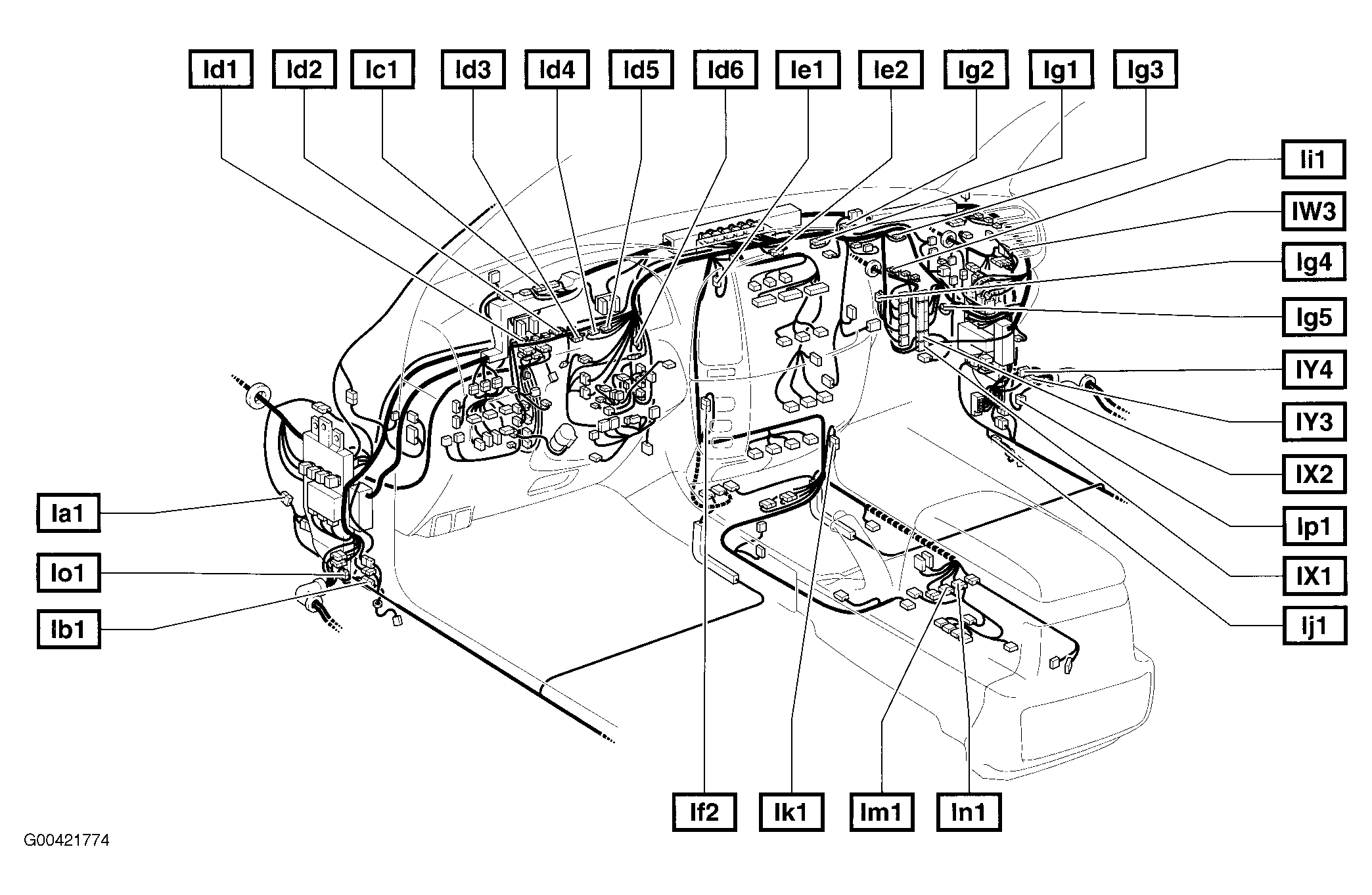

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION/RELAY BLOCK RELAY IDENTIFICATION

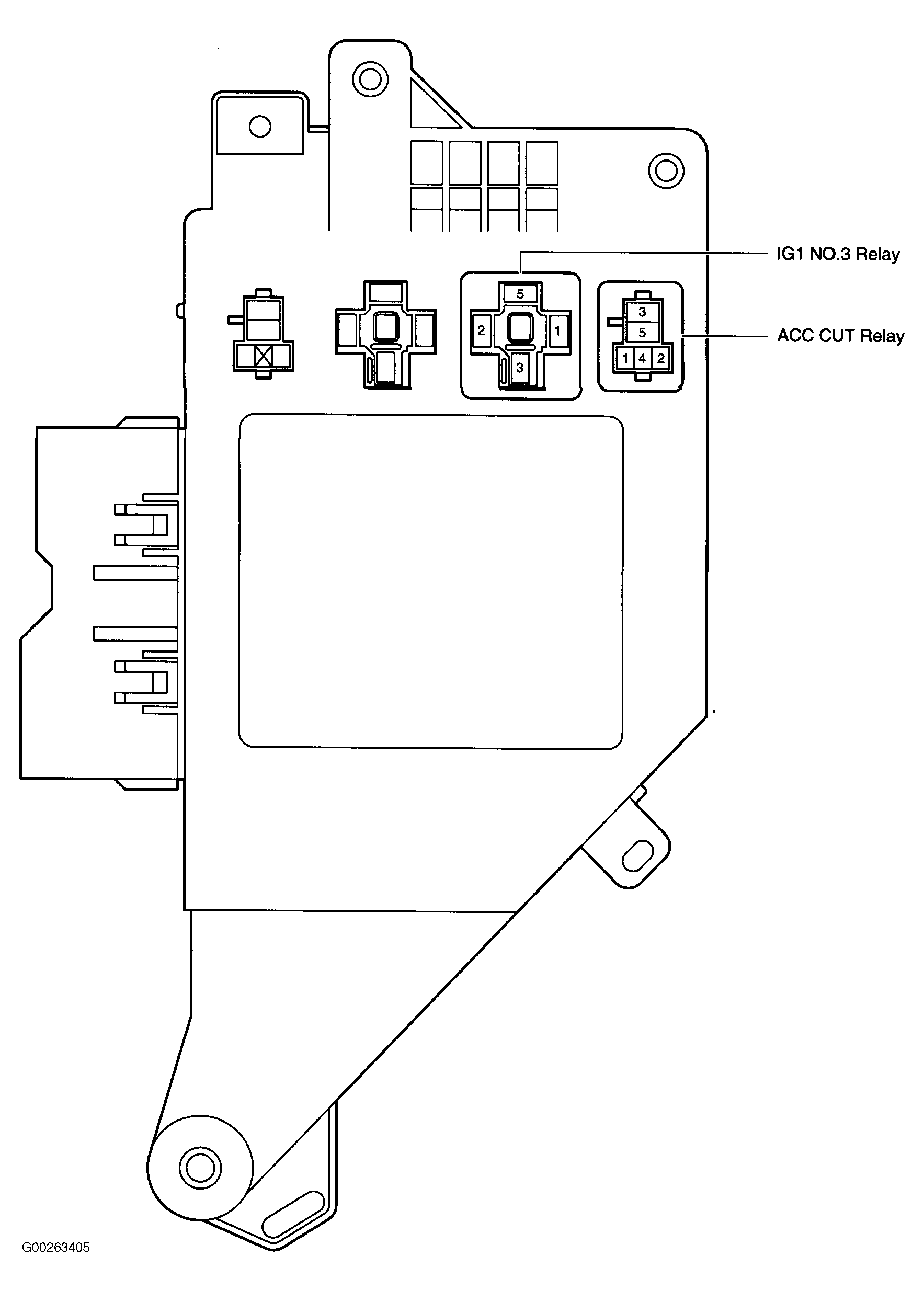

Fig 6: Cowl Side J/B (Left)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Cowl Side J/B (Right)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

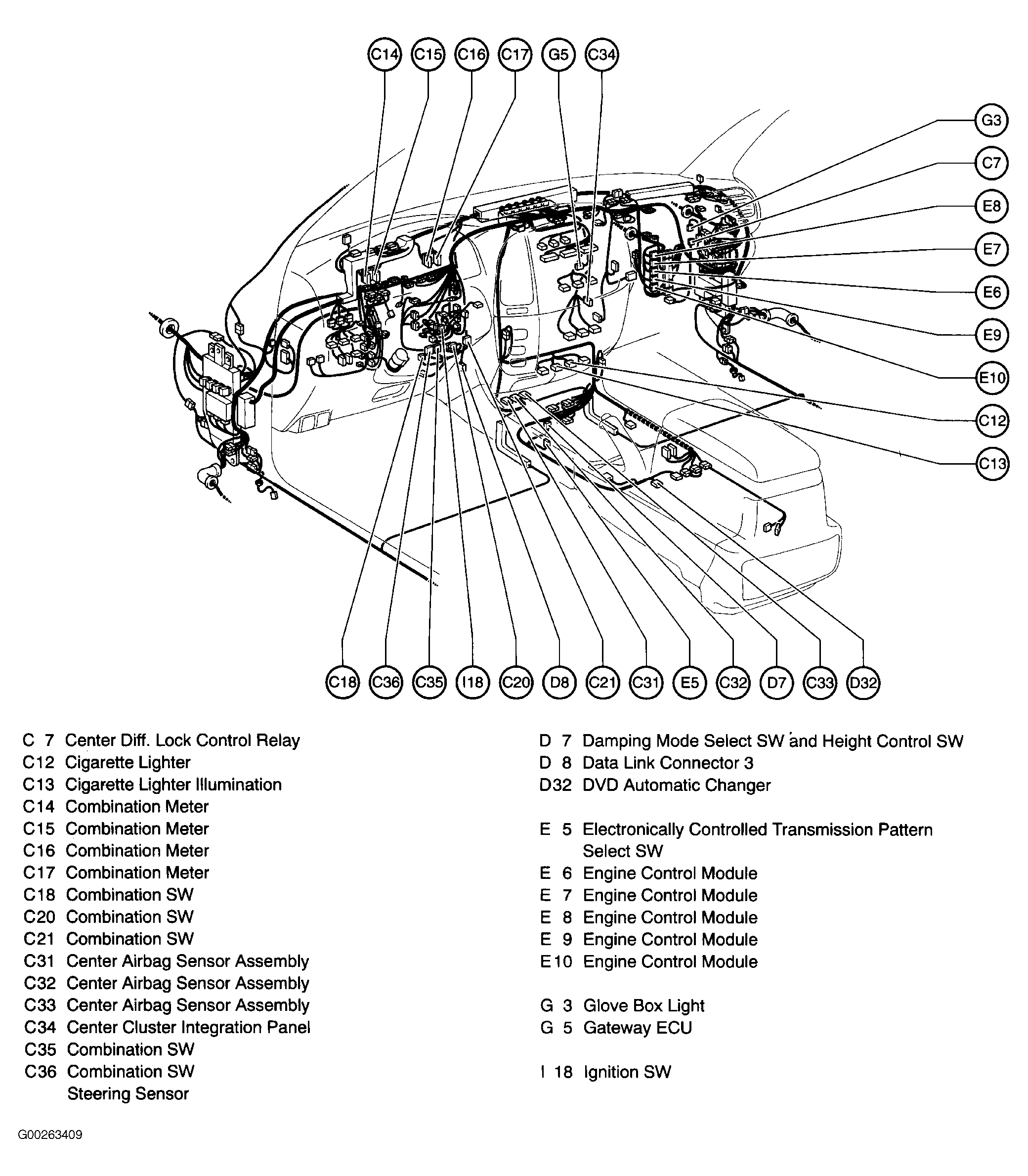

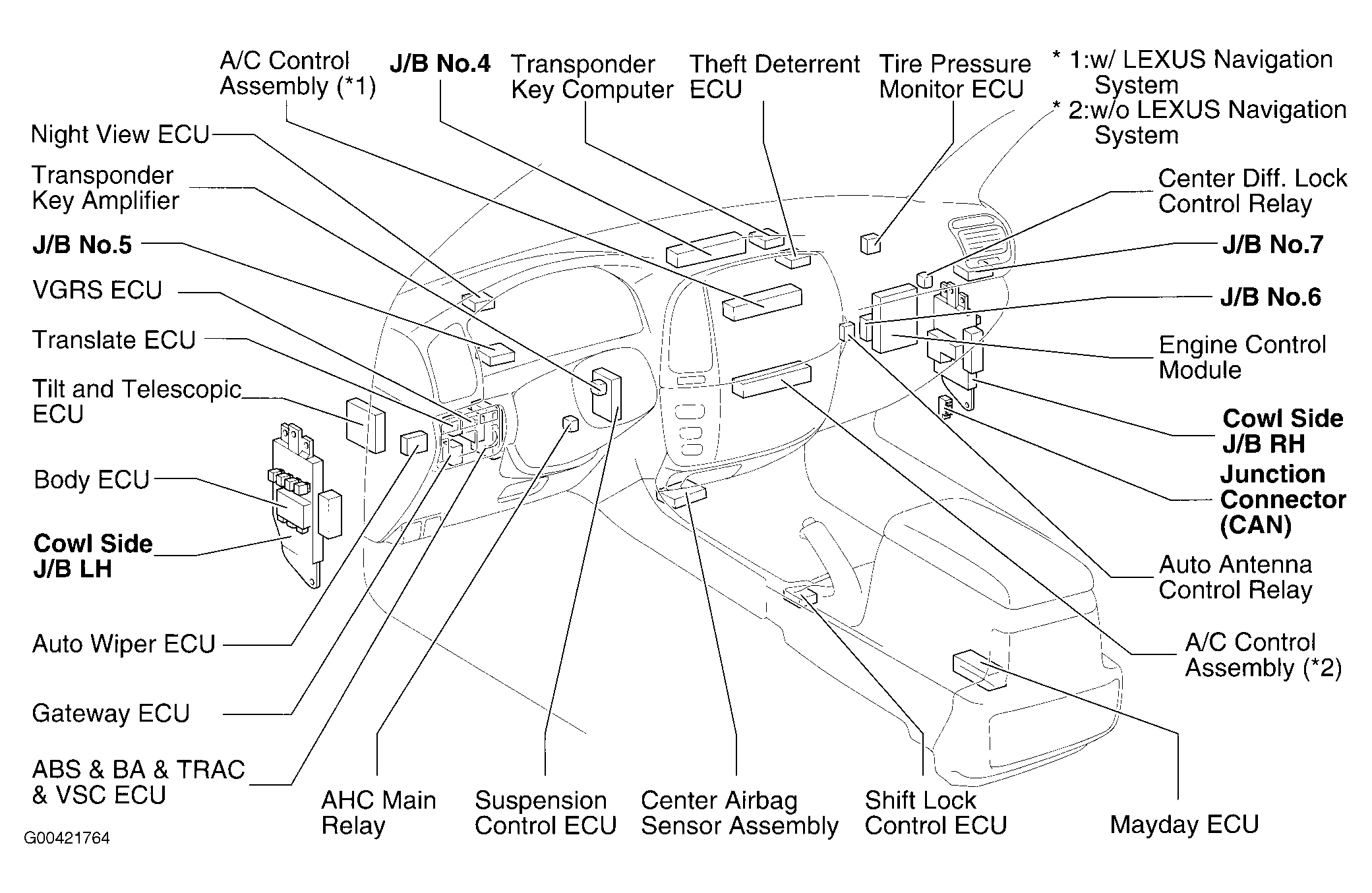

Fig 10: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

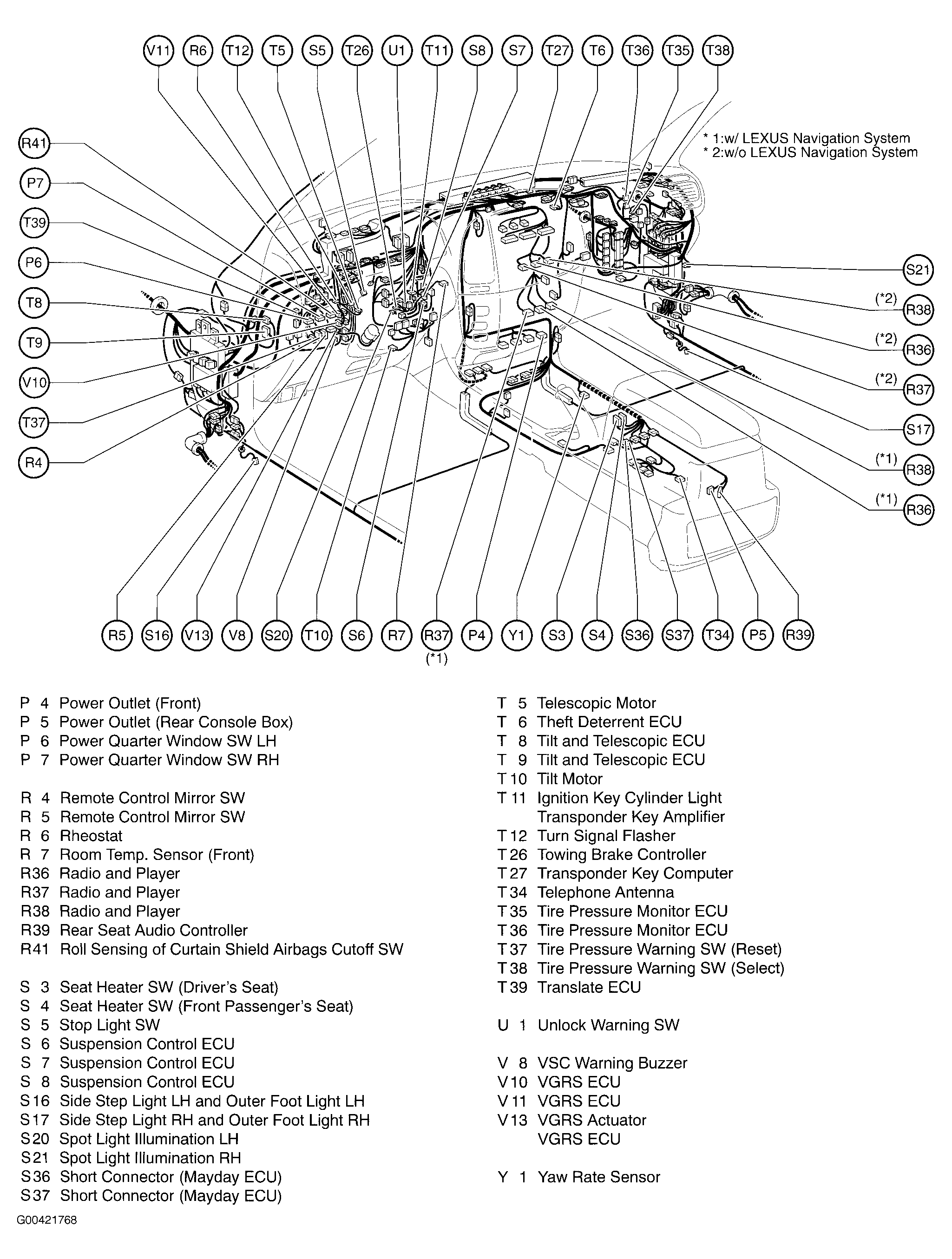

Fig 11: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dashboard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

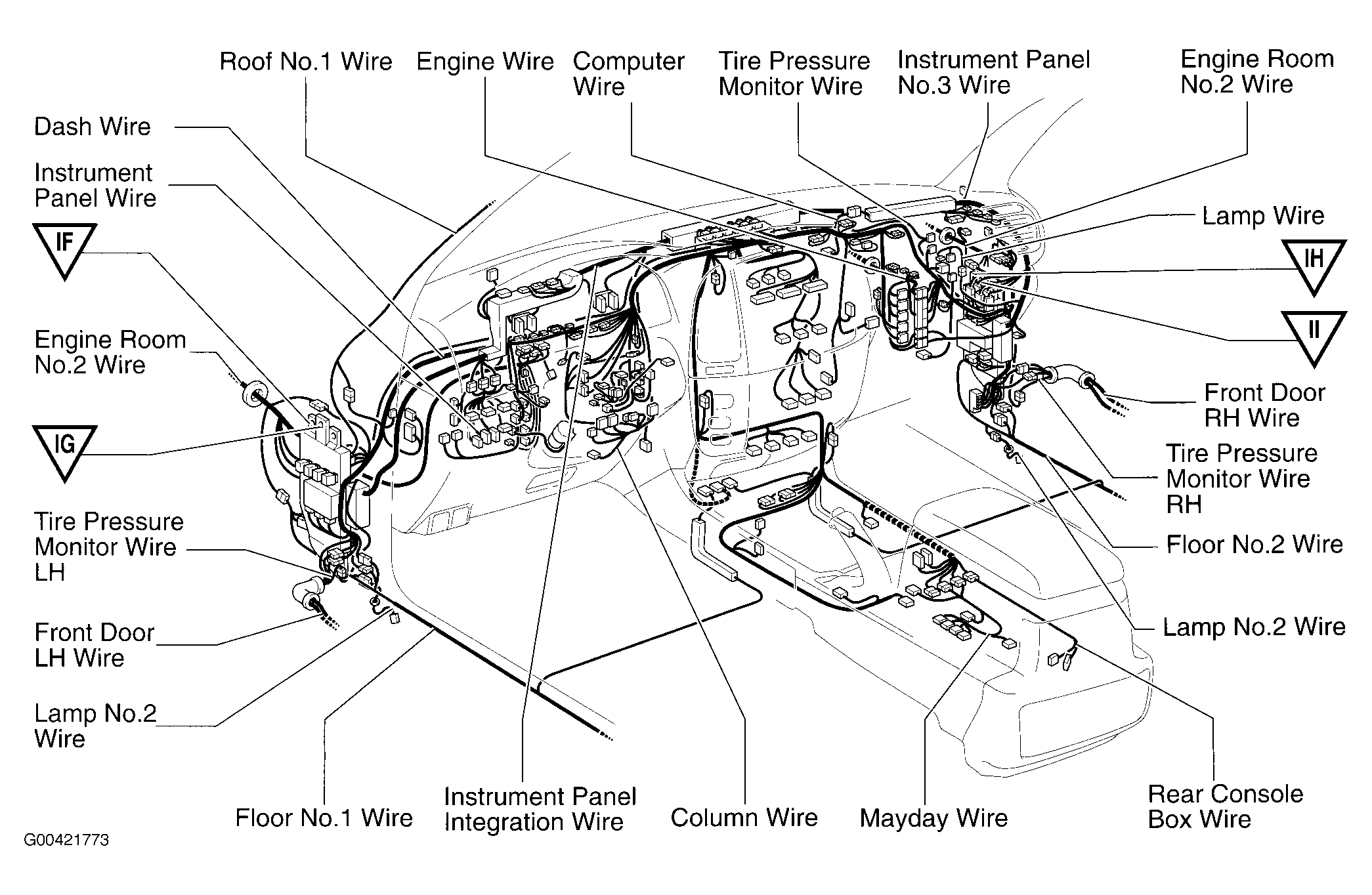

Fig 14: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

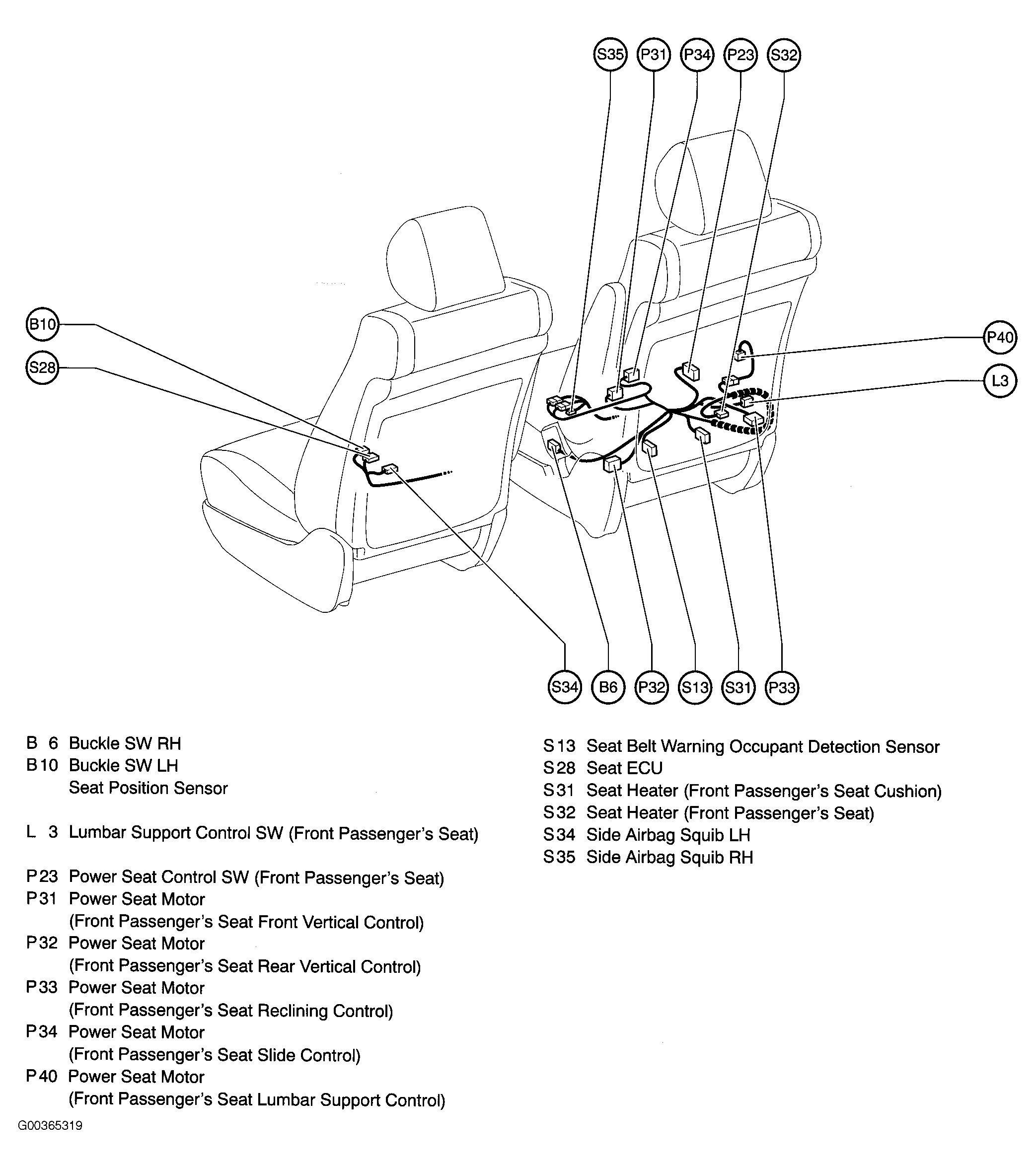

Fig 16: Power Seats

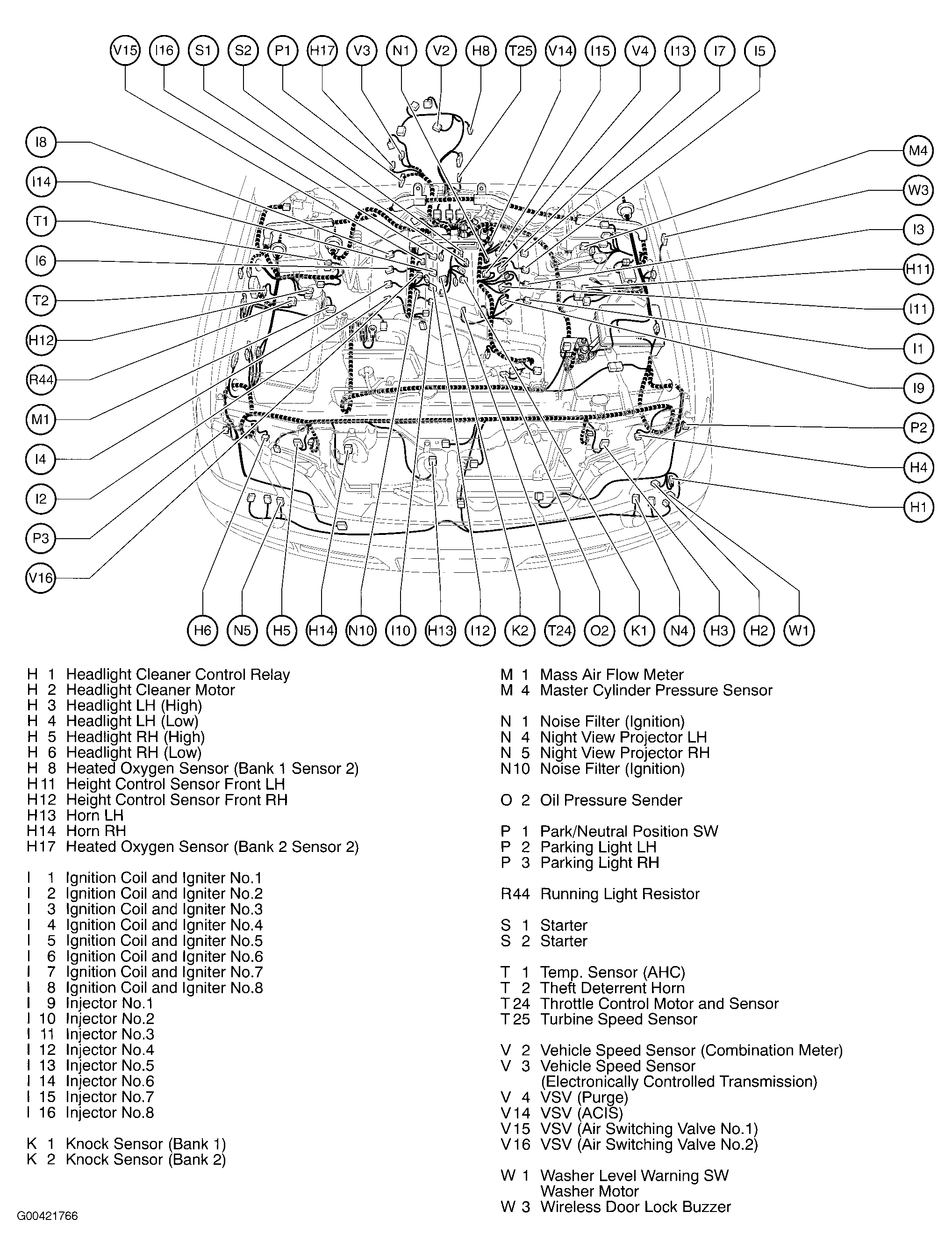

Fig 17: Engine Compartment

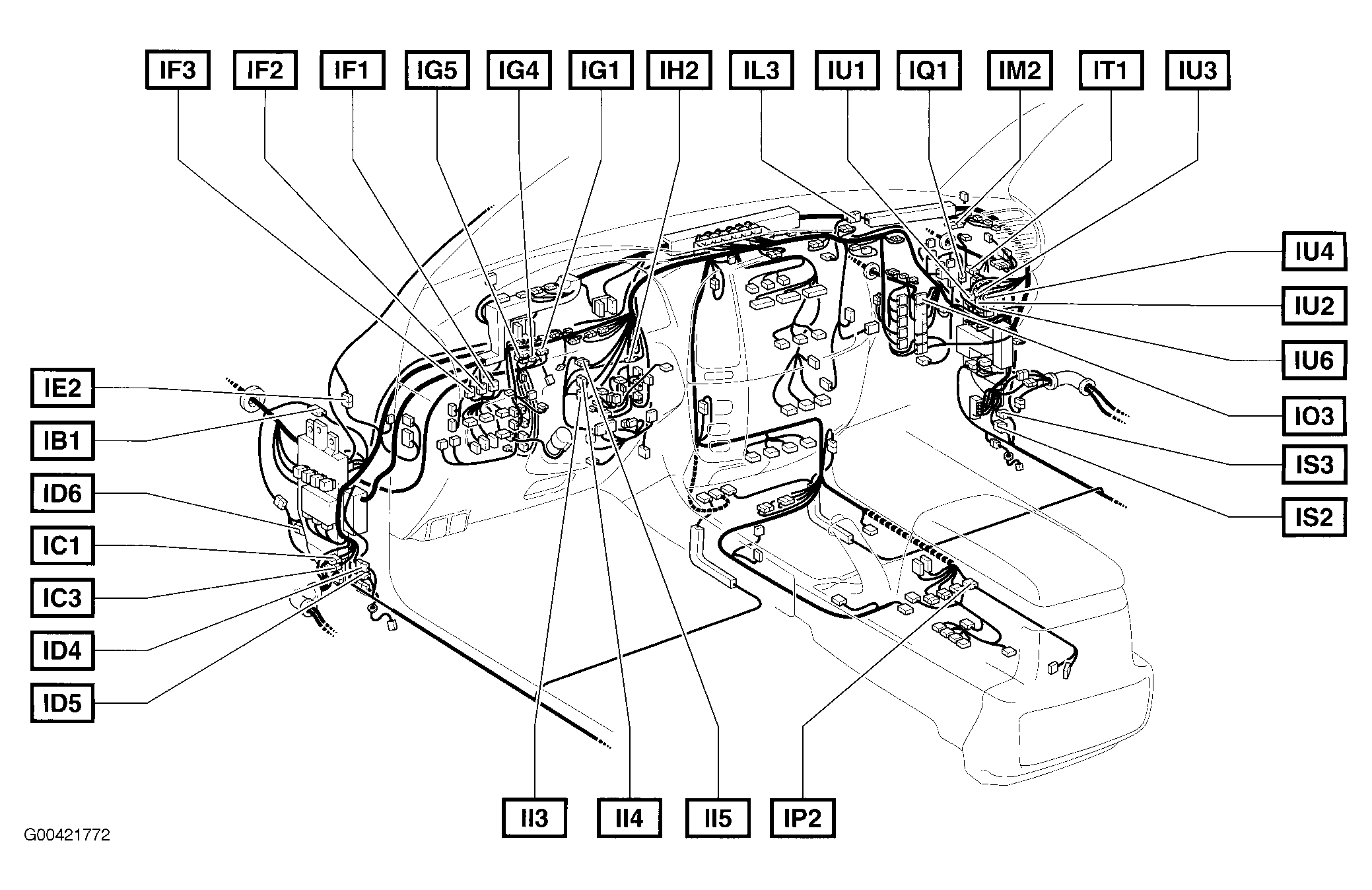

Fig 18: Dashboard Connectors

Fig 19: Dashboard Grounds

Fig 20: Dashboard Connectors

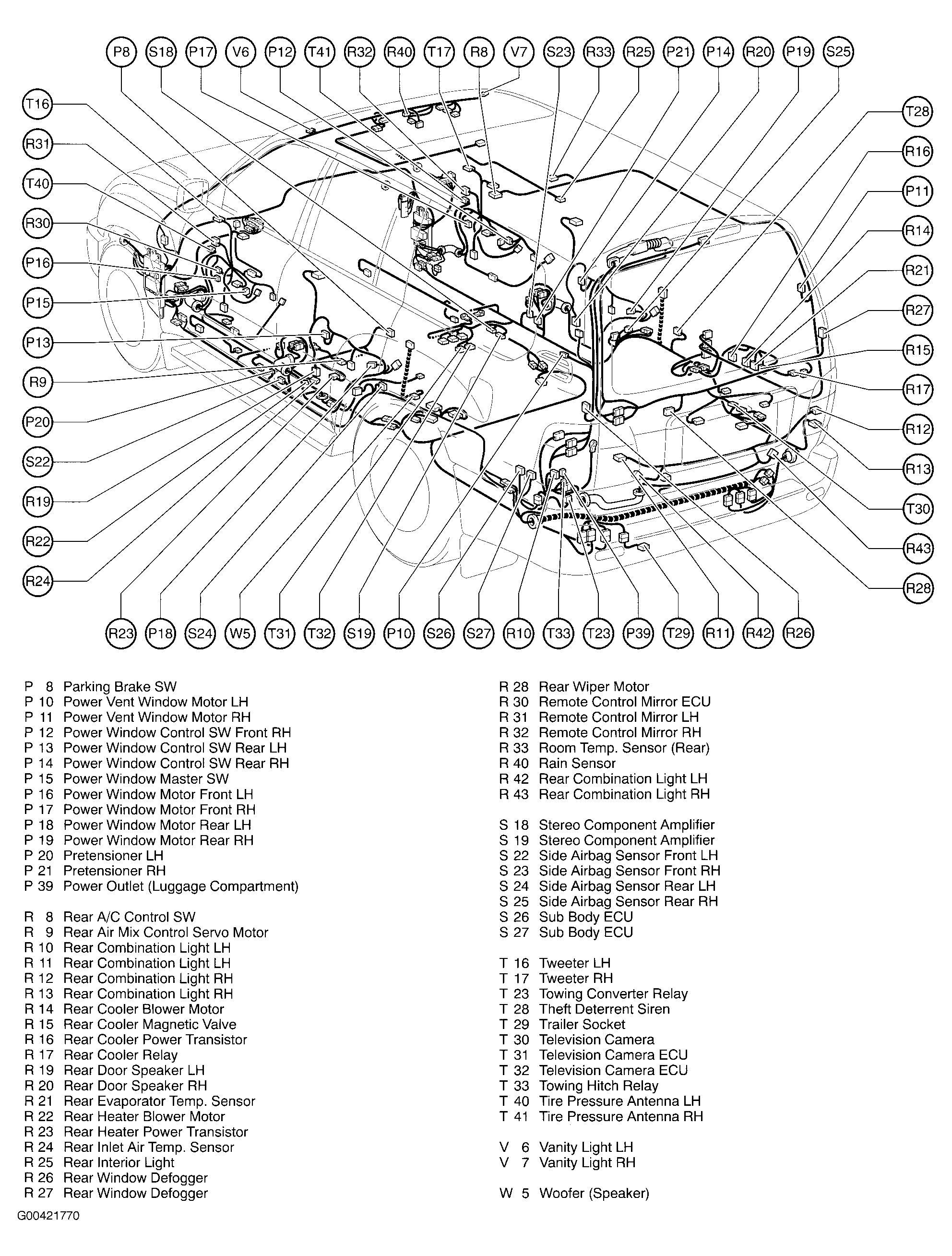

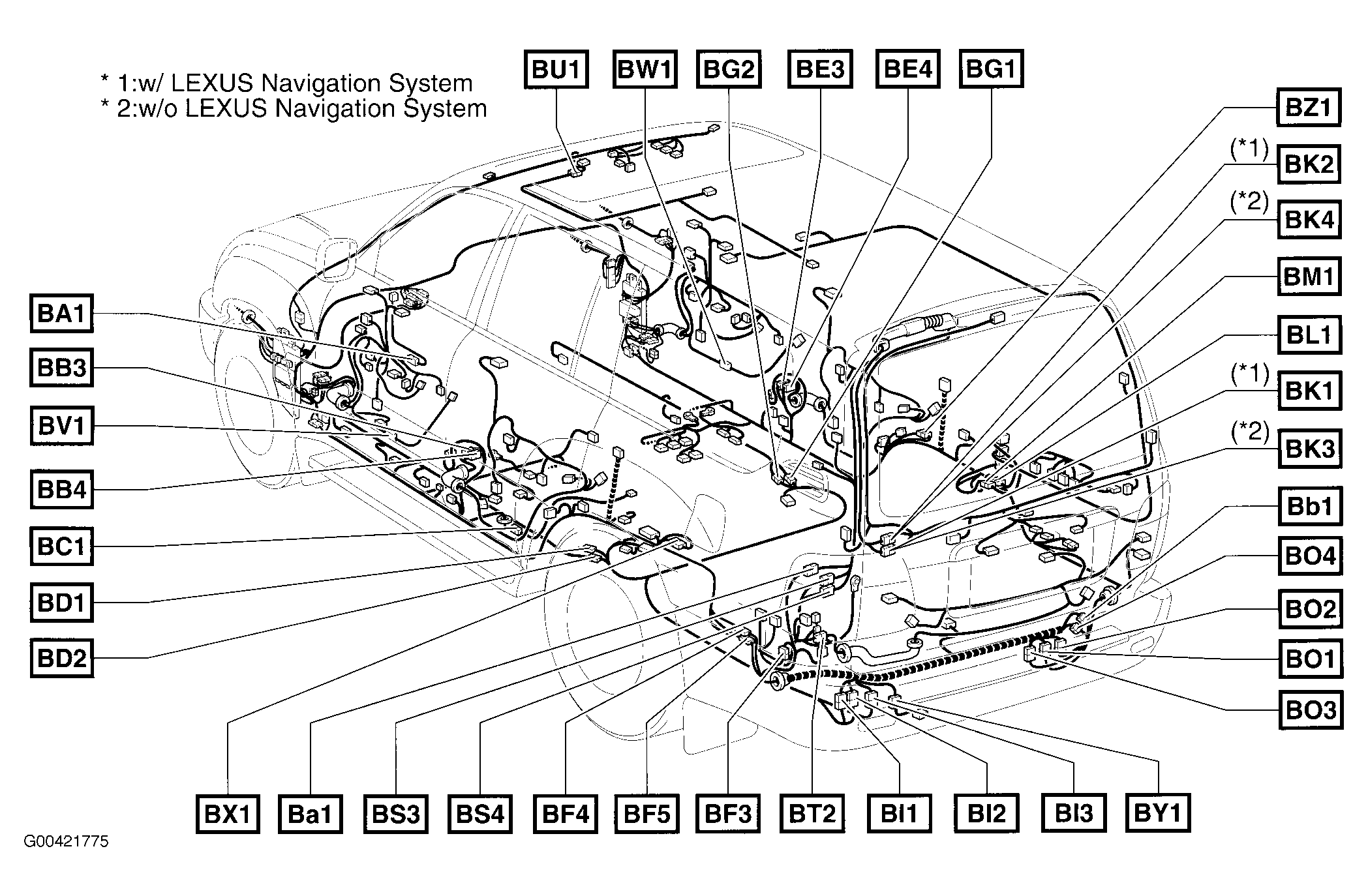

Fig 21: Vehicle Overview

Fig 22: Vehicle Overview

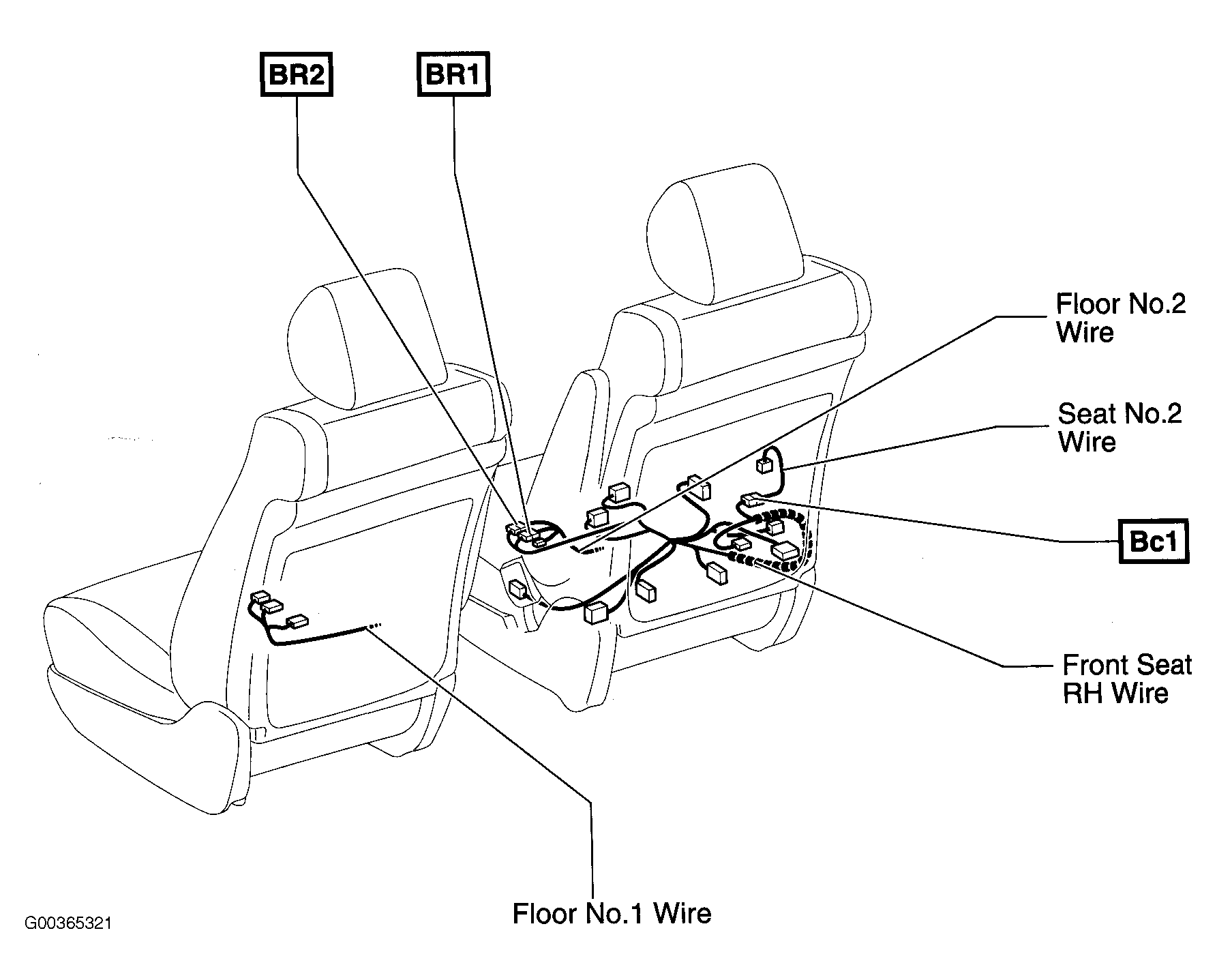

Fig 23: Front Seat Connectors
