Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Amplifier | Right rear of vehicle. See Figure. |
| Airbag Squib (Front Passenger Airbag Assembly) | Right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | Center of steering wheel. See Figure. |
| Curtain Shield Airbag Squib (Left) | Near left "C" pillar. See Figure. |
| Curtain Shield Airbag Squib (Right) | Near right "C" pillar. See Figure. |
| Data Link Connector (DLC) No. 1 | On right inner fender panel. See Figure. |

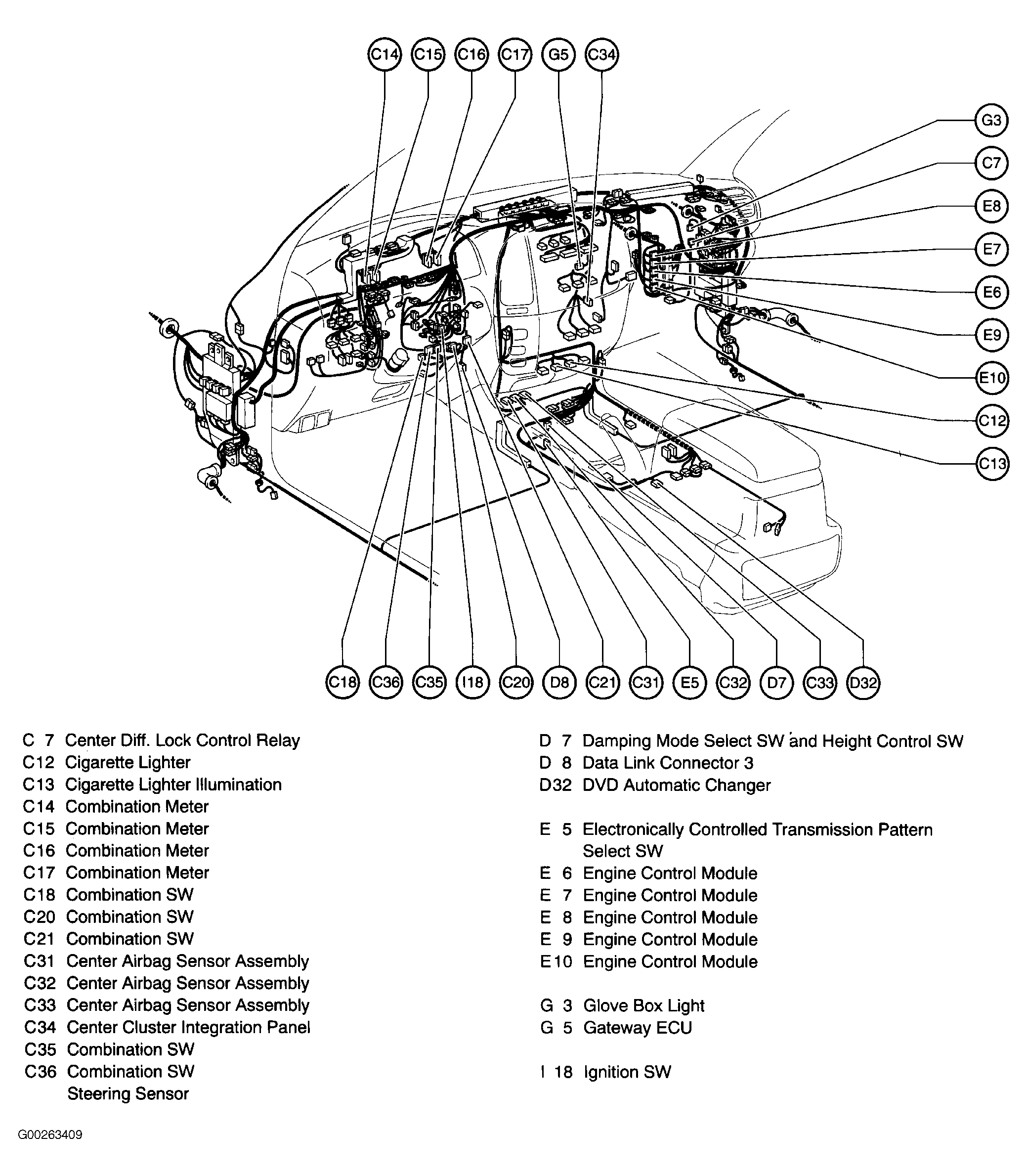

| Data Link Connector (DLC) No. 3 | Behind left side of dash, right of steering column. See Figure. |
| Door Control Receiver | At left "D" pillar. See Figure. |
| Fuel Pump Resistor | On right side of engine compartment. See Figure. |
| Generator | Right front of engine. See Figure. |
| Horn (Left/Right) | Front of vehicle. See Figure. |
| Ignition Coil And Igniter No. 1 | Left side of engine. See Figure. |
| Ignition Coil And Igniter No. 2 | Right side of engine. See Figure. |
| Ignition Coil And Igniter No. 3 | Left side of engine. See Figure. |
| Ignition Coil And Igniter No. 4 | Right side of engine. See Figure. |
| Ignition Coil And Igniter No. 5 | Left side of engine. See Figure. |
| Ignition Coil And Igniter No. 6 | Right side of engine. See Figure. |
| Ignition Coil And Igniter No. 7 | Left side of engine. See Figure. |
| Ignition Coil And Igniter No. 8 | Right side of engine. See Figure. |
| Junction Connector (CAN) | Right kick panel. See Figure. |
| Junction Connector No. 1 | Behind left side of dash, near steering column. See Figure. |
| Junction Connector No. 2 | Behind left side of dash. See Figure. |
| Junction Connector No. 9 | Behind top center of dash. See Figure. |
| Junction Connector No. 10, 11, 12 & 13 | Under front of center console. See Figure. |
| Junction Connector No. 23 | At left rear wheelwell. See Figure. |
| Junction Connector No. 24, 27 & 28 | At right rear wheelwell. See Figure. |
| Junction Connector No. 29 | Right side of dash. See Figure. |
| Junction Connector No. 30 | Right side of dash. See Figure. |
| Junction Connector No. 31 | Right kick panel. See Figure. |
| Junction Connector No. 32 | Right kick panel. See Figure. |
| Junction Connector No. 33 | Right kick panel. See Figure. |
| Junction Connector No. 34 | Right kick panel. See Figure. |
| Junction Connectors No. 3, 4, 5 & 6 | Behind upper left side of dash. See Figure. |
| Junction Connectors No. 7 & 8 | Behind left side of dash, forward of instrument cluster. See Figure. |
| Junction Connectors No. 14 | Behind right center of dash, near windshield. See Figure. |
| Junction Connectors No. 17 & 18 | Behind right side of dash, near windshield. See Figure. |
| Junction Connectors No. 19 & 20 | Behind right side of dash. See Figure. |
| Junction Connectors No. 21 & 22 | Behind upper right side of dash. See Figure. |
| Navigation Antenna | Under center console. See Figure. |
| Night View Camera | On roof, in front of moon roof. See Figure. |
| Night View Projector (Left) | At left front of engine compartment, below headlight. See Figure. |
| Night View Projector (Right) | At right front of engine compartment, below headlight. See Figure. |
| Noise Filter (Ignition) | On upper left side of engine. See Figure. |
| Pretensioner (2) | At bottom of respective "B" pillars. See Figure. |
| Rear Cooler Power Transistor | In rear heater-A/C unit. See Figure. |
| Rear Heater Power Transistor | In rear heater-A/C unit. See Figure. |
| Rear Window Defogger | In rear window. See Figure. |
| Running Light Resistor | Right side of engine compartment. See Figure. |
| Seat Heater (Front Passenger's Seat) | In right front seat. See Figure. |
| Seat Heater (Front Passenger's Seat Cushion) | In right front seat. See Figure. |
| Side Airbag Squib (Left) | Under left front seat. See Figure. |
| Side Airbag Squib (Right) | Under right front seat. See Figure. |
| Stereo Component Amplifier | Under right front seat. See Figure. |
| Telephone Antenna | Under center console. See Figure. |
| Television Camera | In rear door. See Figure. |
| Theft Deterrent Horn | On right side inner fender panel. See Figure. |
| Theft Deterrent Siren | Right rear of vehicle. See Figure. |
| Tire Pressure Antenna LH | Left front of vehicle. See Figure. |
| Tire Pressure Antenna RH | Right front of vehicle. See Figure. |
| Trailer Socket | Left rear of vehicle. See Figure. |
| Transponder Key Amplifier | Behind left center of dash. See Figure. |
| Transponder Key Computer | Behind center of dash. See Figure. |
