Repair and Diagnosis: Electrical: Horns: Inspection

  1. INSPECT FUSE (HORN)
    1. Measure the resistance of the HORN fuse.

    Standard resistance: Below 1 Ω

    If the result is not as specified, replace the fuse.

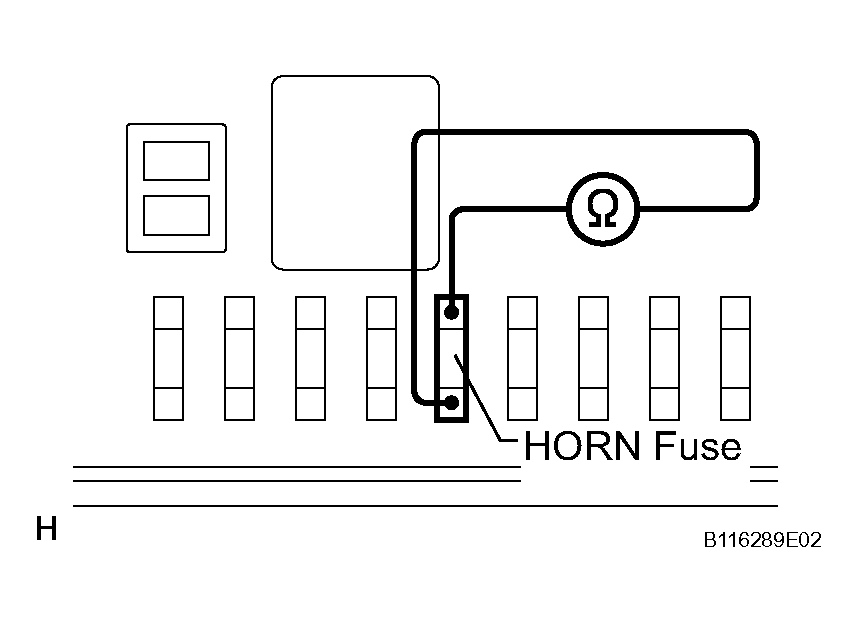

    Fig 1: Inspecting Fuse (Horn)
    G04065583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT LOW PITCHED HORN ASSEMBLY
    1. Apply battery voltage and check the operation of the horn.

    OK

    MEASUREMENT CONDITION CHART

    Measurement Condition Specified Condition
    Battery positive (+) --> Terminal 1
    Battery negative (-) --> Horn bracket    		 Horn sounds

    If the result is not as specified, replace the horn assembly.

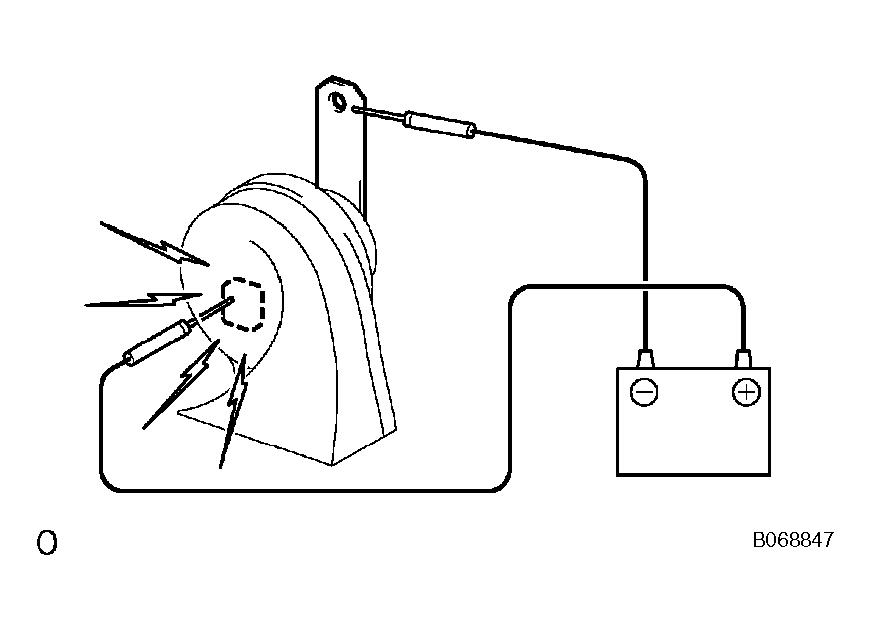

    Fig 2: Inspecting Low Pitched Horn Assembly
    G04065584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT HIGH PITCHED HORN ASSEMBLY
    1. Apply battery voltage and check the operation of the horn.

    OK

    MEASUREMENT CONDITION CHART

    Measurement Condition Specified Condition
    Battery positive (+) --> Terminal 1
    Battery negative (-) --> Horn bracket    		 Horn sounds

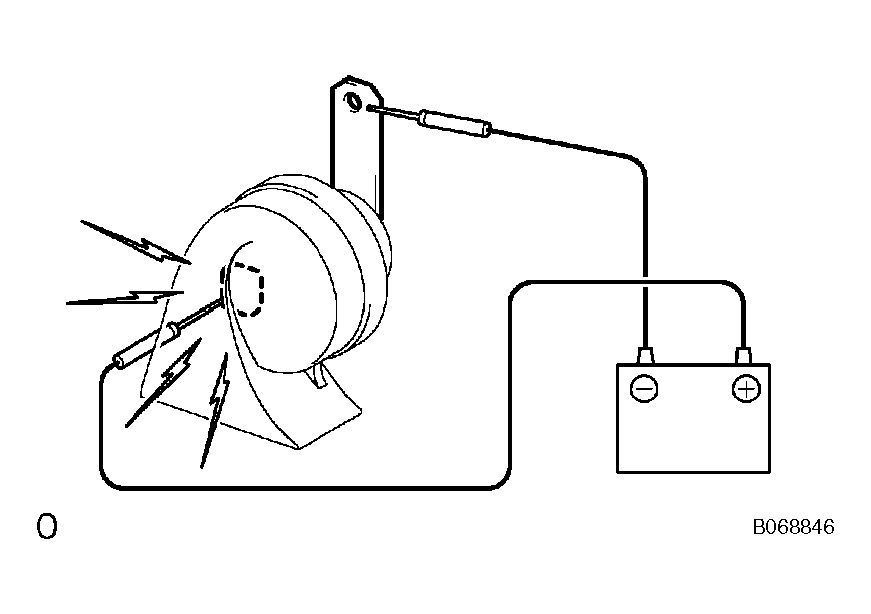

    Fig 3: Inspecting High Pitched Horn Assembly
    G04065585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the horn assembly.
