Vehicle Lift And Support Locations

  1. NOTICE ABOUT VEHICLE CONDITION WHEN JACKING UP VEHICLE
    1. The vehicle must be unloaded before jacking up / lifting up the vehicle. Never jack up / lift up a heavily loaded vehicle.
    2. When removing heavy parts such as the engine and transmission, the center of gravity of the vehicle may shift. To stabilize the vehicle, place a balance weight in a location where it will not roll or shift, or use a mission jack to hold the jacking support.
  2. NOTICE FOR USING 4 POST LIFT
    1. Follow the safety procedures outlined in the lift instruction manual.
    2. Use precautionary measures to prevent the free wheel beam from damaging tires or wheels.
    3. Use wheel chocks to secure the vehicle.
  3. NOTICE FOR USING JACK AND SAFETY STAND
    1. Work on a level surface. Use wheel chocks at all times.
    2. Set the jack and rigid racks to the specified locations of the vehicle accurately.
    3. When jacking up the vehicle, first release the parking brake and move the shift lever to N.
    4. When jacking up the entire vehicle:
      1. When jacking up the front wheels first, make sure wheel chocks are behind the rear wheels.
      2. When jacking up the rear wheels first, make sure wheel chocks are in front of the front wheels.
    5. When jacking up only the front or rear wheels of the vehicle:
      1. Before jacking up the front wheels, place wheel chocks on both sides of the rear wheels.
      2. Before jacking up the rear wheels, place wheel chocks on both sides of the front wheels.
    6. When lowering a vehicle that only has its front or rear wheels jacked up:
      1. Before lowering the front wheels, make sure wheel chocks are in front of the rear wheels.
      2. Before lowering the rear wheels, make sure wheel chocks are behind the front wheels.
    7. It is extremely dangerous to perform any work on a vehicle raised on a jack alone, even for work that can be finished quickly. Rigid racks must be used to support the vehicle.
      1. Independent Front Suspension

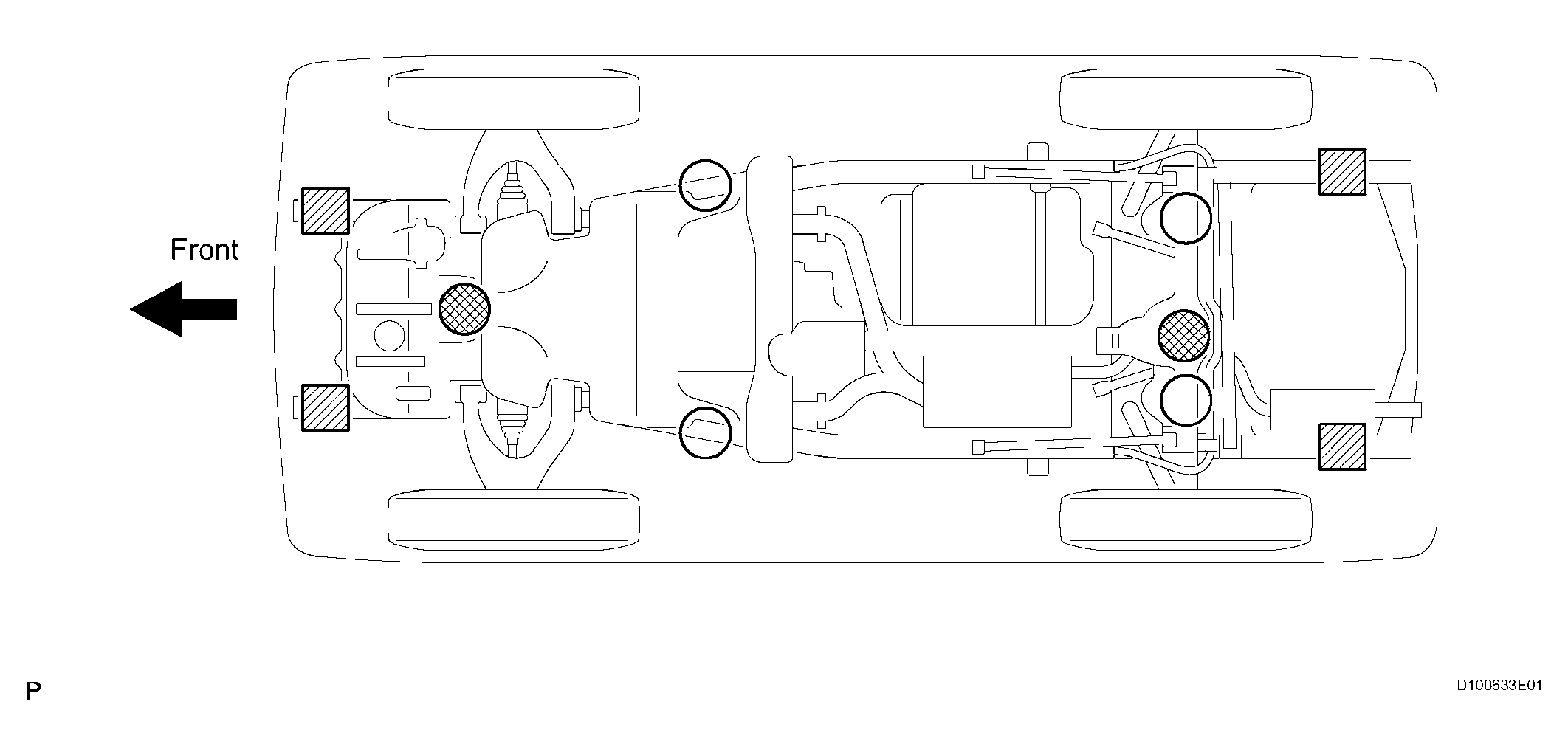

    Fig 1: Identifying Jack Position
    G04060781G04060782G04060783G04060784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
    JACK POSITION DESCRIPTION CHART

    G04060782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 JACK POSITION
    Front: Engine under cover
    Rear: Differential carrier
    CAUTION: When jacking-up the vehicle, make sure the vehicle is not carrying any extra weight.
    G04060783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 SCREW TYPE JACK POSITION -
    G04060784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 SUPPORT POSITION
    Safety stand and swing arm type lift    		 -
    NOTE: When jacking up the vehicle with the engine running, turn off the active height control suspension with the height control switch.
    1. Swing Arm Type Lift

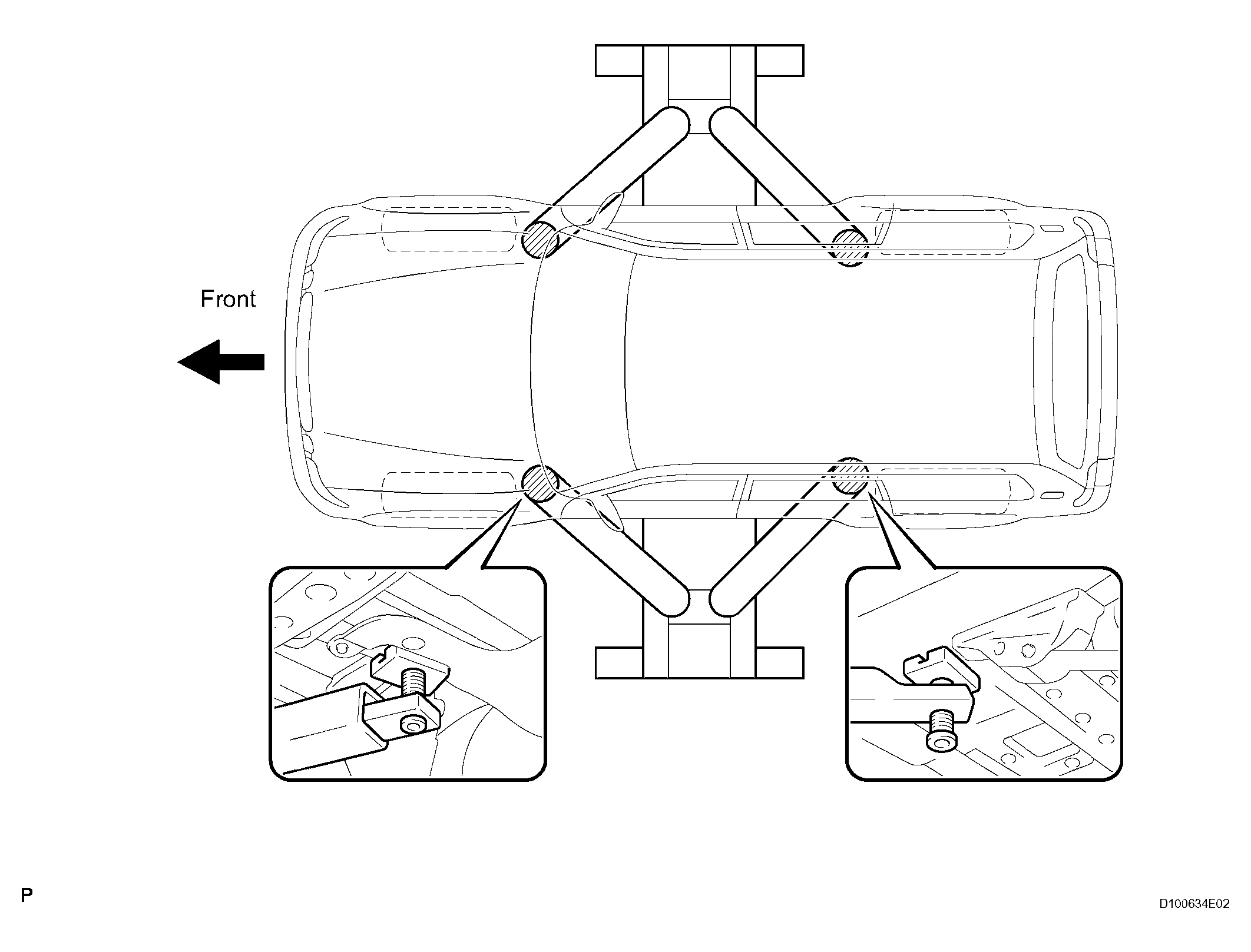

      Fig 2: Identifying Safety Stand And Swing Arm Type Lift Position
      G04060785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: When lifting the vehicle, place the supports correctly at the positions shown the illustration.
    2. Plate Type Lift
    NOTE: Never use the plate type lift-using it to lift up the vehicle will cause the body shape to warp.

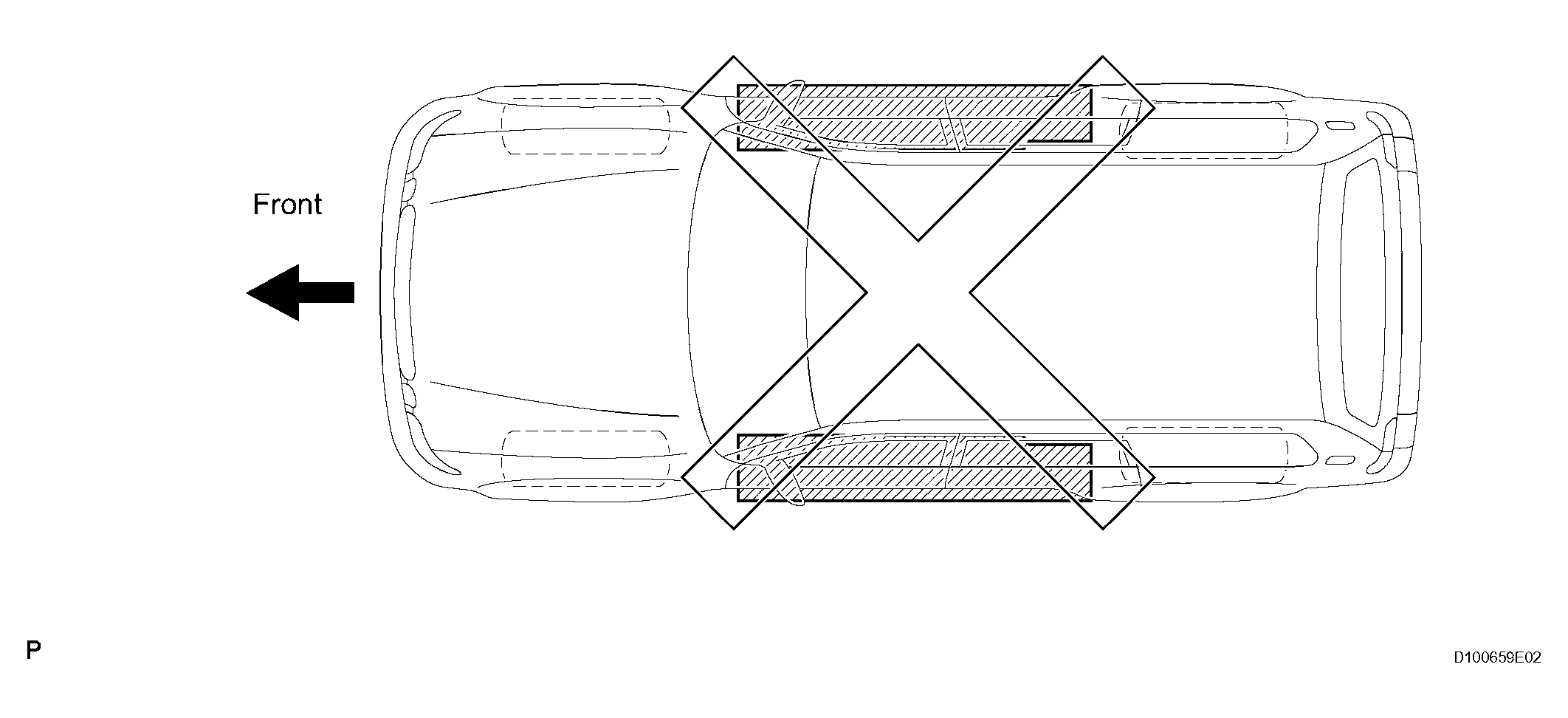

    Fig 3: Identifying Plate Type Lift Position
    G04060786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
