Active Height Control Pump And Motor: Removal

1. DRAIN ACTIVE HEIGHT CONTROL SUSPENSION FLUID
   1. Connect the hose to the bleeder plug for height control accumulator and loosen the bleeder plug.
   2. After the fluid pressure has dropped and oil has drained out, tighten the bleeder plug and remove the hose.

   Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

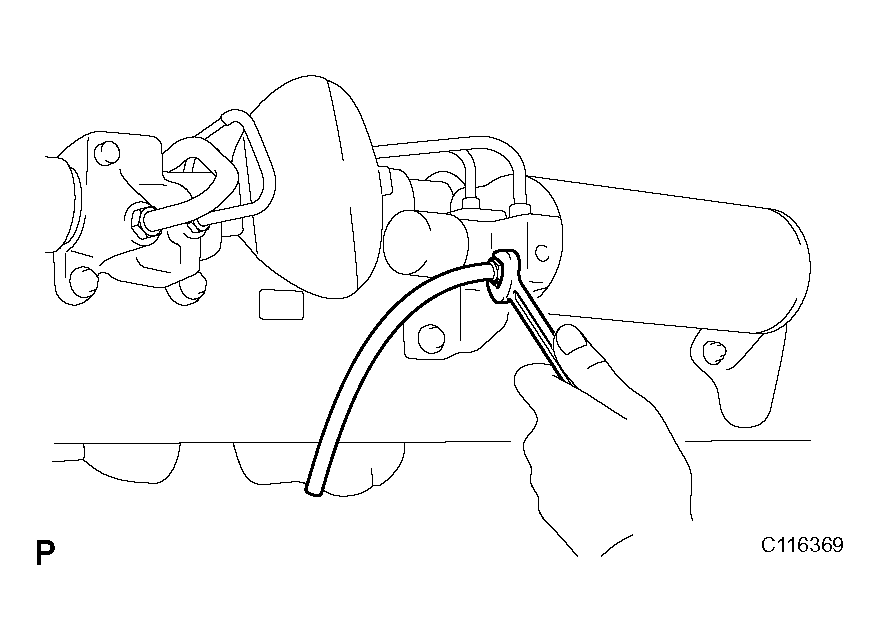

   Fig 1: Connecting Hose To Bleeder Plug

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. DISCONNECT CONNECTORS
3. DISCONNECT ACTIVE HEIGHT CONTROL FLUID LINE
   1. Using SST, disconnect the AHC fluid line from the AHC pump & motor.

   SST 09023-00100

   Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

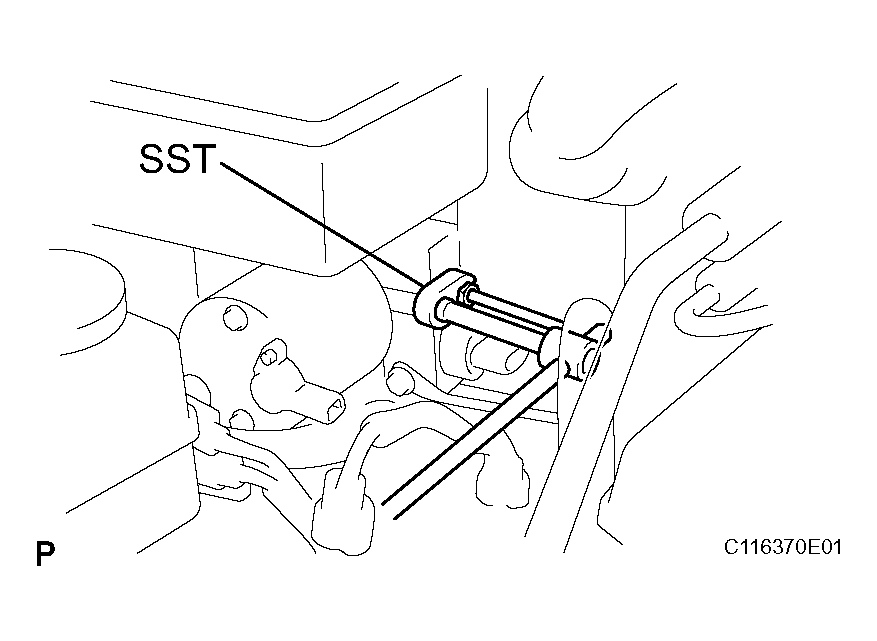

   Fig 2: Disconnecting AHC Fluid Line From AHC Pump & Motor Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE HEIGHT CONTROL PUMP & MOTOR ASSEMBLY

1. Remove the bolt, 3 nuts and AHC pump & motor assembly.

   Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

2. Remove the bolt, collar, cushion, 2 nuts and AHC pump & motor from the AHC pump motor from the AHC pump & motor bracket.

   Torque: 5.5 N*m (55 kgf*cm, 48 in.*lbf)

3. Remove the 2 holders, cushions and cushion bolts from the AHC pump & motor.

   Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

4. Remove the bolt and bracket.

Torque: 5.5 N*m (55 kgf*cm, 48 in.*lbf)
