Damping Force Control Actuator: Replacement

REMOVE GAS CHAMBER
1. Place damping force control actuator in a vise.
2. Using SST, remove the gas camber.
  SST 09922-10010
3. Remove the O-ring and back up ring from the gas chamber

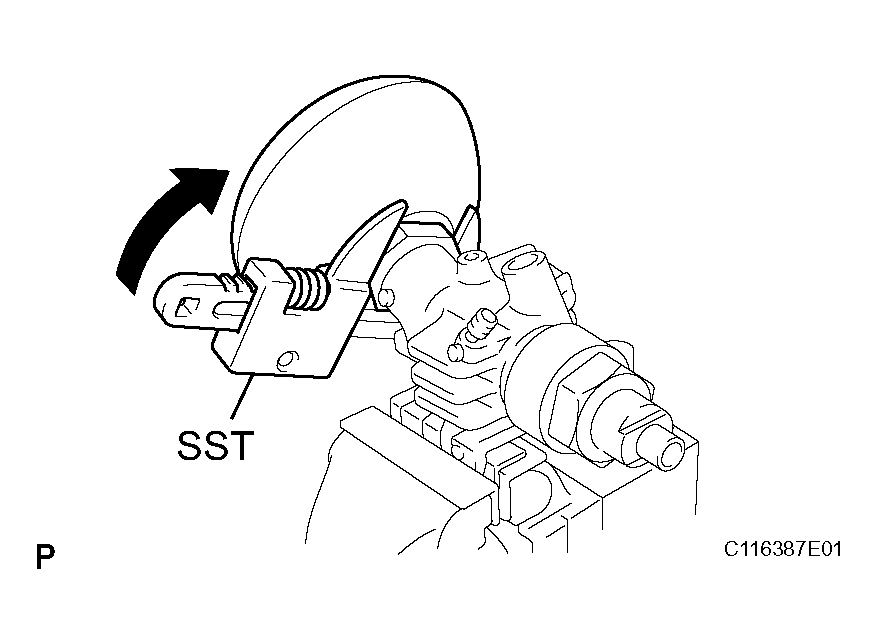

Fig 1: Removing Gas Chamber Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GAS CHAMBER
1. Install a new back up ring and O-ring to the gas chamber.
  NOTE: Be careful not to damage the O-ring.
2. Coat the O-ring with suspension fluid AHC.
3. Using SST, install the gas chamber.
SST 09922-10010

Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

HINT:

Use a torque wrench with a fulcrum length of 345 mm (13.58 in.).

NOTE: Use SST (09922-10010) in direction shown in the illustration.

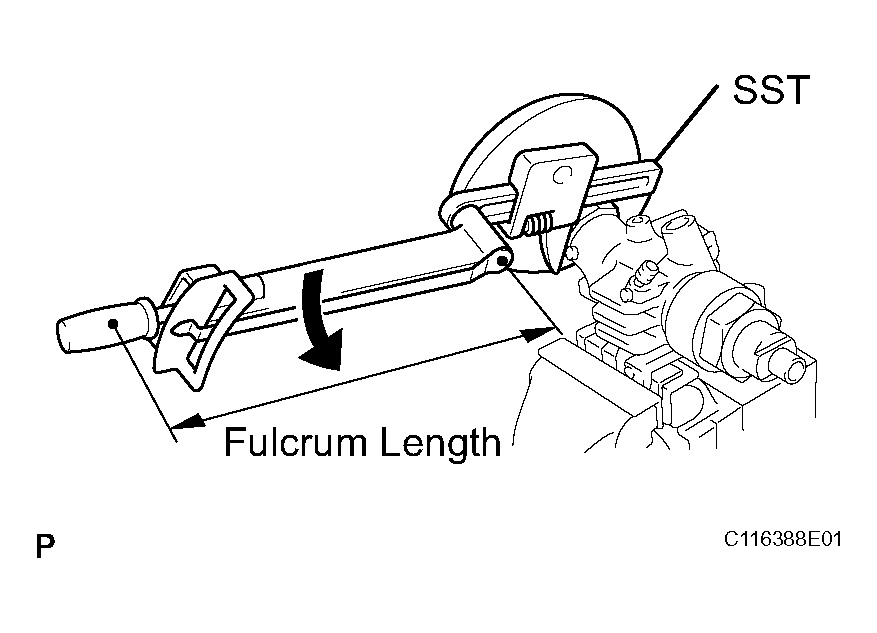

Fig 2: Installing Gas Chamber Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
