Automatic Transmission Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE AIR CLEANER CAP SUB-ASSEMBLY
REMOVE DRIVE BELT, FAN AND FLUID COUPLING ASSEMBLY, FAN SHROUD AND RADIATOR RESERVOIR
1. Remove the drive belt, fan and fluid coupling assembly, fan shroud and radiator reservoir (REMOVAL ).
DISCONNECT CONNECTOR

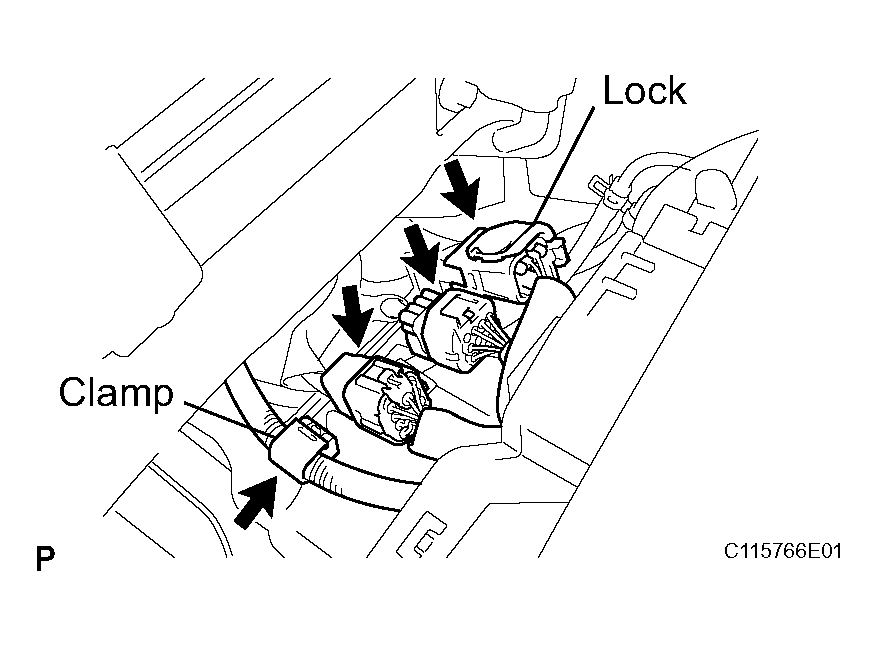

1. Release the lock and disconnect the transmission wire connector.
2. Disconnect the 2 transmission wire connectors.
3. Separate the connector clamp.
REMOVE TRANSFER SHIFT LEVER BOOT
1. Remove the transfer shift lever knob.
2. Remove the upper console panel (REMOVAL ).

  Fig 1: Identifying Transmission Wire Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

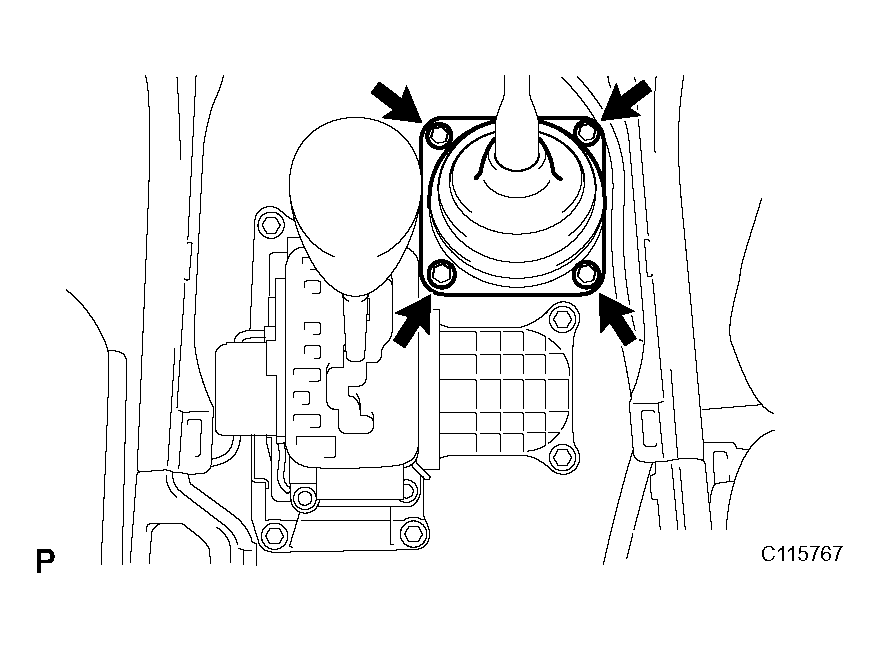

3. Remove the 4 bolts and transfer shift lever boot.
REMOVE ENGINE UNDER COVER
1. Remove the front No. 1 and No. 2 under covers.
Fig 2: Identifying Front No. 1 And No. 2 Under Covers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT EXHAUST PIPE
1. Remove the front exhaust pipes (REMOVAL ).
REMOVE FRONT PROPELLER SHAFT (See REMOVAL )
REMOVE REAR PROPELLER SHAFT (See REMOVAL )
DISCONNECT FLOOR SHIFT TRANSMISSION CONTROL ROD

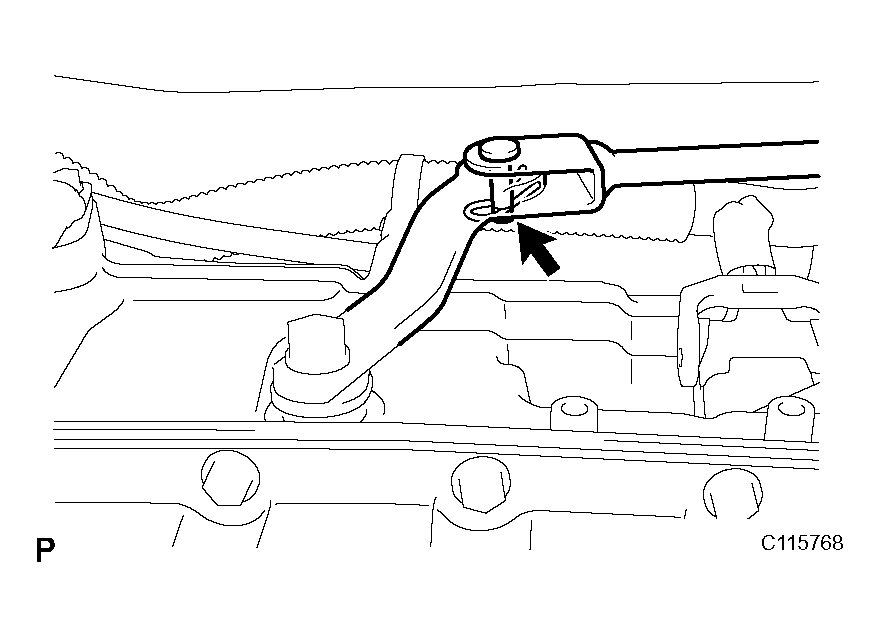

1. Remove the clip and pin and disconnect the shift control rod.
Fig 3: Identifying Shift Control Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSFER SHIFT LEVER

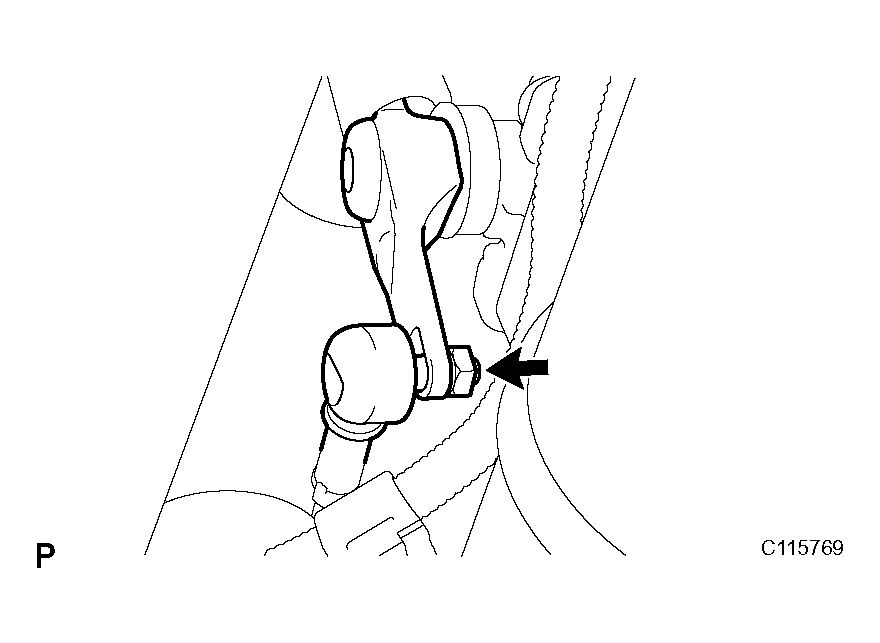

1. Remove the nut and disconnect the transfer shift lever rod.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
Fig 4: Identifying Transfer Shift Lever Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WIRE HARNESS

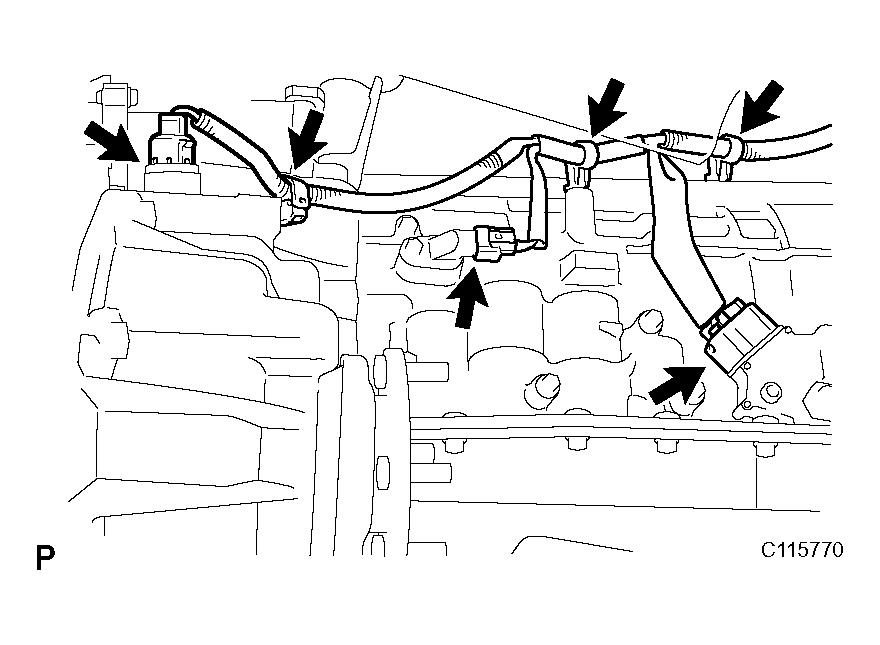

1. Disconnect the 3 connectors.
2. Remove the 3 clamps from the transmission unit and disconnect the transmission wire.
Fig 5: Identifying Transmission Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AND TORQUE CONVERTER CLUTCH SETTING BOLT

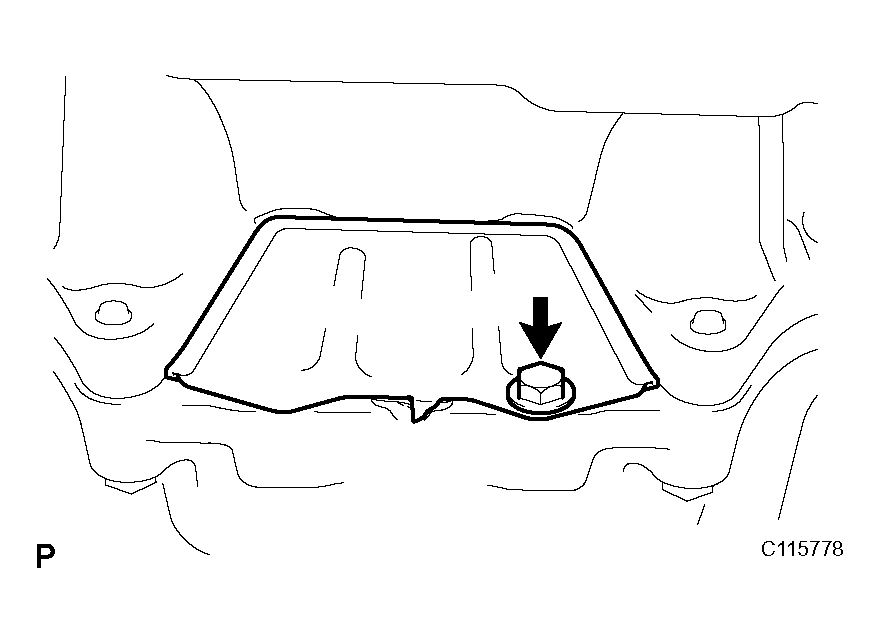

1. Remove bolt and the hole plug.

  Fig 6: Identifying Bolt And Hole Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the crankshaft to gain access to each bolt.

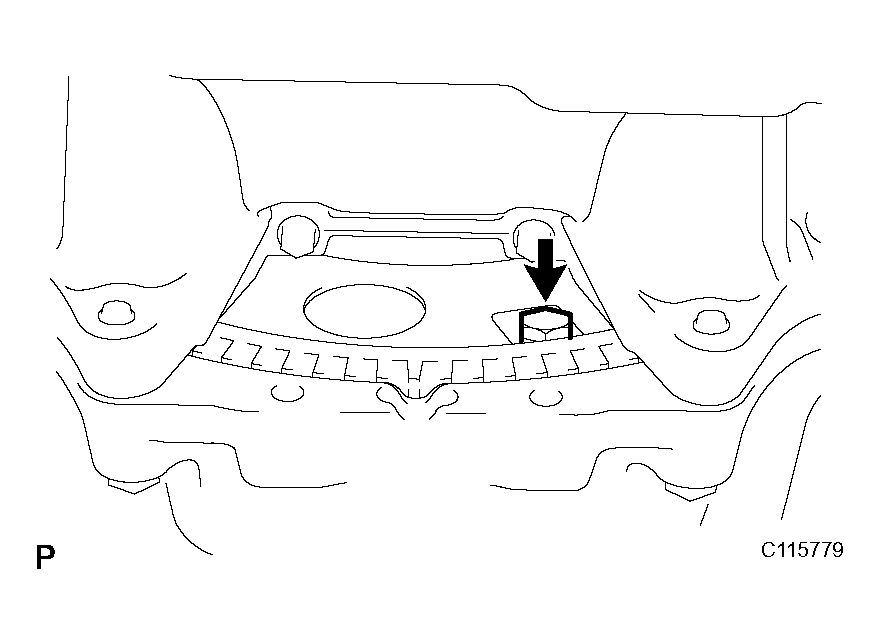

3. Hold the crankshaft pulley nut with a wrench, and remove the 6 bolts.
Fig 7: Identifying Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT OIL COOLER TUBE

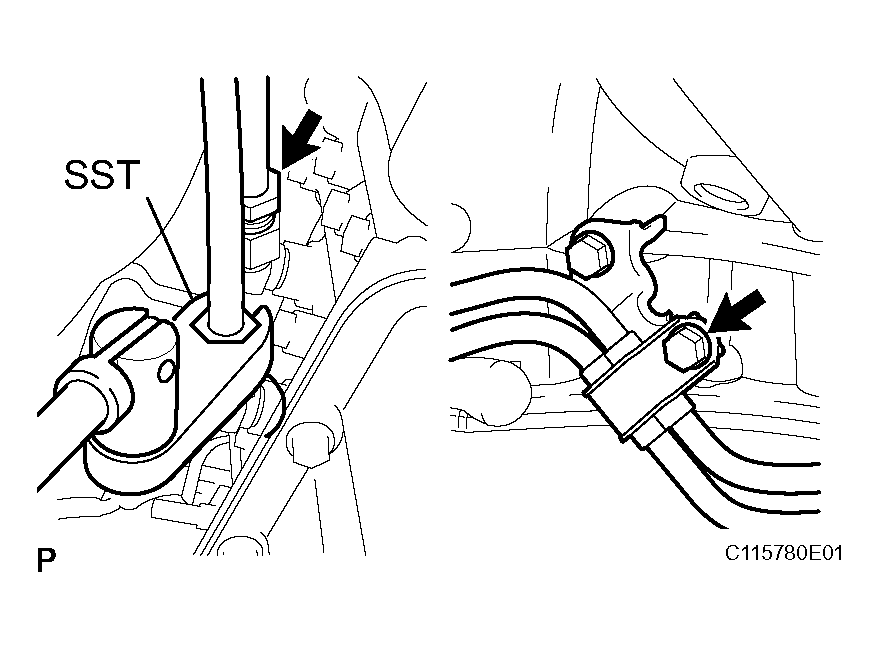

1. Using SST, loosen the 2 union nuts.
  SST 09023-12701
2. Remove the bolt and clamp.
3. Remove the 2 union nuts and disconnect the 2 oil cooler tubes.
Fig 8: Identifying Oil Cooler Tubes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT GROUND CABLE

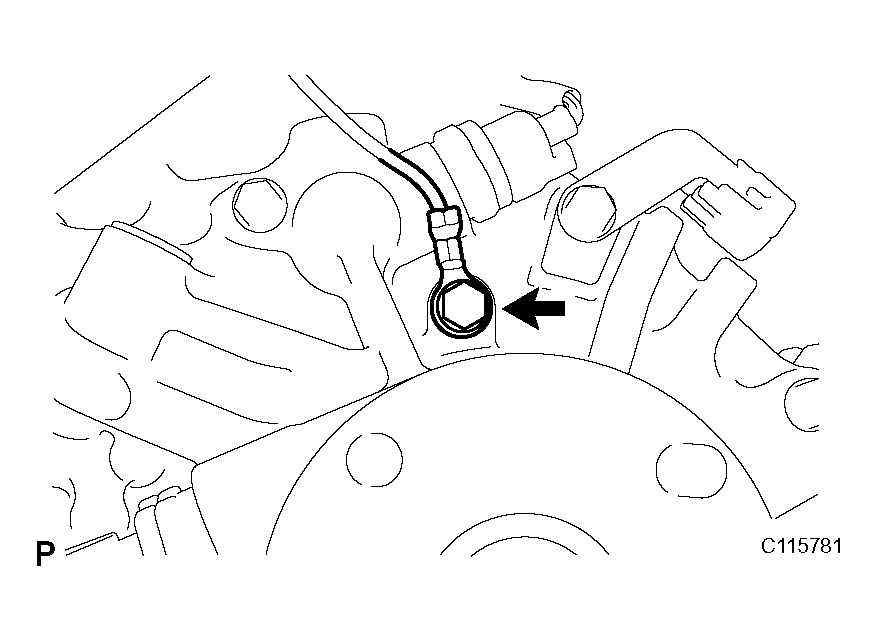

1. Remove the bolt and disconnect the ground cable.
REMOVE CROSSMEMBER AND TRANSFER CASE PROTECTOR
1. Support the transmission with a jack.

  Fig 9: Identifying Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and transfer case protector.

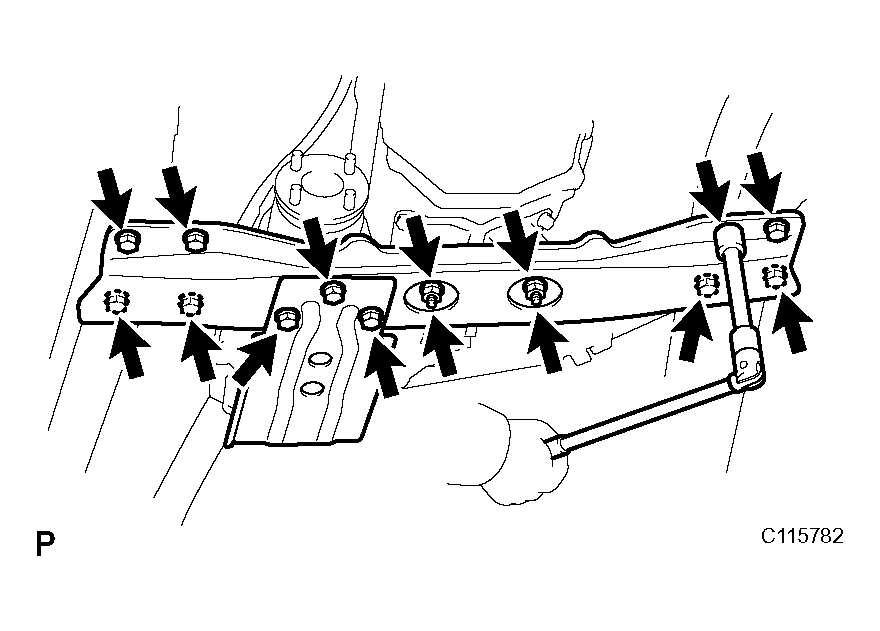

3. Remove the 8 bolts, 2 nuts and crossmember.
Fig 10: Identifying Bolts, Nuts And Crossmember
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE MOUNTING INSULATOR REAR
1. Remove the 4 bolts and mounting insulator.
REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
1. Lower the rear end of the transmission unit.
2. Remove the transmission wire clamp bolt.

  Fig 11: Identifying Transmission Wire Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

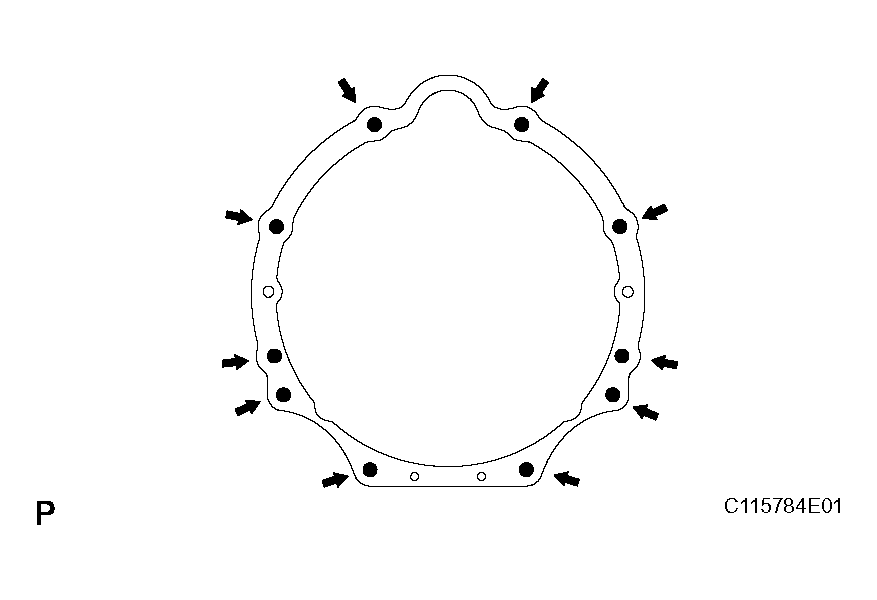

3. Remove the 10 bolts and the transmission unit.
Fig 12: Identifying Bolts And Transmission Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

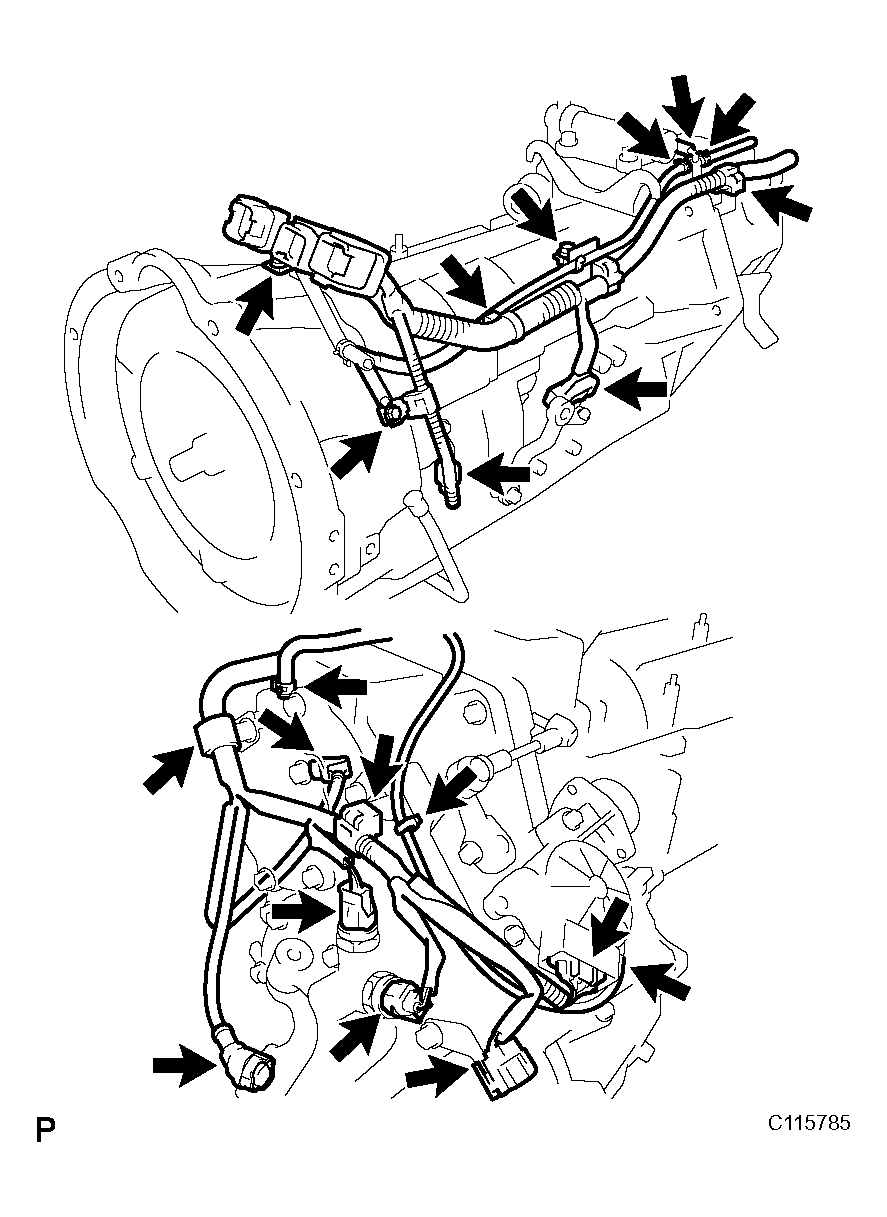

REMOVE WIRE HARNESS AND HOSE
1. Remove the 4 bolts.
2. Release the lock and disconnect the connector.
3. Disconnect the 5 connectors.
4. Disconnect the 6 connector clamps.
5. Disconnect the 5 hoses and remove the wire harness and hose.
REMOVE TRANSFER ASSEMBLY
1. Remove the transfer (REMOVAL ).
REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY

Fig 13: Identifying Wire Harness And Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
