Pattern Select Switch 2nd Start Mode Circuit: Wiring Diagram

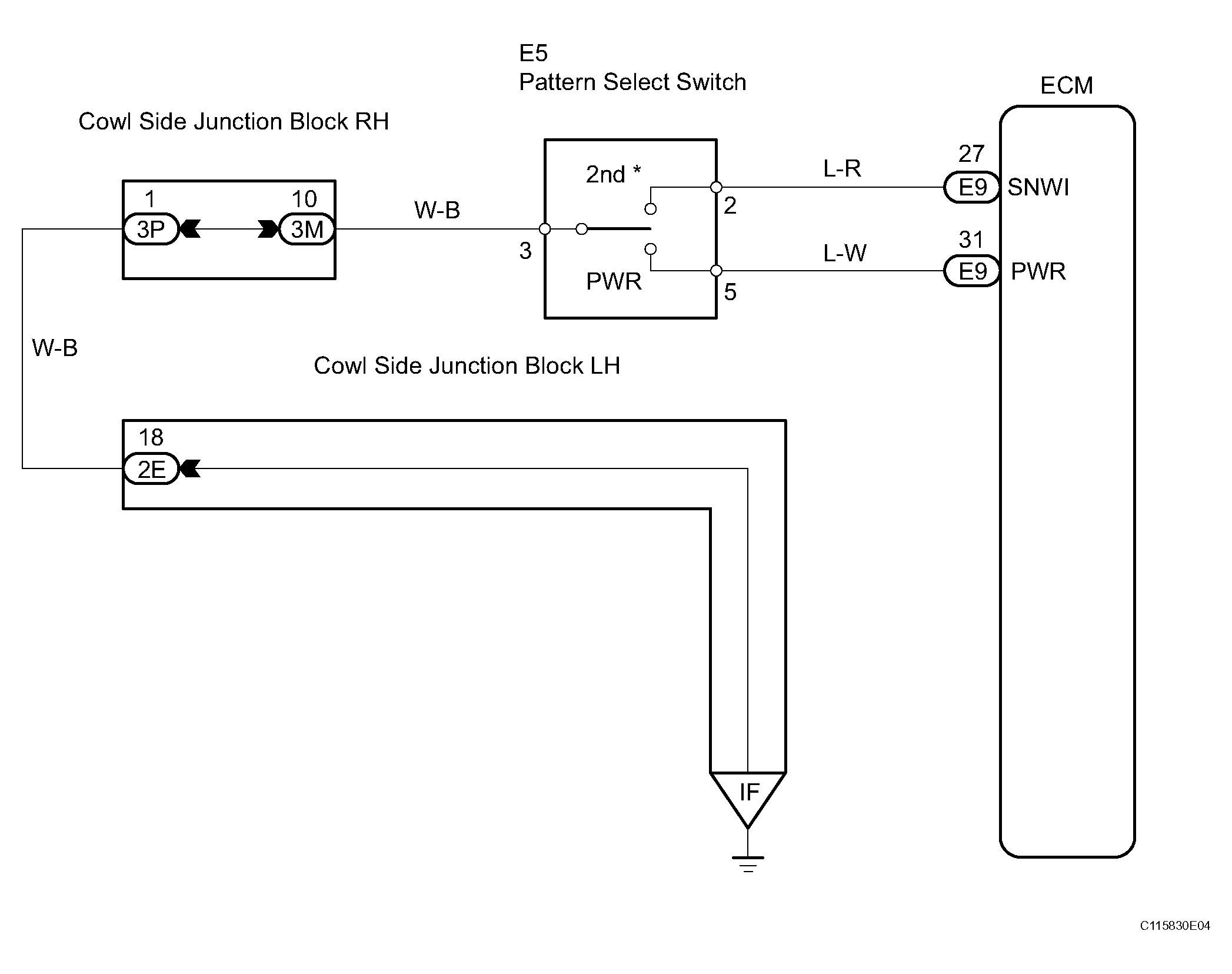

Fig 1: Wiring Diagram - Pattern Select Switch 2Nd Start Mode

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: Pattern select switch (2nd start switch) When the 2nd start switch is pushed, the switch contact is made and the 2nd mode is selected. To cancel the 2nd start, push the 2nd start switch once again.

1. INSPECT PATTERN SELECT SWITCH (2nd start mode)
   1. Disconnect the E5 pattern select switch connector.
   2. Measure the resistance of the switch.

   Resistance

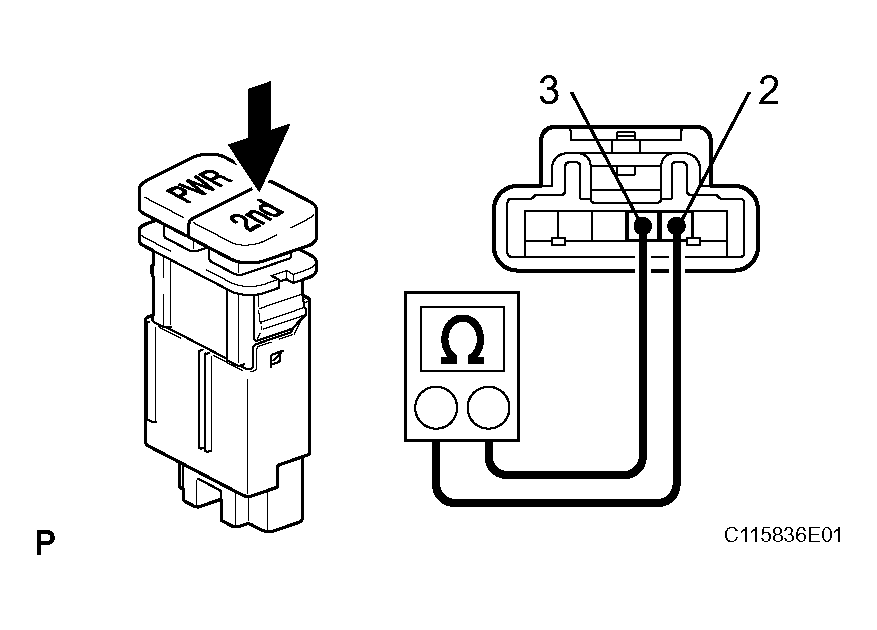

   Fig 2: Inspecting Pattern Select Switch (2Nd Start Mode)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Switch Condition	Specified Condition
   2 - 3	Press continuously 2nd switch	Below 1 Ω
   2 - 3	Release 2nd switch	10 kΩ or higher

   NG : REPLACE PATTERN SELECT SWITCH

   OK : Go To Next Step

2. CHECK WIRE HARNESS (PATTERN SELECT SWITCH - BODY GROUND)
   1. Disconnect the E5 pattern select switch connector.
   2. Measure the resistance of the wire harness side connector.

   Resistance

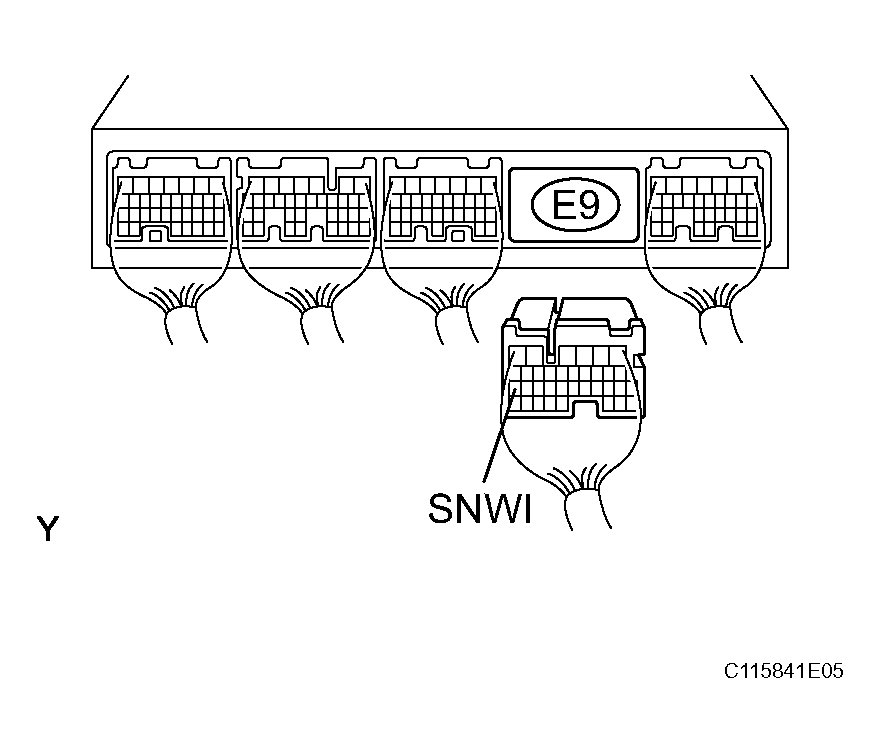

   Fig 3: Identifying E5 Pattern Select Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   E9-27 (SNWI) - Body ground	Below 1 Ω

   NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

   OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOM TABLE
