Floor Shift Assembly: Installation

INSTALL FLOOR SHIFT LEVER ASSEMBLY

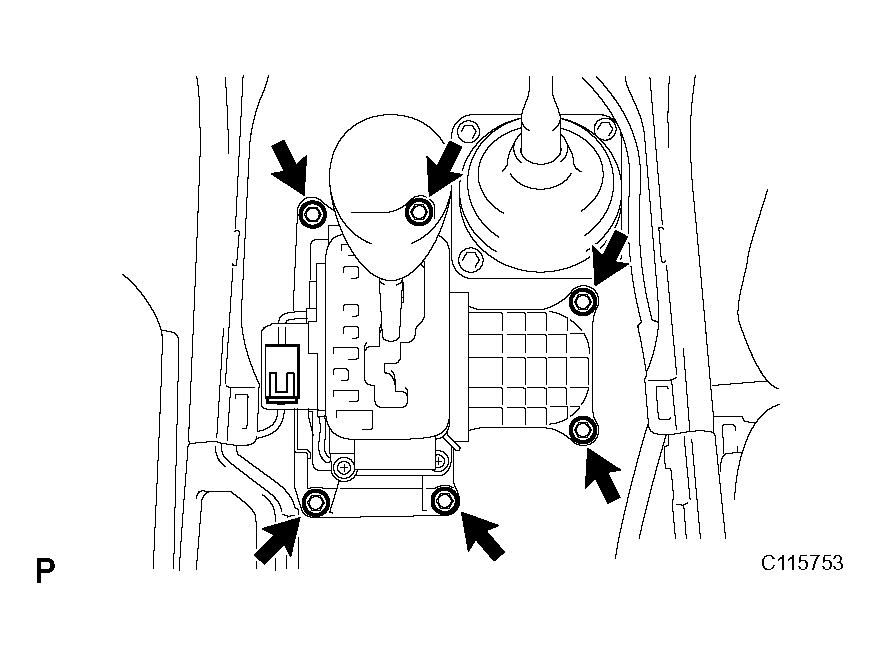

1. Install the floor shift lever assembly with the 6 bolts.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
2. Connect the connector to the floor shift lever assembly.
Fig 1: Identifying Floor Shift Lever Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY
1. Shift into the N position.

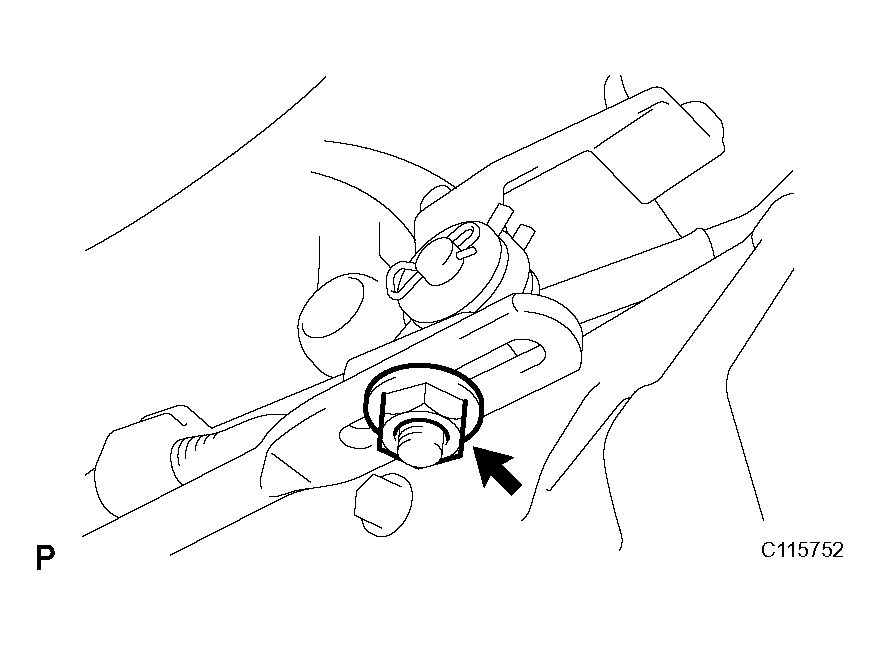

2. Connect the No. 1 floor shift gear shifting rod and connecting rod swivel with the nut.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
1. Install console panel sub-assembly upper (INSTALLATION ).
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Fig 2: Identifying Console Panel Sub-Assembly Upper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
